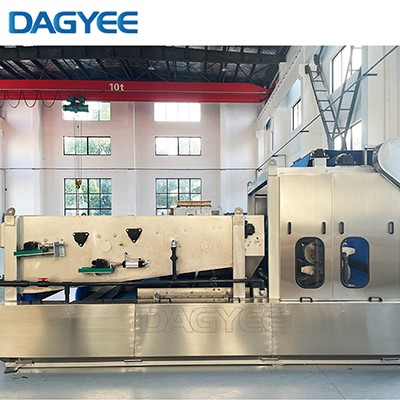

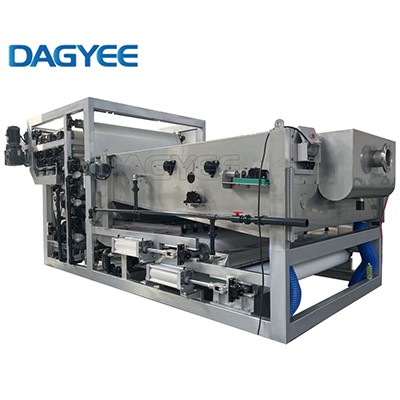

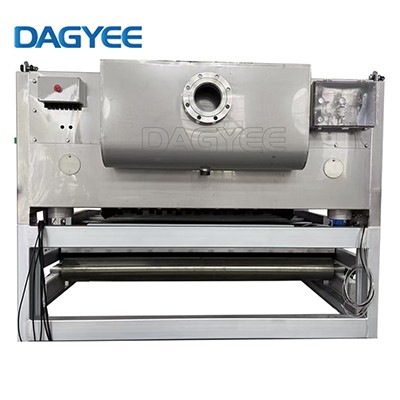

Automatic Sludge Dewatering Belt Filter Press For Etp Sludge In Wastewater Treatment

Automatic Sludge Dewatering Belt Filter Press For Etp Sludge In Wastewater Treatment

Product Item：DY

Belt Width:1m-2.5m

Sludge concentration:2-4%

MOQ:1SET

Capacity M3:6-50

Description

Automatic Sludge Dewatering Belt filter press For Etp Sludge In Wastewater Treatment

The DAGYEE Automatic Sludge Dewatering Belt Filter Press is a high-efficiency, continuous solid-liquid separation solution specifically engineered for Sludge dewatering in Effluent Treatment Plants (ETP). Integrating an advanced automatic control system, precise belt tensioning and tracking technology, and multi-stage pressure dewatering zones, it ensures consistent and stable conversion of liquid sludge into solid cake with low moisture content without manual intervention, significantly reducing sludge disposal costs and environmental impact.

How belt filter presses work

Chemical Conditioning & Gravity Drainage: The sludge, after polymer flocculation, is evenly distributed on the moving filter belt, where free water is separated by natural gravity penetration.
Wedge Pre-Pressing: The sludge enters a gradually narrowing wedge zone, subjected to gentle squeezing to release more water and form a preliminary sludge layer.
High-Pressure Shear Squeezing: The sludge is sandwiched between upper and lower filter belts and passes through a series of press rollers with decreasing diameters. It undergoes progressively increasing linear pressure and shear force to remove capillary water deeply.
Cake Discharge & Belt Cleaning: The dewatered cake is scraped off by doctor blades, and the filter belts are thoroughly cleaned by a high-pressure washing system, ready for the next cycle.

Belt filter presses Technical

Sludge kinds	Input concentration %	Capacitym3/h.m	DS capacitykg/h.m	Moisture of cake%	PAM consumption%(DP/DS )
Unconcentrated aerobic sludge	0.5~1.5	15~30	150~300	~80(+2)	2~5
Concentrated aerobic sludge	2~4	6~12	200~300	~80(+2)	2~5
Digested sludge	3~6	7~15	300~400	<80	2~5
Unconcentrated primary sludge	0.8~2.0	18~35	300~400	<80	2~5
Concentrated primary sludge	3~5	6~12	300~400	≤80	2~5
Paper making activated sludge	0.5~2.5	15~35	200~400	<78	3~7
Printing and dyeingmixed sludge	1~3	10~25	180~350	75-85	3~10

Belt filter presses Advantage

BEARING FRAME Made of two very thick carbon steel plates (on request, SST), fixed to each other by means of profiles and welded to form a stiffen perfectly levelled unit. The whole structure is protected by sand-blasting type Sa 2.5, then by a zinc-aluminium alloy hot spraying and finally covered by a layer of bicomponent polyurethanic resin. Bolts and nuts are made of SST A2 AISI 304. (Ref. A)

ROLLERS The pressing, tensioning, transmission and sludge discharge rollers are protected by a layer of 8mm of rubber. The motorized pressing roller and the trajectory correction one are coated by 8 mm. of rectified rubber layer. All the rollers are supported by ball bearings type ‘Y’ which are suitably sized and guarantee a perfect impermeability. (Ref. B

BELTS TRACTION SYSTEM Models with belts width of 800, 1200, 2000 mm.: it consists of a worm motor variator with speed manual adjustment, directly keyed to the roller; Models with belts width of 1600, 2500, 2600, 3000 mm.: it consists of an epicyclic motor variator connected to a traction roller by a toothed crown and chains protected by carters. (Ref. C)

BELTS GUIDE SYSTEM Pneumatic type with proportional action probes to keep the belts continuously centered and one upon the other. (Ref. D)

BELTS TENSION SYSTEM It consists of pneumatic jacks with air springs which keep the belts tensioned. (Ref. E)

BELTS WASHING SYSTEM It consists of spray header pipes equipped with nozzles which can be cleaned by a specia plan (Ref. F)

Belt filter presses Features

Fully Automatic PLC Control: Enables hands-off operation from feeding, conditioning, dewatering to cleaning.
Intelligent Belt Tracking System: Ensures stable belt operation, prevents deviation and wear, and extends service life.
Multi-Stage Dewatering Design: Combines gravity, wedge pre-pressing, and high-pressure shear for deep dewatering.
Efficient High-Pressure Washing: Equipped with stainless steel nozzles for thorough cleaning and effective prevention of belt clogging.
Heavy-Duty Corrosion-Resistant Structure: Core frame and contact parts made of high-quality stainless steel for corrosion resistance and long life.
Modular Design: Easy installation, maintenance, and part replacement, minimizing downtime.

Belt filter presses Benefits

Lower Operational Costs: Automatic operation reduces labor, and efficient dewatering reduces cake transportation and disposal costs.
Higher Processing Efficiency: Continuous operation offers large capacity, short cycles, and high cake solid content.
Superior Reliability: DAGYEE's precision engineering and durable material selection ensure years of trouble-free, stable operation.
Easier Maintenance: Intelligent diagnostics and modular design simplify daily maintenance and troubleshooting.
Greener Solution: Effective sludge volume reduction helps clients achieve environmental compliance and sustainability goals.
