Description
WHAT IS LAMELLA CLARIFIER
Dagyee Lamella clarifier is an efficient combined sedimentation tank， According to the shallow theory designed;Many dense inclined plates are set in the subsidence area to allow suspended solid in the wastewater to settling on the inclined plate. Water rises and flows upon the inclined plate .The separated sludge slides down the inclined plate to the bottom of the tank under the effect of gravity. Sludge can be discharged in a collector, which can increased capacity by 3 to 5 times on the same area. According to the test data of raw wastewater, different flow rate precipitators can be chosen.
HOW DOES lamella clarifier WORKS
When using, you can choose to add coagulant. The method is to install inclined plate component with an inclination angle of 60 degrees above the suspended layer of sludge. Suspended solids in the raw water, solids or floc alum flowers formed by adding a coagulant are added to the surface area of the inclined plate Accumulate into a thin mud layer, rely on gravity to slide back to the suspended sludge layer, and then sink into the mud hopper. The sewage pipe is discharged into the sludge tank for further treatment or comprehensive utilization. The supernatant gradually rises to the drain of the water collection , which can be directly discharged or reused.
AVAILABLE DESIGNS
- smaller footprint
-
Large effective settling area
-
Improved overflow rates 2 to 4 times
-
Can be used for a long time
- Normal use without clogging, Even clogging is provided with backwash device
- Less possibility for injury
LAMELLA CLARIFIER EQUIPMENT SPECIFICATIONS
Lamella Clarifier Model

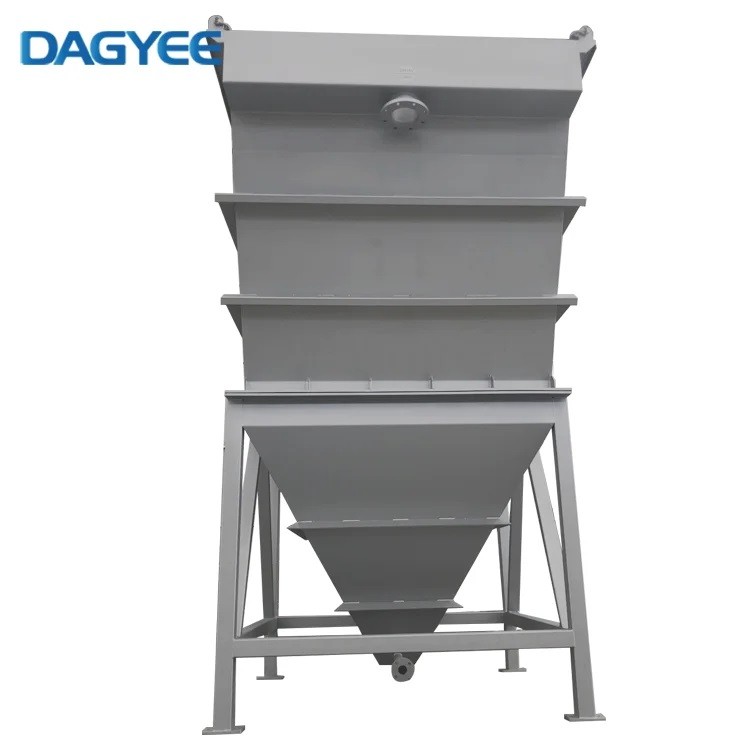

DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.

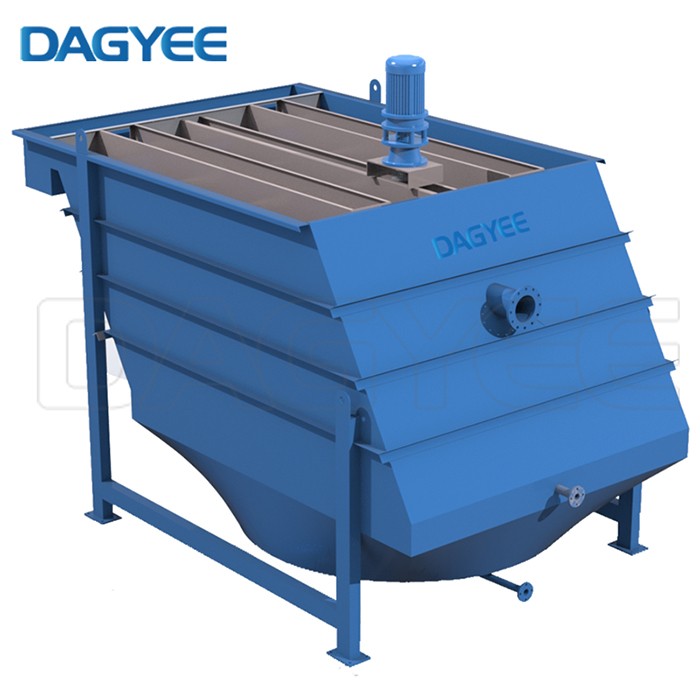

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.

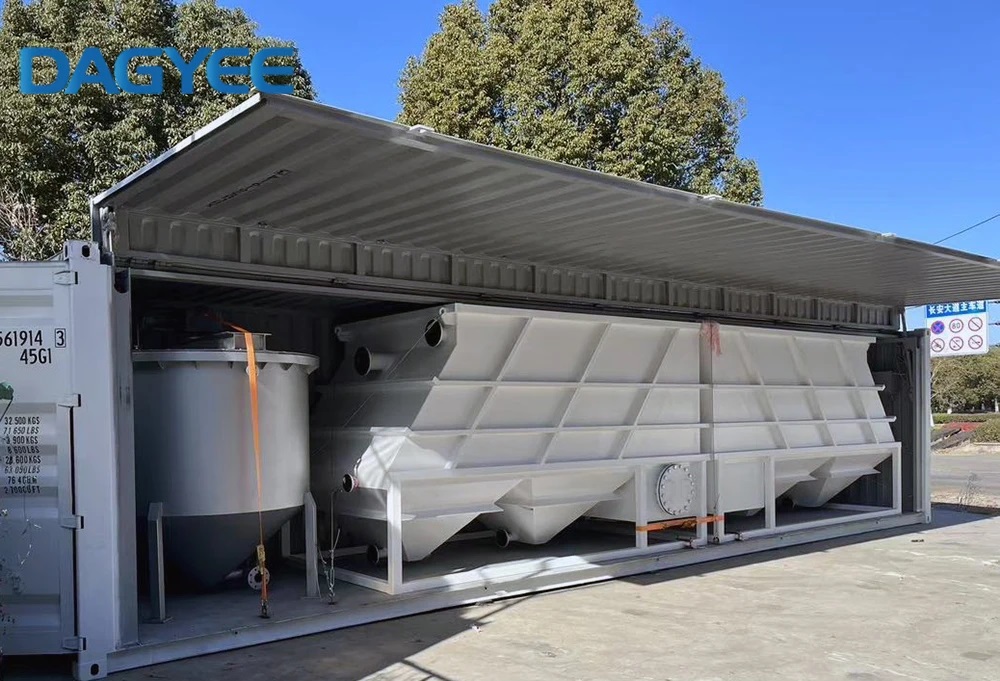

DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.
| DLC Model | Capacities (m³/h) | Piping Connections (mm) | Physical Dimensions (m) | |||||
|---|---|---|---|---|---|---|---|---|
| Inlet(a) | Effluent(b) | Sludge(c) | Backwash(d) | L | W | H | ||
| DLC 5 | 5 | 80 | 80 | 50 | 50 | 2.55 | 1.6 | 2.9 |
| DLC 10 | 10 | 100 | 100 | 50 | 50 | 3.35 | 1.82 | 3 |
| DLC 15 | 15 | 100 | 100 | 50 | 50 | 3.35 | 2.02 | 3 |
| DLC 20 | 20 | 100 | 100 | 50 | 50 | 3.35 | 2.02 | 3 |
| DLC 30 | 30 | 150 | 150 | 50 | 50 | 4.2 | 2.22 | 3 |
| DLC 40 | 40 | 150 | 150 | 50 | 50 | 4 | 2.8 | 3 |
| DLC 50 | 50 | 200 | 200 | 50 | 50 | 4.65 | 2.82 | 3 |
| DLC 60 | 60 | 200 | 200 | 50 | 50 | 4.7 | 3 | 3 |
| DLC 70 | 70 | 250 | 200 | 50 | 50 | 6.4 | 2.6 | 3 |
| DLC 80 | 80 | 250 | 200 | 50 | 50 | 6.8 | 2.82 | 3 |
| DLC 100 | 100 | 250 | 250 | 50 | 50 | 7.05 | 3.02 | 3 |
Lamella Clarifier Advantage
Significantly reduced footprint: The Lamella System’s design reduces its footprint by up to 90% compared to conventional clarifiers, making it an ideal choice for space-constrained areas.
Operational Economy: Known for its low maintenance requirements, the Lamella Clarifier / Settler also eliminates the need for replacement parts, ensuring cost-effective operation over time.
Modular Design: The modular nature of the system facilitates easy expansion, allowing for scalability and adaptability to changing processing requirements.
Cost Efficiency: On a total installed basis, the Lamella Clarifier / Settler proves to be more cost-effective than traditional options, providing economic benefits from installation to operation.
Lamella Clarifier Feature
Our Lamella Clarifier / Settler is the space efficient settling solution for water and wastewater treatment, including reuse of process and backwash water.
Our system is a complete modular solution that includes a flocculation tank, mixers and a sludge scraper. This comprehensive package ensures a seamless, integrated process from start to finish. The modular design allows for easy installation and adaptability to different requirements, making it a versatile choice for many applications.
Lamella Clarifier Application
- Mining
- Metal finishing
- Treat groundwater
-
Industrial process water
- Pre-treatment ahead of membrane filters
- Municipal wastewater
- TSS solids particulate removal
- Dissolved solids and metals precipitation
- Leachate clarification
- Cooling tower water clarification
- Surface raw water treatment
- Water recycling/reuse
- Backwash from sand filters
