Description
What Is DAF Dissolved air flotation
DAF Units Dissolved air flotation is one of the most effective methods whose specific gravity is close to 1.0 from water.Dissolved air flotation is liquid-solid or liquid-liquid separation process to remove tiny suspended solids that density close to the water, oil and grease etc.DAGYEE dissolved air flotation is an innovation combined with traditional dissolved air flotation concept and modern technology.
Why Choose DAF Dissolved Air Flotation
- Total suspended solids (TSS) reduced by up to 97.
- Chemical oxygen demand (COD) removal rate of up to 60-80%.
- Integrated sludge hopper for easy removal of solid deposits .
- The DAF area provides a static space for the formation of the float.
- Heavy-duty, fully protected, counter-current surface separator that removes surface float.

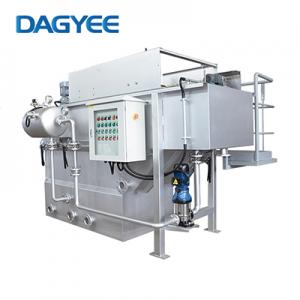

DAF dissolved air flotation consists of flotation tank, dissolved air system, reflux pipe, dissolved air released system, skimmer (Based on customer needs, there are combined type, traveling type and chain-plate type to choose.), electric cabinet and so on.
Air flotation separation technology of DAGYEE DAF dissolved air into water at certain working pressure. In the process, pressurized water is saturated with dissolved air and is discharged into a flotation vessel. The microscopic air bubbles produced by released air attach to suspended solids and float them to the surface, forming a sludge blanket. A scoop removes the thickened sludge. Finally, it complete purifies the water.
DAF Dissolved Air Flotation Process
DAGYEE DAF Dissolved Air Flotation Advantage
-
The most effective white water / recycling design. Large effective settling area.
-
With optional chemical processing stage improved separation efficiency.
-
Compact clarifier and reaction cell design surface loading up to 15m3/m2hr.
-
Rugged design for easy understanding, operation and maintenance.
-
Carbon steel and stainless steel body material design, the lowest cost of ownership.
|
DAF Model |
Qmax. (m3/h) |
PhysicalDimensions(m) |
Weight (Kg) |
Operating Weight(kg) |
Power(kw) | ||||
|
L/L1 |
W/W1 |
H/H1 |
Refluxpump Kw |
Air compressor kw |
Skimmer |
||||
| DAF-002 | 2 | 3.4/2.5 | 2.4/1.16 | 2.2/1.7 | 1300 | 4000 | 0.75 | 0.55 | 0.2 |
| DAF-003 | 3 | 3.7/2.8 | 2.4/1.16 | 2.2/1.7 | 1500 | 5000 | 0.75 | 0.55 | 0.2 |
| DAF-005 | 5 | 4/3 | 2.4/1.16 | 2.2/1.7 | 1600 | 7000 | 1.1 | 0.55 | 0.2 |
| DAF-010 | 10 | 4.65/3.8 | 2.7/1.36 | 2.4/1.9 | 2000 | 12000 | 1.5 | 0.55 | 0.2 |
| DAF-015 | 15 | 5.6/4.5 | 2.9/1.66 | 2.5/2 | 2200 | 18000 | 2.2 | 0.75 | 0.2 |
| DAF-020 | 20 | 5.9/4.8 | 3.2/1.96 | 2.5/2 | 3000 | 22000 | 3 | 0.75 | 0.2 |
| DAF-030 | 30 | 6.8/5.5 | 3.2/2.16 | 2.7/2.2 | 3800 | 32000 | 3 | 0.75 | 0.4 |
| DAF-040 | 40 | 8/6.7 | 3.6/2.6 | 2.7/2.2 | 5000 | 45000 | 5.5 | 0.75 | 0.4 |
| DAF-050 | 50 | 8.4/7 | 3.6/2.6 | 2.7/2.2 | 5500 | 55000 | 7.5 | 0.75 | 0.4 |
| DAF-060 | 60 | 9.9/8.4 | 3.8/2.8 | 2.9/2.4 | 6000 | 66000 | 7.5 | 1.5 | 0.4 |
| DAF-070 | 70 | 10.4/9 | 3.8/2.8 | 2.9/2.4 | 6500 | 75000 | 11 | 1.5 | 0.4 |
| DAF-080 | 80 | 10.8/9.4 | 4/3 | 2.9/2.4 | 7500 | 100000 | 11 | 1.5 | 0.4 |
| DAF-100 | 100 | 12.1/10.6 | 4.2/3.2 | 2.9/2.4 | 9000 | 110000 | 15 | 1.5 | 0.4 |
| DAF-120 | 120 | 12.5/11.4 | 4.4/3.4 | 2.9/2.4 | 10000 | 130000 | 15 | 1.5 | 0.4 |
DAF Dissolved Air Flotation Application
| Slaughterhouses |
| Meat processing and pack- ing |
| Fish processing Dairies |
| Convenience food production |
| Margarine production Oil and fat refineries Canneries |
| Industrial kitchens and can- teens |
| Fast food providers Soap works Cosmetics industry Textile industry Chemical industry |
| Petrochemical industry Iron and steel industry Metal processing Galvanizing, electroplating Land remediation |
