Description
卧螺离心机说明
利用我们先进的卧螺离心机实现无与伦比的透明度和干燥度。它专为连续、高通量处理而设计，可提供最大的分离效率，将复杂的浆料转化为清澈的液体和致密的固体。非常适合最苛刻的工业应用。
体验最大的固液分离效率
- High-performance separation, resulting in high-value products and low waste management costs
- Lower energy consumption and carbon footprint
- Minimal maintenance costs thanks to continuous operation, high-grade machine materials, smart design and well-thought preventive services
- Low capital cost/capacity ratio
- Wide-ranging feed variations and controllable performance
How does a decanter centrifuge work?

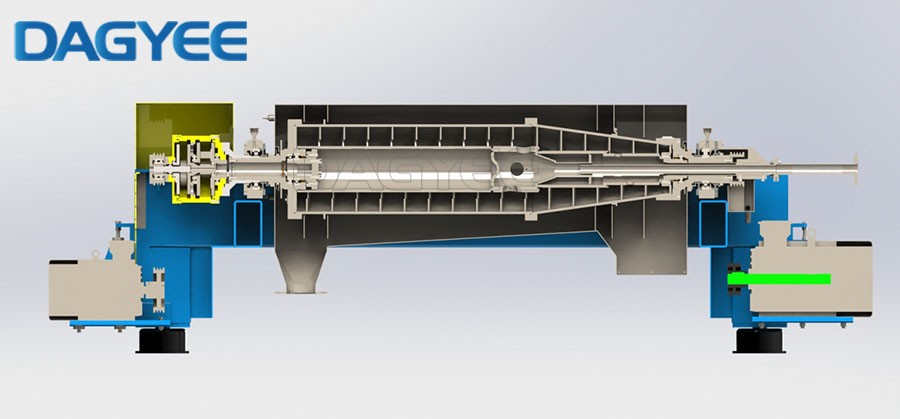

A decanter centrifuge operates on a simple yet powerful principle: high-speed centrifugal force. The slurry is fed into a rapidly rotating horizontal bowl. The high G-force causes denser solids to settle against the bowl wall. A precisely calibrated helical screw conveyor, rotating at a slightly different speed, continuously scrolls the settled solids toward the conical end for discharge, while the clarified liquid flows over an adjustable weir plate. This continuous feed, separation, and discharge process ensures non-stop operation with remarkable consistency.
Decanter centrifuge specifications
- All contact parts can be made by SS304/SS316L/Duplex Steel 2205.
- Automatic adjustment of differential speed via VFD,Siemens PLC Spiral.
- Two motor drive.
- Approximately 80 to 90% of the oil is recovered.
- 由于连续和自动化操作，劳动力成本低。
- 最高的重力可实现更高的固体输出。
- 主电机和副电机的皮带。
- NSK/SKF轴承。
| 模型 |
滚筒直径 毫米 |
长度 毫米 |
最大速度 转速 |
最高分离度 g因子 |
混合容量 立方米/小时 |
|---|---|---|---|---|---|
| LW250-900 | 250 | 900 | 5000 | 3500 | 0.5-3 |
| LW350-1500 | 350 | 1500 | 3800 | 2850 | 1-5 |
| LW400-1200 | 400 | 1200 | 3400 | 2581 | 1-8 |
| LW400-1600 | 400 | 1600 | 3400 | 2581 | 2-10 |
| LW400-1800 | 400 | 1800 | 3400 | 2581 | 2-12 |
| LW450-1800 | 450 | 1800 | 3200 | 2572 | 5-20 |
| LW450-2000 | 450 | 2000 | 3200 | 2572 | 5-25 |
| LW530-2280 | 530 | 2280 | 2800 | 2350 | 10-50 |
| LW600-2400 | 600 | 2400 | 2600 | 2265 | 15-65 |
| LW650-2600 | 650 | 2600 | 2400 | 2100 | 20-80 |
| LW720-2500 | 720 | 2500 | 2200 | 1950 | 25-90 |
| LW800-2560 | 800 | 2560 | 2000 | 1800 | 30-100 |
| LW800-3200 | 800 | 3200 | 2000 | 1800 | 30-110 |
| LW900-3200 | 800 | 3200 | 1800 | 1650 | 30-150 |
为什么选择 DAGYEE dec ant离心机？
