Description
Lamella Separator Description
lamella clarifier also called inclined plate sediment tank. It is good at high efficient combined type settling tank; set many dense inclined tube packing in sediment area, to make the suspended impurity in water sediment, water rise flow along inclined tube, the separated sludge down to the tank bottom along the inclined tube by gravity, then discharge it in concentration. Such tank can improve sediment efficiency 60~70%, it can improve treatment capacity 3~5 times in the same area. It can design different flow rate inclined plate sediment device according to raw waste water test report, it need dose flocculant usually.
Available options
•Flash mixing/flocculation tank with agitator
•Full glass steel or stainless steel structure
•Concrete tank design
•Special coatings and plates
•Integrated mechanical sludge thickener
•Overhaul platforms and ladders
•In-house laboratory analysis to optimize equipment
•Drinking water design
•Gasket and removable cover
•Automatic desilting
•Instrumentation and control
•Chemical feed equipment
•Sludge treatment and dewatering
•Pilot size units for field testing
Lamella Separator Model

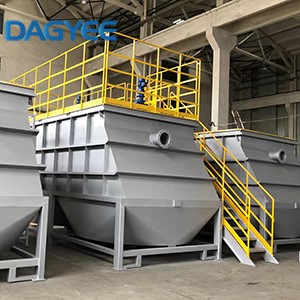

DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.

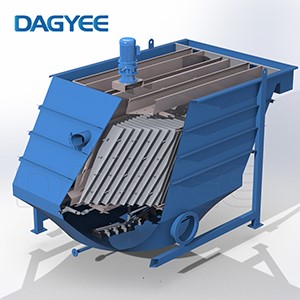

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.
DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.
|
DLC Model |
Capacities (m3/h) |
Piping Connections() | Physical Dimensions(m) | |||||
| Inlet(a) | Effluent(b) | Sludge(c) | Backwash(d) | L | W | H | ||
| DLC- | 5 | 80 | 80 | 50 | 50 | 2.55 | 1.6 | 2.9 |
| DLC- | 10 | 100 | 100 | 50 | 50 | 3.35 | 1.82 | 3 |
| DLC- | 15 | 100 | 100 | 50 | 50 | 3.35 | 2.02 | 3 |
| DLC- | 20 | 100 | 100 | 50 | 50 | 3.35 | 2.02 | 3 |
| DLC- | 30 | 150 | 150 | 50 | 50 | 4.2 | 2.22 | 3 |
| DLC- | 40 | 150 | 150 | 50 | 50 | 4 | 2.8 | 3 |
| DLC- | 50 | 200 | 200 | 50 | 50 | 4.65 | 2.82 | 3 |
| DLC- | 60 | 200 | 200 | 50 | 50 | 4.7 | 3 | 3 |
| DLC- | 70 | 250 | 200 | 50 | 50 | 6.4 | 2.6 | 3 |
| DLC- | 80 | 250 | 200 | 50 | 50 | 6.8 | 2.82 | 3 |
| DLC- | 100 | 250 | 250 | 50 | 50 | 7.05 | 3.02 | 3 |
Lamella Separator Advantages
Smaller footprint
Large effective settling area
Improved overflow rates 2 to 4 times
Can be used for a long time
Normal use without clogging, Even clogging is provided with backwash device
Less possibility for injury
Lamella Separator Applications
Mining
Metal finishing
Scenic water
Industrial process water
Backwash from sand filters
Municipal wastewater treatment
In primary water treatment in place of conventional settling tanks
After aerobic tank
