  • Rotary Trash Ratrash Rake Fine Bar Grid Grille Coarse Screen
  • Rotary Trash Ratrash Rake Fine Bar Grid Grille Coarse Screen
  • Rotary Trash Ratrash Rake Fine Bar Grid Grille Coarse Screen
Rotary Trash Ratrash Rake Fine Bar Grid Grille Coarse Screen Rotary Trash Ratrash Rake Fine Bar Grid Grille Coarse Screen Rotary Trash Ratrash Rake Fine Bar Grid Grille Coarse Screen

Rotary Trash Ratrash Rake Fine Bar Grid Grille Coarse Screen

  • Product Item:DW600-3000
  • Certification:CE Certificate
  • Material: 304,316
  • Machinery Test Report: Provided
  • Automatic cleaning function
  • Inclined Bar Screen  , Channel Mesh Grille  , Wastewater Screening  , Vertical Bar Screen  , Perforated Plate Screen
    Inquiry Send Email

    Description

    Mechanical Fine Screen Description


    The inner-flow screen grid decontamination machine is mainly composed of main components such as driving device, frame, traction chain, screen plate with lifting ladder, washing system and electric control system. The drive motor is installed on the main shaft in the positive direction of the frame. Driven by the transmission chain, the mesh plates on both sides will extract the dirt trapped within its length from bottom to top. When it reaches the upper part, it will pass the steering function of the sprocket. Under the action of the flushing water of the top flushing device, the unloading work is automatically completed. The drive device of the inner flow mesh grille decontamination machine is located on the upper part of the frame, which is an imported brand SEW shaft-mounted reducer. Screw-type adjustment devices are installed on the front and rear sides of the frame to adjust the tightness of the transmission chain.


    The frame of the inner flow mesh grille decontamination machine is an integral cuboid rigid structure assembled and welded by stainless steel plate and section steel. A water inlet hole is opened at the water-facing end of the lower part of the frame, guide rails are arranged on the front and rear walls of the frame, and an internal slag collecting groove is also arranged on the upper part of the frame, which extends to the outside of the machine. The rack is installed in the middle of the grid well, and the gap between the two sides of the rack and the grid well is the channel for the filtered water from the grid. Diversion baffles are arranged on both sides of the water-facing end of the rack, which can prevent floating garbage from passing through while diverting.





    Mechanical Fine Screen Composition


    Parts of the fine grille of the inner inflow mesh plate frame;
    Drive System;
    Stencil System;
    backwash system;
    Division system and Electronic control system;

    The geared motor drives the sprocket to rotate. The sprocket drives the mesh plate to rotate continuously; the sewage enters the grille from the water inlet, and passes through the mesh plate to overspeed. The water flows to the outside of the screen plate, and the dirt is left on the inner surface of the same plate. With the continuous rotation of the screen plate, it helps to the original part: the backwash system flushes the outside of the screen plate, and the dirt is washed to the receiving channel under the action of the flushing water. Feel free to check the flushing water from the well to the sewage outlet.



    Mechanical Fine Screen Parameter





    Grid width A(mm)
    600-3000
    Grid well width mm)
    A+100
    Effective filter width (mm)
    A-150
    Grid well depth H(mm)
    1.5-4
    Installation angle ° 60-80
    Mesh diameter (mm)
    2 3 5 6 8 10
    Running speed  (m/min)
    Less than 3
    Main drive power (KW)
    0.75-3
    Cleaning power (KW)
    0.37-0.75
    Cleaning pressure (Mpa)
    More than 0.3
    Design maximum water level difference (m)
    1.0
    Capacity Mesh diameter with 3mm (m3/hr) 700
    Capacity Mesh diameter with 4-6mm (m3/hr)
    900
    Capacity Mesh diameter with 7-10mm (m3/hr)
    1200



    Mechanical Fine Screen Advantage


    The removal rate is high, which can reasonably remove chemical fibrous substances such as hair;
    The backwash water completely eliminates the waste intercepted on the screen, and it is not easy to fall into the filtered water to prevent secondary environmental pollution;
    The stencil is made of non-metallic injection molding products, which is anti-wear and anti-corrosion;
    There are no transmission system components in the water, and no maintenance is required, which is more conducive to repair and maintenance;
    The vulnerable parts are standardized, easy to disassemble and replace, and easy to use;
    Stable operation, light vibration and low noise.



    Mechanical Fine Screen Options


    Alternative screen types and sizes
    Material 304 L / 316 L SS
    Alternative voltage and frequency
    Alternative degree of motor protection
    Control panel


    Mechanical Fine Screen Application


    It is a high-efficiency fine grille decontamination equipment that combines pollution blocking and decontamination.

    It is suitable for large, medium and small pump stations as fine grilles to intercept and remove floating objects in the water, such as: weeds, paper, cigarette butts, melon seeds, fibers, hair, etc.

    This model has a high dirt capture rate , the effective implementation of the subsequent treatment process.




    Inquiry Us





    Related Products

    Hdpe Plastic Biofilm Filter Media Random Bio Ceramic Balls Mbbr Suspension Moving Bed Biological Reactor

    Hdpe Plastic Biofilm Filter Media Random Bio Ceramic Balls Mbbr Suspension Moving Bed Biological Reactor

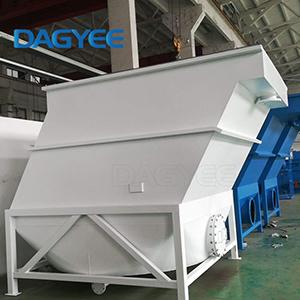

    High Capacity Inclined Plate Separators Sludge Thickening

    High Capacity Inclined Plate Separators Sludge Thickening

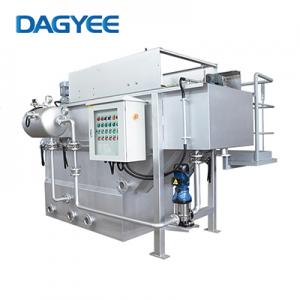

    Wastewater Treatment Dissolved Air Flotation Device With Polymer Preparation Units
