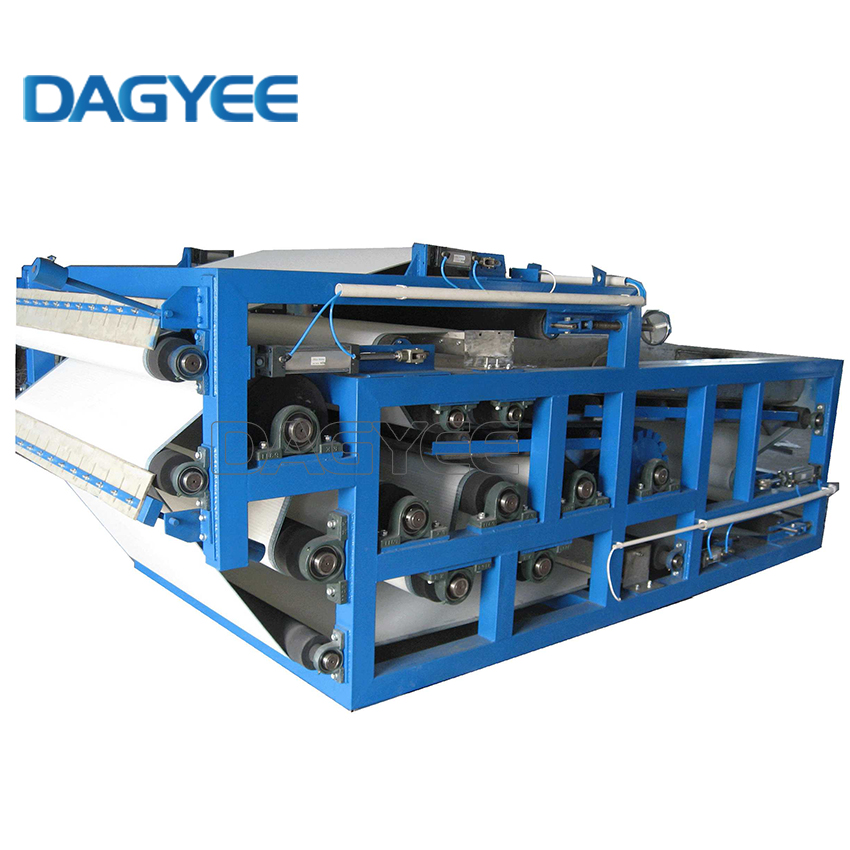

China Belt filter press Machine Manufacturer
DAGYEE - Your Trusted Belt Filter Press Machine Manufacturer in China
As a leading solid-liquid separation equipment manufacturer in China, DAGYEE is committed to providing global clients with high-performance, cost-effective, and robust Belt Filter Presses. Integrating R&D, production, sales, and service, we have become a reliable partner for numerous water utilities and industrial enterprises worldwide, thanks to our mature technology, strict quality control, and competitive pricing.
How belt filter presses work
-
Mobile Feeding: Mining wastewater sludge is fed into the unit via a mobile pumping system.
-
Rapid Flocculation: In a compact flocculation mixer, the sludge reacts with specialized flocculants to form large, stable flocs.
-
Three-Stage Dewatering:
-
Gravity Drainage: Flocculated sludge rapidly releases free water on the filter belt.
-
Wedge Pre-Pressing: The sludge is gently compressed in the wedge zone to enhance stability.
-
High-Pressure Squeezing: Incremental pressure from a series of press rollers forms a dry, solid cake.
-
-

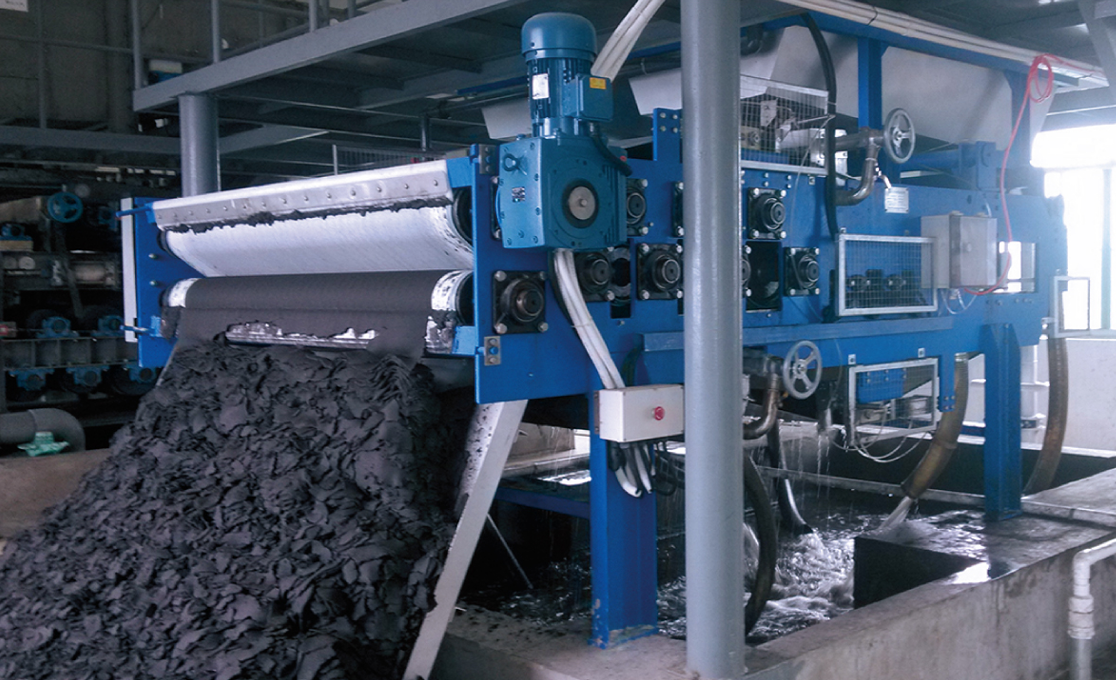

Centralized Discharge & Mobility: The dry cake is discharged centrally, and the entire system is ready to be towed to the next site.
Belt filter presses Technical
|
Sludge kinds |
Input concentration % |
Capacitym3/h.m |
DS capacitykg/h.m |
Moisture of cake% |
PAM consumption%(DP/DS ) |
|
Unconcentrated aerobic sludge |
0.5~1.5 |
15~30 |
150~300 |
~80(+2) |
2~5 |
|
Concentrated aerobic sludge |
2~4 |
6~12 |
200~300 |
~80(+2) |
2~5 |
|
Digested sludge |
3~6 |
7~15 |
300~400 |
<80 |
2~5 |
|
Unconcentrated primary sludge |
0.8~2.0 |
18~35 |
300~400 |
<80 |
2~5 |
|
Concentrated primary sludge |
3~5 |
6~12 |
300~400 |
≤80 |
2~5 |
|
Paper making activated sludge |
0.5~2.5 |
15~35 |
200~400 |
<78 |
3~7 |
|
Printing and dyeingmixed sludge |
1~3 |
10~25 |
180~350 |
75-85 |
3~10 |
Belt filter presses Advantage

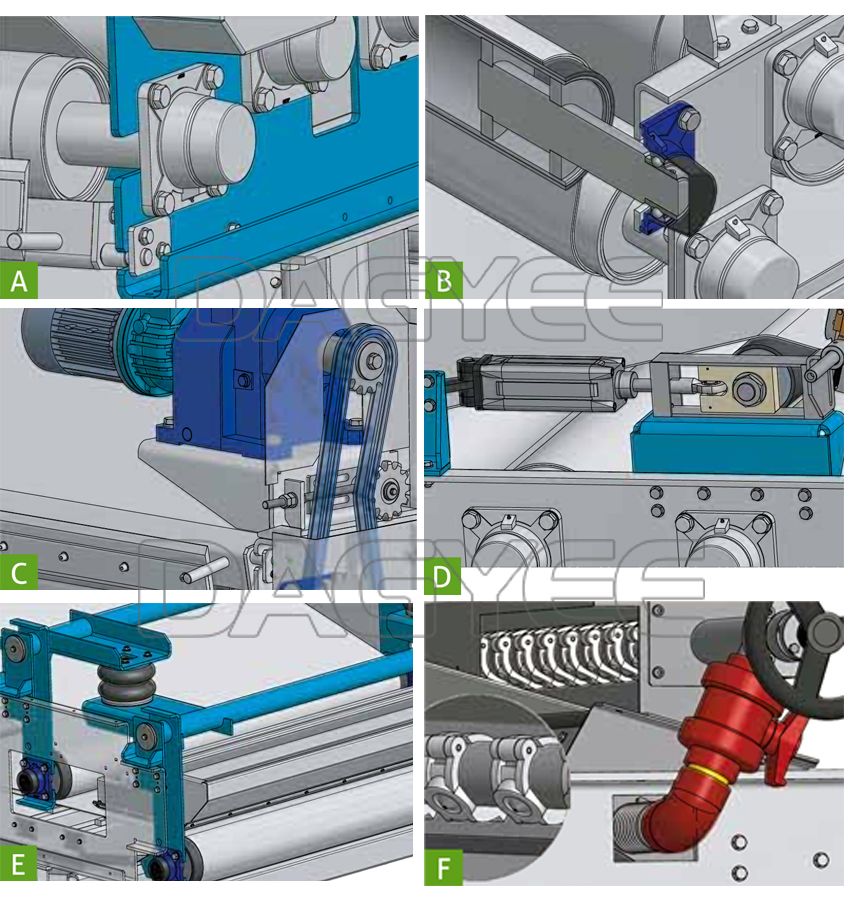

BEARING FRAME Made of two very thick carbon steel plates (on request, SST), fixed to each other by means of profiles and welded to form a stiffen perfectly levelled unit. The whole structure is protected by sand-blasting type Sa 2.5, then by a zinc-aluminium alloy hot spraying and finally covered by a layer of bicomponent polyurethanic resin. Bolts and nuts are made of SST A2 AISI 304. (Ref. A)
ROLLERS The pressing, tensioning, transmission and sludge discharge rollers are protected by a layer of 8mm of rubber. The motorized pressing roller and the trajectory correction one are coated by 8 mm. of rectified rubber layer. All the rollers are supported by ball bearings type ‘Y’ which are suitably sized and guarantee a perfect impermeability. (Ref. B
BELTS TRACTION SYSTEM Models with belts width of 800, 1200, 2000 mm.: it consists of a worm motor variator with speed manual adjustment, directly keyed to the roller; Models with belts width of 1600, 2500, 2600, 3000 mm.: it consists of an epicyclic motor variator connected to a traction roller by a toothed crown and chains protected by carters. (Ref. C)
BELTS GUIDE SYSTEM Pneumatic type with proportional action probes to keep the belts continuously centered and one upon the other. (Ref. D)
BELTS TENSION SYSTEM It consists of pneumatic jacks with air springs which keep the belts tensioned. (Ref. E)
BELTS WASHING SYSTEM It consists of spray header pipes equipped with nozzles which can be cleaned by a specia plan (Ref. F)
Belt filter presses Features
-
High Efficiency, Dry Cake: Optimized roller arrangement and multi-stage dewatering zones ensure maximum output solid content.
-
Fully Automatic Intelligent Control: Standard with PLC and HMI for one-touch operation, automatic tracking, and interlocked protection. Simple to operate.
-
Premium Core Components: Uses imported tracking systems, heavy-duty bearings, and high-quality stainless steel for long-term stability.
-
Low Operational Costs: Features low energy consumption, long filter belt life, and reduced chemical (polymer) consumption.
-
Robust Frame Structure: The main beam and frame are designed with FEA analysis for superior stability, fatigue resistance, and 24/7 operation capability.
Belt filter presses Benefits
-
Drastically Reduced Hauling Costs: In-situ dewatering converts liquid sludge to dry cake, massively reducing volume and thus the cost of transportation to tailings dams or disposal sites.
-
Zero Fixed Infrastructure Investment: Eliminates the need for costly permanent dewatering buildings, saving significant capital and time.
-
Rapid Emergency Response: Serves as an emergency unit to quickly tackle accident ponds or overflow situations.
-
Unmatched Project Flexibility: Ideal for small-to-medium mines, short-term projects, or scenarios requiring mobility between different mining sites.
-
DAGYEE Proven Reliability: Inherits the high reliability of the DAGYEE brand, ensuring stable performance in demanding mining environments.
Belt filter presses application Industries
-
Municipal Wastewater Treatment Plants
-
Pulp & Paper, Food & Beverage Industries
-
Petrochemical, Pharmaceutical, Chemical Industries
-
Mining, Metallurgy, Mineral Processing
-
Textile, Dyeing, Electroplating Industries
-
River Dredging and Sludge Disposal Centers
-
Highly Competitive Pricing: The cost advantage of "Made in China" allows you to acquire high-quality equipment with a lower investment.
-
Outstanding Cost-Performance: We refuse to use cheap alternatives for critical components, ensuring long-term reliability and low failure rates.
-
Fast Delivery Lead Time: An efficient supply chain and scalable production ensure quick order fulfillment.
-
Worry-Free After-Sales Service: We provide detailed installation guidance, remote technical support, and guaranteed spare parts availability.
-
Global Project Experience: Our machines have been exported to dozens of countries, proven to adapt to various complex water qualities and environments.
