Description

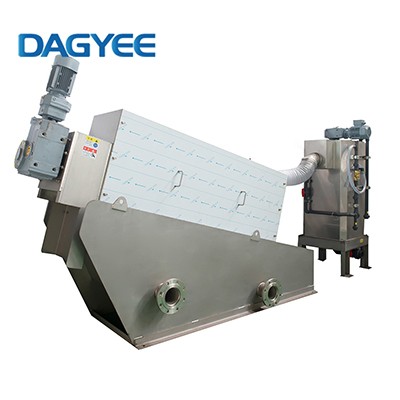

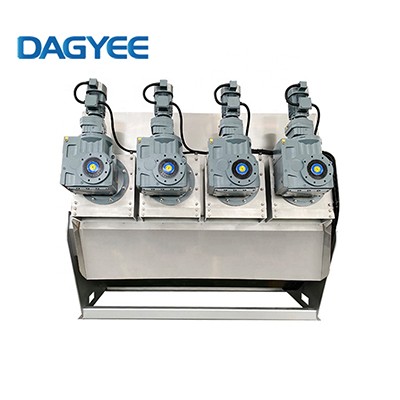

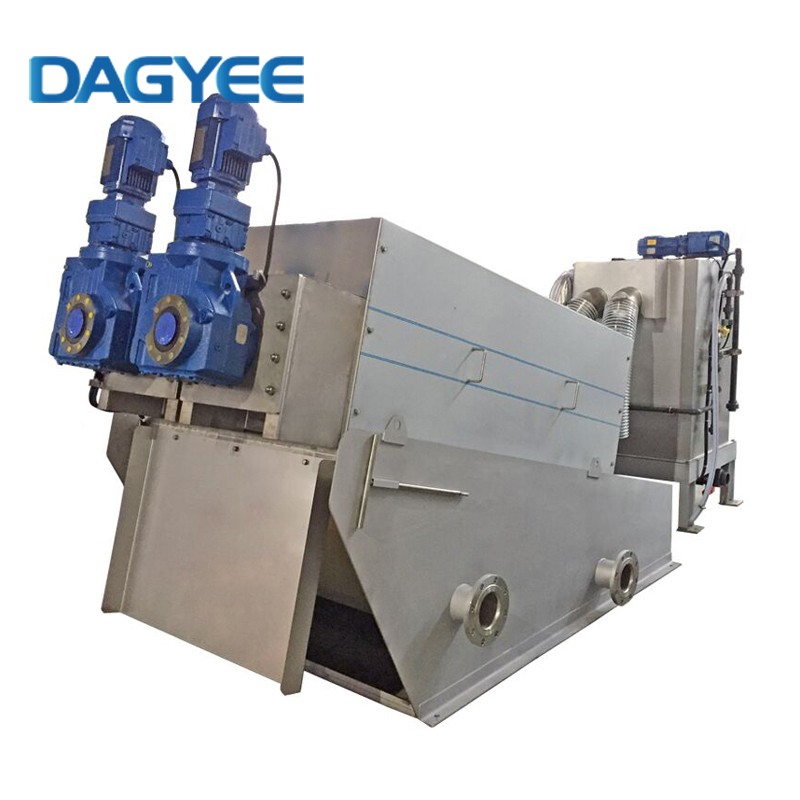

Screw Press Dehydrator
Sludge dewatering equipment is not intended to treat the sludge or liquid but; it only separates the liquid components & solid components so it will get easier & cost effective to handle the separate phases of the disposal. Once the final sludge has been dewatered, then liquid is treated in ETP/STP & solid sludge is disposed.
The main purpose of Sludge dewatering machine is to minimize the handling and disposal. Sludge dewatering press is the most cost effective method of dewatering, and hence helps to sustain the environmental objectives of company.
Sludge dewatering press is treatment which generates dewatered cake with high dry solid content and a quality of cent rate water, leading to vital sludge volume reduction. So, that's why the prices which are related to sludge dewatering screw press have been decreased.
Screw Press Dehydrator Features
- Automatic continuous operation
- Compact design with flocculation and dewatering
- Low power and water consumption
- Low operation cost
- No filter cloth, no clogging
- No need for sludge thickener
- Easy operation and maintenance
- No vibration and noise
Screw Press Dehydrator Technical Table
| Model | DL303 |
| DS capacity kg/h | 90--150 kg/h |
| Sludge capacity m3/h(2-50g/L) | 3-45 |
| Spiral diameter mm | ￠310*3 |
| Discharge Distance mm | 495 |
| Size L*W*H mm | 3605*1690*1600 |
| Net.Kg | 1520 |
| Run Kg | 3080 |
| Power Kw | 1.86 |
| Washing Q L/h | 120 |
Screw Press Dehydrator Application
- Simple arrangement.
- Low Power Consumption.
- Simple and short start-up and shut down procedures.
- Continuous operation.
- Hence continuous output can be obtained.
- Process can be automized.
- Only electricity and water supply for cleaning is required, and that too in less amount.
- For a multi-channel machine, one or more channels may be removed for maintenance purposes, while the machine with the remaining channels may still be operated.
- No clogging.
- Cleaning is automized and is easy.
- Long life of discs.
- No external lubrication system is required.
- Flocculator built in the Screw press.
