Description

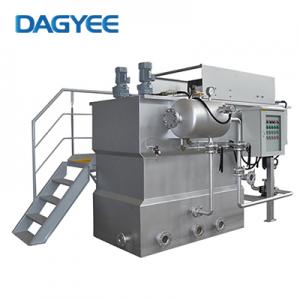

30m3 Oil Water Separator DAF System Clarifier
Dagyee DAF System The waste water enters the unit through the distribution pipe.The distribution pipe distributes the water evenly over the plate pack . Part of the treated water is recycled to the feed with a special dissolution pump.The pump is capable of pressurising relatively large amounts of air together with water, while forcing the added air bubbles to dissolve.The pressurised and air saturated recycle flow is mixed with the waste water. The free air separator removes large unwanted gas/air bubbles. Special designed bubble generator valves create a sharp pressure drop causing the dissolved gas to be released as very small micro bubbles.
30m3/hr DAF System Clarifier Specification
|
Parameter |
Units |
DAF 030 |
|
DAF Flow Rate |
m3/hr |
30 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
4.7 |
|
Footprint |
m |
6.8*3.2 |
|
Inlet |
in |
6 |
|
outlet |
in |
6 |
|
Sludge outlet |
in |
6 |
|
Vent |
in |
4 |
DAF System Clarifier Typical Performance
-
Oil removal 30 - 98% up to 2 - 10 ppm
-
COD reduction 30-92%
-
TSS removal 50 - 97%
-
Up to 10-40 ppm
-
Floated sludge thickening 4 - 10%
Why Choose DAGYEE DAF System Clarifier
Because we have achieved a very high standard by means of our research, based on empirical values, especially by applying an innovative process technology based on homogenization of liquid due to micro bubbles and their effect on flotation and oxidation. This is a guarantee for a frictionless operation, even after expiring of the guarantee period.
DAF System Clarifier Main Process Features
• Reduction in wastewater surcharges and further treatment expense.
• Better energy efficiency—physical separation vs biological treatment.
• Recovery of useful and marketable by-products.
• Reduction in chemical usage—smaller more abundant bubbles float a finer floc.
• Cost efficient, in-house manufacturing.
Application DAF System Clarifier
-
Industrial Wastewater Treatment
-
Aquaculture
-
Tanneries
-
Pulp & paper
-
Slaughterhouses
-
Food processing
-
Breweries and wineries
Frequently Asked Questions On DAF System Clarifier
• How to buy your idea products?
A:You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
• How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
• What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
• How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
• How to keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.
