Description

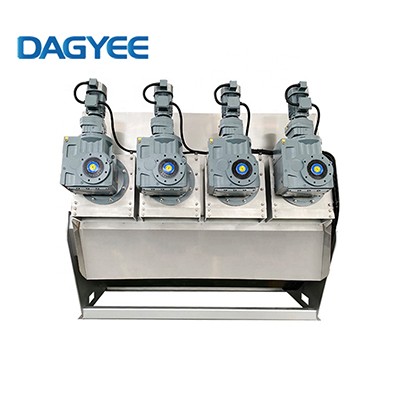

Screw Press Dehydrator
The spiral type sludge dewatering machine is a kind of water treatment system, which is widely used in municipal wastewater treatment engineering, petrochemical, light industry, chemical fiber, paper making, pharmaceutical, leather and other industries. The actual operation shows that the sludge dewatering can create considerable economic benefits and social benefits for the customers.
The main purpose of Sludge dewatering machine is to minimize the handling and disposal. Sludge dewatering press is the most cost effective method of dewatering, and hence helps to sustain the environmental objectives of company.
Sludge dewatering press is treatment which generates dewatered cake with high dry solid content and a quality of cent rate water, leading to vital sludge volume reduction. So, that's why the prices which are related to sludge dewatering screw press have been decreased.
Screw Press Dehydrator Features
- Exclusive pre-thickening device enables a wide solid concentration ranging from 3000mg/l to 50000mg/l
- Fixed and moving plates replace filter cloth, self-cleaning, clog-free, easy to handle oily sludge
- Low running speed, low noise, low power consumption, 1 /8 of Belt Press and 1 /20 of centrifuge
- Less capital construction cost, more excellent working performance
- Fully automatic control, Easy operation and simple maintenance
Screw Press Dehydrator Technical Table
| Model | DL131 |
| DS capacity kg/h | 6--10 kg/h |
| Sludge capacity m3/h(2-50g/L) | 0.2-3 |
| Spiral diameter mm | ￠130*1 |
| Discharge Distance mm | 250 |
| Size L*W*H mm | 1969*756*1040 |
| Net.Kg | 220 |
| Run Kg | 315 |
| Power Kw | 0.36 |
| Washing Q L/h | 24 |
Screw Press Dehydrator Application
- Simple arrangement
- Low Power Consumption
- Simple and short start-up and shut down procedures
- Continuous operation.
- Hence continuous output can be obtained
- Process can be automized
- Only electricity and water supply for cleaning is required, and that too in less amount
- For a multi-channel machine, one or more channels may be removed for maintenance purposes, while the machine with the remaining channels may still be operated
- No clogging. Cleaning is automized and is easy
- Long life of discs
- No external lubrication system is required
- Flocculator built in the Screw press
