Description
Lamella Separator Description

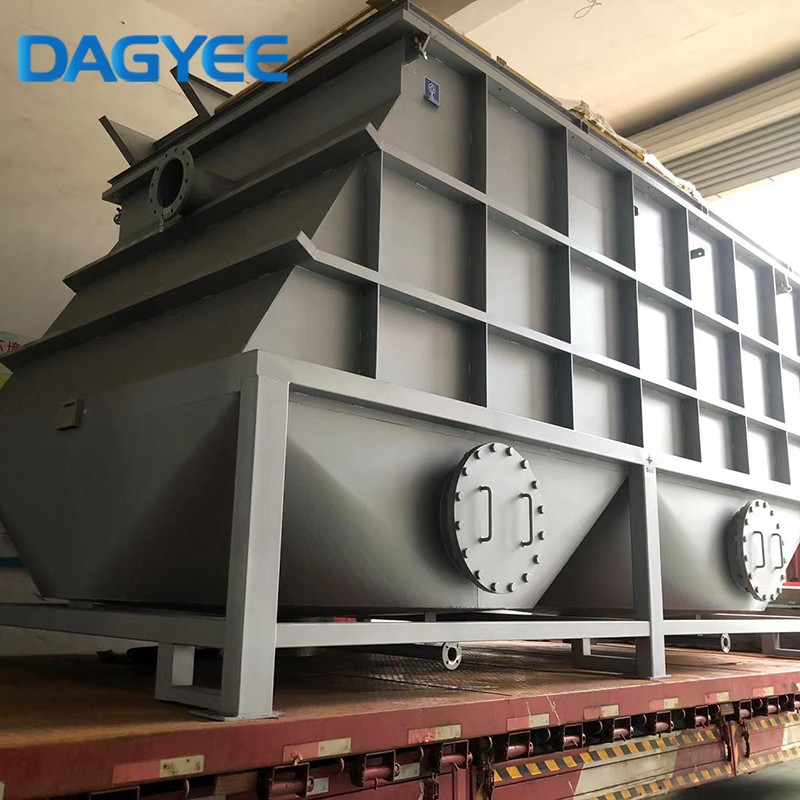

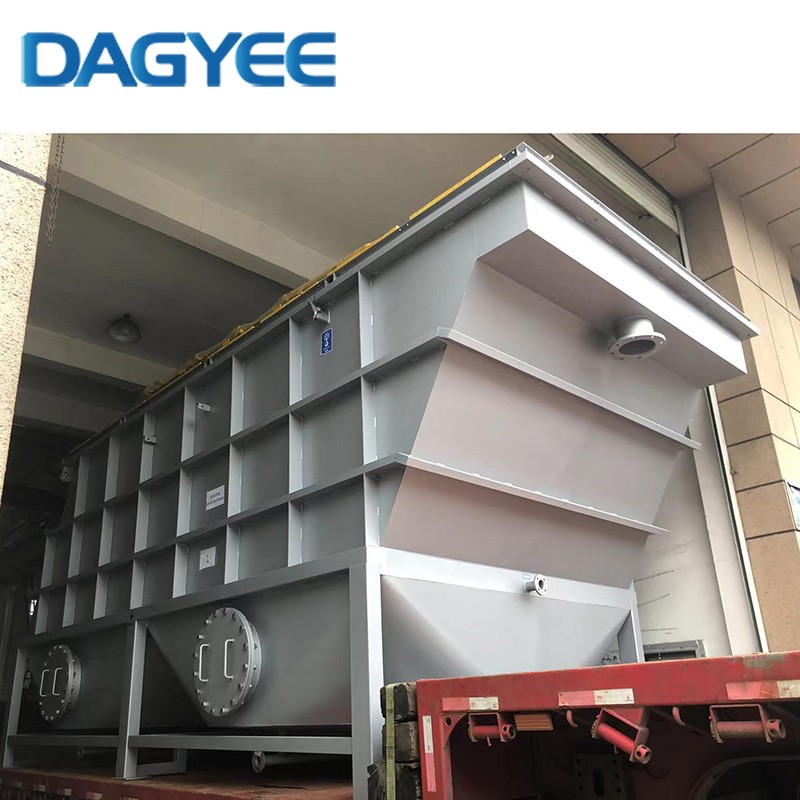

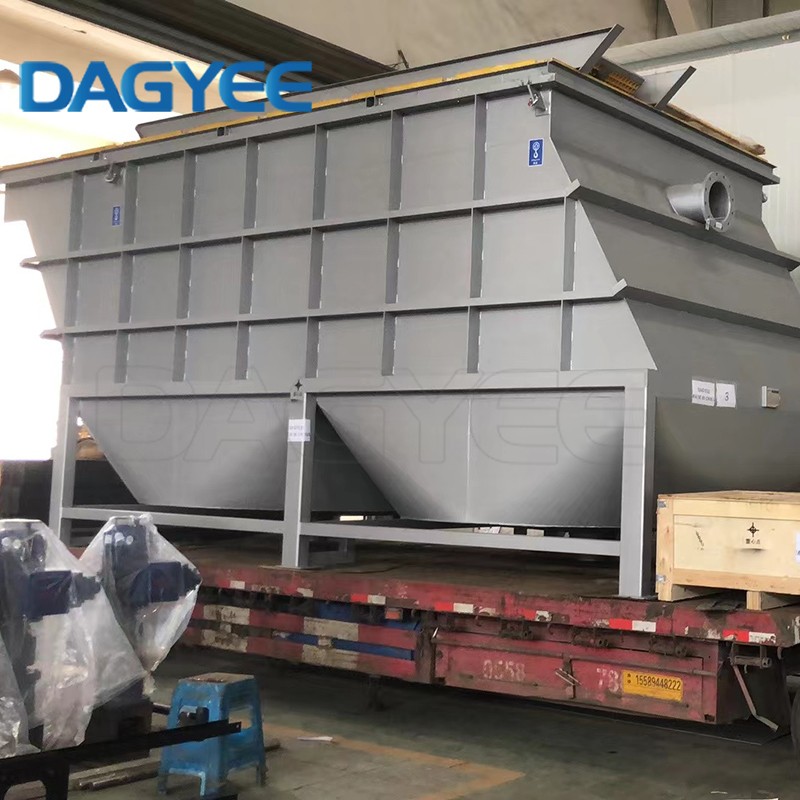

Gravity Settler is a pre-assembled, modular, high rate inclined plate settler that uses a counter-current flow principle for effective solids removal. The inclined plate concept provides an effective settling area that is equal to the field of each plate as projected onto a horizontal surface. Using the standard 2″ plate spacing and 55°-60°, up to 10 ft² of projected area become available for each square foot of land area.
Available Options
Flash mixing/flocculation tank with agitator
Full glass steel or stainless steel structure
Concrete tank design
Special coatings and plates
Integrated mechanical sludge thickener

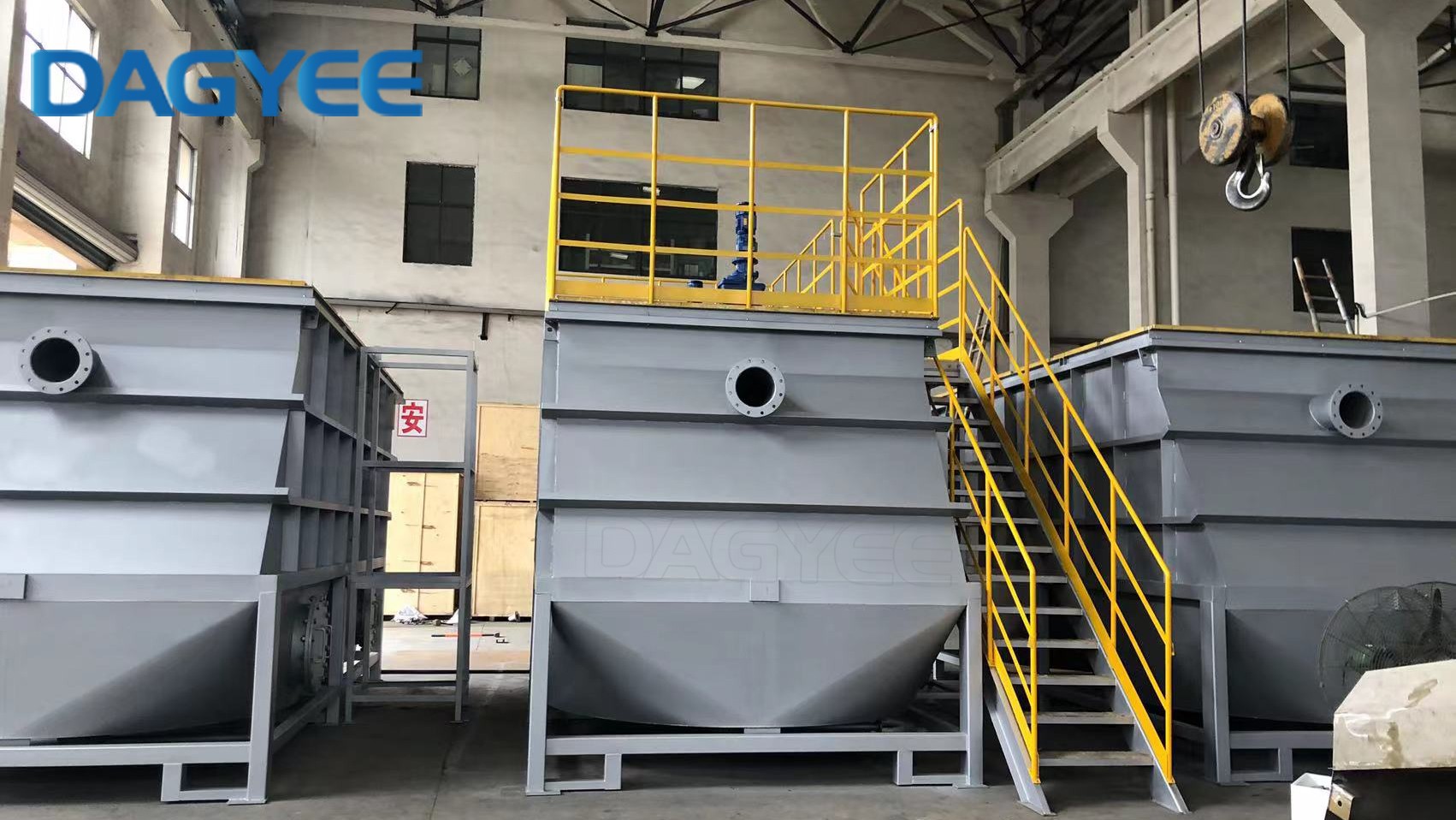

Overhaul platforms and ladders
In-house laboratory analysis to optimize equipment
Drinking water design
Gasket and removable cover
Automatic desilting
Instrumentation and control
Chemical feed equipment
Sludge treatment and dewatering
Pilot size units for field testing
Lamella Separator Model
DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.
DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.
DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.
|
DLC |
Capacities |
Piping Connections() |
Physical Dimensions(m) |
|||||
|
Inlet(a) |
Effluent(b) |
Sludge(c) |
Backwash(d) |
L |
W |
H |
||
|
DLC- |
5 |
80 |
80 |
50 |
50 |
2.55 |
1.6 |
2.9 |
|
DLC- |
10 |
100 |
100 |
50 |
50 |
3.35 |
1.82 |
3 |
|
DLC- |
15 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
DLC- |
20 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
DLC- |
30 |
150 |
150 |
50 |
50 |
4.2 |
2.22 |
3 |
|
DLC- |
40 |
150 |
150 |
50 |
50 |
4 |
2.8 |
3 |
|
DLC- |
50 |
200 |
200 |
50 |
50 |
4.65 |
2.82 |
3 |
|
DLC- |
60 |
200 |
200 |
50 |
50 |
4.7 |
3 |
3 |
|
DLC- |
70 |
250 |
200 |
50 |
50 |
6.4 |
2.6 |
3 |
|
DLC- |
80 |
250 |
200 |
50 |
50 |
6.8 |
2.82 |
3 |
|
DLC- |
100 |
250 |
250 |
50 |
50 |
7.05 |
3.02 |
3 |
Lamella Separator Advantages
More compact size than the classic silo
Increased performance in terms of lt./min. and water clarity
No maintenance required thanks to the innovative self-cleaning system
Eliminates the expensive construction of settling pits
Reduces and optimizes the cost of mud disposal
Structure in galvanized Iron
Lamella Separator Applications
Water following physical-chemical treatment.
Tailings in mining and metallurgical beneficiation.
Solutions from gold leaching processes.
Wet scrubbing effluents.
Effluent treatment in pulp and paper mills.
Filter backwash.
