Description
DAGYEE Polymer Unit
DAGYEE polymer preparation units are designed for maximum efficiency, ensuring your operations run smoothly. With our batch preparation philosophy, you can achieve the ideal concentration quickly, thanks to a one-hour aging process from start to finish. High-quality stainless steel materials and components guarantee both product excellence and long-term reliability.
Tailoring polymer concentration to your specific needs is easy. Our units offer precise calibration for the dry polymer feed rate and dilution water flow rate, all easily adjustable through the user-friendly PLC panel. Experience flexibility like never before, with standard volumes ranging from 1 m³ to 10 m³ and strengths from 0.05% to 0.5%. Need further dilution? We’ve got you covered.
DAGYEE Polymer Prep Units redefine efficiency and savings. Fully automatic, they streamline operations and dramatically reduce maintenance costs. Say goodbye to time-consuming manual processes and costly upkeep. Our units optimize polymer consumption, minimizing waste and maximizing performance.
DAGYEE commitment is to enhance your operations with effortless efficiency. Our units save you time, money, and effort, all while delivering superior results. Experience the future of polymer preparation. Contact us today.
Key features
- Efficient batch preparation: Designed for maximum efficiency with a batch preparation philosophy, ensuring smooth operations.
- Premium stainless steel construction: High-quality stainless steel materials and components guarantee product excellence and long-term reliability.
- User-friendly PLC Panel: Adjust dry polymer feed rate and dilution water flow rate easily through the user-friendly PLC panel.
- Fully automatic operation: DAGYEE Polymer Prep Units are fully automatic, streamlining operations and reducing maintenance costs.
- Optimized polymer consumption: Units optimize polymer consumption, minimizing waste and maximizing performance.
Polymer Preparation unit Model

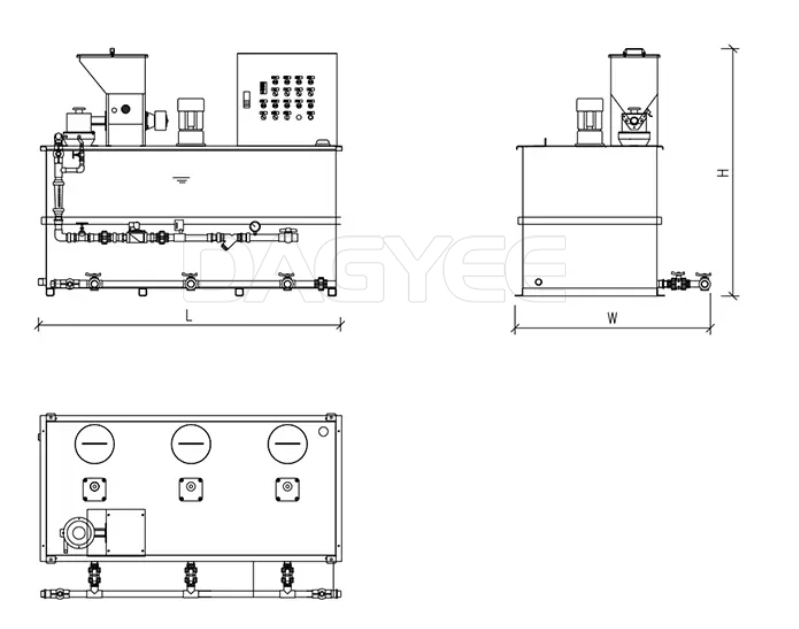

| Model | Capacity L/H | Volume L | Timing H | Dimensions MM | Weight KG | Power KW |
|---|---|---|---|---|---|---|
| DT300 | 300 | 450 | 0.6-1 | 1500*1000*500 | 300 | 1.8 |
| DT500 | 500 | 750 | 0.6-1 | 1500*1000*650 | 420 | 1.8 |
| DT1000 | 1000 | 1500 | 0.6-1 | 2000*1000*900 | 500 | 2.8 |
| DT1500 | 1500 | 2250 | 0.6-1 | 2000*1200*900 | 620 | 3 |
| DT2000 | 2000 | 3000 | 0.6-1 | 2500*1200*1000 | 800 | 3.9 |
| DT3000 | 3000 | 4500 | 0.6-1 | 3000*1500*1000 | 950 | 5.3 |
| DT5000 | 5000 | 7500 | 0.6-1 | 5000*1500*1000 | 1250 | 7 |
| DT10000 | 10000 | 15000 | 0.6-1 | 4800*1800*2000 | 3600 | 7 |
Polymer preparation Unit Advantage
- Avoid the need for manual operations – Prevent dosing errors, operation stops.
- Standardization of the obtained polymer – Concentration, maturation time, homogeneity.
- High efficiency mixers – Provide a low flow mixing for a homogeneous flocculant polymerisation without mechanical deterioration.
- Optimised process – Visual access to the process and alarms, fieldbus distributed control (optional) provides informative and easy to access equipment and status application updates, controlled costs. Intelligent system that feeds the process when needed, regulated by an ultrasonic level switch.
- Reliability and Robustness in Any Environment.
Polymer preparation Unit Feature
- Fully automated operation — saves labor costs and prevents dosing errors, operation stops
- Standardization of the resulting polymer — concentration, maturation time, homogeneity
- High efficiency mixer — Provides low flow mixing for homogeneous flocculant polymerization without mechanical degradation
- Optimized process — visual access to process and alarms, can feed the process when needed, regulated by ultrasonic level switches
- Compact design — easy to transport and relocate
- Safe and reliable — operation with airlift and overflow protection
Polymer preparation Unit Remark
♦ Model selection: Process capacity or flow volume is necessary
♦ Raw material: SS304 or SS316.

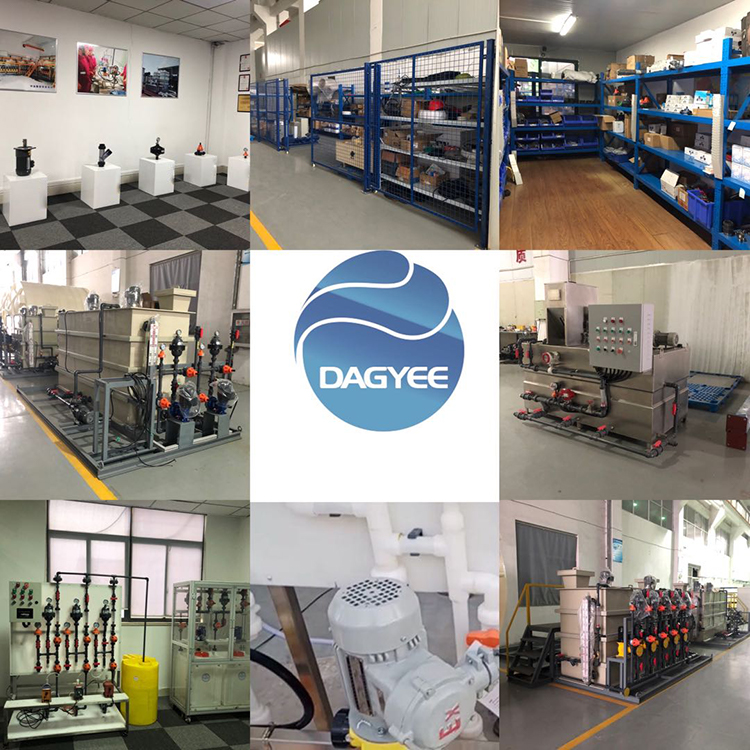

♦ Manufacturer: We have our own workshop so that best quality and loweat price can be provided for you.
♦ Customization: Custom-made is available.
Supplier Information
We are a professional supplier specializing in high-efficiency Dissolved air flotation (DAF) systems, offering customized engineering solutions, bench-scale testing services, and robust equipment designed for demanding industrial and municipal applications.
