Description
Decanter centrifuge descriptions
Experience maximum solid-liquid separation efficiency with DAGYEE's advanced decanter centrifuge technology. Our centrifuges deliver unparalleled performance in continuous processing applications, achieving superior clarity in liquid phases and maximum dryness in solid outputs.
Experience maximum solid-liquid separation efficiency
- High-performance separation, resulting in high-value products and low waste management costs
- Lower energy consumption and carbon footprint
- Minimal maintenance costs thanks to continuous operation, high-grade machine materials, smart design and well-thought preventive services
- Low capital cost/capacity ratio
- Wide-ranging feed variations and controllable performance

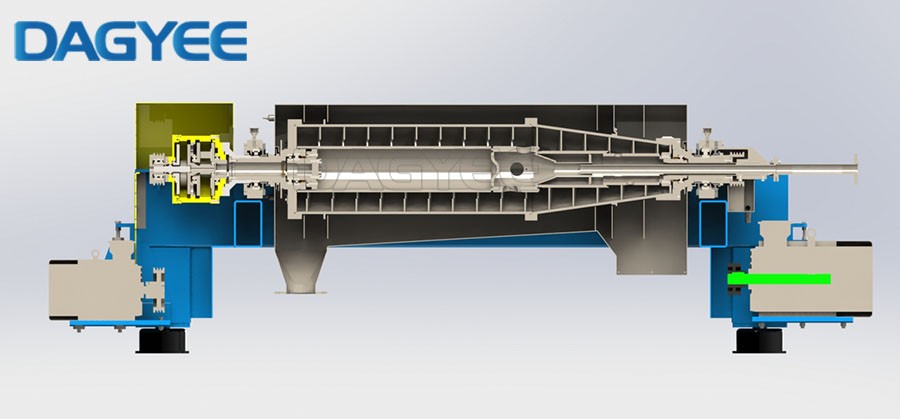

How does a decanter centrifuge work?
The DAGYEE decanter centrifuge operates on proven centrifugal separation principles. Material enters the rotating bowl assembly where high G-forces cause rapid separation. The patented scroll conveyor system continuously discharges solids while clarified liquid flows over adjustable weir plates. This continuous operation ensures maximum throughput with minimal downtime.
Decanter centrifuge specifications
- All contact parts can be made by SS304/SS316L/Duplex Steel 2205.
- Automatic adjustment of differential speed via VFD,Siemens PLC Spiral.
- Two motor drive.
- Approximately 80 to 90% of the oil is recovered.
- Low labor costs due to continuous and automatic operation.
- Highest g-force for higher solids output.
- Belts for both primary motor and secondary.
- NSK/SKF Bearing.
| Model |
Drum diameter mm |
Length mm |
Maximum speed rpm |
Highest separation factor g |
Mixture capacity m³/h |
|---|---|---|---|---|---|
| LW250-900 | 250 | 900 | 5000 | 3500 | 0.5-3 |
| LW350-1500 | 350 | 1500 | 3800 | 2850 | 1-5 |
| LW400-1200 | 400 | 1200 | 3400 | 2581 | 1-8 |
| LW400-1600 | 400 | 1600 | 3400 | 2581 | 2-10 |
| LW400-1800 | 400 | 1800 | 3400 | 2581 | 2-12 |
| LW450-1800 | 450 | 1800 | 3200 | 2572 | 5-20 |
| LW450-2000 | 450 | 2000 | 3200 | 2572 | 5-25 |
| LW530-2280 | 530 | 2280 | 2800 | 2350 | 10-50 |
| LW600-2400 | 600 | 2400 | 2600 | 2265 | 15-65 |
| LW650-2600 | 650 | 2600 | 2400 | 2100 | 20-80 |
| LW720-2500 | 720 | 2500 | 2200 | 1950 | 25-90 |
| LW800-2560 | 800 | 2560 | 2000 | 1800 | 30-100 |
| LW800-3200 | 800 | 3200 | 2000 | 1800 | 30-110 |
| LW900-3200 | 800 | 3200 | 1800 | 1650 | 30-150 |
Why choose the DAGYEE decanter centrifuge ?
DAGYEE stands apart through engineering excellence and customer-focused solutions:
-
Superior Separation Performance: Advanced bowl designs achieve 99%+ solid recovery rates
-
Energy Efficient Operation: Patented drive systems reduce power consumption by up to 30%
-
Global Certification: CE certified manufacturing
-
Application Expertise: 15+ years specializing in challenging separation applications
-
Complete System Integration: We provide turnkey solutions including feed pumps and control systems
Decanter centrifuge advanced operation capabilities
-
Smart Control System: Automatic adjustment of differential speed based on torque monitoring
-
Predictive Maintenance: Integrated sensors monitor vibration, temperature, and wear
-
Remote Access: Web-based monitoring and control via secure connections
-
Process Optimization: Real-time data logging and performance analytics
-
Quick Configuration: Store and recall process parameters for different materials
Decanter centrifuge key features
|
Bowl Body |
316L Duplex Stainless Steel |
|
Conveyor / Auger |
316L Duplex Stainless Steel with Tungsten Carbide Hard Surfacing |
|
Vessel / Collecting Cover |
316L Duplex Stainless Steel |
|
Gearbox |
Hardened Steel - Planetary Gearbox |
|
Base Frame |
Carbon Steel with Epoxy Base and Top Coat Paint |
-
High-Torque Conveyor System: Handles viscous materials up to 50% solids content
-
Precision Balance Technology: Vibration levels below 2 mm/s for smooth operation
-
Modular Design: Quick access to wear parts reduces maintenance downtime by 40%
-
Adaptable Weir Systems: Field-adjustable without disassembly
-
Corrosion Resistance: Special coatings and material options for aggressive environments
-
Safety Compliance: Full enclosure with safety interlocks and emergency stop systems
Decanter centrifuge applications
DAGYEE decanters excel across diverse sectors:
Wastewater Treatment
-
Municipal sludge dewatering and thickening
-
Industrial effluent treatment
-
Digester sludge processing
Food & Beverage Processing
-
Starch and gluten separation
-
Fruit and vegetable juice clarification
-
Yeast and fermentation broth processing
-
Olive oil and edible oil purification
Chemical & Pharmaceutical
-
Crystal separation and washing
-
Catalyst recovery
-
Cell harvesting in bioprocessing
-
API separation and purification
Oil, Gas & Energy
-
Drilling mud processing
-
Tank bottom sludge recovery
-
Biodiesel purification
-
Geothermal brine treatment
Mining & Minerals
-
Tailings dewatering
-
Kaolin and clay processing
-
Mineral concentrate separation
-
Coal fines recovery
Marine & Port Applications
-
Shipboard sludge treatment
-
Port reception facilities
-
Dredging material processing
Supplier Information
We are a professional supplier specializing in high-efficiency Decanter centrifuge systems, offering customized engineering solutions, bench-scale testing services, and robust equipment designed for demanding industrial and municipal applications.
