Fine Particle Sieve Static Screen Domestic Wastewater Pretreatment

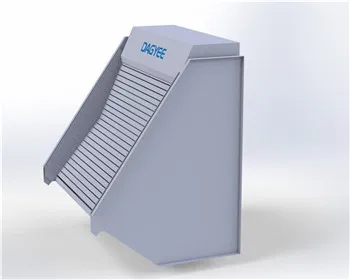

What Is Static Screen
DAGYEE provides reliable performance in liquid/solid separations for municipal and industrial applications, especially when sieving fibrous and non-oily solids. There are no moving parts, motors or complicated connections. Liquid/solid separation screens are economical and simple to operate.
How Does Static Screen Works
Influent pumped into the inflow chamber through the inlet of the pipe. As the water level rises, it will flow under the wage weir and the pivoting baffle. Liquids and solids flow through the screen, and Liquids falls through the screen, while gravity and more screening push the captured solids toward the discharge point. The wastewater passes through the filter enters distribution chamber and flows through the outlet tube. The drip-proof assembly at the bottom of the filter directs excess water to the waste chamber. When the solids reach the bottom of the screen, they slide into the container, conveyor or other suitable receiving equipment. Dagyee offers a variety of rear screen and dewatering equipment. To assemble the most cost-effective screening system. Welcome to consult.
Why Chose Static Screen?
Advantages from simple design and robust construction
No moving parts, no motor Very low installation cost, no maintenance required Only need regular cleaning Quiet operation V shape of the bar provides a self-cleaning effect on the screen
Static hydraulic screen
A Better Environment for Beaver Pond Whitewater Reuse Broke Thickening Helps Nut Grower Recycle Wastewater Screening fire sprinkler water Storm water screening Better Dairy Pen Waste Management Textiles and laundries
Fruit and vegetable canning Wine producers and distilleries Meat and processed meals industry Slaughterhouse Fish processing Breweries and dairies
