Description

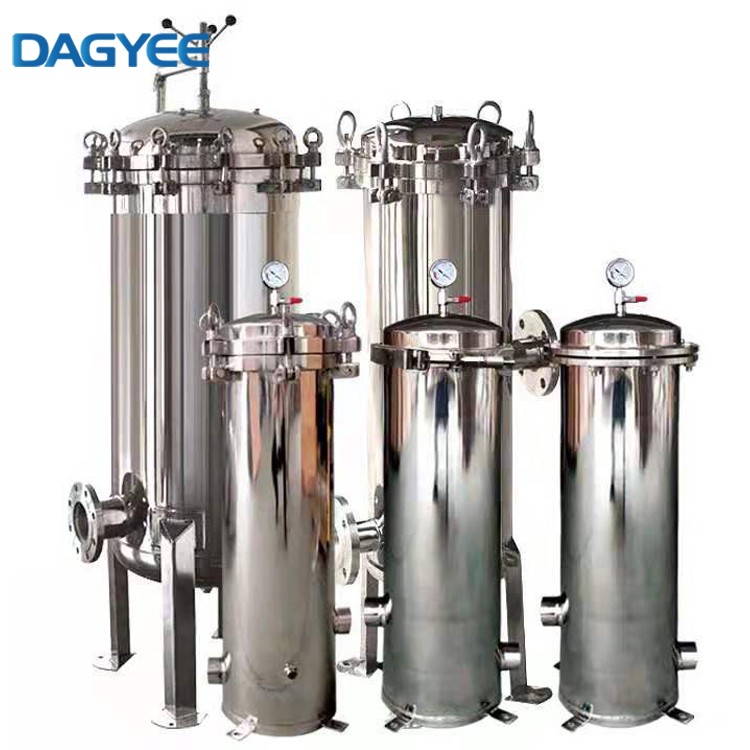

Automatic Self-Cleaning Filter – Continuous, Maintenance-Free Filtration for Demanding Industrial Applications
In many industrial processes, continuous filtration is essential. Shutting down the system to change or clean filters is simply not an option. Cooling water systems, process water loops, and irrigation systems must run without interruption. Manual cleaning of strainers and filters is labor-intensive, inconsistent, and can introduce human error.
The DAGYEE Automatic Self-Cleaning Filter solves these challenges. It provides continuous filtration without operator intervention. When the filter screen becomes loaded with contaminants, the system automatically initiates a cleaning cycle—without interrupting the flow. The cleaning cycle removes accumulated debris, which is flushed to drain, and the filter returns to normal operation.
This filter is ideal for applications where maintenance access is difficult, where systems must run 24/7, and where consistent filtration performance is critical. Its robust stainless steel construction and reliable cleaning mechanism provide years of trouble-free service in demanding industrial environments.
How the System Works
The self-cleaning filter operates continuously, with automatic cleaning cycles triggered when needed.
The Filtration Process
Step 1: Liquid Entry
The unfiltered liquid enters the filter housing through the inlet port. The flow is directed through the filter screen or wedge wire element.
Step 2: Filtration
As the liquid passes through the filter element, suspended solids and particles are trapped on the inside surface of the screen. The filtered liquid exits through the outlet port.
Step 3: Contaminant Accumulation
Over time, contaminants accumulate on the screen surface. The differential pressure across the filter gradually increases as the screen loads.
Step 4: Cleaning Initiation
When the differential pressure reaches a preset setpoint (typically 0.1 to 0.2 MPa), the automatic cleaning cycle is initiated by the PLC controller. Alternatively, the cleaning cycle can be timed.
Step 5: Cleaning Cycle
A cleaning mechanism (typically a scraping or backwashing system) removes the accumulated contaminants from the screen surface. The debris is flushed from the filter through the flush valve and discharge connection.
Step 6: Return to Filtration
After the cleaning cycle is complete, the flush valve closes, and the filter returns to normal filtration mode. The entire cleaning process takes seconds and does not interrupt the main flow.
The entire cycle is automatic—no operator intervention is required.

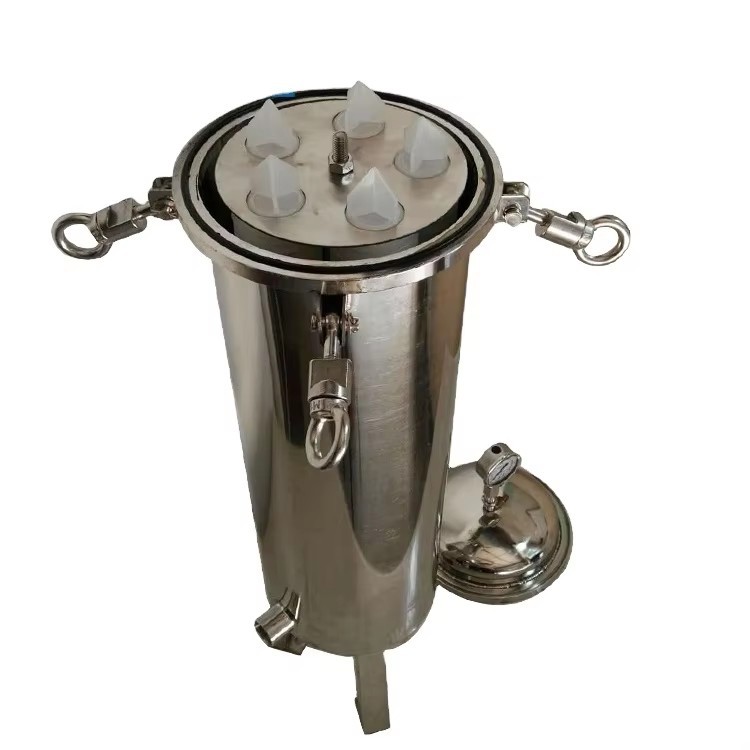

Key Design Features
| Feature | Benefit |
|---|---|
| Stainless Steel Construction | Corrosion resistance, long service life in harsh environments |
| Single or Multi-Round Configurations | Flexible capacity from 1 to 60 cartridges |
| Various Cartridge Lengths | Accepts 5", 10", 20", 30", and 40" cartridges |
| Multiple Connection Types | DOE, 222 O-ring, 226 O-ring, or threaded options |
| High-Pressure Rating | Suitable for demanding process conditions |
| Easy-Opening Closure | V-band clamp, swing bolts, or eye bolts for quick access |
| Vent and Drain Ports | Complete drainage and pressure relief during maintenance |
| Optional Surface Finish | Electropolished or bead-blasted surfaces |
| Various Seal Materials | Viton, EPDM, or NBR O-rings for chemical compatibility |
| Mounting Options | Legs, brackets, or flanged connections as needed |

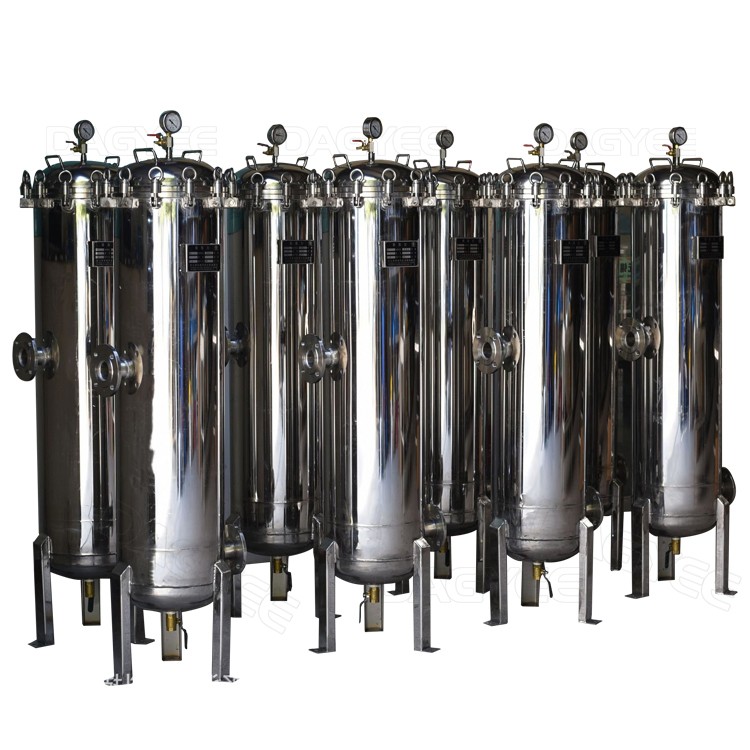

Technical Specifications
| Model | Size | Dimensions (mm) | Flow (m³/h) | Inlet/Outlet | Pressure |
|---|---|---|---|---|---|
| DPF-10-170 | 10" | 170 × 430 | 1 – 2 | 1" | 0.6 MPa |
| DPF-10-200 | 10" | 200 × 430 | 2 – 3 | 1" | 0.6 MPa |
| DPF-20-170 | 20" | 170 × 690 | 3 – 4 | 1" | 0.6 MPa |
| DPF-20-200 | 20" | 200 × 690 | 4 – 6 | 1 ½" | 0.6 MPa |
| DPF-20-250 | 20" | 250 × 690 | 6 – 8 | 2" | 0.6 MPa |
| DPF-30-200 | 30" | 200 × 940 | 7 – 8 | 1 ½" | 0.6 MPa |
| DPF-30-250 | 30" | 250 × 940 | 10 – 11 | 2" | 0.6 MPa |
| DPF-40-200 | 40" | 200 × 1240 | 9 – 11 | 2" | 0.6 MPa |
| DPF-40-250 | 40" | 250 × 1240 | 13 – 15 | 2" | 0.6 MPa |
| DPF-40-300 | 40" | 300 × 1350 | 14 – 18 | 2" | 1.0 MPa |
| DPF-40-320 | 40" | 320 × 1350 | 16 – 20 | 2" | 1.0 MPa |
| DPF-40-350 | 40" | 350 × 1350 | 20 – 30 | 2 ½" | 1.0 MPa |
| DPF-40-400 | 40" | 400 × 1430 | 30 – 40 | 3" | 1.0 MPa |
| DPF-40-450 | 40" | 450 × 1450 | 50 – 65 | 3" | 1.0 MPa |
What the System Removes
| Contaminant | Removal Efficiency | Typical Application |
|---|---|---|
| Suspended solids | High | Clarification of liquids |
| Sediment and particulate | High | Pre-filtration and polishing |
| Rust and scale | High | Protection of downstream equipment |
| Fine particles | High | Product purity requirements |
| Oil and grease | Moderate to high | Water treatment |
| Microorganisms | High | Pharmaceutical, food and beverage |
| Carbon and filter media fines | High | Protection of RO membranes |
Pre-Treatment & Installation
Installation Requirements:
-
Adequate space for installation and maintenance
-
Access for piping connections
-
Drain connection for flush water
-
Electrical supply for controls and motor
-
Bypass system recommended for maintenance
Installation Steps:
-
Position filter in pipeline with correct flow direction
-
Connect inlet and outlet piping
-
Connect flush line to drain
-
Connect electrical power and control wiring
-
Set differential pressure setpoint
-
Configure timer settings (if used)
-
Start system and verify operation
Maintenance:
-
Visual Inspection: Periodic check of housing and connections
-
Screen Inspection: Annual inspection of screen condition
-
Seal Check: Check shaft seals for wear
-
Motor Check: Check motor operation and lubrication
-
Control Settings: Verify setpoints periodically
DAGYEE Cartridge Housing Application
DAGYEE Cartridge Housing Application
- Food & Beverage: Water purification, ingredient filtering, wine and beer stabilization, edible oil processing.
- Pharmaceutical & Biotech: Purification of water for injection (WFI), process fluids, solvent filtration, sterile venting.
- Chemicals & Petrochemicals: Chemical purification, catalyst recovery, pre-filtration for membranes.
- Electronics: Ultra-pure water production for semiconductor and PCB manufacturing.
- Metalworking & Plating: Coolant filtration, pre-treatment of plating baths.
- General Industrial: Water treatment, hydraulic and lubricating oil protection, compressed air and gas filtra

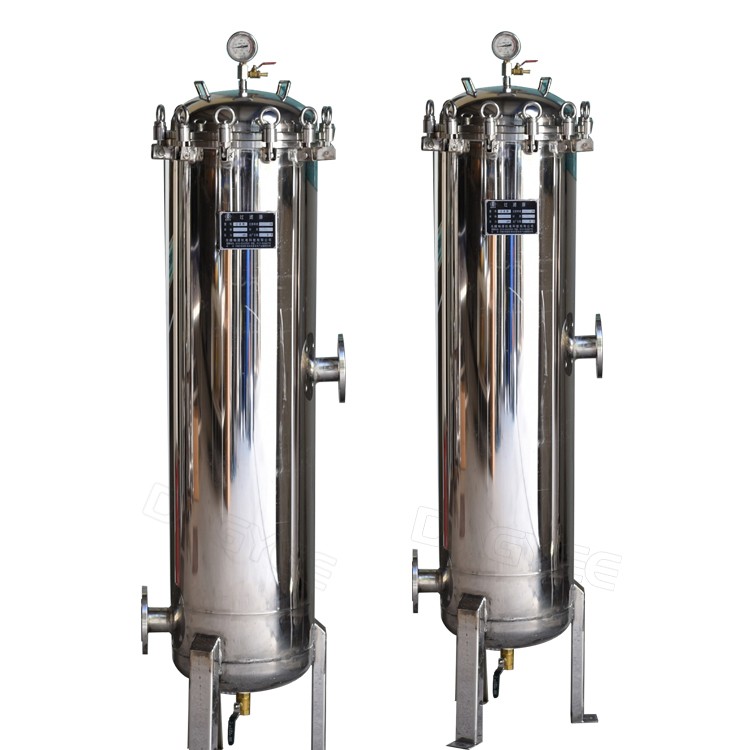

Why Choose DAGYEE Cartridge Filter Housing?
Why Choose DAGYEE Cartridge Filter Housing?
| Feature | Customer Value |
|---|---|
| Stainless Steel Construction | Corrosion resistance and long service life |
| Wide Cartridge Compatibility | Accepts standard cartridges from leading manufacturers |
| High-Pressure Rating | Suitable for demanding process applications |
| Easy Maintenance Access | Quick-opening closures reduce downtime |
| Flexible Configuration | Single to multi-round options for any flow rate |
| Customizable Finish | Electropolished, bead-blasted, or mirror finish available |
| Multiple Seal Options | Viton, EPDM, NBR, Silicone for chemical compatibility |
| Industry Standard Design | ASME code optional, CE certified |
| Factory Tested | Quality assured before shipment |
| Competitive Pricing | Cost-effective without compromising quality |
FAQ
Q: Are you manufacturer?
A:Yes
Q: What products you provide?
A: Various kinds of filter press, bag filter housing, cartridge filter housing, self cleaning filter, basket filters, filter bag, filter cartridges, filter plate, filter cloth, etc.
Q: How to select the type that needed?
A: When you contact us, we will ask some basic questions to help you select the product type. such as, what is the liquid that you want to filter, flow rate, solid content, etc.
Q: What is the delivery time?
A: It will depends on the order quantity,sometimes when you put order also will influence on the delivery time, once you order from us, we will arrange delivery the cargo as soon as possible.
Q: What is the MOQ？
A: One set
Contact Us
The DAGYEE Automatic Self-Cleaning Filter provides continuous, low-maintenance filtration for demanding industrial applications. With automatic cleaning cycles triggered by differential pressure or timer, it eliminates the need for manual cleaning and ensures consistent filtration performance.
Contact our team for a free consultation and customized filter design for your application.
