Description
DAGYEE Decanter Centrifuge for Food & Beverage Processing – Gentle Separation for Edible Oil, Juice, Wine & Starch Applications
The DAGYEE Energy Saving Decanter Centrifuge represents a breakthrough in industrial solid-liquid separation technology. In an era where energy costs are rising and environmental regulations are tightening, we have engineered a centrifuge that delivers exceptional separation performance while consuming significantly less power.
By integrating advanced Variable Frequency Drive (VFD) technology, intelligent process control algorithms, and optimized mechanical design, our energy saving decanter centrifuge achieves up to 30% reduction in energy consumption compared to conventional centrifuge designs—without compromising on throughput or separation quality.
Whether you are upgrading existing equipment or designing a new processing line, the DAGYEE
energy saving decanter centrifuge offers the perfect balance of performance, sustainability, and return on investment.
Decanter centrifuge description
A decanter centrifuge for food and beverage processing is a specialized machine designed to separate solids from liquids, or to separate two immiscible liquids, in food and beverage applications. It works by spinning the feed mixture at high speed, creating centrifugal forces that separate components of different densities . This is essential for producing clear juices, high-quality oils, stable wines, and pure starches.
The DAGYEE food-grade decanter centrifuge features SS316L construction, sanitary design, and CIP (clean-in-place) compatibility, ensuring it meets the hygiene standards required for food production. The machine operates continuously, automatically, and gently, preserving the quality and integrity of the product while achieving high separation efficiency.
From olive oil and fruit juice to wine and starch production, DAGYEE decanters deliver consistent, reliable separation that helps processors produce high-purity products with maximum yield.
Experience maximum solid-liquid separation efficiency
- High-performance separation, resulting in high-value products and low waste management costs
- Lower energy consumption and carbon footprint
- Minimal maintenance costs thanks to continuous operation, high-grade machine materials, smart design and well-thought preventive services
- Low capital cost/capacity ratio
- Wide-ranging feed variations and controllable performance

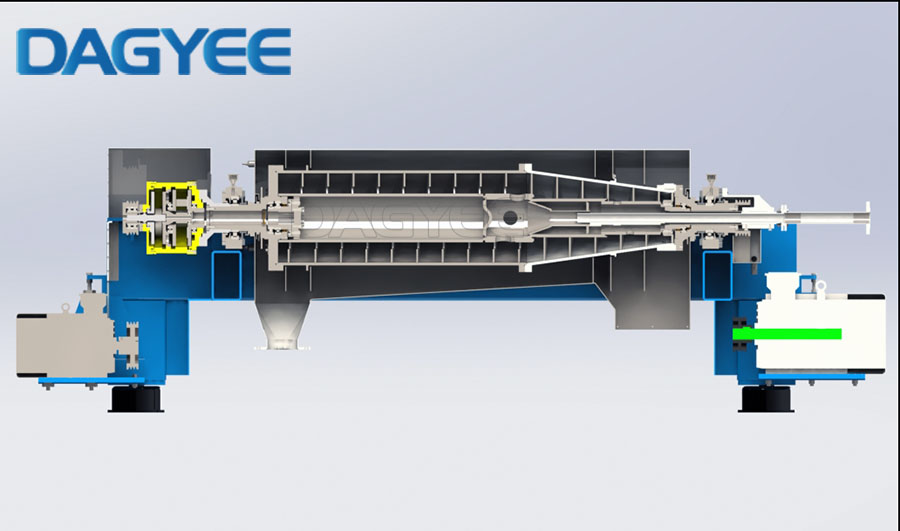

How does a decanter centrifuge work?
The Process Flow:
Step 1: Feed Entry
The food product enters the centrifuge through a stationary feed pipe, passing through the hollow shaft of the screw conveyor into the distribution chamber within the bowl.
Step 2: Centrifugal Separation
The rotating bowl generates centrifugal forces that separate components by density. The denser solid particles are thrown outward against the bowl wall, while the lighter liquid phase moves toward the center.
Step 3: Gentle Solids Conveying
The screw conveyor rotates at a slightly different speed, gently "ploughing" the settled solids along the bowl wall and pushing them up the conical beach section.
Step 4: Liquid Discharge
The clarified liquid overflows adjustable dam plates at the large-diameter end of the bowl. The liquid level can be adjusted to optimize separation performance for different products.
Step 5: Solids Discharge
The dewatered solids discharge through the solids outlet at the conical end. The discharge is continuous and automatic.
Step 6: CIP Cleaning
The decanter is designed for CIP cleaning. Cleaning agents are circulated through the machine without disassembly, ensuring sanitary operation and minimizing downtime between product changes.
Technical Specifications
Model Number:DAGYEE-LW
Bowl Diameter: 250 – 720 mm (selectable)
L/D Ratio: 3.0 – 5.0
Bowl Speed: 2000 – 4600 RPM
Separation Factor: Up to 3500 G
Capacity: 0.5 – 100 m³/h
Feed Solids Concentration: 0.5 – 40%
Solid Phase Dryness: 15 – 30% DS
Liquid Phase Clarity: ≤ 0.1% solids
Construction Materials: SS316L (food-grade)
Surface Finish: Ra ≤ 0.8 µm (product-contact)
Seals: FDA-compliant materials
Drive System: Dual motor with VFD
CIP Compatibility: Yes
Power Supply: 380V ± 10%, 50/60Hz, 3 Phase
Control System: PLC with HMI, recipe management
Certification: CE, ISO 9001, Food-grade materials
Bowl Diameter: 250 – 720 mm (selectable)
L/D Ratio: 3.0 – 5.0
Bowl Speed: 2000 – 4600 RPM
Separation Factor: Up to 3500 G
Capacity: 0.5 – 100 m³/h
Feed Solids Concentration: 0.5 – 40%
Solid Phase Dryness: 15 – 30% DS
Liquid Phase Clarity: ≤ 0.1% solids
Construction Materials: SS316L (food-grade)
Surface Finish: Ra ≤ 0.8 µm (product-contact)
Seals: FDA-compliant materials
Drive System: Dual motor with VFD
CIP Compatibility: Yes
Power Supply: 380V ± 10%, 50/60Hz, 3 Phase
Control System: PLC with HMI, recipe management
Certification: CE, ISO 9001, Food-grade materials
Decanter centrifuge specifications
| Model | Drum Diameter (mm) | Length (mm) | Maximum Speed (RPM) | Highest Separation Factor (g) | Mixture Capacity (m³/h) |
|---|---|---|---|---|---|
| LW250-900 | 250 | 900 | 5000 | 3500 | 0.5-3 |
| LW350-1500 | 350 | 1500 | 3800 | 2850 | 1-5 |
| LW400-1200 | 400 | 1200 | 3400 | 2581 | 1-8 |
| LW400-1600 | 400 | 1600 | 3400 | 2581 | 2-10 |
| LW400-1800 | 400 | 1800 | 3400 | 2581 | 2-12 |
| LW450-1800 | 450 | 1800 | 3200 | 2572 | 5-20 |
| LW450-2000 | 450 | 2000 | 3200 | 2572 | 5-25 |
| LW530-2280 | 530 | 2280 | 2800 | 2350 | 10-50 |
| LW600-2400 | 600 | 2400 | 2600 | 2265 | 15-65 |
| LW650-2600 | 650 | 2600 | 2400 | 2100 | 20-80 |
| LW720-2500 | 720 | 2500 | 2200 | 1950 | 25-90 |
| LW800-2560 | 800 | 2560 | 2000 | 1800 | 30-100 |
| LW800-3200 | 800 | 3200 | 2000 | 1800 | 30-110 |
| LW900-3200 | 800 | 3200 | 1800 | 1650 | 30-150 |
Decanter centrifuge key features
High Separation Efficiency
The combination of high rotational speed and large L/D ratio provides strong centrifugal forces and extended residence time, achieving high solids recovery and low cake moisture.
Dual Motor with VFD Drive
The system uses two motors with variable frequency drives—one for the bowl and one for the screw conveyor. This allows independent control of bowl speed and differential speed for process optimization. Common DC bus technology enables energy recovery, reducing power consumption.
Adjustable Liquid Level
The pond depth can be adjusted by changing dam plates or using PowerTubes, allowing fine-tuning for different feed conditions and separation requirements.
Wear Protection
Critical areas such as the screw conveyor flights, feed distribution zone, and solids discharge port are protected with tungsten carbide hardfacing, wear-resistant ceramic inserts, or spray welding. This extends service life significantly, especially when processing abrasive materials.
Corrosion-Resistant Construction
All process-wetted parts are made from high-grade stainless steel (SS304, SS316L, or duplex) to resist corrosion and maintain product purity.
Enclosed, Odor-Free Operation
The decanter operates with a fully enclosed casing, preventing fugitive emissions, containing odors, and eliminating splashing—essential for wastewater treatment plants and food processing facilities.
PLC Control & Remote Monitoring
The system includes a PLC control panel with HMI touch screen for automated operation, real-time monitoring, alarm management, and remote SCADA connectivity.
Applications
Food-Grade Construction
All process-wetted parts are made from SS316L stainless steel, providing excellent corrosion resistance and meeting food safety requirements . The design ensures no contamination of the product.
Sanitary Design
The decanter features smooth surfaces, crevice-free construction, and sanitary connections, preventing product buildup and facilitating effective cleaning.
CIP Compatibility
The machine is designed for clean-in-place (CIP) operation, allowing thorough cleaning without disassembly . This minimizes downtime and ensures hygienic operation between batches.
Gentle Processing
The decanter operates at controlled speeds to minimize shear and product degradation, preserving the quality of sensitive food and beverage products.
Temperature Control
Optional heating or cooling jackets allow temperature control during processing, which is important for maintaining product quality.
Enclosed, Dust-Free Operation
The fully enclosed design prevents contamination and product loss, while containing odors and aerosols .
Dual Motor VFD Drive
Separate motors for bowl and screw conveyor with VFD control provide precise control over separation parameters .
PLC Automation
The system includes PLC controls with HMI touch screen for automated operation, recipe management, and documentation.
Why choose the DAGYEE decanter centrifuge?
| Feature | Customer Value |
|---|---|
| Continuous Operation | 24/7 dewatering without downtime for discharge |
| High Throughput | Single unit handles up to 100 m³/h |
| Energy Efficient | Dual motor VFD with energy recovery reduces power consumption |
| Automatic Operation | PLC controls minimize operator attention |
| High Cake Dryness | Stable 18-28% DS reduces disposal costs |
| Low Polymer Consumption | Optimized design reduces chemical usage |
| Wear Protection | Extended service life in abrasive applications |
| Enclosed Operation | Odor control, safe, clean environment |
| Flexible Configuration | 2-phase or 3-phase separation options |
Proven in Diverse Applications
Our energy saving technology has been validated across multiple industries:
"Switching to DAGYEE energy saving decanter centrifuges reduced our electricity consumption by 27% while actually improving our cake dryness by 2%. The payback period was just 14 months."
— Plant Manager, Municipal Wastewater Treatment Facility, Germany
*"We operate 24/7, so energy costs are a major concern. The DAGYEE VFD-controlled centrifuges have cut our power bills significantly, and the remote monitoring feature gives us peace of mind."*
— Operations Director, Chemical Processing Plant, USA
Contact Us
The DAGYEE Industrial Decanter Centrifuge delivers reliable, continuous high-efficiency sludge dewatering and solid-liquid separation for municipal, industrial, and process applications. With dual motor VFD drive, energy recovery, and automatic operation, it reduces sludge volume, lowers disposal costs, and simplifies plant operations.
Contact our team for a free consultation and customized centrifuge selection for your application.
