Filter Bag Housing – Heavy-Duty Liquid Filtration for High-Solids & High-Flow Applications

In many industrial filtration applications, the contaminant load is simply too high for cartridge filters. High-solids streams, large particle sizes, and high flow rates demand a filtration solution with high dirt-holding capacity and robust construction. Cartridge filters would clog too quickly, requiring constant change-outs and excessive maintenance.

Filter bag housings provide the answer. Designed to accommodate filter bags with large surface area and high dirt-holding capacity, they are the ideal solution for high-solids applications. They handle larger particles, hold more contaminants, and require less frequent bag changes than cartridge filters.

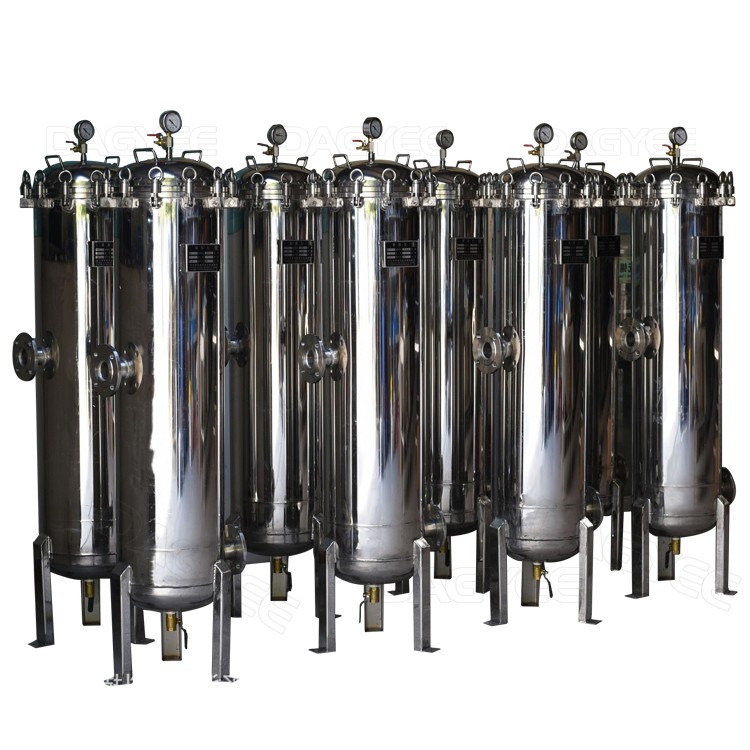

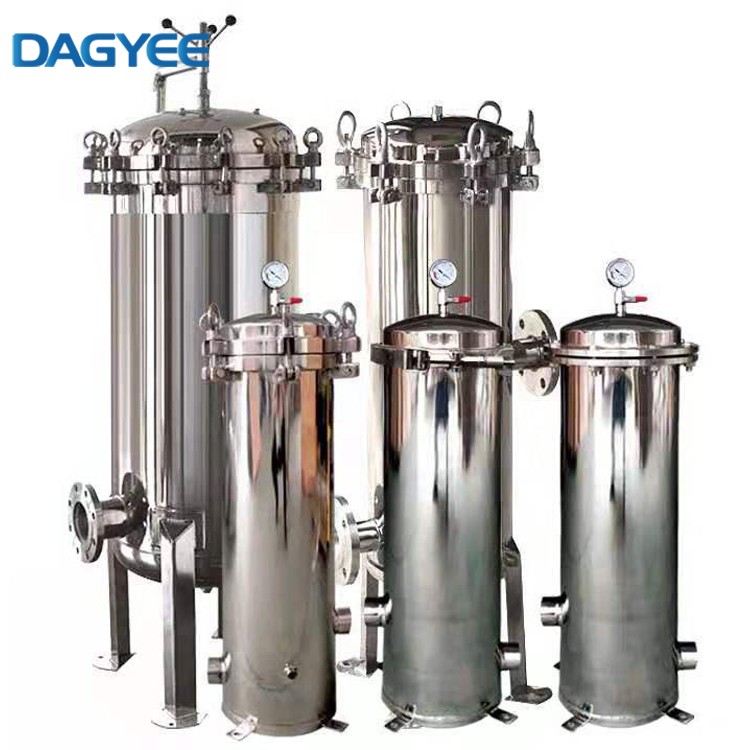

The DAGYEE Filter Bag Housing is engineered for heavy-duty industrial applications. Constructed from high-grade stainless steel, it offers excellent corrosion resistance and long service life in demanding environments. The housing accommodates standard filter bags in single or multi-bag configurations, providing flexible capacity from small pilot systems to large industrial operations.

Whether you are treating industrial water, processing chemicals, handling oil and gas streams, or managing wastewater, this housing delivers reliable, high-capacity filtration with minimal maintenance downtime.

How the System Works

The filter bag housing operates on a simple but highly effective principle.

The Process Flow

Step 1: Liquid Entry
The unfiltered liquid enters the housing through the inlet port. The flow is directed into the housing chamber where the filter bag is installed.

Step 2: Bag Filtration
The liquid passes through the filter bag from the inside to the outside (or vice versa, depending on the design). The filter bag media traps suspended particles and contaminants. The bag's large surface area and depth loading characteristics provide high dirt-holding capacity.

Step 3: Clean Liquid Exit
The filtered liquid exits the housing through the outlet port. A support basket holds the bag in place and prevents collapse under pressure.

Step 4: Contaminant Retention
As filtration continues, contaminants accumulate inside the filter bag (or outside, depending on flow direction). The bag's high dirt-holding capacity allows extended service life between change-outs.

Step 5: Bag Change-Out

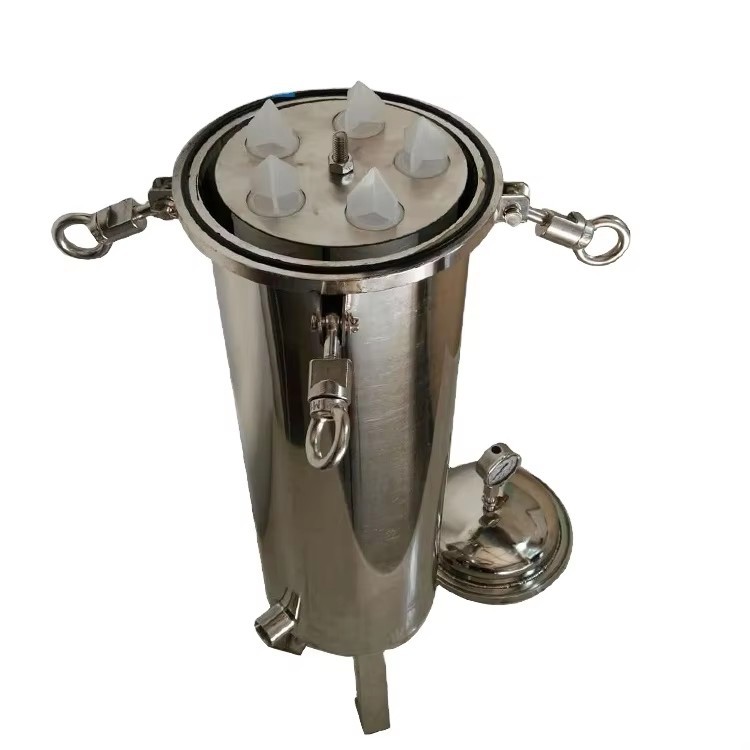

When the bag becomes loaded with contaminants, the housing is opened via the quick-opening closure system. The spent bag is removed and replaced with a fresh one, and the housing is closed and returned to service.

The housing is equipped with vent and drain ports for complete drainage and pressure relief during maintenance. Optional magnetic separators and other accessories can be integrated for enhanced performance.

Key Design Features

Technical Specifications

What the System Removes

Pre-Treatment & Installation

Installation Requirements:

• Level, stable mounting surface

• Adequate clearance for cartridge change-outs

• Sanitary piping connections

• Access for CIP/SIP systems

Sanitation Process (CIP/SIP):

1. Rinse with purified water

2. Clean with appropriate cleaning solutions

3. Rinse with purified water

4. Steam sterilize (SIP)

5. Cool and prepare for operation

Maintenance:

• Visual Inspection: Regular inspection of seals and connections

• Cartridge Change-Out: When differential pressure reaches setpoint

• Seal Replacement: Annually or as needed

• Surface Inspection: Check for damage, corrosion, or contamination

• Validation: Regular revalidation per GMP requirements

DAGYEE Cartridge Housing Application

Why Choose DAGYEE Cartridge Filter Housing?

FAQ

Q: Are you manufacturer?
A:Yes
Q: What products you provide?
A: Various kinds of filter press, bag filter housing, cartridge filter housing, self cleaning filter, basket filters, filter bag, filter cartridges, filter plate, filter cloth, etc.
Q: How to select the type that needed?
A: When you contact us, we will ask some basic questions to help you select the product type. such as, what is the liquid that you want to filter, flow rate, solid content, etc.
Q: What is the delivery time?
A: It will depends on the order quantity,sometimes when you put order also will influence on the delivery time, once you order from us, we will arrange delivery the cargo as soon as possible.
Q: What is the MOQ？
A: One set

Contact Us

The DAGYEE Filter Bag Housing provides a robust, cost-effective solution for high-solids and high-flow filtration applications. With high dirt-holding capacity, easy maintenance, and durable stainless steel construction, it is the ideal choice for demanding industrial environments.

Contact our team for a free consultation and customized housing design for your application.
