lamella clarifier for Stormwater & Runoff Treatment – Effective Solids Removal for Construction Sites & Urban Drainage
WHAT IS LAMELLA CLARIFIER
Stormwater runoff from construction sites, urban areas, and industrial facilities carries large quantities of suspended solids, sand, silt, and sediment. This runoff can be highly turbid, exceeding discharge permit limits and causing environmental damage to receiving water bodies. Regulatory agencies require effective sediment control to protect streams, rivers, and lakes.
Traditional sediment basins require large land areas and do not always meet stringent discharge requirements. Dewatering operations often struggle to maintain compliance during heavy rainfall events.

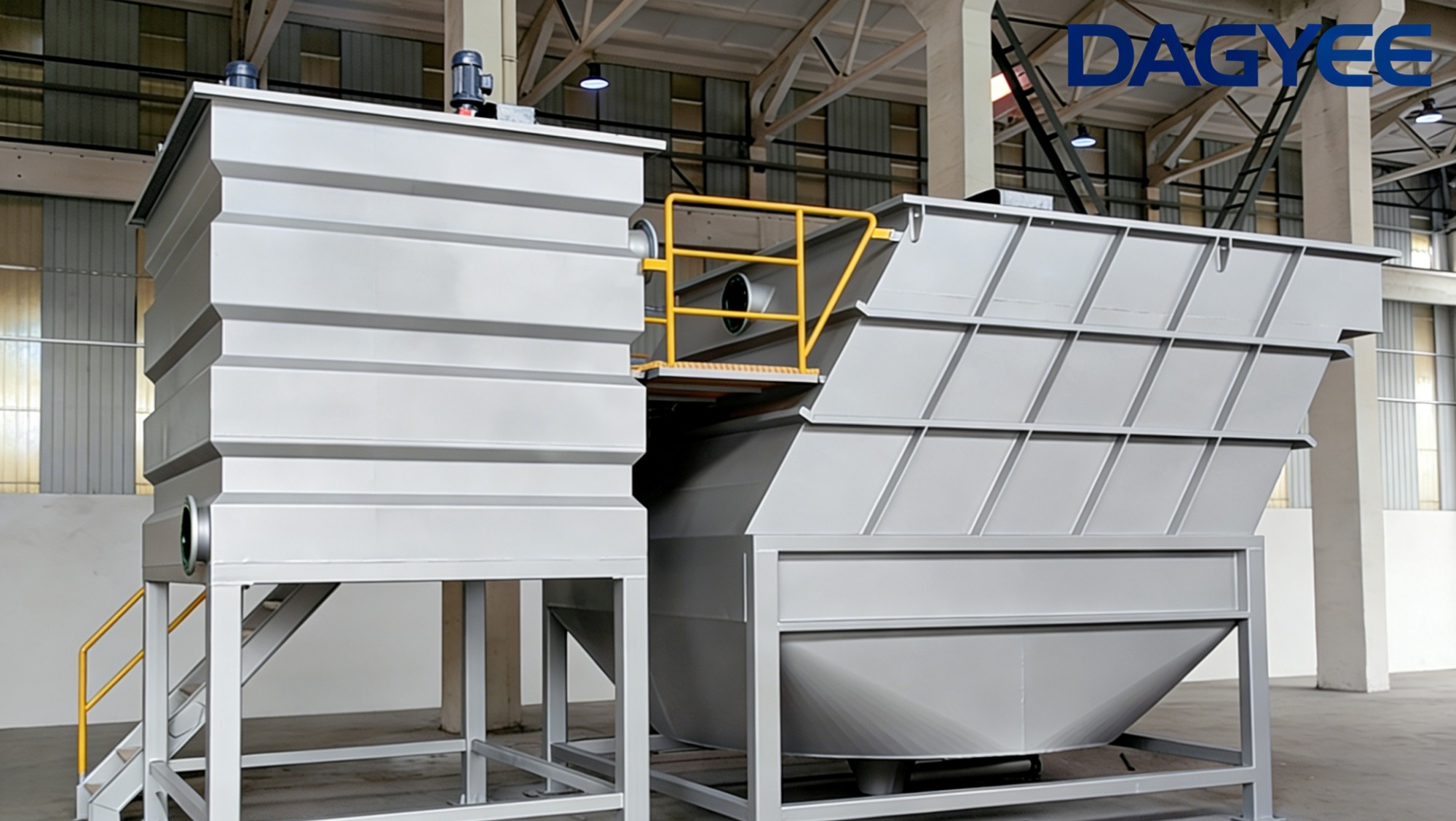

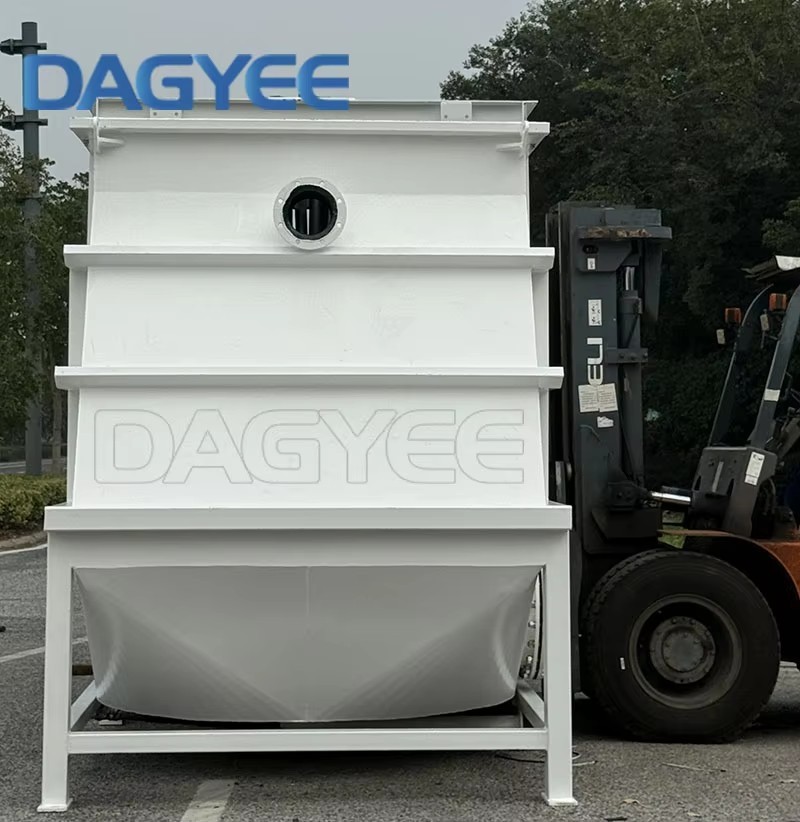

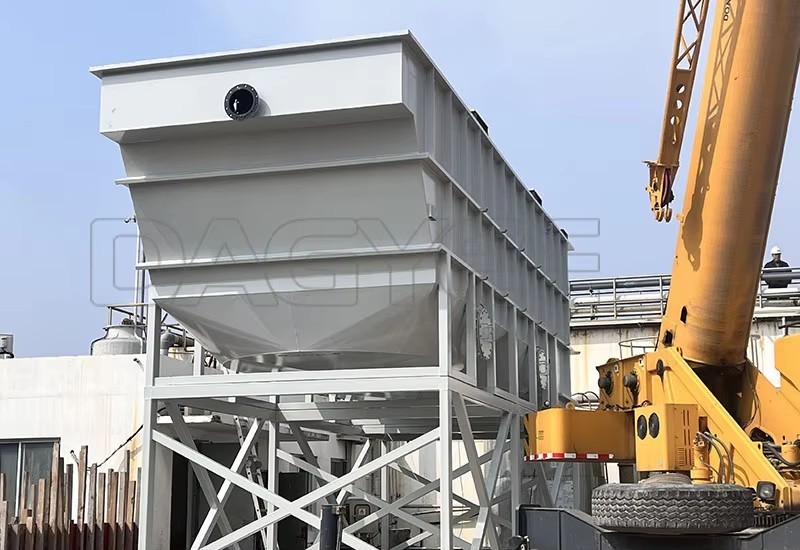

The DAGYEE Lamella Clarifier for Stormwater & Runoff Treatment provides a compact, highly efficient solution for removing suspended solids from runoff and construction site dewatering. Its small footprint fits into tight urban spaces and construction sites. The modular, rapid-deployment design allows quick setup and relocation as projects progress. The system consistently produces clear effluent that meets discharge permit standards.
HOW DOES LAMELLA CLARIFIER WORKS
Step 1: Inflow from Runoff Collection
Stormwater or dewatering water enters the clarifier through a distribution system. A coarse screen removes large debris such as rocks, sticks, and trash.
Step 2: Optional Flocculation
For fine clays and silts that do not settle quickly, an optional flocculation system can be added. Polymer is injected and mixed with the runoff to form larger, heavier flocs that settle effectively.
Step 3: Upward Flow Through Plate Pack

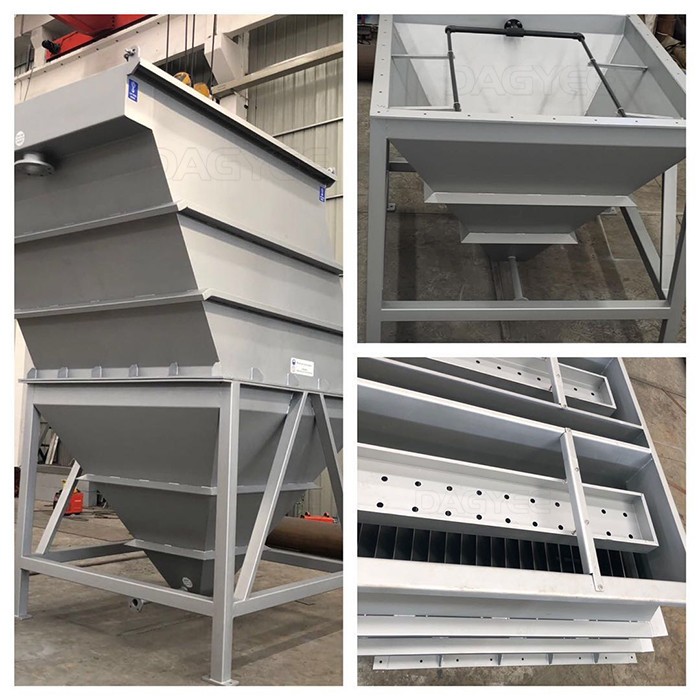

The water flows upward between the inclined plates. The compact design provides a large effective settling area within a small footprint. Sand, silt, and sediment settle onto the plate surfaces.
Step 4: Sludge Collection
Settled solids slide down the plates and accumulate in the sludge hopper. The concentrated sludge can be removed periodically for disposal.
Step 5: Clarified Effluent
The clear water overflows into a discharge line or storage tank. The effluent clarity consistently meets permit requirements.
AVAILABLE DESIGNS KEY
| Feature | Benefit |
|---|---|
| Inclined Plate Arrangement | Settling area many times larger than floor space |
| Optimized Plate Angle | Self-cleaning design—solids slide down by gravity |
| Counter-Current Flow | Enhanced settling efficiency, denser sludge |
| No Moving Parts | Minimal mechanical failure, low maintenance |
| Modular Plate Pack | Easy installation, flexible design |
| Durable Materials | Stainless steel, HDPE, or engineered plastics |
| Integrated Flow Distribution | Even flow distribution across plates |
| Sludge Hopper Collection | Efficient sludge thickening and removal |
What the System Removes
| Contaminant | Removal Efficiency | Notes |
|---|---|---|
| Suspended solids | High | Particles effectively removed |
| Turbidity | To very low levels | Typical clarified water quality |
| Free oils and greases | High | Under standard operating conditions |
| Emulsified oils | Moderate | Without chemical addition |
| Metal hydroxides | High | With proper flocculation |
| Colloidal particles | Moderate to high | With coagulant/flocculant addition |
| Settleable solids | High | Particles with density greater than water |
Lamella Clarifier Application
-
Municipal Wastewater Treatment: Primary and secondary clarification
-
Industrial Wastewater: Food processing, beverage, pulp & paper, chemical industries
-
Water Treatment Plants: Raw water clarification for drinking water production
-
Stormwater Treatment: Removal of suspended solids from stormwater runoff
-
Process Water Recycling: Clarification for water reuse systems
-
Mining Operations: Tailings clarification and process water recovery
-
Power Plants: Cooling water treatment and blowdown clarification
-
Aquaculture Systems: Water quality maintenance in recirculating systems
Customization Options
-
Plate Materials: Choice of stainless steel, polypropylene, PVC, or FRP based on chemical compatibility
-
Plate Coatings: Special coatings for specific applications (anti-fouling, anti-static, etc.)
-
Inlet Arrangements: Center feed, peripheral feed, or bottom feed configurations
-
Sludge Removal Systems: Chain-and-flight scrapers, traveling bridges, or suction systems
-
Instrumentation Packages: Level sensors, turbidity meters, sludge density monitors
-
Control Systems: Manual, semi-automatic, or fully automated PLC control
-
Accessories: Chemical dosing systems, flocculation aids, sampling points
-
Special Designs: Circular, rectangular, or square configurations based on space constraints
Why Choose DAGYEE Lamella Clarifiers
-
Proven Design: Hundreds of successful installations worldwide
-
Quality Materials: Only premium materials with proper certifications
-
Engineering Support: Custom design for specific wastewater characteristics
-
Performance Guarantee: Written performance guarantees based on design parameters
-
Comprehensive Service: From design to installation, commissioning, and after-sales support
-
Cost-Effective Solutions: Competitive pricing without compromising quality
-
Technical Innovation: Continuous improvement based on operational feedback
-
Global Experience: Applications across diverse industries and regions
Supplier Information
The DAGYEE Lamella Clarifier for Stormwater & Runoff Treatment provides an effective, compact, and portable solution for sediment removal from construction site runoff and urban drainage. Quick to deploy, simple to operate, and compliant with discharge permit requirements, it is the ideal choice for stormwater treatment.
Contact our team for a free consultation and customized system design for your stormwater treatment needs.
