Description

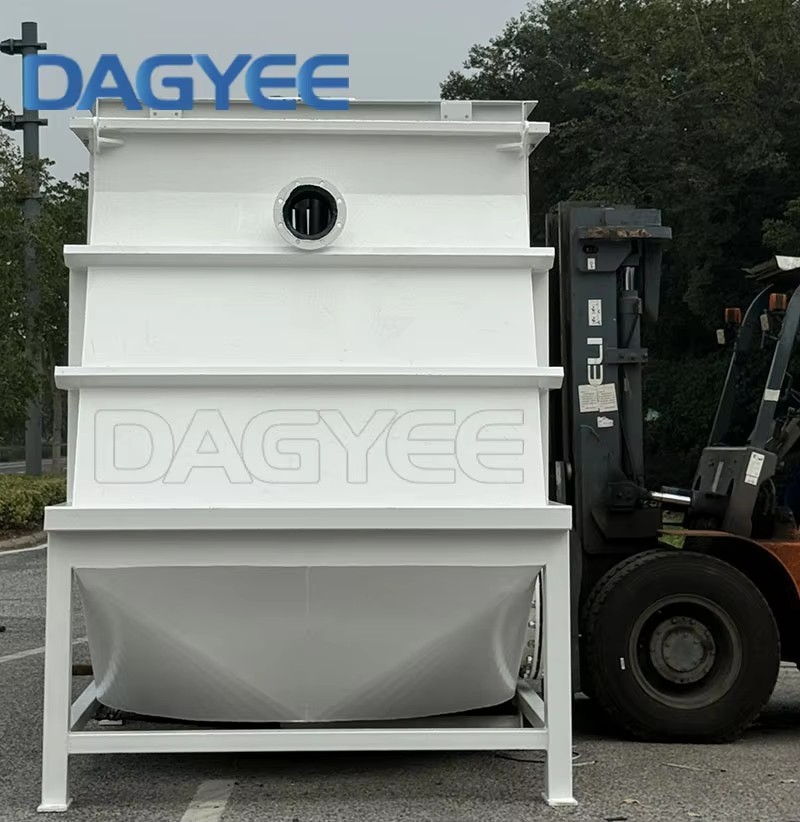

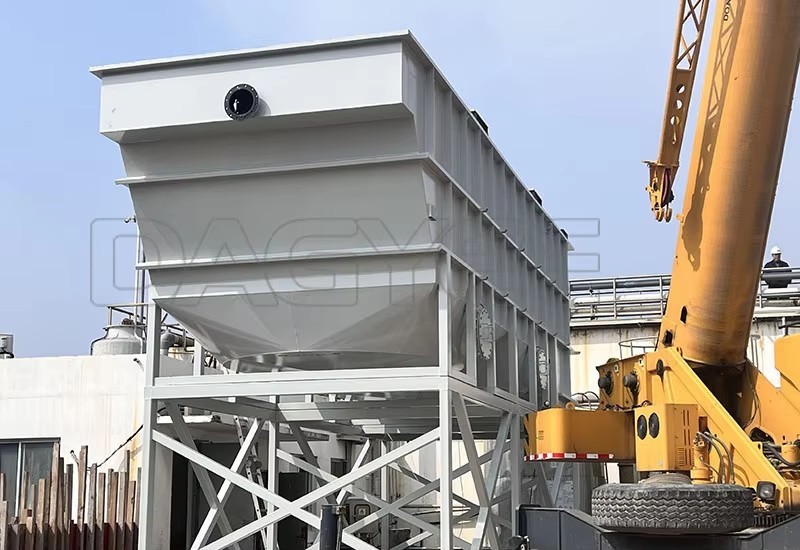

Packaged lamella clarifier Plant – Complete Pre-Engineered Sedimentation System for Rapid Installation

WHAT IS LAMELLA CLARIFIER

Traditional water treatment plants take months or years to design, build, and commission. The process involves multiple contractors, extensive civil works, and significant project management effort. For many applications—municipal water supply, industrial facilities, remote sites, and emergency responses—this timeline is unacceptable.

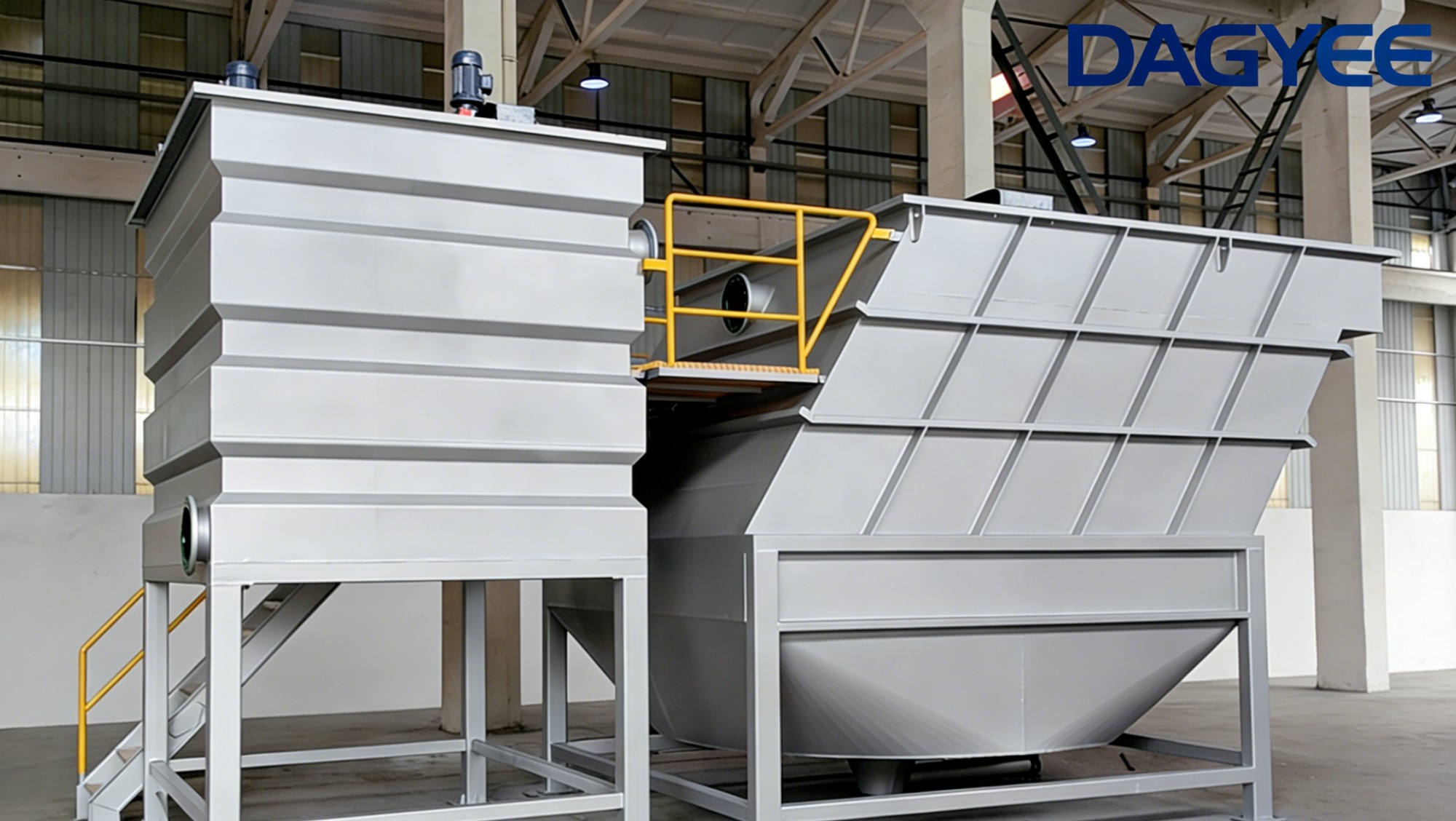

The DAGYEE Packaged Lamella Clarifier Plant solves this problem. It is a complete, pre-engineered sedimentation system assembled on a single skid. The package includes everything needed for effective clarification: flocculation tanks, chemical dosing systems, the lamella clarifier, sludge collection, and a PLC control panel. It arrives at site ready for connection to water, power, and discharge lines.

This plug-and-play solution is ideal for municipal water treatment, industrial process water, mining operations, and any application requiring rapid, reliable clarification with minimal site work. It is factory-tested and ready to operate from day one.

HOW DOES LAMELLA CLARIFIER WORKS

Step 1: Raw Water Intake
Raw water enters the packaged system through the inlet connection.

Step 2: Coagulation
Water flows into the coagulation tank where coagulant is added and mixed. This neutralizes charges on suspended particles.

Step 3: Flocculation
Water moves to the flocculation tank where polymer flocculant is added. Gentle mixing creates larger, settleable flocs.

Step 4: Lamella Clarification

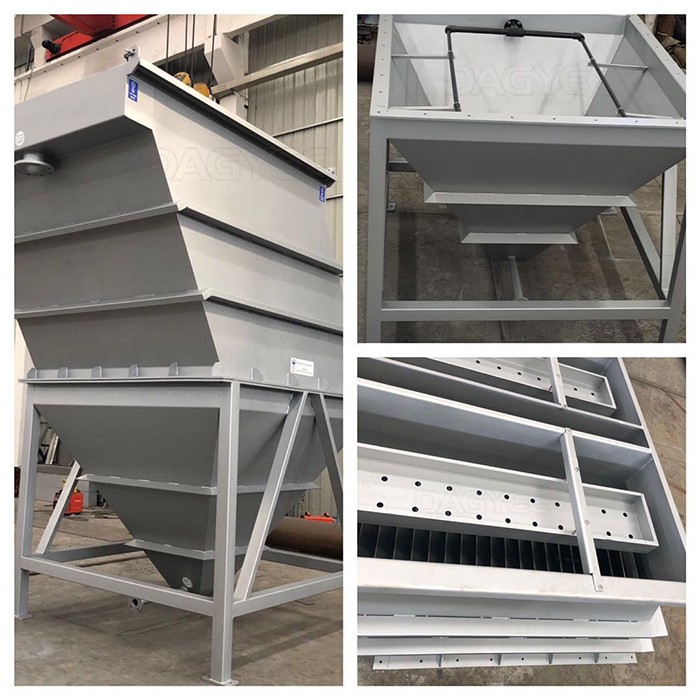

The flocculated water enters the Lamella Plate pack. Solids settle on the inclined plates and slide to the sludge hopper.

Step 5: Clarified Effluent
Clear water overflows into collection launders and exits the system.

Step 6: Sludge Discharge
Concentrated sludge is discharged manually or automatically for disposal or further treatment.

Step 7: Chemical Dosing
All chemical dosing is controlled automatically by the PLC based on feed flow rate and water quality.

AVAILABLE DESIGNS KEY

What the System Removes

Contaminant	Removal Efficiency	Notes
Suspended solids	High	Particles effectively removed
Turbidity	To very low levels	Typical clarified water quality
Free oils and greases	High	Under standard operating conditions
Emulsified oils	Moderate	Without chemical addition
Metal hydroxides	High	With proper flocculation
Colloidal particles	Moderate to high	With coagulant/flocculant addition
Settleable solids	High	Particles with density greater than water

Lamella Clarifier Application

• Municipal Wastewater Treatment: Primary and secondary clarification

• Industrial Wastewater: Food processing, beverage, pulp & paper, chemical industries

• Water Treatment Plants: Raw water clarification for drinking water production

• Stormwater Treatment: Removal of suspended solids from stormwater runoff

• Process Water Recycling: Clarification for water reuse systems

• Mining Operations: Tailings clarification and process water recovery

• Power Plants: Cooling water treatment and blowdown clarification

• Aquaculture Systems: Water quality maintenance in recirculating systems

Customization Options

• Plate Materials: Choice of stainless steel, polypropylene, PVC, or FRP based on chemical compatibility

• Plate Coatings: Special coatings for specific applications (anti-fouling, anti-static, etc.)

• Inlet Arrangements: Center feed, peripheral feed, or bottom feed configurations

• Sludge Removal Systems: Chain-and-flight scrapers, traveling bridges, or suction systems

• Instrumentation Packages: Level sensors, turbidity meters, sludge density monitors

• Control Systems: Manual, semi-automatic, or fully automated PLC control

• Accessories: Chemical dosing systems, flocculation aids, sampling points

• Special Designs: Circular, rectangular, or square configurations based on space constraints

Pre-Treatment Requirements

Typical Chemical Dosing:

• Coagulant: Aluminum-based or iron-based coagulant

• Flocculant: Anionic polymer

• pH Adjustment: Acid or caustic as needed

Water Quality Requirements:

• Feed turbidity: Up to 500 NTU (higher with enhanced flocculation)

• Feed temperature: 2-40°C

• pH range: 6.5-9.0 (adjustable)

Why Choose DAGYEE Lamella Clarifiers

• Proven Design: Hundreds of successful installations worldwide

• Quality Materials: Only premium materials with proper certifications

• Engineering Support: Custom design for specific wastewater characteristics

• Performance Guarantee: Written performance guarantees based on design parameters

• Comprehensive Service: From design to installation, commissioning, and after-sales support

• Cost-Effective Solutions: Competitive pricing without compromising quality

• Technical Innovation: Continuous improvement based on operational feedback

• Global Experience: Applications across diverse industries and regions

Supplier Information

The DAGYEE Packaged Lamella Clarifier Plant provides a complete, pre-engineered clarification solution for rapid deployment and reliable operation. Factory assembled, tested, and ready for quick installation, it simplifies project delivery and minimizes site work.

Contact our team for a free consultation and customized package design for your application.

DAGYEE Water Technology
Complete clarification in one package.
