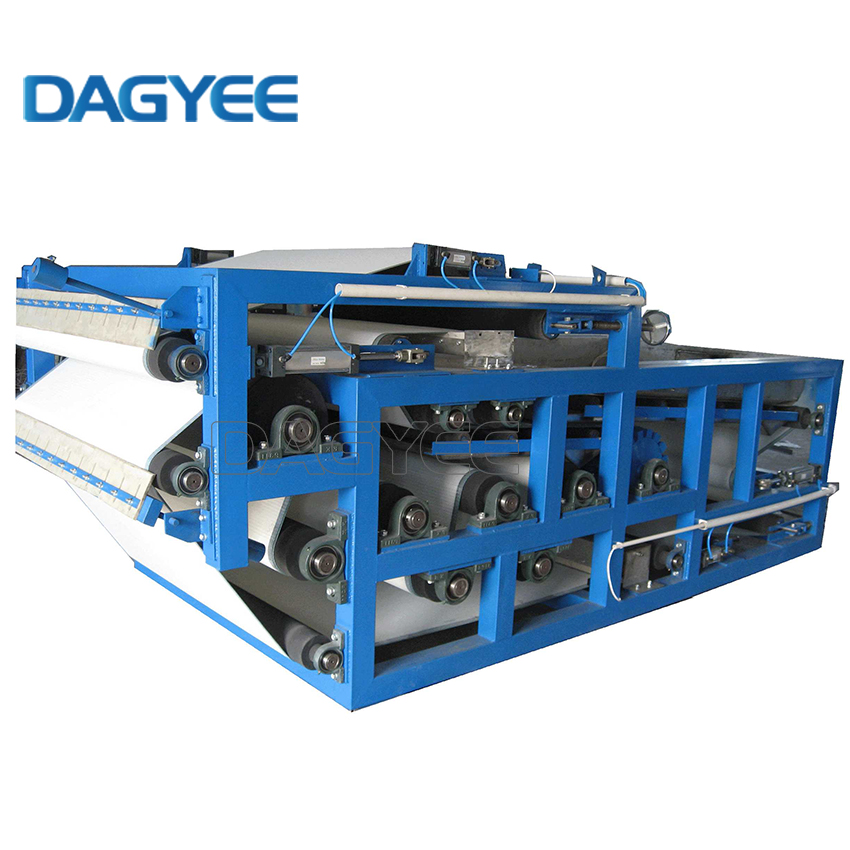

High Capacity Belt filter press for Municipal Sewage Plant
The DAGYEE Mobile Belt Filter Press for Mining Wastewater is a revolutionary dewatering solution that integrates high-efficiency solid-liquid separation technology with exceptional mobility. Mounted on a robust skid, it can be rapidly deployed to remote mine sites, tailings ponds, or temporary operation points to directly and efficiently dewater sludge from mining and mineral processing wastewater. It drastically reduces sludge transportation costs and dependence on fixed infrastructure, providing mining clients with an economical, flexible, and immediately available dewatering capability.

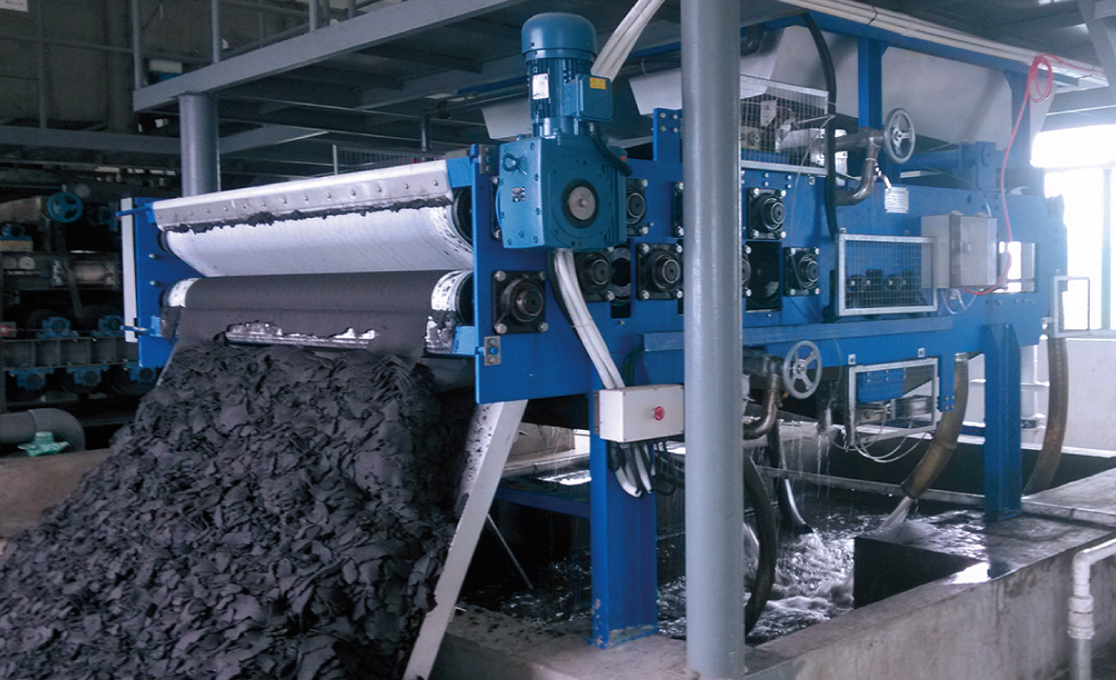

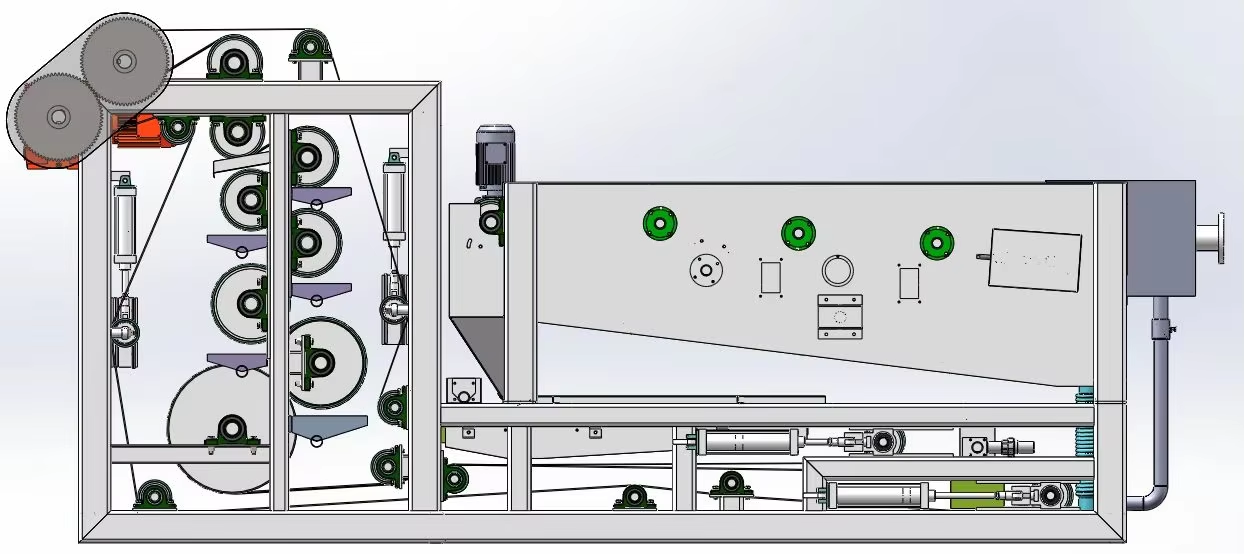

How belt filter presses work
-
Mobile Feeding: Mining wastewater sludge is fed into the unit via a mobile pumping system.
-
Rapid Flocculation: In a compact flocculation mixer, the sludge reacts with specialized flocculants to form large, stable flocs.
-
Three-Stage Dewatering:
-
Gravity Drainage: Flocculated sludge rapidly releases free water on the filter belt.
-
Wedge Pre-Pressing: The sludge is gently compressed in the wedge zone to enhance stability.
-
High-Pressure Squeezing: Incremental pressure from a series of press rollers forms a dry, solid cake.
-
-
Centralized Discharge & Mobility: The dry cake is discharged centrally, and the entire system is ready to be towed to the next site.
Belt filter presses Technical
|
Sludge kinds |
Input concentration % |
Capacitym3/h.m |
DS capacitykg/h.m |
Moisture of cake% |
PAM consumption%(DP/DS ) |
|
Unconcentrated aerobic sludge |
0.5~1.5 |
15~30 |
150~300 |
~80(+2) |
2~5 |
|
Concentrated aerobic sludge |
2~4 |
6~12 |
200~300 |
~80(+2) |
2~5 |
|
Digested sludge |
3~6 |
7~15 |
300~400 |
<80 |
2~5 |
|
Unconcentrated primary sludge |
0.8~2.0 |
18~35 |
300~400 |
<80 |
2~5 |
|
Concentrated primary sludge |
3~5 |
6~12 |
300~400 |
≤80 |
2~5 |
|
Paper making activated sludge |
0.5~2.5 |
15~35 |
200~400 |
<78 |
3~7 |
|
Printing and dyeingmixed sludge |
1~3 |
10~25 |
180~350 |
75-85 |
3~10 |

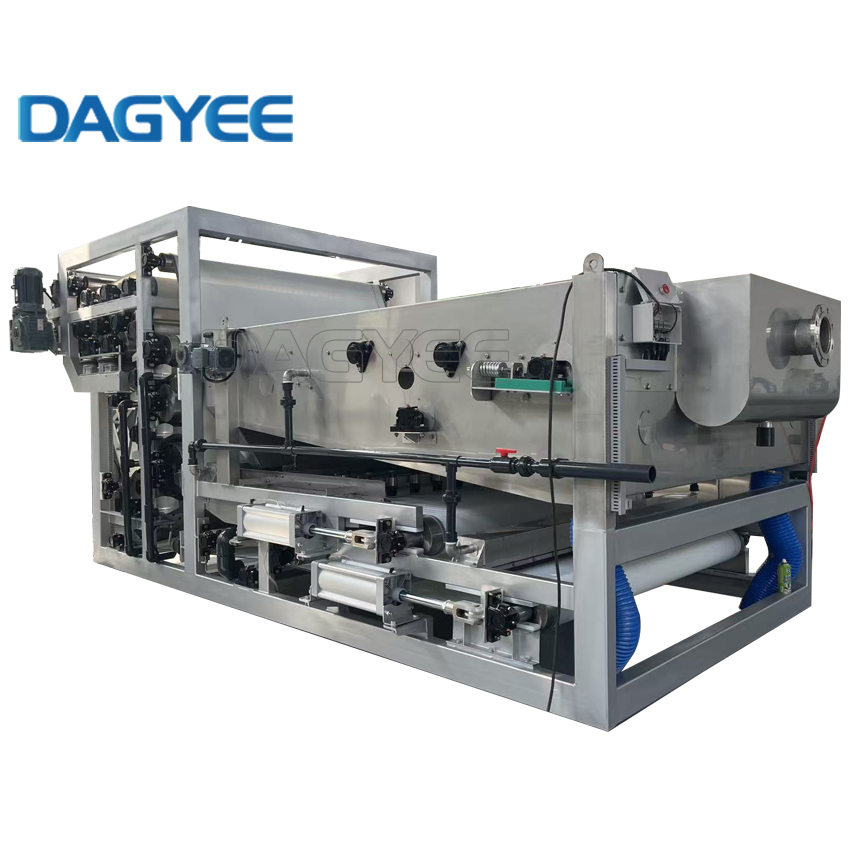

Belt filter presses Advantage

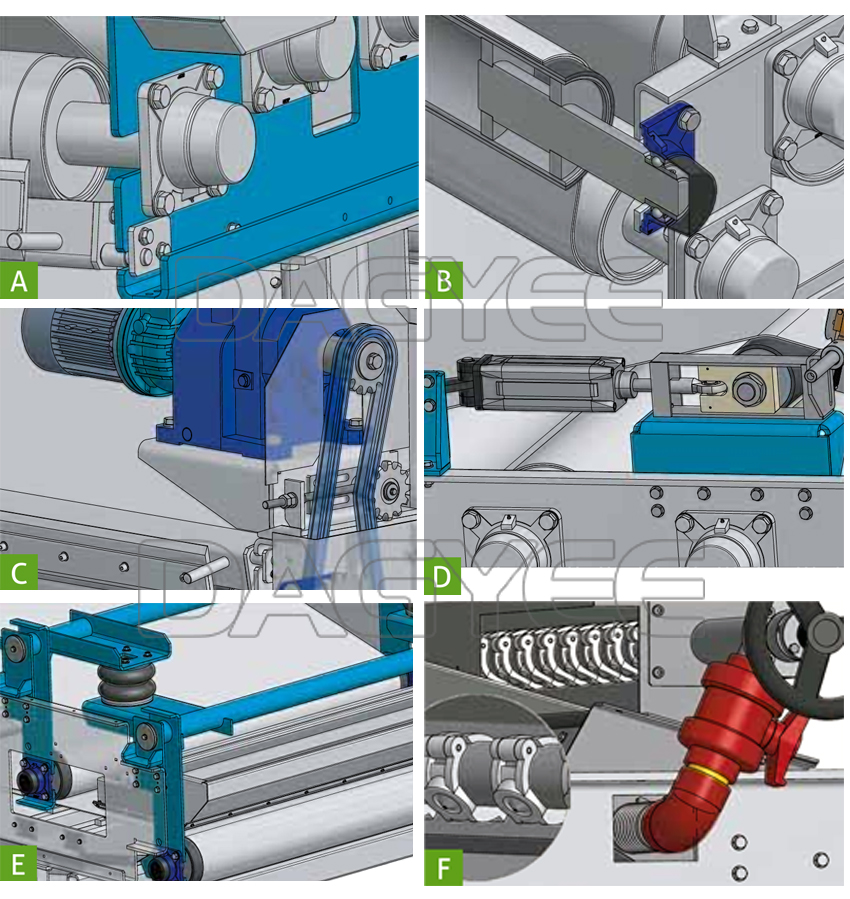

BEARING FRAME Made of two very thick carbon steel plates (on request, SST), fixed to each other by means of profiles and welded to form a stiffen perfectly levelled unit. The whole structure is protected by sand-blasting type Sa 2.5, then by a zinc-aluminium alloy hot spraying and finally covered by a layer of bicomponent polyurethanic resin. Bolts and nuts are made of SST A2 AISI 304. (Ref. A)
ROLLERS The pressing, tensioning, transmission and sludge discharge rollers are protected by a layer of 8mm of rubber. The motorized pressing roller and the trajectory correction one are coated by 8 mm. of rectified rubber layer. All the rollers are supported by ball bearings type ‘Y’ which are suitably sized and guarantee a perfect impermeability. (Ref. B
BELTS TRACTION SYSTEM Models with belts width of 800, 1200, 2000 mm.: it consists of a worm motor variator with speed manual adjustment, directly keyed to the roller; Models with belts width of 1600, 2500, 2600, 3000 mm.: it consists of an epicyclic motor variator connected to a traction roller by a toothed crown and chains protected by carters. (Ref. C)
BELTS GUIDE SYSTEM Pneumatic type with proportional action probes to keep the belts continuously centered and one upon the other. (Ref. D)
BELTS TENSION SYSTEM It consists of pneumatic jacks with air springs which keep the belts tensioned. (Ref. E)
BELTS WASHING SYSTEM It consists of spray header pipes equipped with nozzles which can be cleaned by a specia plan (Ref. F)
Belt filter presses Features
-
Plug-and-Play Mobility: All components are integrated on a heavy-duty mobile skid for easy transport and fast on-site connection.
-
Mining-Optimized Reinforced Structure: Designed for harsh conditions with wear and corrosion-resistant key components and an overall more robust build.
-
Rapid Deployment & Relocation: Simplified installation and piping enable quick switching between different sites, maximizing equipment utilization.
-
Integrated Control System: Features a weatherproof control cabinet with PLC for one-touch operation and full automation, reducing the need for skilled operators on site.
-
Efficient & Energy-Saving Dewatering: Maintains the core dewatering efficiency of the DAGYEE series despite its mobile design, ensuring low operating costs.
-
Adaptability to Harsh Conditions: Engineered to operate reliably on uneven ground and under varying temperatures common in mining areas.
Belt filter presses Benefits
-
Drastically Reduced Hauling Costs: In-situ dewatering converts liquid sludge to dry cake, massively reducing volume and thus the cost of transportation to tailings dams or disposal sites.
-
Zero Fixed Infrastructure Investment: Eliminates the need for costly permanent dewatering buildings, saving significant capital and time.
-
Rapid Emergency Response: Serves as an emergency unit to quickly tackle accident ponds or overflow situations.
-
Unmatched Project Flexibility: Ideal for small-to-medium mines, short-term projects, or scenarios requiring mobility between different mining sites.
-
DAGYEE Proven Reliability: Inherits the high reliability of the DAGYEE brand, ensuring stable performance in demanding mining environments.
Belt filter presses application Industries
-
Metal & Non-metal Mines: For process wastewater treatment in mines extracting gold, copper, iron, lead-zinc, bauxite, etc.
-
Coal Mining Industry: For coal slime and coal washing wastewater dewatering.
-
Tailings Management: Direct dewatering of overflow water or thickened underflow from tailings ponds.
-
Pit Dewatering: Sludge dewatering from mine pit water or underground drainage.
