RO Feed Pretreatment UF System – Protecting Your Reverse Osmosis Investment

Product Overview

Reverse osmosis is the workhorse of high-purity water production. But RO membranes are expensive. A single 8-inch element costs $500-1,500. A large plant might have 100 to 1,000 elements. Replacement is a significant capital expense.

Here's the problem: RO membranes foul. Particles, colloids, bacteria, and organic matter accumulate on the membrane surface. The pressure rises. The flux drops. Cleaning becomes more frequent. Eventually, the membranes must be replaced—often years before their rated life.

The solution is simple: protect the RO with UF pretreatment. A UF system upstream of the RO removes the particulates and microorganisms that cause fouling. The result is longer RO membrane life, fewer cleanings, and lower operating costs. The UF system pays for itself many times over through extended RO life and reduced chemical consumption.

The DAGYEE RO Feed Pretreatment UF System is designed specifically for this purpose. It delivers SDI < 1, turbidity < 0.1 NTU, and removes 99.99% of bacteria and viruses. This is the pretreatment that RO systems deserve.

Why Ultrafiltration for Small to Medium Projects?

There's a reason ultrafiltration has become so popular in recent years, even for smaller-scale applications. The technology simply makes sense.

No Chemicals Needed
During normal operation, a UF system doesn't require any chemical dosing. No coagulants, no flocculants, no pH adjustment. This is a significant advantage for smaller installations where chemical handling, storage, and safety can be a hassle. You just pump water through the membranes, and clean water comes out.

Consistent Quality, Regardless of Feed Water
Conventional filters (sand filters, media filters, cartridge filters) produce water that varies with the quality of the incoming water. During dry seasons, they work fine. During rain events, when turbidity spikes, the output quality drops. A UF system doesn't care about seasonal fluctuations. The membrane pores are physical barriers. If the contaminant is larger than 0.01 microns, it stays behind. Period. The permeate quality is the same in April as it is in November.

Small Footprint
For smaller projects, space is often limited. You might not have an entire building for a water treatment plant. UF systems are compact. A system producing 5 m³/h fits on a skid about the size of a small car. It can go into a corner of an existing building, a shipping container, or a small dedicated room.

Low Maintenance
Modern UF systems are automated. They backwash themselves. Some models can even do simple chemical cleanings automatically. This is a big deal for smaller operations that don't have a dedicated water treatment specialist on staff. With a UF system, routine operation is straightforward. Check the pressures in the morning. Top up the chemicals if needed. The system handles the rest.

Long-Term Reliability
UF membranes have a service life of 3 to 5 years with proper operation. That's much longer than sand filters that require regular media replacement, or cartridge filters that need changing every few months. The total cost of ownership usually comes out ahead with UF.

How This System Works

Filtration Mode
Raw water (typically after media filtration or direct from surface water) enters the UF system. The UF membranes remove particles down to 0.01 microns. Clean water with SDI < 1 and turbidity < 0.1 NTU flows to the RO feed tank. The reject stream (5-15% of feed) carries away concentrated contaminants.

Automatic Backwash
The UF system automatically backwashes at regular intervals (typically every 30-60 minutes). Backwash water is either sent to drain or returned to the head of the plant for recovery.

Chemical Cleaning (CEB)
The system includes Chemical Enhanced Backwash (CEB) capability. When TMP increases due to fouling, a CEB cycle is triggered using NaClO or other cleaning chemicals. This restores membrane performance without interrupting RO operation.

CIP (When Needed)
For more intensive cleaning, the system can perform CIP cycles. This removes accumulated foulants that backwashing cannot handle.

Integration with RO
The UF system is designed for seamless integration with existing RO plants. The UF permeate is fed directly to the RO feed pumps. The control system communicates with the RO PLC for coordinated operation.

System Components

The UF Ultrafiltration System consists of the following core components:

What This System Removes

The Compact UF System is a physical barrier. It removes anything larger than its pore size. Here's what that means in practical terms:

What the System Does NOT Remove:

• Dissolved salts (TDS)

• Dissolved ions (sodium, calcium, chloride, etc.)

• Low molecular weight organics

• Color that is truly dissolved (not particle-bound)

For applications requiring dissolved solids removal, UF is typically followed by reverse osmosis or ion exchange. In fact, one of the most common uses of UF is as pretreatment for an RO system—it removes the particulates that would otherwise foul the RO membranes.

Technical Specifications

Where This System Is Used

This compact UF system shows up in a wide range of applications. Here's where we most often see it installed:

Installation & Setup

One of the advantages of the Compact UF System is its simplicity. Here's what you need to know:

What You Get

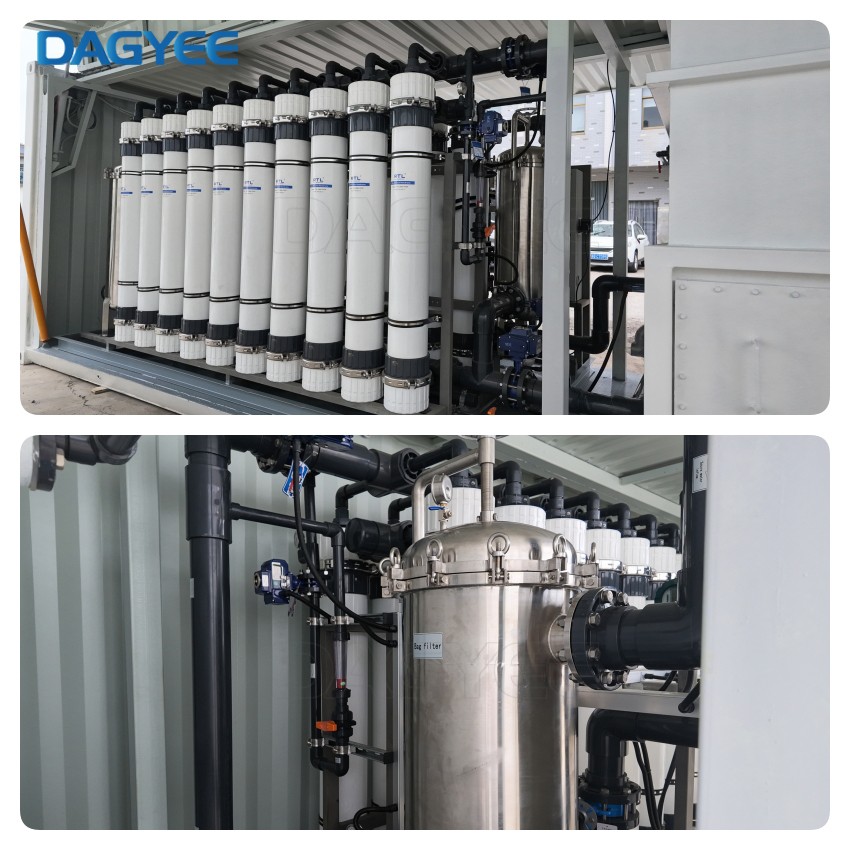

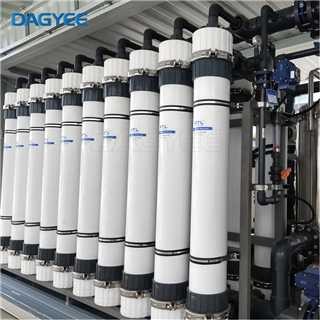

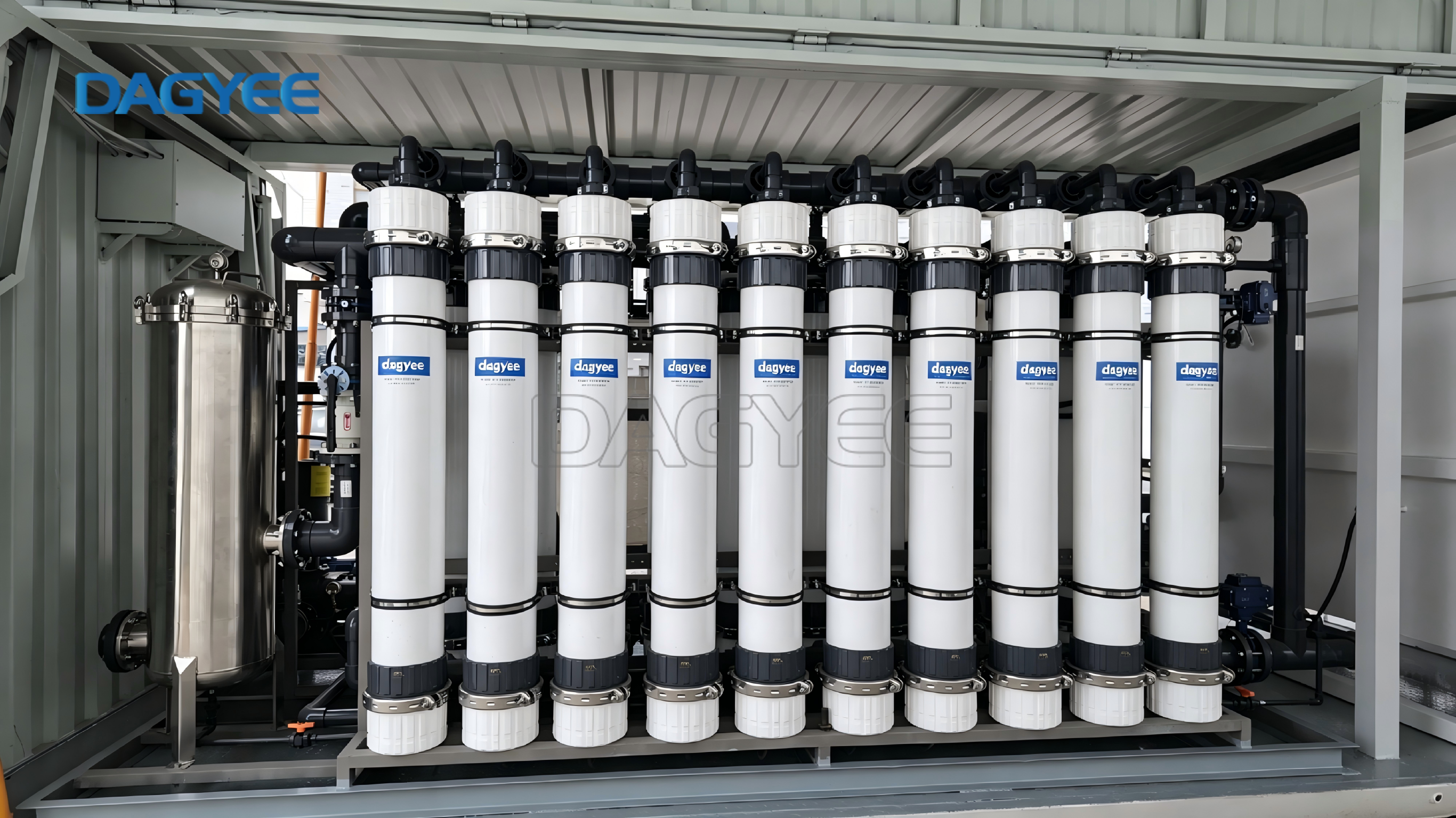

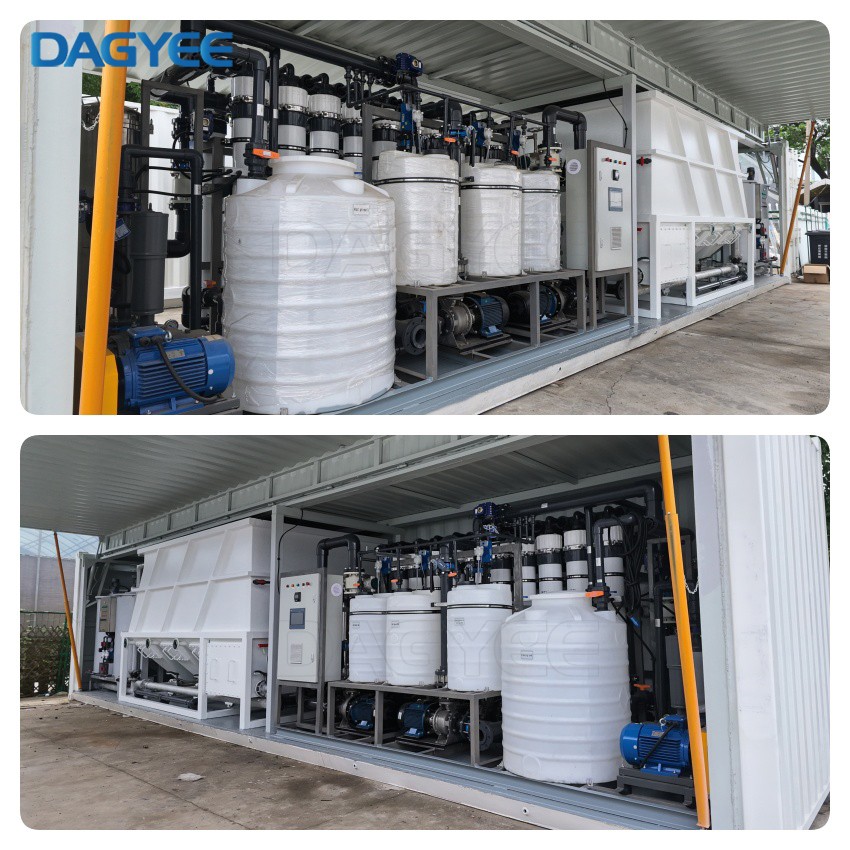

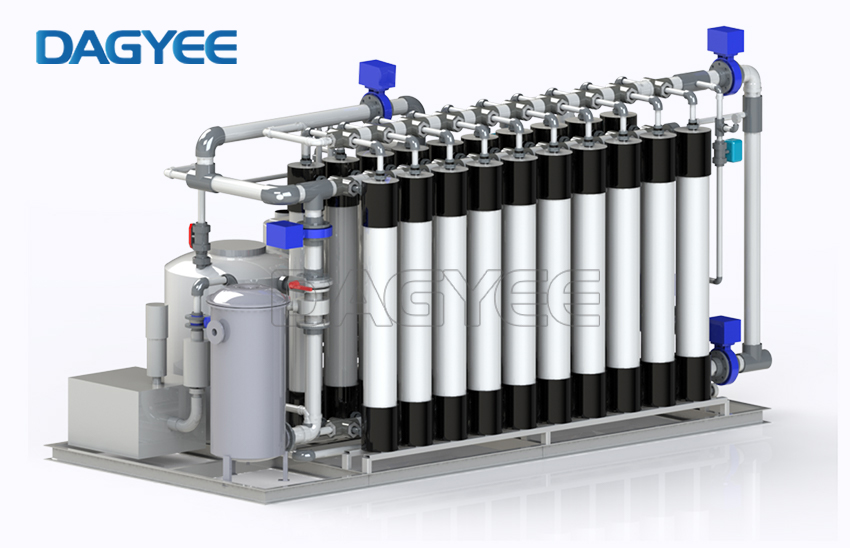

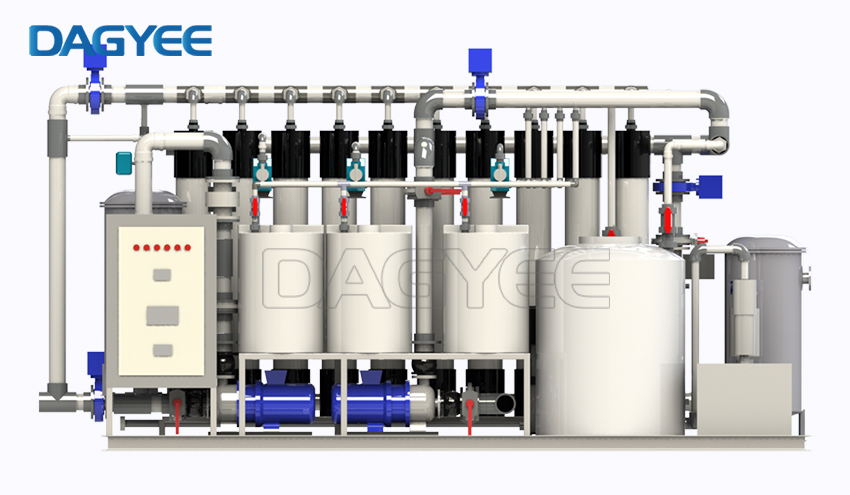

The system arrives fully assembled on a steel skid. All piping, the UF membrane modules, the feed pump, the control panel, and the instrumentation are already connected. The pre-filter is installed. The backwash system is plumbed. It's essentially plug-and-play.

Connection Requirements

• Water Supply: Pipe connection to your feed water source (well, tank, municipal supply, or surface water)

• Permeate Discharge: Pipe connection to your product water tank or distribution system

• Reject / Drain Discharge: Pipe connection to drain or recycle line (small flow, typically 5-10% of feed)

• Power: Single-phase electrical connection at the specified voltage

• Space: Level floor area sufficient for the skid, plus 600 mm access around all sides for maintenance

Commissioning
A trained technician can commission the system in one day. The process includes flushing the membrane modules, checking all instrumentation, programming the control parameters, and verifying performance. Operator training takes about 2-3 hours.

Operator Requirements
No specialized technical background is needed. The system is designed so that a facilities manager, maintenance person, or even a trained operator can handle the daily tasks. The checklist is simple: check pressures, monitor flow rates, top up chemicals if applicable, and call for service if something looks unusual.

Contact Us

The DAGYEE RO Feed Pretreatment UF System protects your reverse osmosis investment. Whether you're installing a new RO plant or upgrading an existing one, our UF system delivers the feed quality that RO membranes need to perform at their best.

Contact our team for a free ROI analysis for your RO plant.
