High-Flow Multi-Cartridge Filter Housing – Heavy-Duty Filtration for Large-Scale Industrial Applications
In pharmaceutical manufacturing, food and beverage processing, and biotech production, filtration is not just about removing particles—it is about ensuring product purity, patient safety, and regulatory compliance. The standards are exacting. Equipment must be constructed from materials that do not contaminate the product. Surfaces must be smooth and crevice-free to prevent bacterial growth. Connections must allow complete drainage and cleaning. And everything must be documented and validated.

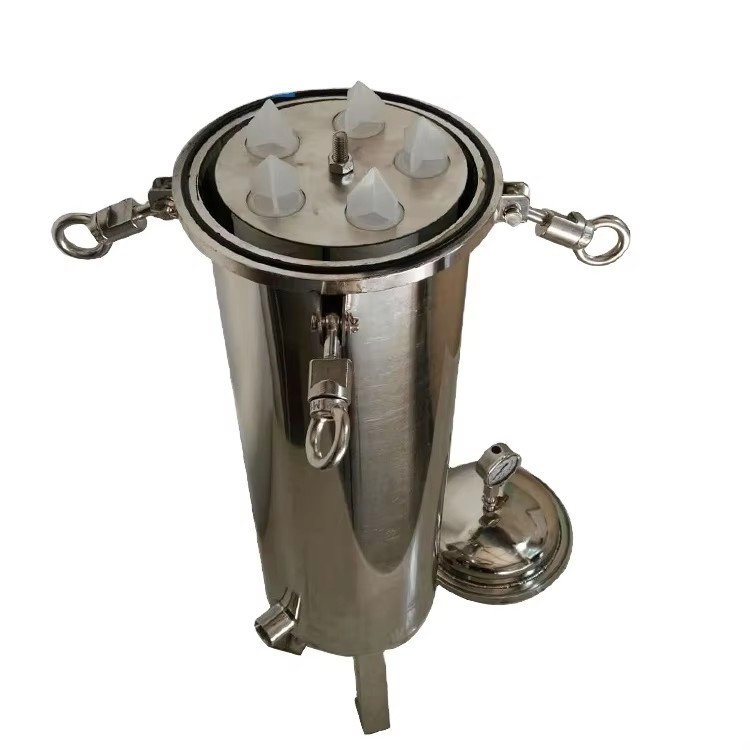

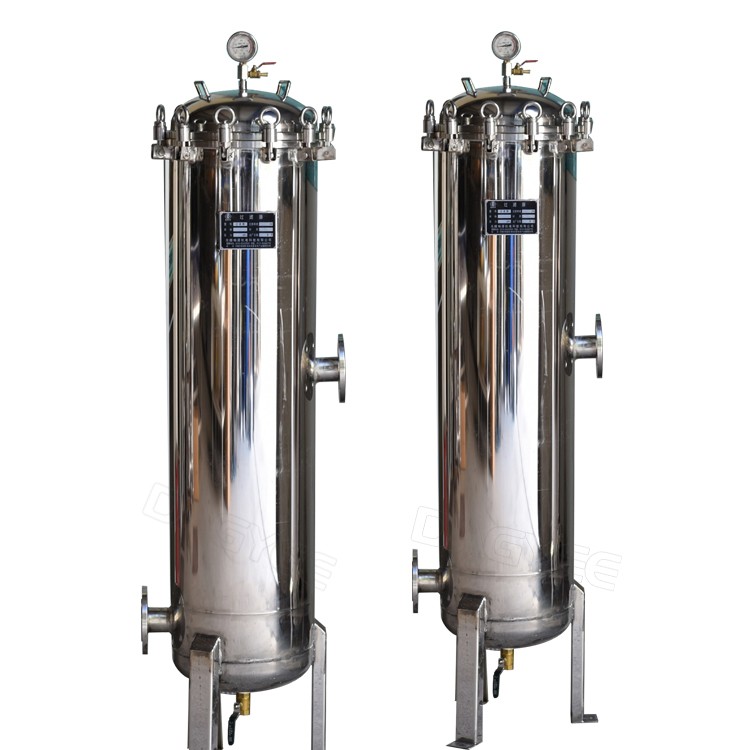

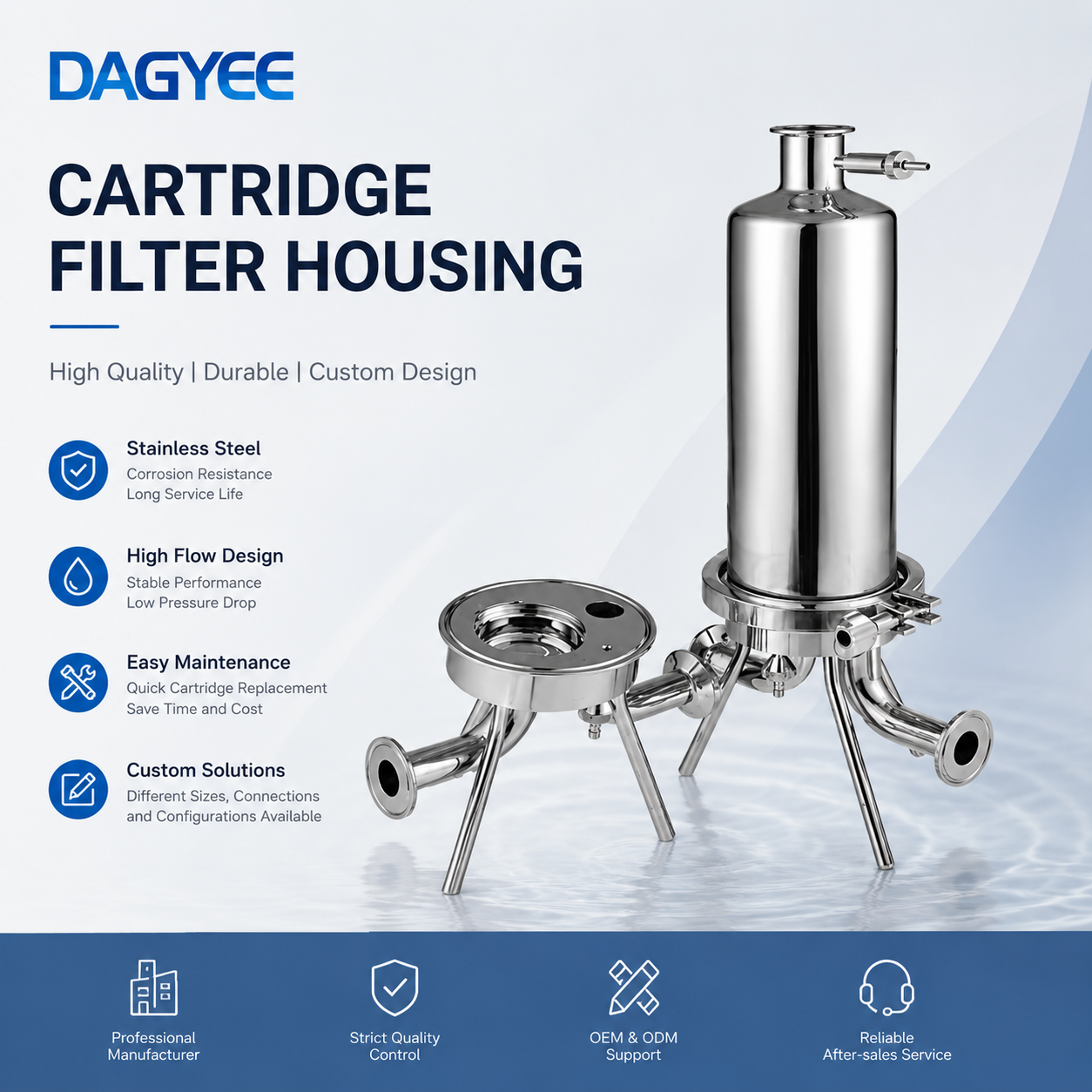

The DAGYEE Sanitary Multi-Cartridge Filter Housing is engineered to meet these demanding requirements. Constructed from high-grade SS316L stainless steel with an electropolished surface finish, it provides the hygienic, corrosion-resistant, and easy-to-clean environment required for high-purity applications. All wetted surfaces are smooth and crevice-free, with sanitary Tri-Clamp connections and a design that allows complete drainage.
This housing is ideal for sterile filtration, final product filtration, and high-purity water applications in pharmaceutical, food, beverage, and biotechnology industries. It meets the requirements of GMP, FDA, and other regulatory standards, providing the confidence needed for critical applications.
How the System Works
The operational principle of the sanitary filter housing is similar to standard multi-cartridge housings, with significant enhancements for hygiene and cleanability.
The Process Flow
Step 1: Product Entry
The liquid product enters the housing through the sanitary inlet connection. The flow is distributed evenly across the multiple cartridges installed inside the vessel.
Step 2: Filtration
The product passes through the filter cartridges. The cartridge media traps particles, microorganisms, and other contaminants based on the cartridge's micron rating. All surfaces in contact with the product are smooth and crevice-free.
Step 3: Clean Product Collection
The filtered product passes through each cartridge core and is collected in the outlet manifold, exiting through the sanitary outlet connection.
Step 4: Cartridge Retention
The filter cartridges are securely held in place by sanitary cartridge adaptors. Standard connections include 222 O-ring or 226 O-ring configurations with sanitary bayonet locking.
Step 5: Sanitization and Cleaning
The housing is designed for Clean-in-Place (CIP) and Steam-in-Place (SIP) operations. Vent and drain ports allow complete drainage and sanitization without disassembly.
Step 6: Maintenance Access
When required, the housing is opened via the hygienic clamp closure system. Cartridges can be replaced quickly without specialized tools, and all wetted surfaces are accessible for manual cleaning if needed.

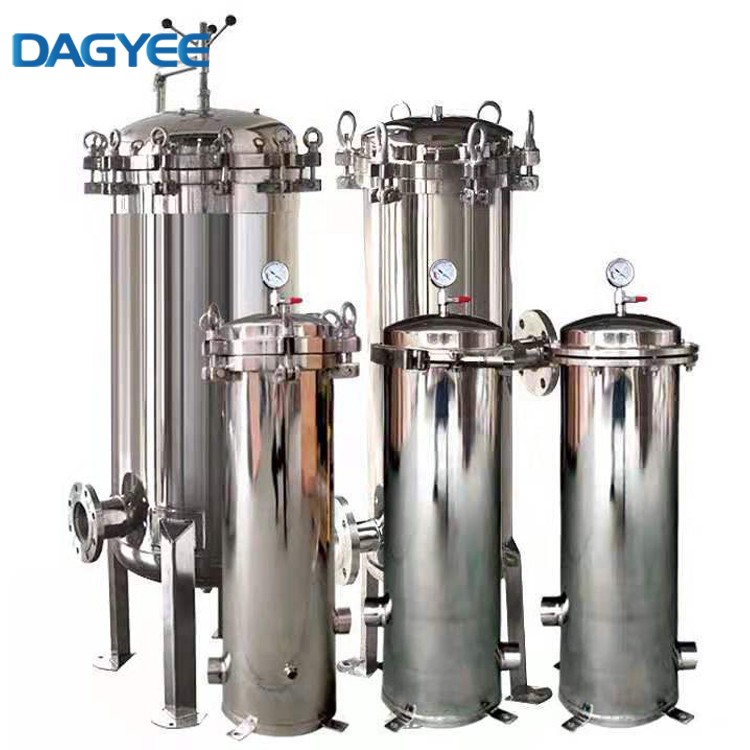

Key Design Features

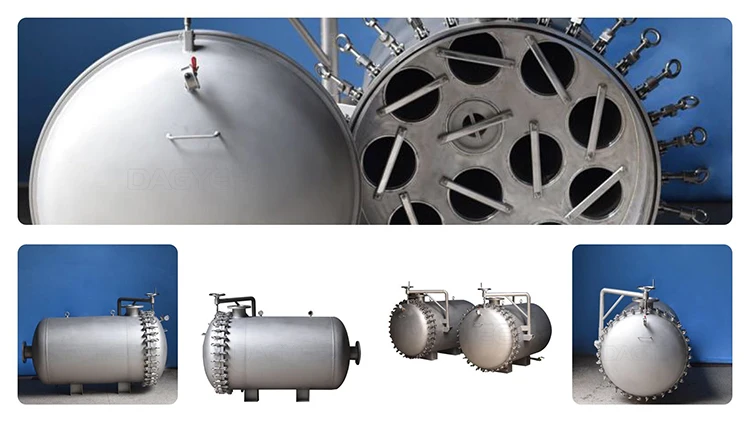

| Feature | Benefit |
|---|---|
| Stainless Steel Construction | Corrosion resistance, long service life in harsh environments |
| Single or Multi-Round Configurations | Flexible capacity from 1 to 60 cartridges |
| Various Cartridge Lengths | Accepts 5", 10", 20", 30", and 40" cartridges |
| Multiple Connection Types | DOE, 222 O-ring, 226 O-ring, or threaded options |
| High-Pressure Rating | Suitable for demanding process conditions |
| Easy-Opening Closure | V-band clamp, swing bolts, or eye bolts for quick access |
| Vent and Drain Ports | Complete drainage and pressure relief during maintenance |
| Optional Surface Finish | Electropolished or bead-blasted surfaces |
| Various Seal Materials | Viton, EPDM, or NBR O-rings for chemical compatibility |
| Mounting Options | Legs, brackets, or flanged connections as needed |
Technical Specifications
| Model | Size | Dimensions (mm) | Flow (m³/h) | Inlet/Outlet | Pressure |
|---|---|---|---|---|---|
| DPF-10-170 | 10" | 170 × 430 | 1 – 2 | 1" | 0.6 MPa |
| DPF-10-200 | 10" | 200 × 430 | 2 – 3 | 1" | 0.6 MPa |
| DPF-20-170 | 20" | 170 × 690 | 3 – 4 | 1" | 0.6 MPa |
| DPF-20-200 | 20" | 200 × 690 | 4 – 6 | 1 ½" | 0.6 MPa |
| DPF-20-250 | 20" | 250 × 690 | 6 – 8 | 2" | 0.6 MPa |
| DPF-30-200 | 30" | 200 × 940 | 7 – 8 | 1 ½" | 0.6 MPa |
| DPF-30-250 | 30" | 250 × 940 | 10 – 11 | 2" | 0.6 MPa |
| DPF-40-200 | 40" | 200 × 1240 | 9 – 11 | 2" | 0.6 MPa |
| DPF-40-250 | 40" | 250 × 1240 | 13 – 15 | 2" | 0.6 MPa |
| DPF-40-300 | 40" | 300 × 1350 | 14 – 18 | 2" | 1.0 MPa |
| DPF-40-320 | 40" | 320 × 1350 | 16 – 20 | 2" | 1.0 MPa |
| DPF-40-350 | 40" | 350 × 1350 | 20 – 30 | 2 ½" | 1.0 MPa |
| DPF-40-400 | 40" | 400 × 1430 | 30 – 40 | 3" | 1.0 MPa |
| DPF-40-450 | 40" | 450 × 1450 | 50 – 65 | 3" | 1.0 MPa |
What the System Removes
| Contaminant | Removal Efficiency | Typical Application |
|---|---|---|
| Suspended solids | High | Clarification of liquids |
| Sediment and particulate | High | Pre-filtration and polishing |
| Rust and scale | High | Protection of downstream equipment |
| Fine particles | High | Product purity requirements |
| Oil and grease | Moderate to high | Water treatment |
| Microorganisms | High | Pharmaceutical, food and beverage |
| Carbon and filter media fines | High | Protection of RO membranes |
Pre-Treatment & Installation
Installation Requirements:
-
Level, stable mounting surface
-
Adequate clearance for cartridge change-outs
-
Sanitary piping connections
-
Access for CIP/SIP systems
Sanitation Process (CIP/SIP):
-
Rinse with purified water
-
Clean with appropriate cleaning solutions
-
Rinse with purified water
-
Steam sterilize (SIP)
-
Cool and prepare for operation
Maintenance:
-
Visual Inspection: Regular inspection of seals and connections
-
Cartridge Change-Out: When differential pressure reaches setpoint
-
Seal Replacement: Annually or as needed
-
Surface Inspection: Check for damage, corrosion, or contamination
-
Validation: Regular revalidation per GMP requirements

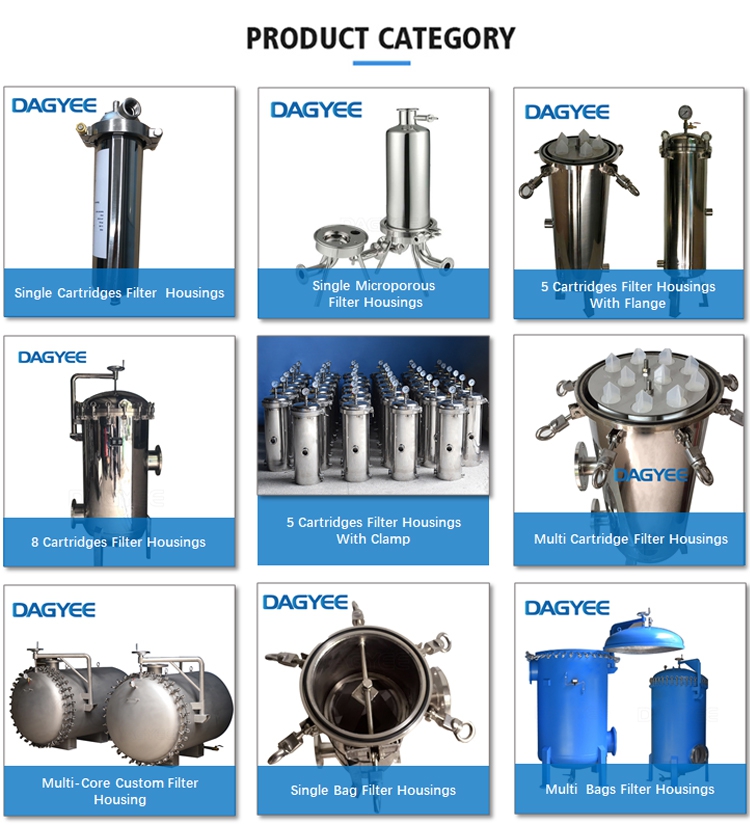

DAGYEE Cartridge Housing Application
DAGYEE Cartridge Housing Application
- Food & Beverage: Water purification, ingredient filtering, wine and beer stabilization, edible oil processing.
- Pharmaceutical & Biotech: Purification of water for injection (WFI), process fluids, solvent filtration, sterile venting.
- Chemicals & Petrochemicals: Chemical purification, catalyst recovery, pre-filtration for membranes.
- Electronics: Ultra-pure water production for semiconductor and PCB manufacturing.
- Metalworking & Plating: Coolant filtration, pre-treatment of plating baths.
- General Industrial: Water treatment, hydraulic and lubricating oil protection, compressed air and gas filtra

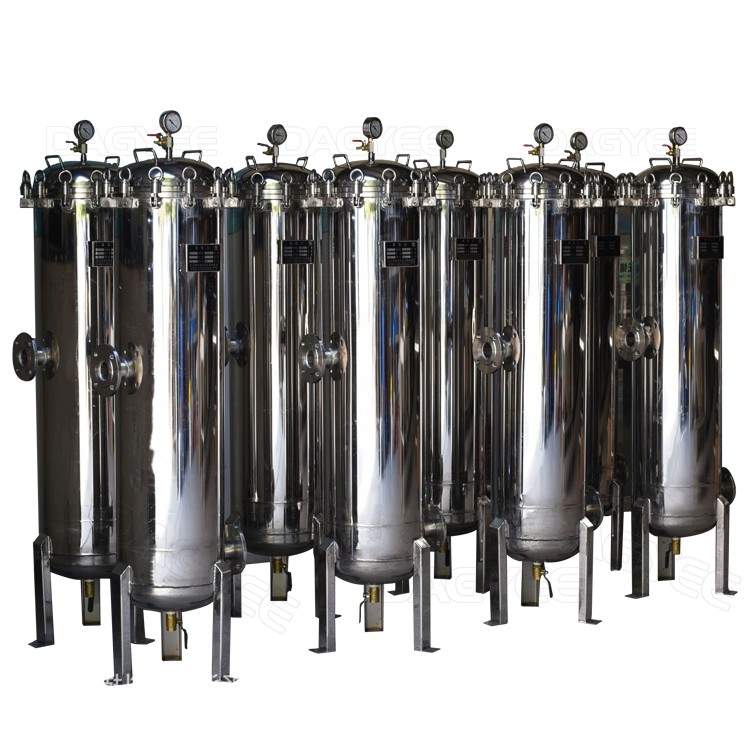

Why Choose DAGYEE Cartridge Filter Housing?
Feature
Customer Value
Stainless Steel Construction
Corrosion resistance and long service life
Wide Cartridge Compatibility
Accepts standard cartridges from leading manufacturers
High-Pressure Rating
Suitable for demanding process applications
Easy Maintenance Access
Quick-opening closures reduce downtime
Flexible Configuration
Single to multi-round options for any flow rate
Customizable Finish
Electropolished, bead-blasted, or mirror finish available
Multiple Seal Options
Viton, EPDM, NBR, Silicone for chemical compatibility
Industry Standard Design
ASME code optional, CE certified
Factory Tested
Quality assured before shipment
Competitive Pricing
Cost-effective without compromising quality
FAQ
Q: Are you manufacturer?
A:Yes
Q: What products you provide?
A: Various kinds of filter press, bag filter housing, cartridge filter housing, self cleaning filter, basket filters, filter bag, filter cartridges, filter plate, filter cloth, etc.
Q: How to select the type that needed?
A: When you contact us, we will ask some basic questions to help you select the product type. such as, what is the liquid that you want to filter, flow rate, solid content, etc.
Q: What is the delivery time?
A: It will depends on the order quantity,sometimes when you put order also will influence on the delivery time, once you order from us, we will arrange delivery the cargo as soon as possible.
Q: What is the MOQ？
A: One set
Contact Us
The DAGYEE Sanitary Multi-Cartridge Filter Housing is the ideal solution for high-purity filtration applications in pharmaceutical, food & beverage, and biotech industries. Designed for hygiene, cleanability, and regulatory compliance, it provides the confidence needed for critical product filtration.
Contact our team for a free consultation and customized housing design for your application.
