Tubular UF Membrane System for High-Solids Industrial Wastewater – Durable Filtration for Challenging Effluents

In recent years, surface water purification with ultrafiltration membrane has become an attractive alternative to conventional clarification. No or less need of chemical agents, good quality of produced water independent of feed water quality, good removal efficiency towards microorganisms, less production of sludge, compact process, and easy automation are some of the advantages of ultrafiltration compared to conventional treatment. Originally, ultrafiltration was used to remove turbidity and microorganism from good-quality surface water. Nowadays the main goal is to improve this technology and to apply it to worse quality sources for the removal of microorganisms, natural organic matter (NOM), Total Organic Carbon (TOC) including particulate organic carbon (POC) and dissolved organic carbon (DOC), disinfection by-products (DBPs) and other components.

Product Overview

Some industrial waste streams are just difficult. High solids content. Variable flow. Oily, sticky, and fouling. Food processing wastewater, textile dye baths, chemical plant effluents, and oily wastewater from metalworking. Conventional ultrafiltration systems struggle with these streams. The membranes plug. The flux drops. Cleaning becomes a constant battle. Eventually, the system fails.

What these applications need is a different kind of UF system. One with open channels that resist plugging. One that can handle high solids without constant cleaning. One that is built tough enough for the most challenging industrial streams.

The DAGYEE Tubular UF Membrane System is designed for exactly these conditions. Using tubular membranes with 6-12 mm diameter channels, this system handles high-solids streams that would quickly foul conventional hollow fiber or spiral-wound membranes. It operates with cross-flow that continuously sweeps solids away from the membrane surface. And it can be cleaned aggressively when needed.

This is the UF system for plant engineers who have tried everything else and still struggle with difficult wastewater. It works when other systems won't.

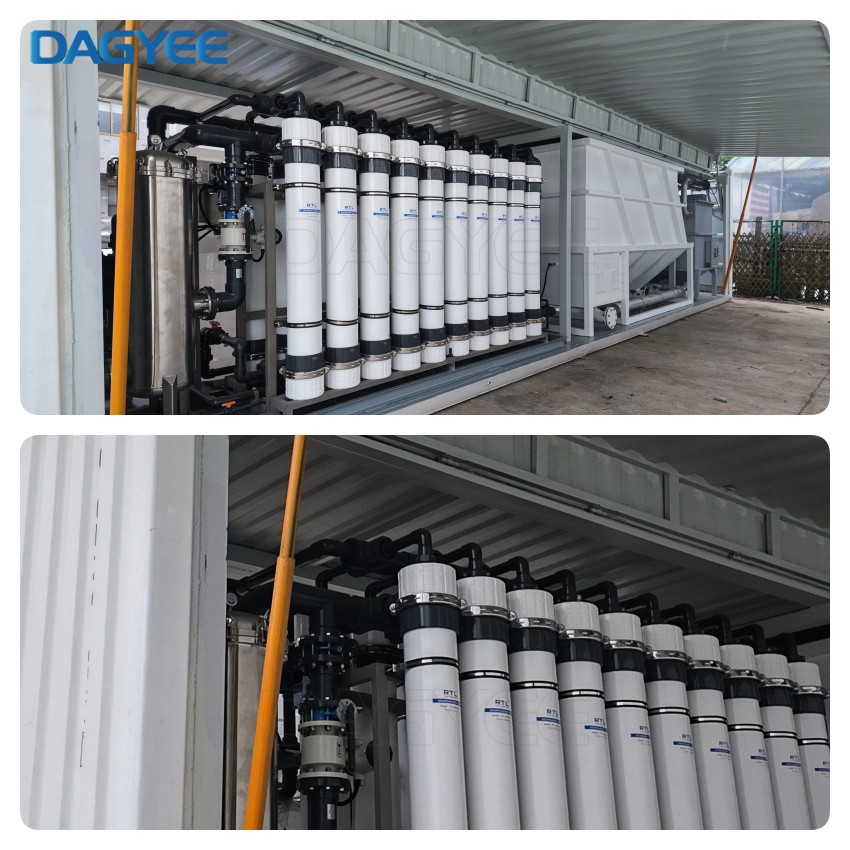

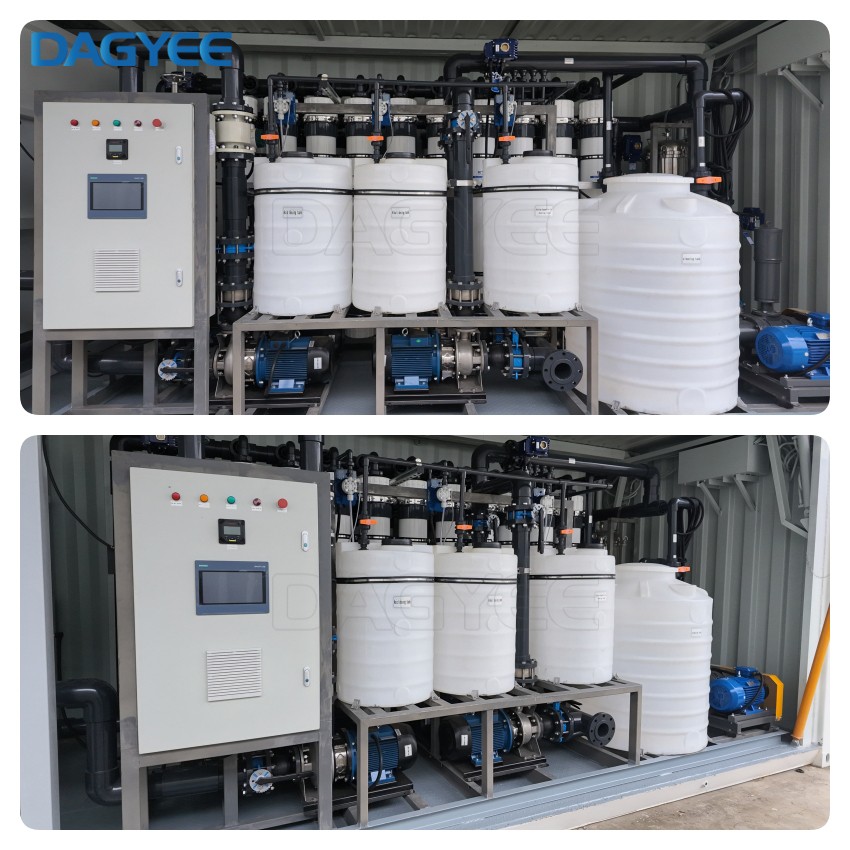

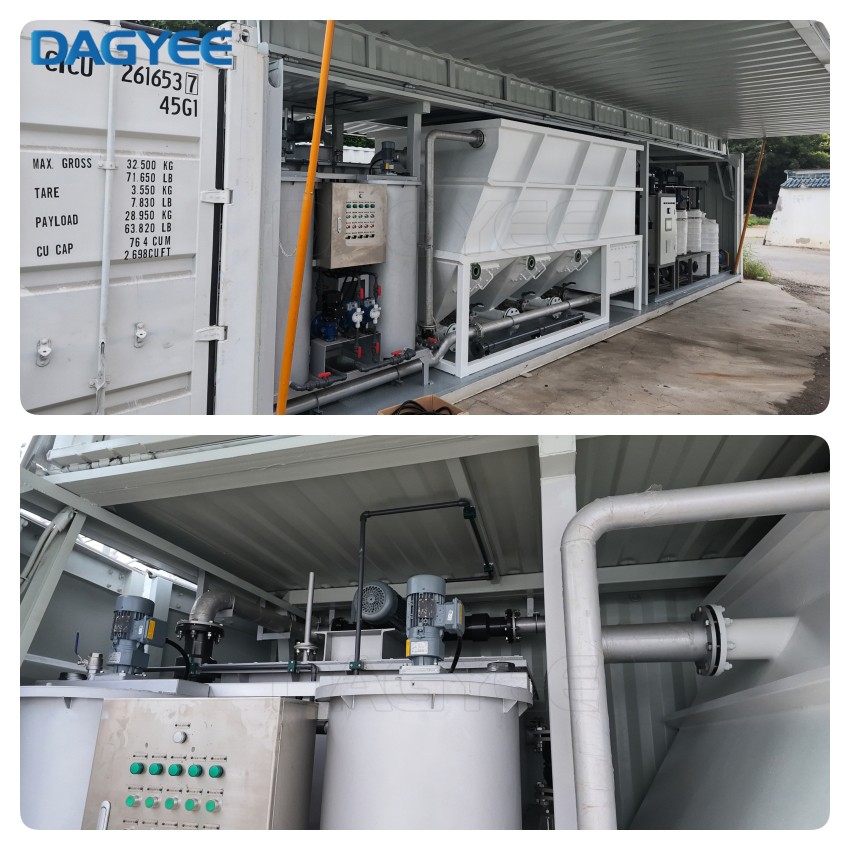

Why a Containerized System?

There are plenty of reasons to put a water treatment plant inside a shipping container. Here are the ones that matter most:

Speed of Deployment
A conventional water treatment plant takes months to design, build, and commission. A containerized system takes days to ship and hours to commission. When water is urgently needed, that difference is everything.

Complete Mobility
The system is built to move. A flatbed truck delivers it. A crane sets it down. When the project ends, the same truck takes it to the next site. The equipment doesn't get left behind—it follows the work.

Minimal Civil Works
No foundations. No buildings. No permanent utilities. Just a reasonably level piece of ground, a water source, and a power connection. That's all it takes.

Plug-and-Play Simplicity
Everything is pre-installed and pre-wired inside the container. The operator doesn't need to be a water treatment specialist. The system is designed to be operated by someone with basic training. Connect the hoses, turn it on, and let it run.

Weather Protection
The container provides built-in shelter for all equipment. Rain, dust, wind, and extreme temperatures don't affect performance. The system operates reliably in conditions that would shut down an open-air plant.

Security
The container is lockable, providing physical security for equipment in remote or unstable locations. Vandalism and theft are real concerns in some settings—a shipping container offers practical protection.

Working Principle

Filtration Mode
Feed water enters the membrane modules and flows through the tubes at high velocity (3-5 m/s). Clean water permeates through the membrane wall and is collected as permeate. Suspended solids and contaminants remain in the feed stream and are concentrated as the feed progresses through the module.

Cross-Flow Scouring
The high cross-flow velocity creates turbulence that scours the membrane surface, preventing solids accumulation. This is the key to the system's ability to handle high-solids streams.

Recirculation
A portion of the concentrate is recirculated back to the feed tank to maintain the required cross-flow velocity while allowing the system to achieve high water recovery.

Backflushing
Periodically, permeate is pumped in the reverse direction to flush solids off the membrane surface. The backwash water is returned to the feed tank or sent to drain.

Chemical Cleaning
When cross-flow and backflushing are not sufficient to restore flux, chemical cleaning is performed. The membranes are soaked or flushed with cleaning chemicals (NaClO, NaOH, citric acid, and/or detergents) to remove fouling layers.

System Components

What This System Removes

The Compact UF System is a physical barrier. It removes anything larger than its pore size. Here's what that means in practical terms:

Product Features & Advantages

Ultrafiltration offers numerous advantages in water treatment, making it an increasingly popular choice for municipal  and industrial applications. Hollow fiber UF membranes provide a physical barrier to suspended solids and pathogens to consistently produce a high-quality, low-turbidity, and low-SDI effluent.

Here are the key benefits of implementing an ultrafiltration system:

Pressurized or immersed membranes to suit the site requirements.
Greater output in the same footprint and helps reduce capital and lifecycle costs for the application.
Physical UF barrier provides consistent high-quality effluent exceeding stringent regulatory requirements through virtually any change in raw-water quality.
Low lifecycle cost optimized through extended membrane life and low energy and chemical use.
These benefits make ultrafiltration an attractive option for various water treatment applications, from municipal water supplies to industrial process water.

Technical Specifications

Parameter	Specification
Model Number	MOD-UF-2026-02A
Filtration Precision	0.01 ~ 0.02 micron
Membrane Material	PVDF
Membrane Configuration	Hollow Fiber (HFF)
Fiber Inner / Outer Diameter	0.6~1.0 / 1.0~1.6 mm
Operation Mode	Inside-out / Outside-in
Operating Pressure	1.4 ~ 3.5 bar (20 ~ 50 psi)
Max Operating Pressure	6.0 bar (87 psi)
Operating Temperature	2 ~ 38 C (35 ~ 100 F)
Max Temperature	45 C (113 F)
Operating pH Range	2 ~ 13
pH Range (Cleaning)	1 ~ 14 CIP
Recovery Rate	85% ~ 95%
Permeate Turbidity	< 0.1 NTU
Permeate SDI	< 1 RO Feed
Bacteria / Virus Removal	> 99.99%
Chlorine Tolerance	> 2,000 ppm Continuous
Power Supply	220V/380V +-10%, 50/60Hz, 3 Phase
Control System	Siemens/Omron PLC + 7" HMI
Protection Class	IP54 / IP65 (Optional)
Membrane Life Expectancy	3 ~ 5 years

What Does Ultrafiltration Remove?

Ultrafiltration is highly effective at removing a wide range of contaminants from water. Here's a breakdown of what an ultrafiltration water filter can typically remove:

1. Particulate matter:
Suspended solids
Colloids
Turbidity
2. Microorganisms:
Bacteria (99.99% removal)
Protozoa (including Giardia and Cryptosporidium)
Many viruses
3. Organic compounds:
High molecular weight organics
Some humic substances
4. Inorganic compounds:
Some heavy metals, when bound to organic matter or particles
5. Other contaminants:
Algae
Some parasites
It's important to note that while ultrafiltration is highly effective at removing many contaminants, it does not remove contaminants like dissolved salts, organic molecules, or ions smaller than the pore size. Additional treatment methods like reverse osmosis or ion exchange may be necessary for these.

Industry Application

Operation & Maintenance

Routine maintenance is straightforward and primarily automated:

• Daily Inspection – Check TMP, flow rates, and pump condition

• Backwashing – Automatic, every 15~60 minutes, duration 60~120 seconds

• Chemical Enhanced Backwash (CEB) – Weekly, using NaClO (50~200 ppm) and/or citric acid

• CIP Cleaning – Every 1~6 months, circulating NaClO and acid solutions

• Membrane Integrity Test – Quarterly, using pressure decay or bubble point test

• Membrane Replacement – Typically every 3~5 years, depending on feed water quality and operating conditions

Why Choose DAGYEE High-Recovery UF?

Feature	Customer Value
Energy Efficiency	40-60% lower energy consumption than conventional UF systems
Water Conservation	95-98% recovery reduces freshwater intake and wastewater discharge
Low Operating Pressure	0.5-1.5 bar operation extends membrane life and reduces wear
Smart Automation	TMP-based backwash optimization saves water, chemicals, and energy
Sustainability	Reduced carbon footprint and water footprint for corporate ESG goals
Fast Payback	1-2 year payback on the additional investment over conventional UF
Global Support	Technical support, commissioning, and spare parts worldwide

Contact Us

The DAGYEE Tubular UF Membrane System handles the difficult wastewater streams that other UF systems can't. High solids, high oils, aggressive chemicals, variable flows—this system is built for the worst applications.

Contact our industrial wastewater team for a customized solution for your challenging wastewater application.
