DAGYEE Cartridge Housing
A Cartridge Filter Housing is a durable pressure vessel designed to hold one or more replaceable filter cartridges. It serves as the critical containment system in a filtration process, allowing liquids or gases to pass through the cartridge media, which captures contaminants, while the housing itself manages the flow and maintains system pressure. They are essential components for achieving high-purity filtration across a vast range of industries.

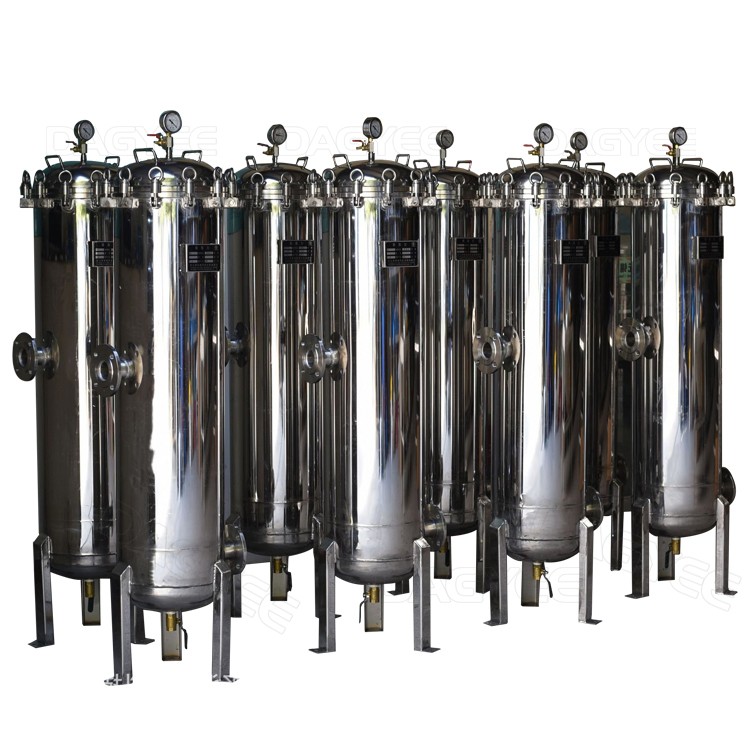

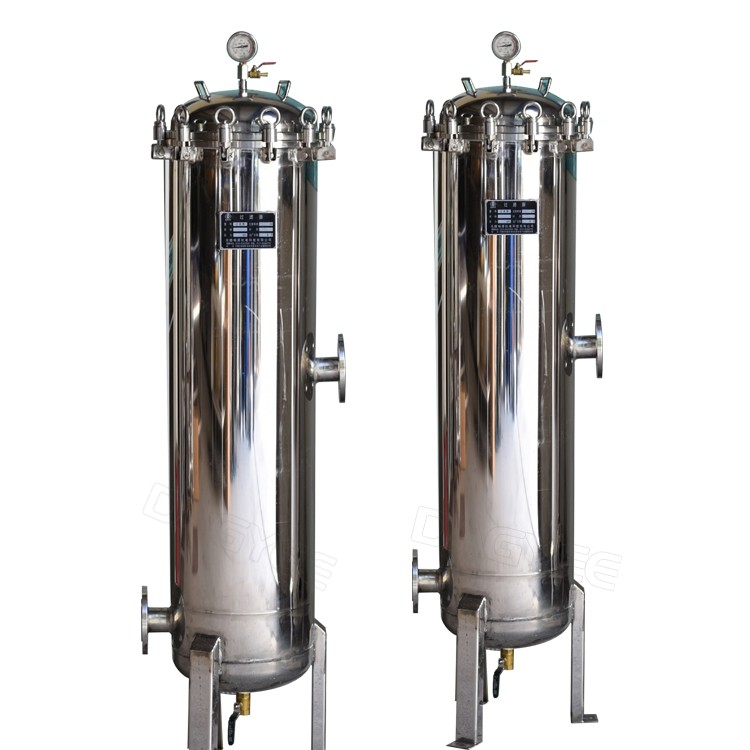

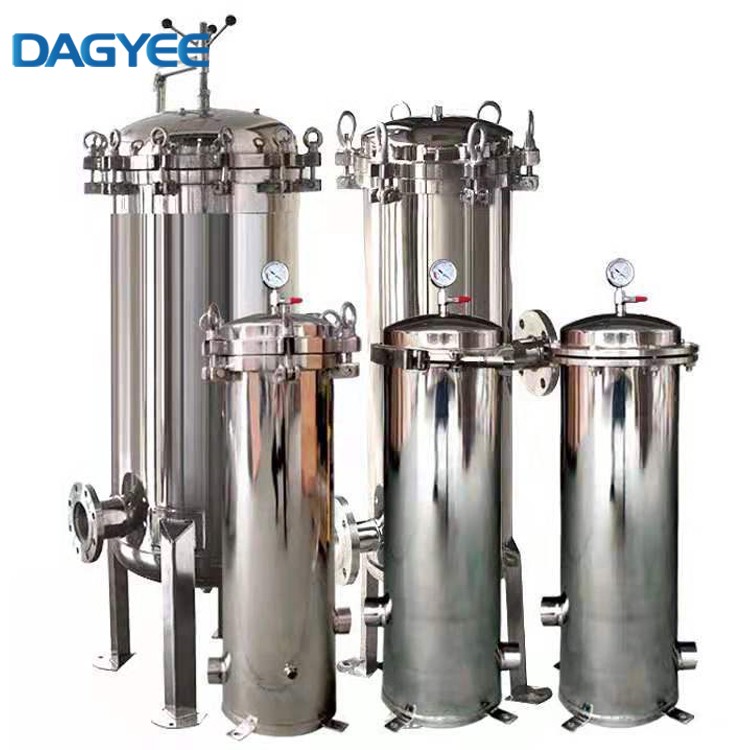

Multi-barrel stainless steel liquid filter housing is a high-quality solution for high-volume filtration. Our multi-cartridge housing can accommodate 5 to 22 standard 30-inch and 40-inch filter elements, and the liquid filtration flow rate is up to 65 m3/hr.Commercial and industrial filter housing liquid containers are ideal for chemical systems, commercial RO and membrane water treatment systems for pre-filtration, high-purity water, post-filtration, food and beverage, industrial facilities, etc.
We always have a large stock of stainless steel liquid housings for commercial and industrial use. Most of the models shown are available from stock immediately.
DAGYEE Cartridge Housing principle
- Unfiltered Fluid Entry: The unfiltered fluid (liquid or gas) enters the inlet port of the housing.
- Filtration: The fluid is forced from the outside of the filter cartridge to its core. During this passage, the cartridge's membrane or media traps suspended solids, particles, sediments, bacteria, or other contaminants.
- Purified Fluid Exit: The now-cleaned fluid exits through the outlet port and continues into the system.
- Contaminant Retention: All captured contaminants remain on the exterior or within the matrix of the filter cartridge, which can be replaced easily when it becomes saturated.
DAGYEE Cartridge Housing Feature
- Low pressure drop
- Permanently piped filter housing open without special tools and without disturbing the piping
- Machined cover gasket groove provides positive O-ring sealing
- Easy to clean
- In-line inlet and outlet
- Stainless steel internals
- Standard Options
- Carbon steel, 304 or 316 stainless steel housings
- Accommodates 10, 20, 30 or 40-inch cartridge
|
Cartridge Housing Technical |
|||||
| Model | Size | Dimension mm | Flow m3/hr | Inlet Outlet | Pressure |
| DPF-10-170 | 10'' | 170*430 | 1-2 | 1'' | 0.6Mpa |
| DPF-10-200 | 10'' | 200*430 | 2-3 | 1'' | 0.6Mpa |
| DPF-20-170 | 20'' | 170*690 | 3-4 | 1'' | 0.6Mpa |
| DPF-20-200 | 20'' | 200*690 | 4-6 | 1 1/2'' | 0.6Mpa |
| DPF-20-250 | 20'' | 250*690 | 6-8 | 2'' | 0.6Mpa |
| DPF-30-200 | 30'' | 200*940 | 7-8 | 1 1/2'' | 0.6Mpa |
| DPF-30-250 | 30'' | 250*940 | 10-11 | 2'' | 0.6Mpa |
| DPF-40-200 | 40'' | 200*1240 | 9-11 | 2'' | 0.6Mpa |
| DPF-40-250 | 40'' | 250*1240 | 13-15 | 2'' | 0.6Mpa |
| DPF-40-300 | 40'' | 300*1350 | 14-18 | 2'' | 1.0Mpa |
| DPF-40-320 | 40'' | 320*1350 | 16-20 | 2'' | 1.0Mpa |
| DPF-40-350 | 40'' | 350*1350 | 20-30 | 2 1/2'' | 1.0Mpa |
| DPF-40-400 | 40'' | 400*1430 | 30-40 | 3'' | 1.0Mpa |
| DPF-40-450 | 40'' | 450*1450 | 50-65 | 3'' | 1.0Mpa |
DAGYEE Cartridge Housing Application
- Food & Beverage: Water purification, ingredient filtering, wine and beer stabilization, edible oil processing.
- Pharmaceutical & Biotech: Purification of water for injection (WFI), process fluids, solvent filtration, sterile venting.
- Chemicals & Petrochemicals: Chemical purification, catalyst recovery, pre-filtration for membranes.
- Electronics: Ultra-pure water production for semiconductor and PCB manufacturing.
- Metalworking & Plating: Coolant filtration, pre-treatment of plating baths.
- General Industrial: Water treatment, hydraulic and lubricating oil protection, compressed air and gas filtra
DAGYEE Cartridge Housing Removal
- Suspended matter
- Algae
- Impurities
- Fine particles
In summary, the DAGYEE Cartridge Filter Housing is far more than a simple container; it is a fundamental and highly adaptable component in modern industrial filtration. By providing a secure, efficient, and reliable platform for filter cartridges, it plays a pivotal role in ensuring product quality, protecting valuable equipment, and enhancing overall operational efficiency. Its robust construction, ease of maintenance, and wide applicability make it an In summary, the Cartridge Filter Housing is far more than a simple container; it is a fundamental and highly adaptable component in modern industrial filtration. By providing a secure, efficient, and reliable platform for filter cartridges, it plays a pivotal role in ensuring product quality, protecting valuable equipment, and enhancing overall operational efficiency. Its robust construction, ease of maintenance, and wide applicability make it an indispensable solution for achieving clean, safe, and consistent results across countless processes. When selecting a housing, considering the fluid type, operating pressure, temperature, flow rate, and required level of filtration is crucial for optimal performance.indispensable solution for achieving clean, safe, and consistent results across countless processes. When selecting a housing, considering the fluid type, operating pressure, temperature, flow rate, and required level of filtration is crucial for optimal performance.
