Description

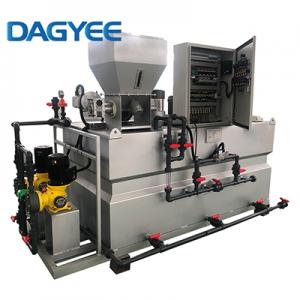

PAM polymer preparation unit Description
Automatic dosing device is a complete set of equipment with dosing, stirring, liquid transportation and automatic control, which is widely used in raw water of power plant, boiler feed water, oil field surface gathering and transportation dehydration treatment system, various dosing systems of petrochemical industry and waste water treatment system.
Polymer dosing device
Polymer dosing device is composed of hopper, push screw, electric heater and etc. The effective volume of the hopper can meet the dosage for a long time which is equipped with sight glasses for observing material level monitored by the dry powder level meter. The push screw driven by the high-precision reducer can satisfy the dosage. The electric heater can be installed in the discharge pipe of push screw, and it can prevent the powder from caking.
Polymer dissolving device
Polymer dissolving device is composed of pre-soaking device, tank, and 3 sets of mixers. The pre-soaking device is to infiltrate and mix the polymer powder in advance. The 3 tanks are precast mixing tank, homogeneous slaking tank and solution storage tank, in which there is a mixer correspond to guarantee the homogeneity.
Water supply device
Water supply device is composed of pipeline, manual ball valve, filter, pressure gauge, solenoid valve, stop valve, and the rotor flow meter, etc.
PAM Polymer Preparation Unit Model
PAM Polymer Preparation Feature
Preparation capacity: 1000-10000(L/h)
Shell material: SS304/PP
Full automatic operation mode, easy to operate
Precise and adjustable feeding mode, different concentration can be prepared
Self-diagnosis function, fault alarm output
PAM Polymer Preparation Application
Municipal Sewage
Slaughter House
Metallurgical Industry Wastewater
Spraying Sewage
Printing & Dyeing Sewage
Metal-Processing Sewage
Mining Stone Wastewater
Electronic Sewage
