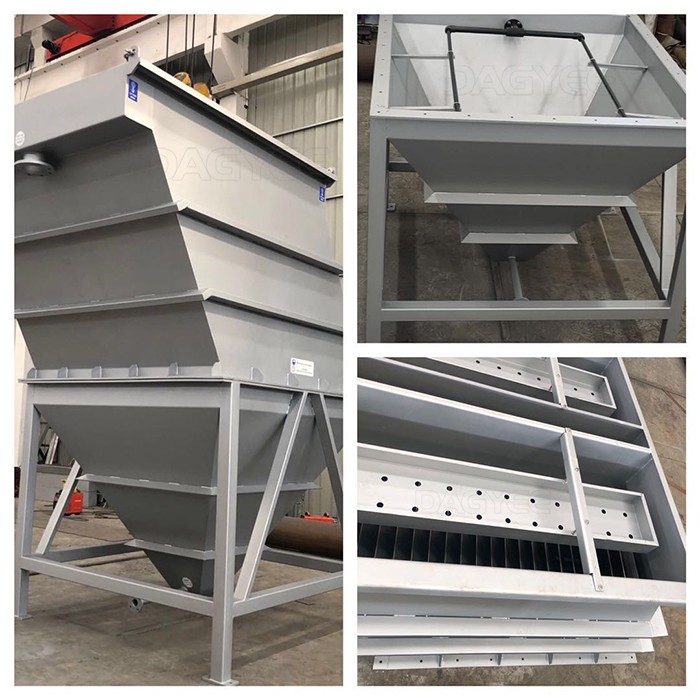

WHAT IS LAMELLA CLARIFIER
Dagyee Lamella clarifier is an efficient combined sedimentation tank， According to the shallow theory designed;Many dense inclined plates are set in the subsidence area to allow suspended solid in the wastewater to settling on the inclined plate. Water rises and flows upon the inclined plate .The separated sludge slides down the inclined plate to the bottom of the tank under the effect of gravity. Sludge can be discharged in a collector, which can increased capacity by 3 to 5 times on the same area. According to the test data of raw wastewater, different flow rate precipitators can be chosen.
HOW DOES lamella clarifier WORKS
When using, you can choose to add coagulant. The method is to install inclined plate component with an inclination angle of 60 degrees above the suspended layer of sludge. Suspended solids in the raw water, solids or floc alum flowers formed by adding a coagulant are added to the surface area of the inclined plate Accumulate into a thin mud layer, rely on gravity to slide back to the suspended sludge layer, and then sink into the mud hopper. The sewage pipe is discharged into the sludge tank for further treatment or comprehensive utilization. The supernatant gradually rises to the drain of the water collection , which can be directly discharged or reused.
RANGE OF APPLIOCATION
- Mining
- Metal finishing
- Treat groundwater
- Industrial process water
- Pre-treatment ahead of membrane filters
- Municipal wastewater
- TSS solids particulate removal
- Dissolved solids and metals precipitation
- Leachate clarification
- Cooling tower water clarification
- Surface raw water treatment
- Water recycling/reuse
- Backwash from sand filters
AVAILABLE DESIGNS
- smaller footprint
- Large effective settling area
- Improved overflow rates 2 to 4 times
- Can be used for a long time
- Normal use without clogging, Even clogging is provided with backwash device
- Less possibility for injury
LAMELLA CLARIFIER EQUIPMENT SPECIFICATIONS
Lamella Clarifier Feature
-
Optimized Plate Geometry: Computer-designed plate profiles for maximum efficiency and self-cleaning capability
-
Uniform Flow Distribution: Perforated distribution pipes or specially designed channels for even water distribution
-
Adjustable Plate Assemblies: Modular plate packs that can be removed for cleaning or replacement
-
Integrated Flocculation Zone: Optional built-in flocculation chamber with mechanical mixers
-
Automatic Sludge Removal: Mechanical sludge scrapers or air-lift systems with timers or sludge level sensors
-
Floating Sludge Removal: Surface skimmers for floating materials and scum
-
Corrosion Protection: Multiple coating systems including epoxy, polyurethane, or rubber lining
-
Observation Windows: For visual monitoring of clarification process
-
Walkway Access: Safe access platforms for maintenance and inspection
-
Modular Design: Multiple units can be combined for increased capacity
Lamella Clarifier Application
-
Municipal Wastewater Treatment: Primary and secondary clarification
-
Industrial Wastewater: Food processing, beverage, pulp & paper, chemical industries
-
Water Treatment Plants: Raw water clarification for drinking water production
-
Stormwater Treatment: Removal of suspended solids from stormwater runoff
-
Process Water Recycling: Clarification for water reuse systems
-
Mining Operations: Tailings clarification and process water recovery
-
Power Plants: Cooling water treatment and blowdown clarification
-
Aquaculture Systems: Water quality maintenance in recirculating systems
Customization Options
-
Plate Materials: Choice of stainless steel, polypropylene, PVC, or FRP based on chemical compatibility
-
Plate Coatings: Special coatings for specific applications (anti-fouling, anti-static, etc.)
-
Inlet Arrangements: Center feed, peripheral feed, or bottom feed configurations
-
Sludge Removal Systems: Chain-and-flight scrapers, traveling bridges, or suction systems
-
Instrumentation Packages: Level sensors, turbidity meters, sludge density monitors
-
Control Systems: Manual, semi-automatic, or fully automated PLC control
-
Accessories: Chemical dosing systems, flocculation aids, sampling points
-
Special Designs: Circular, rectangular, or square configurations based on space constraints
Why Choose DAGYEE Lamella Clarifiers
-
Proven Design: Hundreds of successful installations worldwide
-
Quality Materials: Only premium materials with proper certifications
-
Engineering Support: Custom design for specific wastewater characteristics
-
Performance Guarantee: Written performance guarantees based on design parameters
-
Comprehensive Service: From design to installation, commissioning, and after-sales support
-
Cost-Effective Solutions: Competitive pricing without compromising quality
-
Technical Innovation: Continuous improvement based on operational feedback
-
Global Experience: Applications across diverse industries and regions
Supplier Information

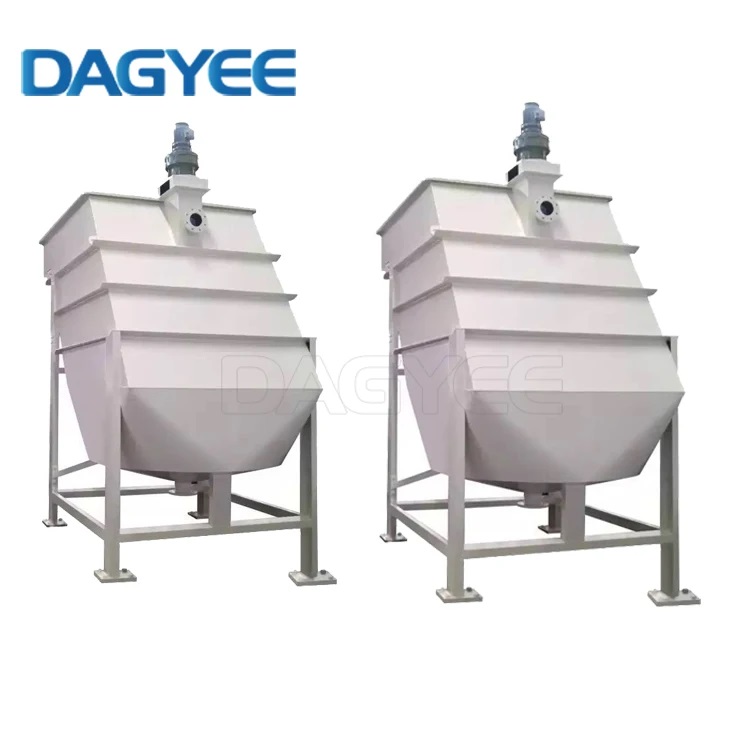

The DAGYEE Lamella Clarifier offers a superior combination of performance, efficiency, and cost-effectiveness for solid-liquid separation applications. Contact us today to discuss how this technology can benefit your specific application.
We are a professional supplier specializing in high-efficiency Lamella Clarifier systems, offering customized engineering solutions, bench-scale testing services, and robust equipment designed for demanding industrial and municipal applications.
