Industrial Decanter Centrifuge for Sludge Dewatering and Solid Liquid Separation

Description

Decanter centrifuge descriptions

DAGYEE decanter centrifuge is a continuous solid liquid separation equipment designed for high efficiency sludge dewatering and industrial separation applications. The horizontal bowl design generates high centrifugal force to separate fine solid particles from liquid with minimal operator intervention. Available in two phase solid liquid separation and three phase liquid liquid solid separation configurations to meet diverse industry requirements including municipal wastewater treatment chemical processing food and beverage production edible oil refining and mining slurry dewatering.

Experience maximum solid-liquid separation efficiency

DAGYEE decanter centrifuge delivers maximum separation efficiency through advanced engineering and precision manufacturing.

• High G Force Bowl speeds generate up to 3000 G centrifugal force capturing fine solid particles down to 5 microns

• Dry Solids Output Produces sludge cake with 20 to 35 percent dry solids significantly reducing disposal volume and cost

• Clear Liquid Discharge Optimized weir plate design and liquid level adjustment produce clear separated liquid meeting discharge or reuse standards

• Continuous Operation Automatic 24/7 operation without filter cloths or pressing elements eliminates cleaning downtime and reduces labor cost

• Low Polymer Consumption Patented feed zone design reduces flocculant usage by 15 to 20 percent compared to conventional centrifuges

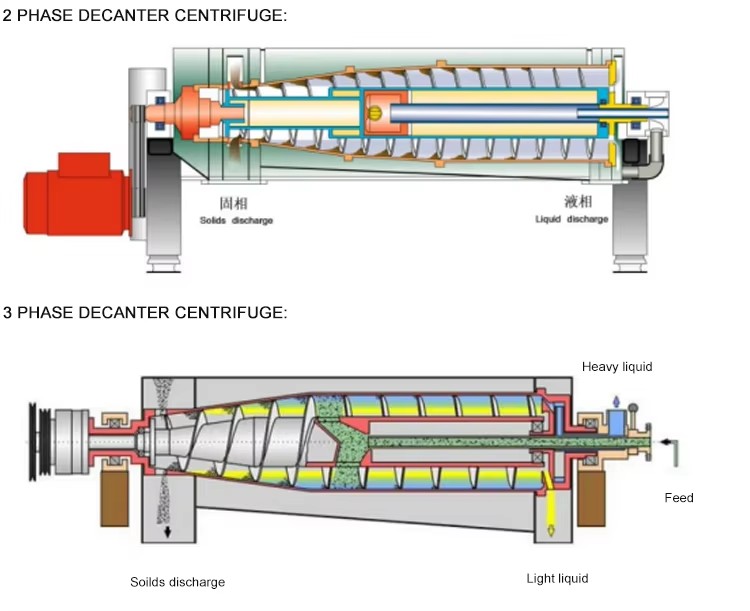

How does a decanter centrifuge work?

Working Principle Step by Step

Step 1 Feed Entry
Slurry enters the machine through a stationary feed tube into the mixing zone where flocculant can be added for optimal solid liquid separation.

Step 2 High Speed Rotation
The bowl rotates at high speed typically 2000 to 4000 RPM generating strong centrifugal force that pushes heavier solids outward against the bowl wall.

Step 3 Solids Settlement
Solid particles settle and compact against the bowl inner wall while lighter liquid forms an inner layer closer to the rotation axis.

Step 4 Scroll Conveying
The scroll rotates at a slightly different speed differential speed pushing settled solids toward the conical discharge end.

Step 5 Dry Solids Discharge
Dewatered solid cake discharges continuously through solids outlet ports at the conical end of the bowl.

Step 6 Liquid Overflow
Separated clarified liquid flows over adjustable weir plates and discharges through the liquid outlet at the opposite end.

Step 7 Three Phase Separation Optional
For three phase configuration liquid liquid separation occurs simultaneously with heavier liquid water discharging near the solids outlet and lighter liquid oil discharging at the opposite end.

Decanter centrifuge specifications

Why choose the DAGYEE decanter centrifuge?

1. CE Certified Quality
DAGYEE decanter centrifuges hold CE certification ensuring compliance with European safety health and environmental standards for smooth international trade.

2. Industry Experience
Years of engineering experience serving municipal wastewater plants chemical factories food processors oil refineries and mining operations worldwide.

3. Custom Engineering
Every centrifuge is designed based on your specific material data including solid content viscosity temperature pH value and capacity requirements.

4. Factory Direct Pricing
Manufacturer direct sales eliminate middleman markup providing competitive pricing without compromising quality.

5. Global Customer Support
English speaking technical support team provides installation guidance troubleshooting assistance and spare parts supply with 24 hour response.

6. Proven Performance
Hundreds of units operating successfully across Southeast Asia South America Middle East Africa and Europe with verified customer satisfaction.

7. Fast Lead Time
Standard models ready for shipment within 30 days. Custom configurations typically delivered within 45 to 60 days.

8. Complete Documentation
We provide installation drawings electrical schematics operation manuals and maintenance guides in English with every machine.

Decanter centrifuge key features

1. High Efficiency Separation
Advanced bowl geometry and optimal differential speed control capture fine solids down to 5 microns achieving 99 percent solid recovery rate.

2. Energy Saving VFD
Variable frequency drive reduces power consumption by up to 30 percent through soft start and adjustable differential speed based on feed conditions.

3. Wear Resistant Construction
Scroll protected with tungsten carbide coating or replaceable hard alloy tiles extending service life 3 to 5 times longer than standard stainless steel.

4. Continuous Automatic Operation
24 hours a day 7 days a week operation without operator intervention eliminating downtime for filter cloth cleaning or replacement.

5. Corrosion Resistant Options
Available in stainless steel 304 316L or duplex steel with special seals Viton silicone PTFE for aggressive chemical environments.

6. High Temperature Capability
Cooling jacket option protects bearings and seals for applications handling materials up to 150 degrees Celsius.

7. Explosion Proof Configuration
Explosion proof motor and inert gas purge system available for flammable dust or vapor environments.

8. Easy Maintenance Design
Large hinged access covers allow quick inspection of bowl and scroll without special tools reducing maintenance time and cost.

9. Compact Footprint
Horizontal design requires minimal floor space compared to belt press or filter press systems saving valuable plant area.

10. Low Noise Operation
Dynamic balancing and vibration isolation mounts keep noise levels below 85 decibels at one meter distance.

Decanter centrifuge advanced operation capabilities

Smart Process Control

DAGYEE decanter centrifuge integrates advanced operational features for optimal performance under varying feed conditions.

Automatic Differential Speed Control
The VFD driven gearbox continuously adjusts scroll differential speed based on solids loading maintaining consistent cake dryness even when feed concentration fluctuates.

Torque Monitoring System
Real time scroll torque monitoring alerts operators to solids overload conditions before equipment damage occurs enabling proactive process adjustment.

Vibration and Temperature Sensors
Continuous monitoring of bearing temperatures and bowl vibration levels provides early warning of potential issues reducing unplanned downtime.

Remote Operation Ready
Control system can integrate with plant SCADA network enabling remote monitoring start stop control and fault diagnosis from central control room.

Multi Material Flexibility
Quick adjustment of bowl speed feed rate and differential speed allows same machine to handle different sludge types from primary sludge to digested sludge to industrial waste.

Energy Optimization Mode
VFD automatically reduces bowl speed during low load periods saving energy while maintaining minimum required separation efficiency.

Data Logging and Reporting
Optional data recorder captures operational parameters including power consumption feed solids discharge solids and runtime for performance analysis and regulatory reporting.

Supplier Information

We are a professional supplier specializing in high-efficiency Decanter centrifuge systems, offering customized engineering solutions, bench-scale testing services, and robust equipment designed for demanding industrial and municipal applications.
