Description
Dewatering systems water treatment Description

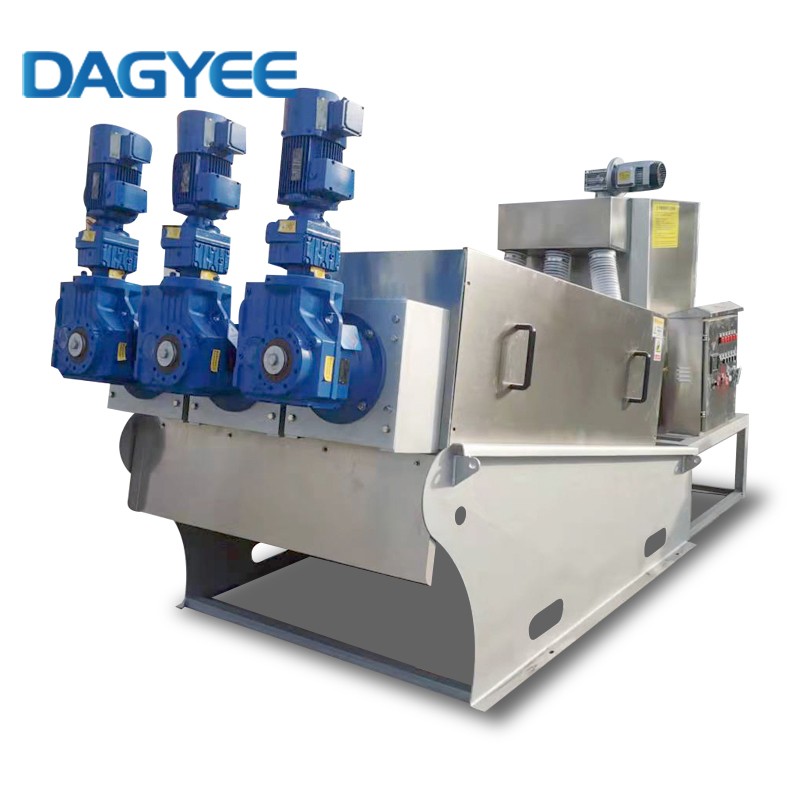

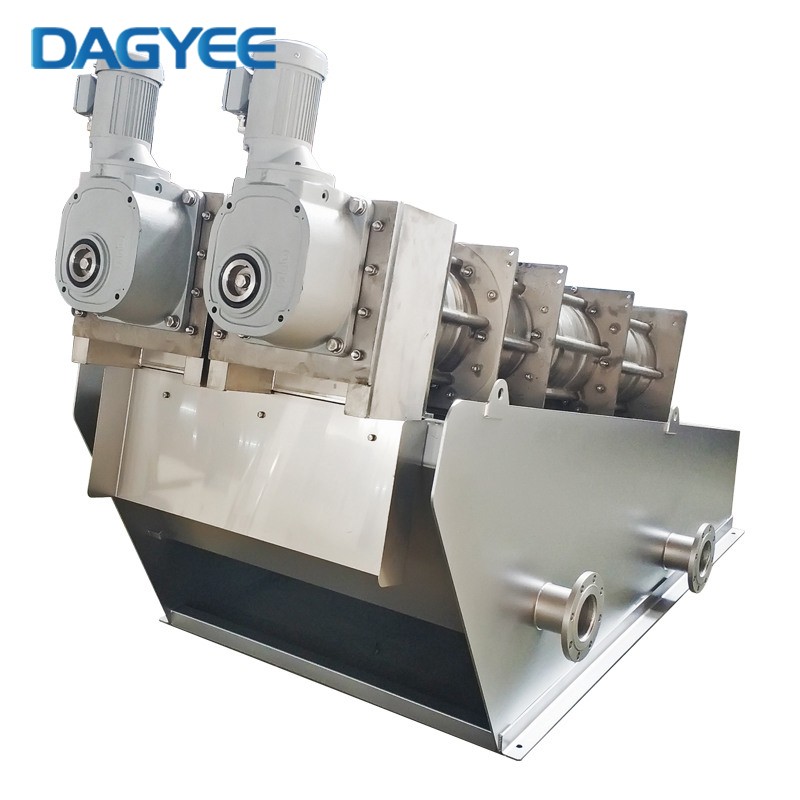

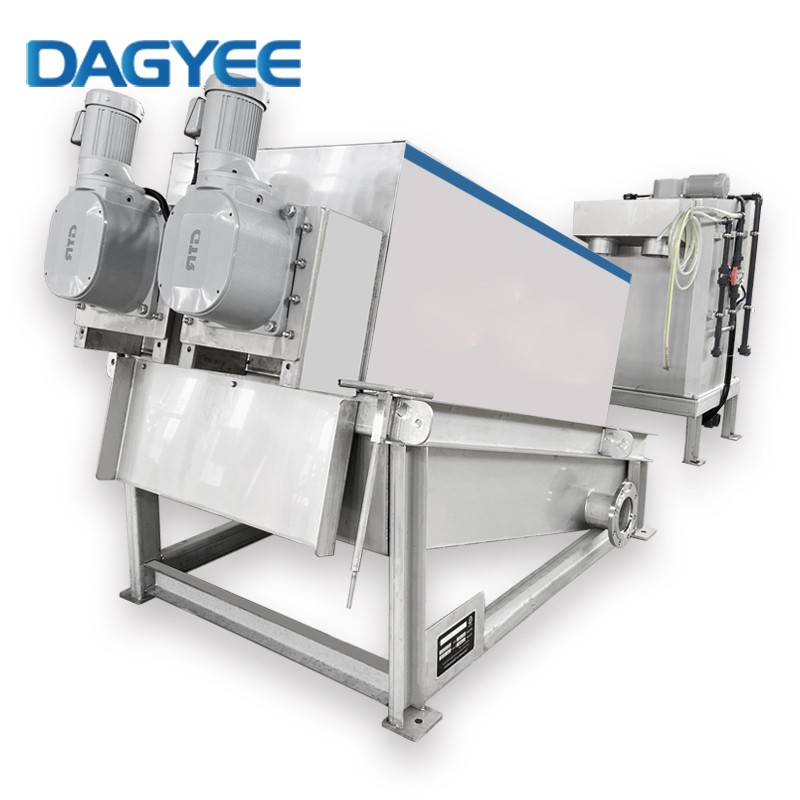

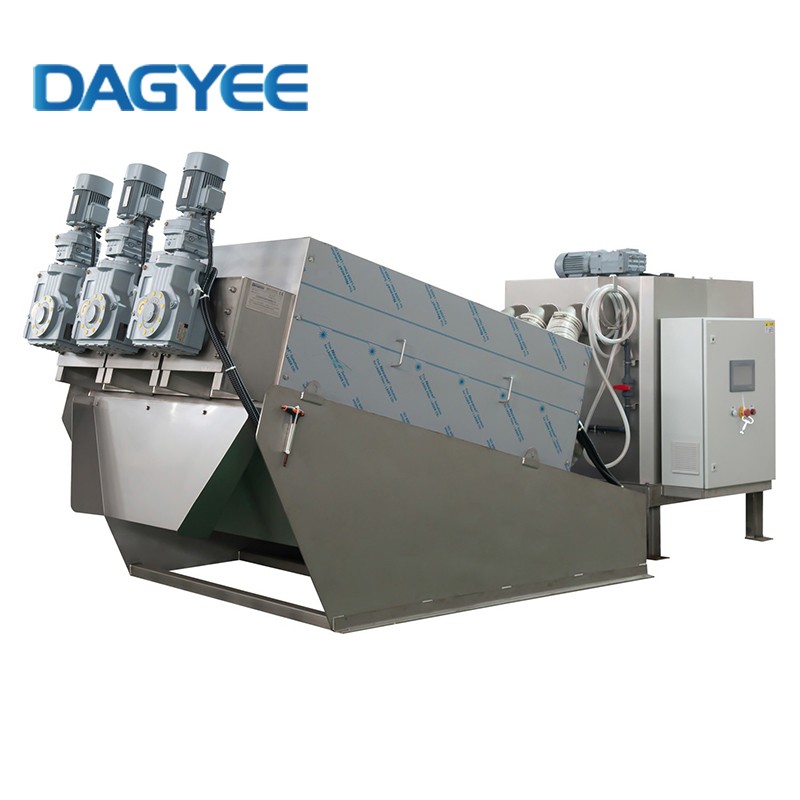

Sludge dewatering machine technology is very well suited for municipal wastewater plants etc. the Multi-plate Screw Press uses the Vertical Fibre Cloth Media Filter. Compared to traditional filters this technology consumes a low amount of energy it has a high filtration speed high capacity good effluent quality and a low operating cost. The machine only takes up a small space and can be applied for different types of waste water. It can be applied for the advanced treatment and upgrade of municipal sewage treatment rural and small town sewage treatment advanced treatment or reuse of industrial waste water pre-treatment of raw water purification of surface water pre-treatment.
Sludge Dehydrator Process
Thickening: When the shaft is driven by the screw, moving rings around the shaft move up and down relatively. Most water is pressed out from the thickening zone and fall down to the filtrate tank for gravity;
Dewatering: The thickened sludge moves forward continuously from the thickening zone towards the dewatering zone. With the pitch of the screw shaft thread getting narrower and narrower, the pressure in the filter chamber increases higher and higher. In addition to the pressure generated by the back-pressure plate, the sludge is greatly pressed and dryer sludge cakes produce;
Self-cleaning: The moving rings rotates continuously up and down under the pushing of the running screw shaft while the gaps between the fixed rings and moving rings are cleaned to prevent from clogging that happens frequently for traditional dewatering equipment.
Sludge Dehydrator Model
| Model | DL303 |
| DS capacity kg/h | 90-150 kg/h |
| Sludge capacity m3/h(2-50g/L) | 3-45 |
| Spiral diameter mm | ￠310*3 |
| Discharge Distance mm | 495 |
| Size L*W*H mm | 3605*1690*1600 |
| Net.Kg | 1520 |
| Run Kg | 3080 |
| Power Kw | 1.86 |
| Washing Q L/h | 120 |
Sludge Dehydrator Widely Use
Applicable sludge concentration of 2000mg/L-50000mg/L.
Most especially for the oily sludge.
Fully Automatic Control
Combining with the auto control system, the machine runs very safely and simply and can be programmed according to the requirement of the users. It can operate automatically for 24 hours, unmanned.
Sludge Dehydrator Features
Automatic continuous operation
Compact design with flocculation and dewatering
Low power and water consumption
Low operation cost
No filter cloth, no clogging
No need for sludge thickener
Easy operation and maintenance
No vibration and noise
Sludge Dehydrator Application
Simple arrangement
Low Power Consumption
Simple and short start-up and shut down procedures
Continuous operation. Hence continuous output can be obtained
Process can be automized
Only electricity and water supply for cleaning is required, and that too in less amount
For a multi-channel machine, one or more channels may be removed for maintenance purposes, while the machine with the remaining channels may still be operated.
No clogging. Cleaning is automized and is easy
Long life of discs
No external lubrication system is required
Flocculator built in the Screw press
