Description

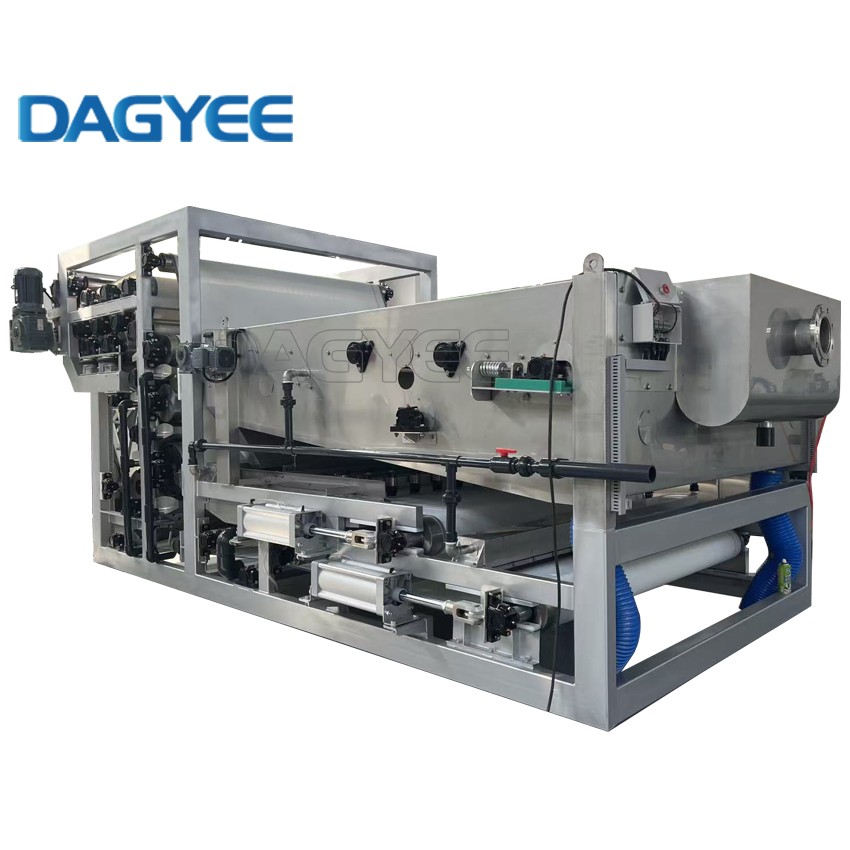

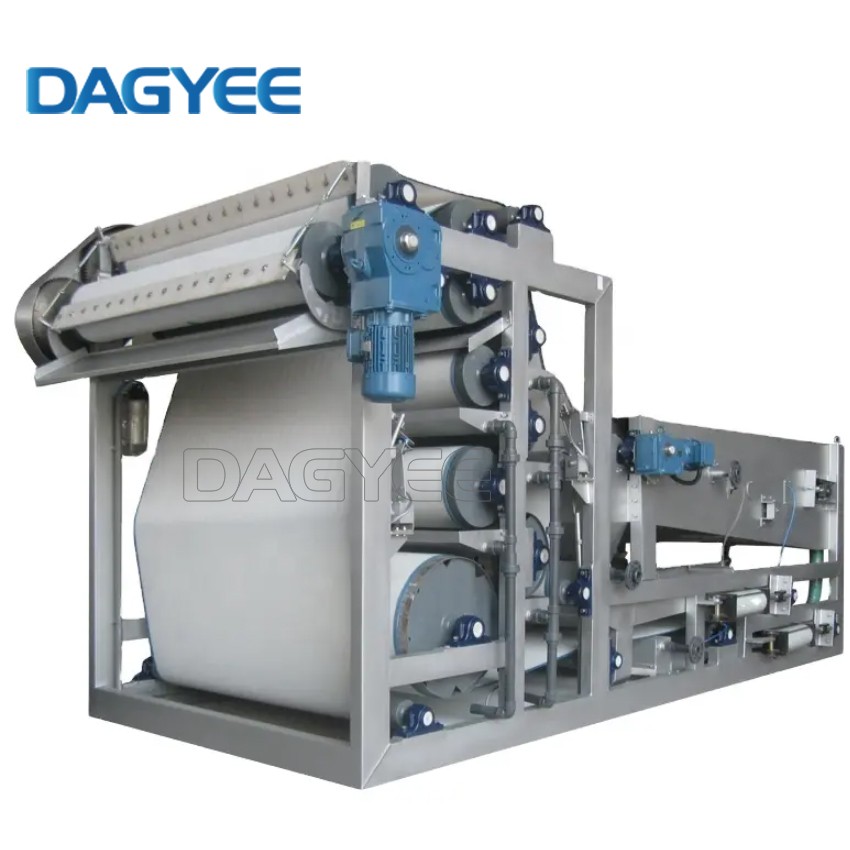

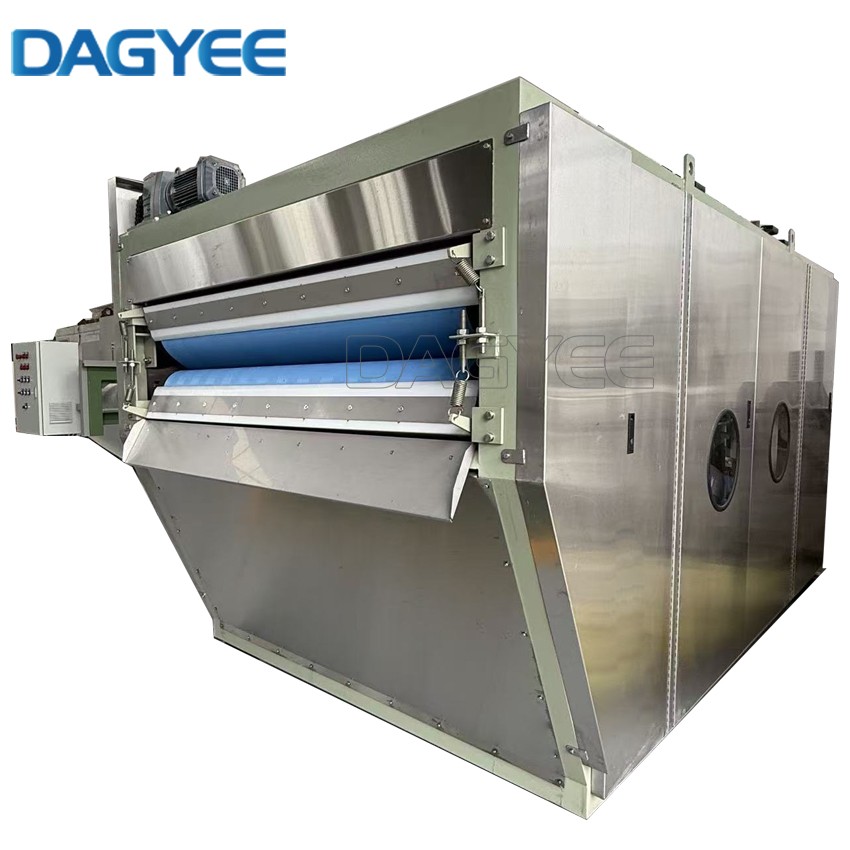

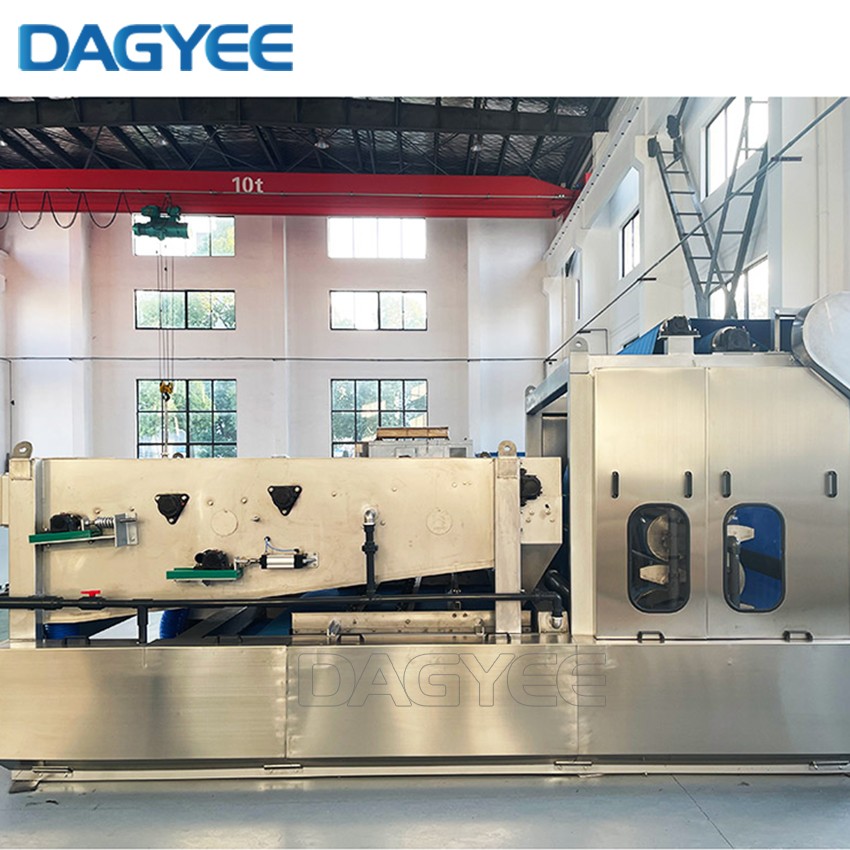

DAGYEE Compact Belt filter press for Food Processing and Pharmaceutical Wastewater Sludge Treatment
The DAGYEE Belt Press for Efficient Sludge Dewatering embodies our expertise and commitment in the field of solid-liquid separation. Precisely engineered for maximum sludge volume reduction with minimal operating costs, this system delivers consistently high solid content cake through optimized filtration, pressing, and control mechanisms. It is the ideal solution for modern wastewater treatment plants and industrial facilities seeking to enhance efficiency and achieve environmental compliance.
How belt filter presses work
-
Chemical Conditioning & Gravity Drainage: Sludge is mixed with flocculants, and free water is rapidly separated by gravity on a coarse mesh belt.
-
Wedge Pre-Pressing Zone: The sludge is gently compressed in a gradually narrowing wedge zone, forming a uniform layer and releasing more water.
-
High-Pressure Shear Zone: The sludge travels through an "S"-shaped path of press rollers, subjected to progressively increasing shear and compression forces for deep removal of capillary water.
-
Cake Discharge & Belt Regeneration: The dewatered cake is automatically scraped off, and the belts are regenerated via a high-pressure washing system, restoring filtration capacity for the next cycle.
Belt filter presses Technical
|
Sludge kinds |
Input concentration % |
Capacitym3/h.m |
DS capacitykg/h.m |
Moisture of cake% |
PAM consumption%(DP/DS ) |
|
Unconcentrated aerobic sludge |
0.5~1.5 |
15~30 |
150~300 |
~80(+2) |
2~5 |
|
Concentrated aerobic sludge |
2~4 |
6~12 |
200~300 |
~80(+2) |
2~5 |
|
Digested sludge |
3~6 |
7~15 |
300~400 |
<80 |
2~5 |
|
Unconcentrated primary sludge |
0.8~2.0 |
18~35 |
300~400 |
<80 |
2~5 |
|
Concentrated primary sludge |
3~5 |
6~12 |
300~400 |
≤80 |
2~5 |
|
Paper making activated sludge |
0.5~2.5 |
15~35 |
200~400 |
<78 |
3~7 |
|
Printing and dyeingmixed sludge |
1~3 |
10~25 |
180~350 |
75-85 |
3~10 |
Belt filter presses Advantage
-
Lower Total Cost of Ownership: High dewatering efficiency and low energy consumption translate directly into significant operational savings.
-
Exceptional Reliability: DAGYEE's commitment to quality and durability ensures continuous, trouble-free operation.
-
Unmatched Ease of Operation: High automation reduces the requirement for skilled operators and labor intensity.
-
Superior Dewatering Consistency: Stable operation guarantees consistent cake quality, simplifying final disposal.
-
DAGYEE Expert Support: We provide full-cycle support from selection and installation to maintenance, acting as your trusted partner.
Belt filter presses Features
-
DAGYEE Efficient Dewatering Design: Optimized roller arrangement and pressure gradient ensure higher output cake solid content.
-
DAGYEE Intelligent Control System: Integrated PLC and touchscreen HMI enable fully automatic operation, real-time monitoring, and fault diagnosis.
-
Durable Core Component Design: Utilizes wear-resistant filter belts, stainless steel nozzles, and heavy-duty bearings for long-term stability.
-
Advanced Tracking & Tensioning System: Fully automatic tracking ensures long belt life and stable operation.
-
Low Energy Consumption: Efficient hydraulic and power design significantly reduces water and electricity usage.
-
Modularity & Maintainability: Designed for easy installation, routine maintenance, and part replacement, minimizing downtime.
Belt filter presses Benefits
-
Lower Total Cost of Ownership: High dewatering efficiency and low energy consumption translate directly into significant operational savings.
-
Exceptional Reliability: DAGYEE's commitment to quality and durability ensures continuous, trouble-free operation.
-
Unmatched Ease of Operation: High automation reduces the requirement for skilled operators and labor intensity.
-
Superior Dewatering Consistency: Stable operation guarantees consistent cake quality, simplifying final disposal.
-
DAGYEE Expert Support: We provide full-cycle support from selection and installation to maintenance, acting as your trusted partner.
Belt filter presses application industries
-
Municipal Wastewater Treatment Plants
-
Food & Beverage Processing
-
Pulp & Paper Industry
-
Petrochemical & Chemical Industry
-
Textile & Dyeing
-
Metallurgy, Plating & Mining
-
Pharmaceutical & Biotechnology
