Lamella Clarifier Industrial Water Settling Settlement Tanks

Lamella Clarifier Industrial Water Settling Settlement Tanks

Product Item：DCL-050

Capacity:0-50m3/hr

Lamella clarifier Wastewater treatment WWTP

MOQ : 1 Set

2 years guarantee

Description

Lamella Inclined Plate Clarifier

Product Description

The size of the gravity settler mentioned in the introduction is determined according to two parameters, namely the upflow rate of the liquid and the settling area. Therefore, under the same conditions, the effective area of the clarifier and the flake settler are the same. In the clarifier, the settling area is the surface of the water tank, and in the flake settler, the settling area is the total area of the inclined plate projected on the horizontal surface.

Compared with the clarifier, this can reduce the area occupied by the flake settlers by about 90%, so less land is required.

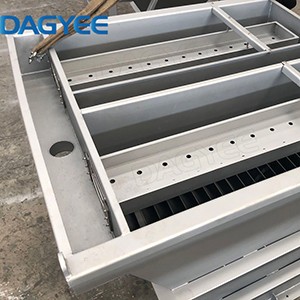

PP Material <a href=https://www.wastewatermachinery.com/Inclined-Plate-Settler-p.html target='_blank'>Lamella Plate</a> Clarifier

Product Features

Simple structure,without wearing parts,
Steady operation,easy operation
Small power,save energy
Small occupy area, low investment, high efficient
Short retention time, high sediment efficiency, no sludge backflow.

50M3/hr lamella clarifier Specifications
Parameter	Units	DCL-050
Flow Rate	m3/h	0-50
Effective Settling Area	m2	50
Efficiency	%	80-90
Treated water turbidity	NTU	50-100
Dimensions (Clarifier Only)	L x W x H (m)	4.652.823
Inlet	Inch	8
Effluent	Inch	8
Sludge outlet	Inch	2
Backwash	Inch	2
Power	Kw	0.55
Weight	Kg	4500
Voltage	Standard	380V/3Phase/50Hz Or Provide your standard when making an inquiry
STANDARD INCLUSIONS + OPTIONS ✓= Standard Supply, o = Optional Supply,
Lamella Body Epoxy Coated Carbon Steel		✓
Feed Pump		o
Floculator Tanks		o
Flash & Floc Mixers		o
Sludge Scraper		o
Lamella / Floc Tank Support Galvanised Mild Steel Construction		✓
Standard Controller		✓
Lamella Body – 304ss		o
Lamella Body – 316ss		o
Variable Speed Mixer		o

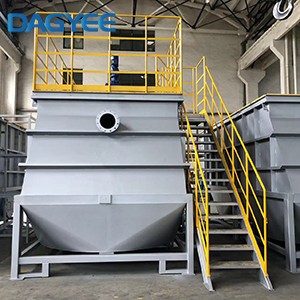

Access Platform and Ladder		o
Sludge Hopper Actuated Valve		o
Sludge pump		o
