DAGYEE Cartridge Housing

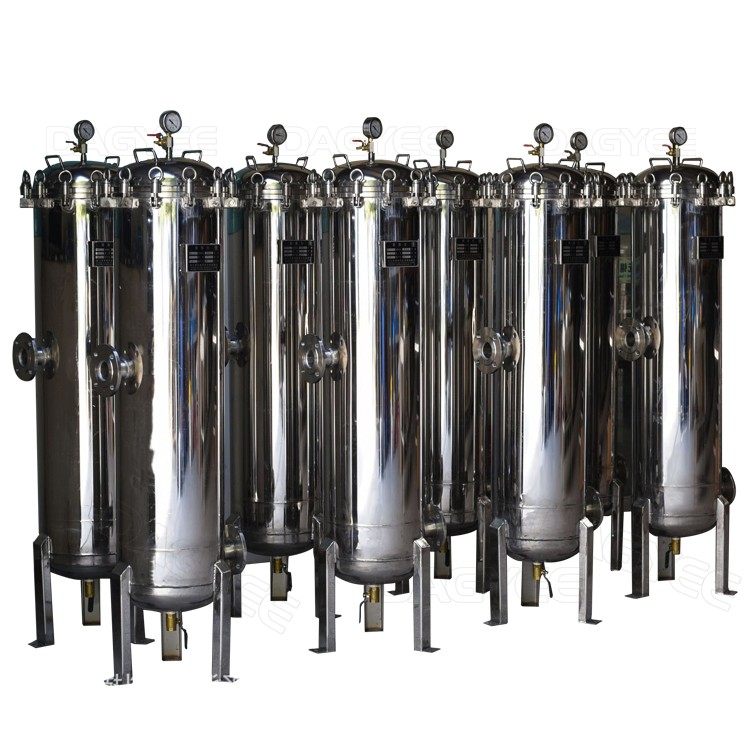

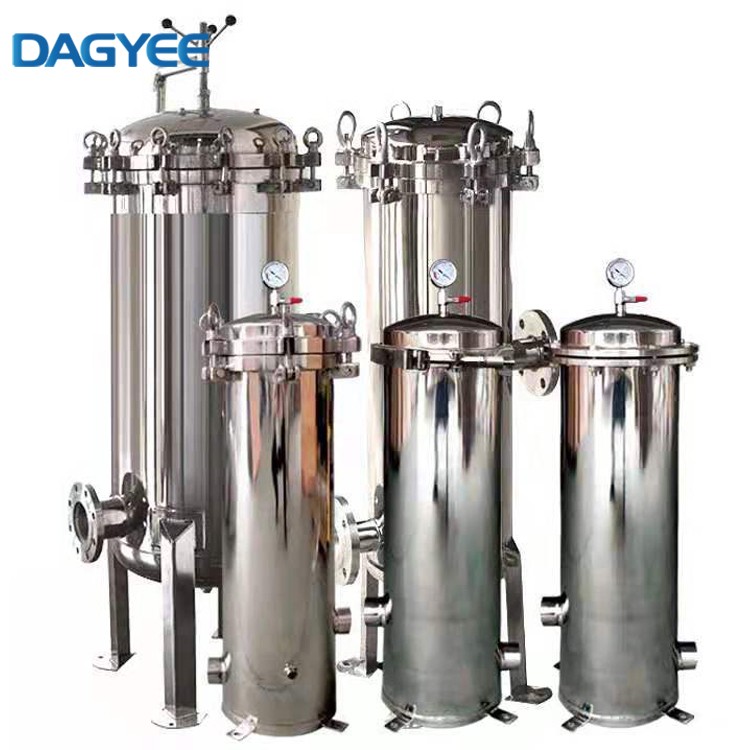

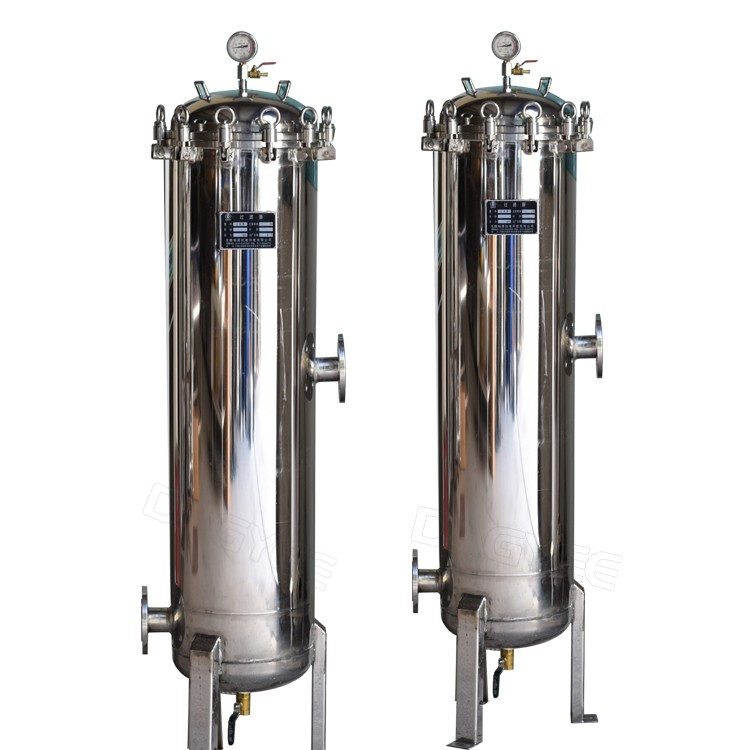

20 Inch Multi Cartridge Stainless Steel Filter Housing is a large-scale, pressurized vessel designed to house multiple filter cartridges in parallel. It is engineered for high-flow applications where extended filtration cycles, high dirt-holding capacity, and system redundancy are critical. By consolidating multiple cartridges into a single, robust unit, it provides an efficient and compact solution for heavy-duty industrial filtration.
Commercial and industrial filter housing liquid containers are ideal for chemical systems, commercial RO and membrane water treatment systems for pre-filtration, high-purity water, post-filtration, food and beverage, industrial facilities, etc.
We always have a large stock of stainless steel liquid housings for commercial and industrial use. Most of the models shown are available from stock immediately.
DAGYEE Cartridge Housing principle
Inflow: The unfiltered liquid enters the common inlet chamber of the housing
Parallel Distribution: The flow is evenly distributed across all the filter cartridges housed within the vessel.
Simultaneous Filtration: The fluid passes from the outside to the inside of each cartridge simultaneously. Contaminants are trapped on the exterior surface or within the depth of the cartridge media.
Consolidated Outflow: The purified fluid from each cartridge converges into a common outlet chamber before exiting the housing.
High Capacity: This parallel design allows the system to handle large volumes of fluid while capturing a significant amount of contaminants before maintenance is required.
DAGYEE Cartridge Housing Feature
- Low pressure drop
- Permanently piped filter housing open without special tools and without disturbing the piping
- Machined cover gasket groove provides positive O-ring sealing
- Easy to clean
- In-line inlet and outlet
- Stainless steel internals
- Standard Options
- Carbon steel, 304 or 316 stainless steel housings
- Accommodates 10, 20, 30 or 40-inch cartridge
|
Cartridge Housing Technical |
|||||
| Model | Size | Dimension mm | Flow m3/hr | Inlet Outlet | Pressure |
| DPF-10-170 | 10'' | 170*430 | 1-2 | 1'' | 0.6Mpa |
| DPF-10-200 | 10'' | 200*430 | 2-3 | 1'' | 0.6Mpa |
| DPF-20-170 | 20'' | 170*690 | 3-4 | 1'' | 0.6Mpa |
| DPF-20-200 | 20'' | 200*690 | 4-6 | 1 1/2'' | 0.6Mpa |
| DPF-20-250 | 20'' | 250*690 | 6-8 | 2'' | 0.6Mpa |
| DPF-30-200 | 30'' | 200*940 | 7-8 | 1 1/2'' | 0.6Mpa |
| DPF-30-250 | 30'' | 250*940 | 10-11 | 2'' | 0.6Mpa |
| DPF-40-200 | 40'' | 200*1240 | 9-11 | 2'' | 0.6Mpa |
| DPF-40-250 | 40'' | 250*1240 | 13-15 | 2'' | 0.6Mpa |
| DPF-40-300 | 40'' | 300*1350 | 14-18 | 2'' | 1.0Mpa |
| DPF-40-320 | 40'' | 320*1350 | 16-20 | 2'' | 1.0Mpa |
| DPF-40-350 | 40'' | 350*1350 | 20-30 | 2 1/2'' | 1.0Mpa |
| DPF-40-400 | 40'' | 400*1430 | 30-40 | 3'' | 1.0Mpa |
| DPF-40-450 | 40'' | 450*1450 | 50-65 | 3'' | 1.0Mpa |
DAGYEE Cartridge Housing Application
- Food & Beverage: Water purification, ingredient filtering, wine and beer stabilization, edible oil processing.
- Pharmaceutical & Biotech: Purification of water for injection (WFI), process fluids, solvent filtration, sterile venting.
- Chemicals & Petrochemicals: Chemical purification, catalyst recovery, pre-filtration for membranes.
- Electronics: Ultra-pure water production for semiconductor and PCB manufacturing.
- Metalworking & Plating: Coolant filtration, pre-treatment of plating baths.
- General Industrial: Water treatment, hydraulic and lubricating oil protection, compressed air and gas filtra
DAGYEE Cartridge Housing Removal
- Suspended matter
- Algae
- Impurities
- Fine particles
In summary, the Multi Cartridge Filter Housing is the optimal solution for industrial applications where flow rate, capacity, and operational continuity are paramount. It transforms filtration from a potential bottleneck into a reliable, high-capacity process. By offering superior dirt-holding capacity, inherent system redundancy, and a compact footprint, it delivers significant advantages in reducing long-term operating costs, minimizing downtime, and ensuring process stability. When selecting a multi-cartridge housing, careful consideration of the required flow rate, cartridge type and quantity, and material compatibility is essential for achieving maximum efficiency and return on investment.
