Description

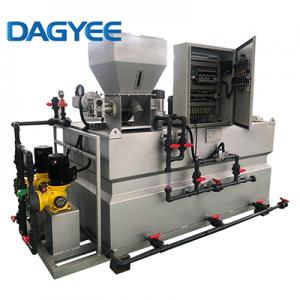

PAM polymer preparation unit Description
A comple te range of polyme r batching and me t ering sys tems.The polymer preparation unit automatically prepares polymer solutions which are used as coagulants for the eventual removal of suspended particles in the water treatment processes of a number of applications from swimming pool maintenance through to the various stages of wastewater treatment, as well as oil recovery, colour removal, paper production and mineral processing.
The range also comes with a variety of electrical control panels, mixers, diaphragm pumps and tank sizes to offer an optimum solution for every application.
Its design also means that Dagyee offers flexible and compact footprint solutions to fit even confined spaces.
Polymer dosing device
Polymer dosing device is composed of hopper, push screw, electric heater and etc. The effective volume of the hopper can meet the dosage for a long time which is equipped with sight glasses for observing material level monitored by the dry powder level meter. The push screw driven by the high-precision reducer can satisfy the dosage. The electric heater can be installed in the discharge pipe of push screw, and it can prevent the powder from caking.
Polymer dissolving device
Polymer dissolving device is composed of pre-soaking device, tank, and 3 sets of mixers. The pre-soaking device is to infiltrate and mix the polymer powder in advance. The 3 tanks are precast mixing tank, homogeneous slaking tank and solution storage tank, in which there is a mixer correspond to guarantee the homogeneity.
Water supply device
Water supply device is composed of pipeline, manual ball valve, filter, pressure gauge, solenoid valve, stop valve, and the rotor flow meter, etc.
PAM Polymer Preparation Unit Model
PAM Polymer Preparation Feature
Optional equipment.
Automatic powder hopper loading.
Minimum level probe in the powder hopper.
Stirrer in the batching tank.
Vibrator for hopper.
Prefabricated post-dilution systems.
PAM Polymer Preparation Application
Aid condensation of city sewage
Aid condensation of industry sewage
Disposal and deposit of sludge
