SS304 316 Shaftless Screw Conveyor Kitchen Waste Screw Conveyor

Description

Product Description:

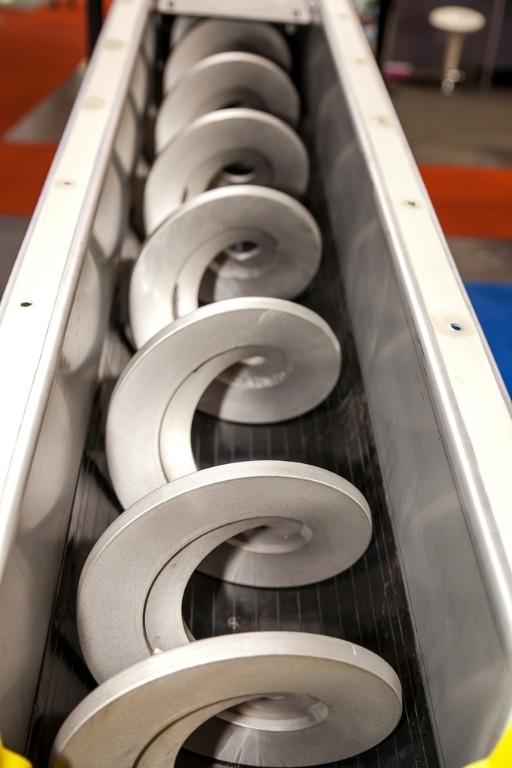

Shaftless Screw Conveyor is also known as anti-winding conveyor, garbage disposal conveyor, kitchen waste screw conveyor.

Shaftless screw conveyor drive device for kitchen waste: cycloidal pinwheel reducer or shaft-mounted hard-tooth surface gear reducer is used. In the design, the drive device should be located at the discharge port end as much as possible, so that the screw body is running always in tension. WLS shaftless screw conveyor casing: the casing is U-shaped, with a cover on the upper part (if necessary), and the material is stainless steel or carbon steel or glass fiber reinforced plastic. The inlet and outlet of the shaftless screw conveyor for kitchen waste: there are two kinds of square and round.

Model & Installation Dimensions:

This product is mainly composed of drive device, head assembly, housing, no shaft helix, slot liner, feed port, discharge port, cover (when needed), base, etc.

• Driving device: cycloidal needle wheel reducer or shaft mounted gear reducer with hard tooth surface shall be adopted. The driving device shall be set at the outlet of the material as far as possible in the design to make the helix in the state of tension during operation.
• The head is equipped with thrust bearing, which can bear the axial force generated during material transportation.
• Housing: the housing is u-shaped or o-shaped, with a rain-proof cover on the top. The material is stainless steel or carbon steel or fiberglass.
• No shaft helix: the material is stainless steel or carbon steel.
• Slot lining board: wear-resistant plastic board or rubber board or cast slate, etc.
• Inlet and outlet: there are two types of inlet and outlet: square and round. The general inlet and outlet form is determined by the user.

Main features:

• Simple design (few components)
• Small footprint
• Odor-free operation
• High efficiency
• Completely empty
• Highly self-cleaning
• Easy to access and clean
• Low maintenance
• Modular components can be easily adapted to a variety of problems (multi-purpose conveyor for a variety of difficult materials and high volume applications)

Product Application:

Shaftless helical (screw) conveyors are designed for handling difficult and heterogeneous materials such as municipal solid waste, screening and floating matter substances, dehydration, thickening, conditioning sludge, packaged foods, creams or pastes, and waste from meat, fish, fruit and vegetable processing.

Main application areas are: wastewater treatment, sugar mill waste, fish industry, solid waste treatment, fruit and vegetable processing, beverage industry, pulp and paper, chemicals, food industry, meat processing plants, slaughterhouses, restaurants, canteens, general catering.
