Description

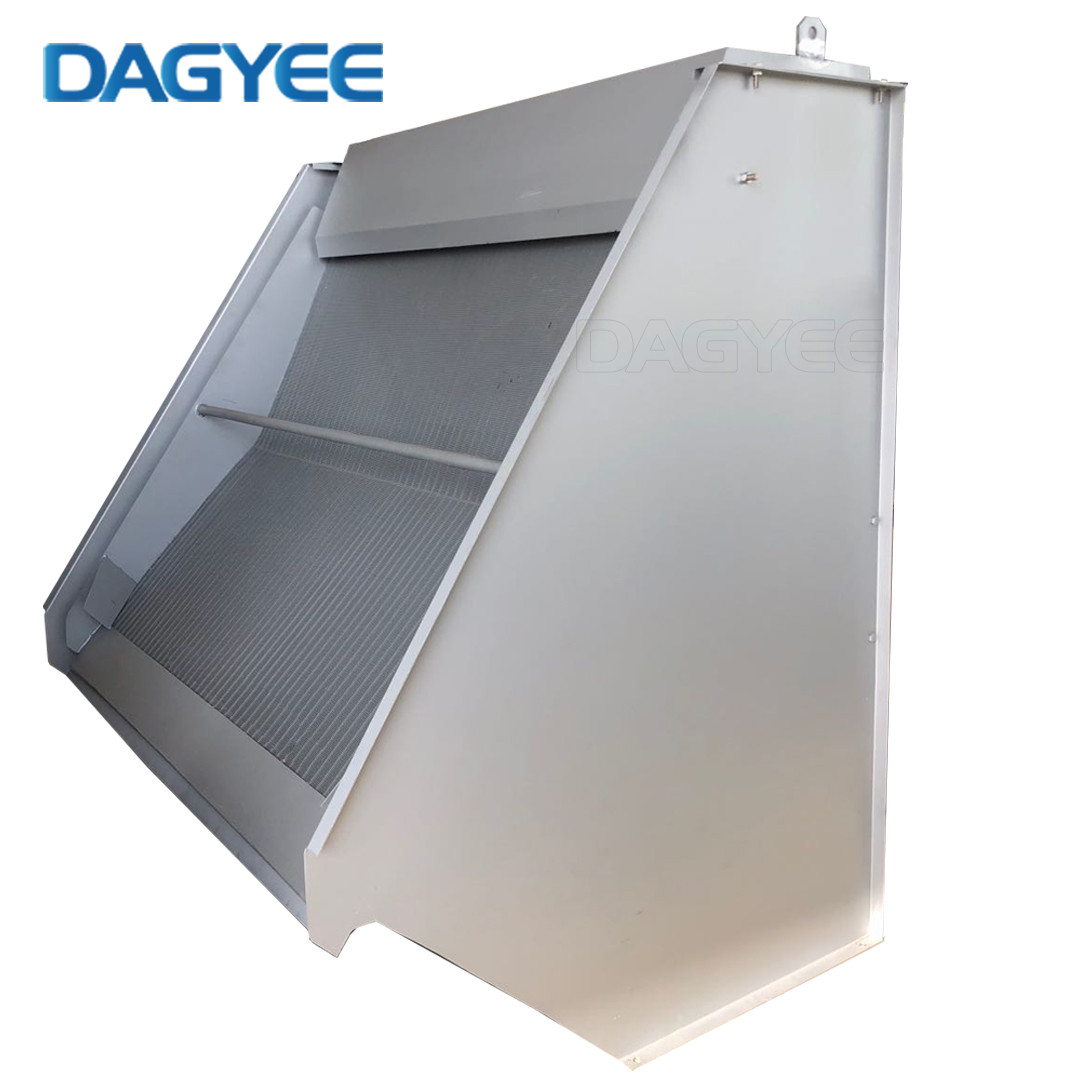

WHAT IS Static Water Filtration Screen
The DAGYEE static lightning arrester is indispensable in agriculture, plastics, food and chemical industries. The DAGYEE sieve can also be successfully used in beverage production. It has no moving parts, so it is used to effectively separate solid particles from liquids. The large-grid static cavity is an ideal choice for classifying materials (sand, stones, coal, seeds, wood chips, recyclable concrete products, compost, etc.).
DAGYEE provides reliable performance in liquid/solid separations for municipal and industrial applications, especially when sieving fibrous and non-oily solids. There are no moving parts, motors or complicated connections. Liquid solid separation screens are economical and simple to operate.
HOW DOES STATIC SCREEN WORKS

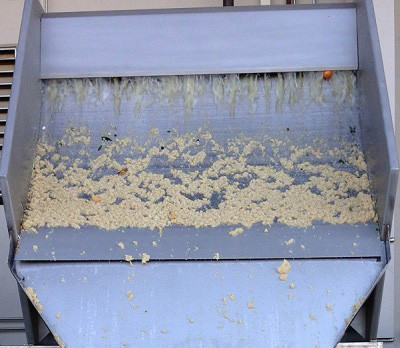

Influent pumped into the inflow chamber through the inlet of the pipe. As the water level rises, it will flow under the wage weir and the pivoting baffle. Liquids and solids flow through the screen, and Liquids falls through the screen, while gravity and more screening push the captured solids toward the discharge point. The wastewater passes through the filter enters distribution chamber and flows through the outlet tube. The drip-proof assembly at the bottom of the filter directs excess water to the waste chamber. When the solids reach the bottom of the screen, they slide into the container, conveyor or other suitable receiving equipment. Dagyee offers a variety of rear screen and dewatering equipment. To assemble the most cost-effective screening system. Welcome to consult.
WHY CHOSE STATIC SCREEN
Advantages from simple design and robust construction
- No moving parts, no motor
-
Very low installation cost, no maintenance required
-
Only need regular cleaning
-
Quiet operation
-
V shape of the bar provides a self-cleaning effect on the screen
Static hydraulic screen
- A Better Environment for Beaver Pond
- Whitewater Reuse
- Broke Thickening
- Helps Nut Grower Recycle Wastewater
- Screening fire sprinkler water
- Storm water screening
- Better Dairy Pen Waste Management
- Textiles and laundries
- Fruit and vegetable canning
- Wine producers and distilleries
- Meat and processed meals industry
- Slaughterhouse
- Fish processing
- Breweries and dairies
STATIC SCREEN USED WITH DAF UNITS
Used for Dissolved air flotation as a core product, static screen as a pretreatment before Dissolved air flotation . These screens facilitate a consistent flow and reduce the amount of suspended solids going to the DAF unit.
Brief:To separate solids from effluent ,Effectively block fibers, large particles, suspended solids
Solution: Run Dagyee sattic screens separator before Dissolved air flotation.
