Description
WHAT IS LAMELLA CLARIFIER

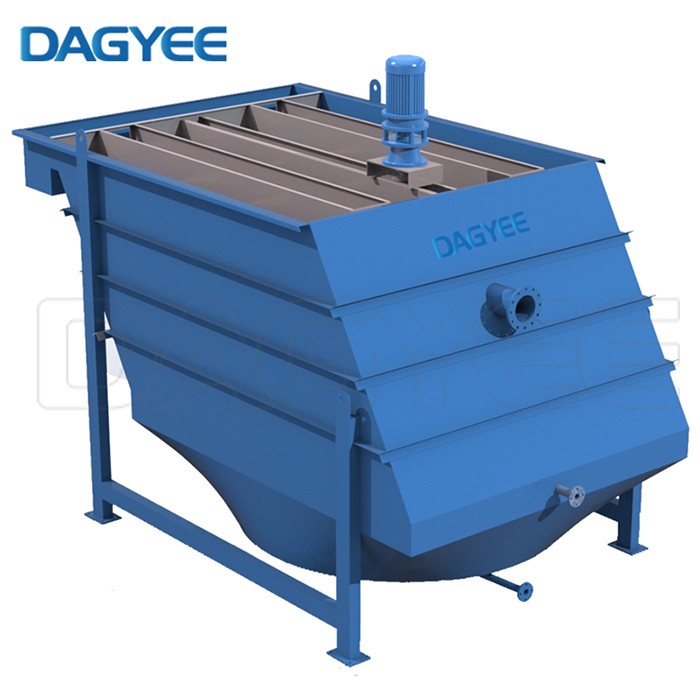

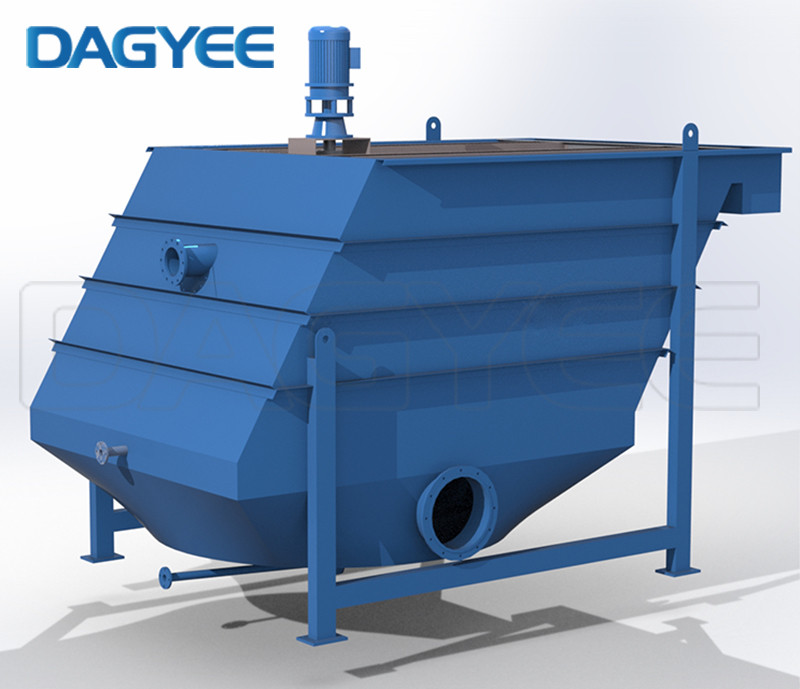

The Lamellar Augmented Separator is a high-efficiency solid-liquid separation system designed with multi-layer inclined plates (lamellar plates) to enhance sedimentation performance. Combining hydrodynamic optimization and material innovation, it is ideal for pretreatment and advanced treatment of wastewater with high suspended solids concentration. Its unique structure significantly reduces particle settling distance, improving processing capacity and effluent quality.
HOW DOES LAMELLA CLARIFIER WORKS
When using, you can choose to add coagulant. The method is to install inclined plate component with an inclination angle of 60 degrees above the suspended layer of sludge. Suspended solids in the raw water, solids or floc alum flowers formed by adding a coagulant are added to the surface area of the inclined plate Accumulate into a thin mud layer, rely on gravity to slide back to the suspended sludge layer, and then sink into the mud hopper. The sewage pipe is discharged into the sludge tank for further treatment or comprehensive utilization. The supernatant gradually rises to the drain of the water collection , which can be directly discharged or reused.
RANGE OF APPLIOCATION
- Mining
- Metal finishing
- Treat groundwater
-
Industrial process water
- Pre-treatment ahead of membrane filters
- Municipal wastewater
- TSS solids particulate removal
- Dissolved solids and metals precipitation
- Leachate clarification
- Cooling tower water clarification
- Surface raw water treatment
- Water recycling/reuse
- Backwash from sand filters
AVAILABLE DESIGNS
- smaller footprint
-
Large effective settling area
-
Improved overflow rates 2 to 4 times
-
Can be used for a long time
- Normal use without clogging, Even clogging is provided with backwash device
- Less possibility for injury
LAMELLA CLARIFIER EQUIPMENT SPECIFICATIONS
The Lamellar Augmented Separator redefines sedimentation technology by merging compact design with superior separation efficiency. Its adaptability to diverse wastewater challenges—from space-constrained upgrades to high-load industrial applications—makes it a versatile solution for modern water treatment needs. By reducing footprint, energy use, and operational complexity, it offers a sustainable path to achieving regulatory compliance and cost savings. Partner with us to integrate this advanced separation technology into your projects and experience the difference in performance and reliability.
