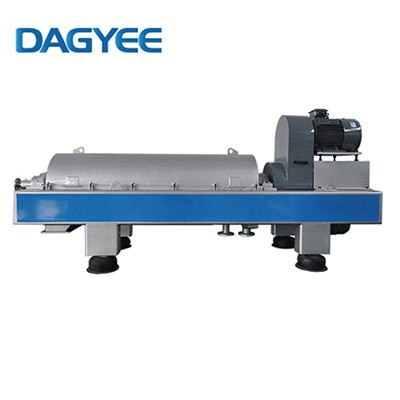

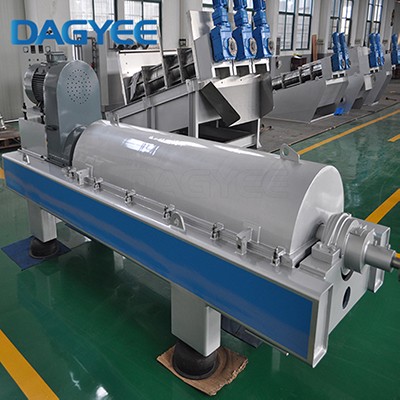

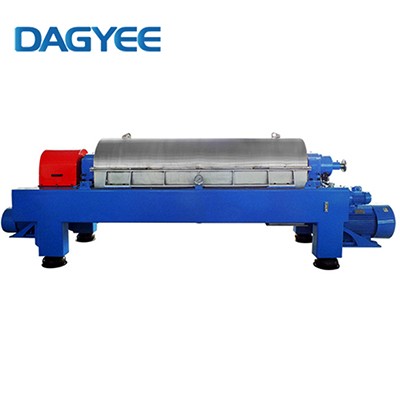

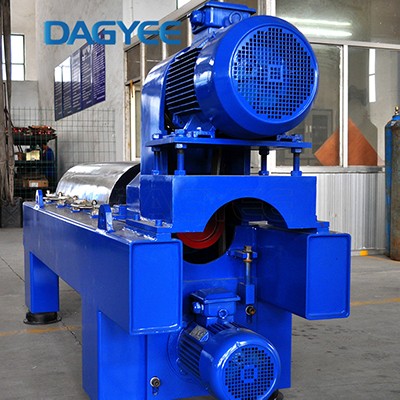

Decanter centrifuge for solid liquid separation

Description

WHAT IS CENTRIFUGE DECANTER

When you need to separate solid / liquid mixtures with high solids content, you can choose a decanter centrifuge. In contrast to chamber filter presses, these solid vortex centrifuges or decanter centrifuges operate continuously. High centrifugal forces separate finely divided solid particles from the suspension.

Our decanter centrifuges are modular in design and can be used in a wide range of industries. Centrifuges can be optimally adjusted for specific applications. Applications range from sludge dewatering to classification or wet classification to solid classification.

HOW DOES IT WORK

The feed product is pumped into the decanter centrifuge through an inlet. Feed into a horizontal bowl and then rotate. The bowl consists of a cylindrical portion and a conical portion. The separation takes place in the cylindrical part of the bowl. Fast rotation produces centrifugal forces of up to 4000 x g. Under these forces, solid particles with a higher density are collected and compacted on the wall of the bowl. The scroll (also a screw conveyor or screw conveyor) rotates inside the bowl at slightly different speeds. This speed difference is called a differential speed. In this way, the scroll conveys the precipitated particles along the cylindrical portion of the bowl to the conical end of the bowl. At the smallest end of the conical portion of the filter bowl, dehydrated solids leave the filter bowl through the discharge port. The clarified liquid exits through the mating disc (internal centrifugal pump).

With a 3 phase decanter centrifuge, it is possible to separate 3 phases from each other in one process step only. For example, two liquids which cannot be mixed because of different densities (e.g. oil and water) are separated from a solids phase. The heavy liquid (water) collects in the middle between the oil and the solids layer. Thus the two liquids separated from each other can be drawn off from the decanter. The solids are transported via the scroll to the discharge openings as it happens also in 2-phase separation.

Typical applications of 3-phase separation are the production of edible oils such as olive oil, oil sludge processing, the production of biodiesel .

CENTRIFUGE DECANTER APPLICATIONS

• Municipal Wastewater Control differential speed at 8-15rpm for activated sludge to ensure sludge cake moisture content ≤80%
• Chemical Production Precisely adjust feed rate and speed matching to avoid particle breakage when separating catalyst slurries
• Food Processing Use food-grade lubricants and strictly control sanitary cleaning procedures to prevent cross-contamination
• Mining and Metallurgy Operate at high speeds (3000-4000rpm) with regular flushing to prevent mineral particle blockage of slag discharge ports
• Oil Extraction Implement explosion-proof operating procedures and adjust differential speed ratio for oily sludge to improve oil phase recovery

CENTRIFUGE DECANTER TECHNICAL

DENTRIFUGE DECANTER ADVANTAGES

• Clean appearance
• No more odour problems
• Easy to install and operating equipment
• Small footprint
• Operate for different sludge types
• Operating for thickening or dewatering
• Reduced labour costs
• More process flexibility and higher levels of performance

With advantages of "continuous efficiency, precise adaptability, automation, and eco-friendliness", these centrifuges are key for connecting industrial production and environmental governance. They boost efficiency, cut costs, and help enterprises achieve "wastewater recycling, solid waste reduction, and emission compliance", aligning with green and sustainable development trends.
Customizable for SMEs (process optimization) and large factories (large-scale production), their wide application and continuous upgrading make them important for industrial upgrading and environmental governance, with high practical value and market prospects.
