Lamella Clarifier Durable and Compact Water Management

Description

WHAT IS LAMELLA CLARIFIER

---

A lamella clarifier is a high-efficiency solid-liquid separation equipment based on the shallow sedimentation principle, widely used in water treatment to remove suspended solids, flocs, colloids, and turbidity from water.

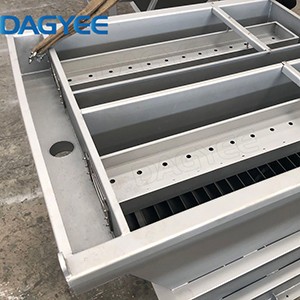

DAGYEE Lamella Clarifier adopts an optimized structure design with closely arranged inclined plates inside the tank, which greatly increases the effective sedimentation area. Compared with traditional sedimentation tanks, it features higher treatment efficiency, smaller footprint, more stable operation, and stronger adaptability. It is widely used in municipal engineering, industrial wastewater treatment, drinking water purification, and recycling water systems, providing reliable and efficient separation solutions for various water treatment projects.

HOW DOES LAMELLA CLARIFIER WORKS

---

The working principle of DAGYEE Lamella Clarifier is clear and efficient.

Raw water enters the reaction zone and mixes evenly with flocculant, forming larger and denser floc particles. Then the water flows upward slowly through the inclined plates. Under gravity, suspended solids and flocs quickly settle onto the plate surfaces. As sediments accumulate, they slide down along the inclined plates into the sludge hopper at the bottom for regular discharge. Clarified water moves upward continuously, is collected by the top overflow weir, and then flows out from the outlet. This design shortens the settling distance of particles, improves separation efficiency, and ensures stable and reliable effluent quality.

RANGE OF APPLIOCATION

---

• Municipal water supply: drinking water plant raw water pretreatment, river water, lake water purification
• Municipal sewage: urban sewage treatment plants, community sewage treatment stations
• Industrial wastewater: printing and dyeing, papermaking, food processing, slaughtering, chemical industry, mining, electroplating, pharmaceutical, textile
• Recycling water: circulating cooling water, reclaimed water reuse, rainwater recycling system
• Environmental treatment: river regulation, landscape water purification, industrial park wastewater treatment
  It can be used in new construction projects, expansion projects, and upgrading of old water treatment systems.

AVAILABLE DESIGNS

---

• By shape: rectangular type and circular type
• By installation: above-ground type and buried type
• By structure: integrated all-in-one type and split modular type

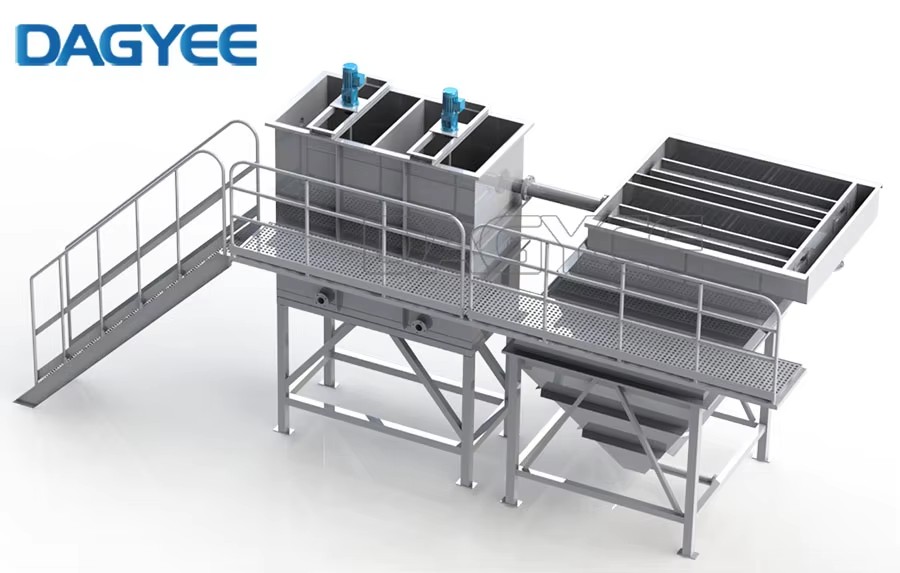

• Integrated design: combines flocculation, sedimentation, sludge collection and discharge in one unit, easy for installation and commissioning
• Modular design: easy for transportation, assembly and maintenance, suitable for remote areas and limited space
  Customers can choose the most suitable structure according to flow rate, land area, water quality and installation environment

LAMELLA CLARIFIER EQUIPMENT SPECIFICATIONS

---

• Treatment capacity: 1 m³/h – 200 m³/h, larger capacity can be customized
• Main material: carbon steel (anti-corrosion coating), SUS304, SUS316L stainless steel
• Inclined plate material: PVC, PP, FRP, stainless steel
• Plate spacing: 30–50 mm, can be customized
• Inlet mode: bottom water inlet, side water inlet
• Sludge discharge: manual valve, automatic electric/pneumatic sludge pump
• Control system: manual control, fully automatic PLC control with touch screen, fault alarm, remote monitoring
• Working temperature: 5°C – 40°C
  All parameters can be adjusted according to actual project needs.

Lamella Clarifier Feature

---

• High sedimentation efficiency: 2–5 times higher than traditional sedimentation tanks
• Small footprint: only 30%–50% of conventional equipment, saving land cost
• Stable operation: uniform water distribution, low noise, stable effluent turbidity
• Low energy consumption: simple structure, low operating cost, energy saving and environmental protection
• Corrosion resistance: using high-quality materials, strong resistance to acid, alkali and corrosion
• Easy maintenance: modular structure, easy cleaning, replacement and daily maintenance
• Long service life: strict production technology, durable and reliable
• Wide application: suitable for various water quality and complex working condition

Lamella Clarifier Application

---

• Waterworks: remove suspended solids and turbidity, improve raw water quality
• Sewage treatment plants: reduce SS and pollutants, meet discharge standards
• Food & beverage factories: treat production wastewater, ensure stable operation
• Mining industry: treat mine wastewater, realize recycling
• Textile and printing factories: remove impurities and pigments in wastewater
• Industrial circulating water system: improve water quality, reduce scaling and corrosion
• Livestock and slaughtering industry: treat high-concentration wastewater effectively
  After treatment, the water quality can meet national discharge standards or reuse standards, realizing water saving and environmental protection.

Customization Options

---

• Plate Materials: Choice of stainless steel, polypropylene, PVC, or FRP based on chemical compatibility

• Plate Coatings: Special coatings for specific applications (anti-fouling, anti-static, etc.)

• Inlet Arrangements: Center feed, peripheral feed, or bottom feed configurations

• Sludge Removal Systems: Chain-and-flight scrapers, traveling bridges, or suction systems

• Instrumentation Packages: Level sensors, turbidity meters, sludge density monitors

• Control Systems: Manual, semi-automatic, or fully automated PLC control

• Accessories: Chemical dosing systems, flocculation aids, sampling points

• Special Designs: Circular, rectangular, or square configurations based on space constraints

Why Choose DAGYEE Lamella Clarifiers

---

• Proven Design: Hundreds of successful installations worldwide

• Quality Materials: Only premium materials with proper certifications

• Engineering Support: Custom design for specific wastewater characteristics

• Performance Guarantee: Written performance guarantees based on design parameters

• Comprehensive Service: From design to installation, commissioning, and after-sales support

• Cost-Effective Solutions: Competitive pricing without compromising quality

• Technical Innovation: Continuous improvement based on operational feedback

• Global Experience: Applications across diverse industries and regions

Supplier Information

---

We are a professional supplier specializing in high-efficiency Lamella Clarifier systems, offering customized engineering solutions, bench-scale testing services, and robust equipment designed for demanding industrial and municipal applications.
