Description
Submersible Mixers Description

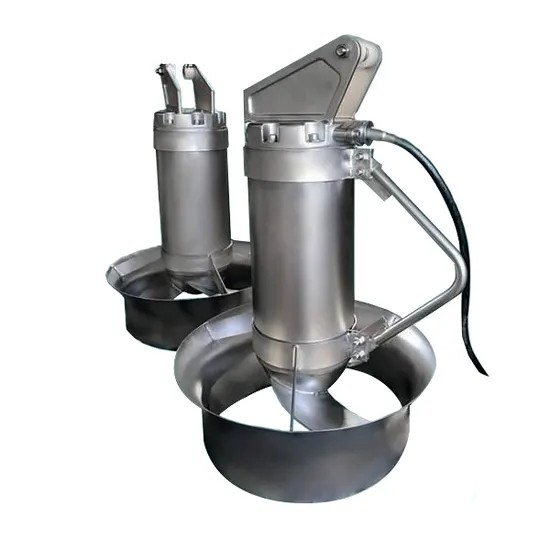

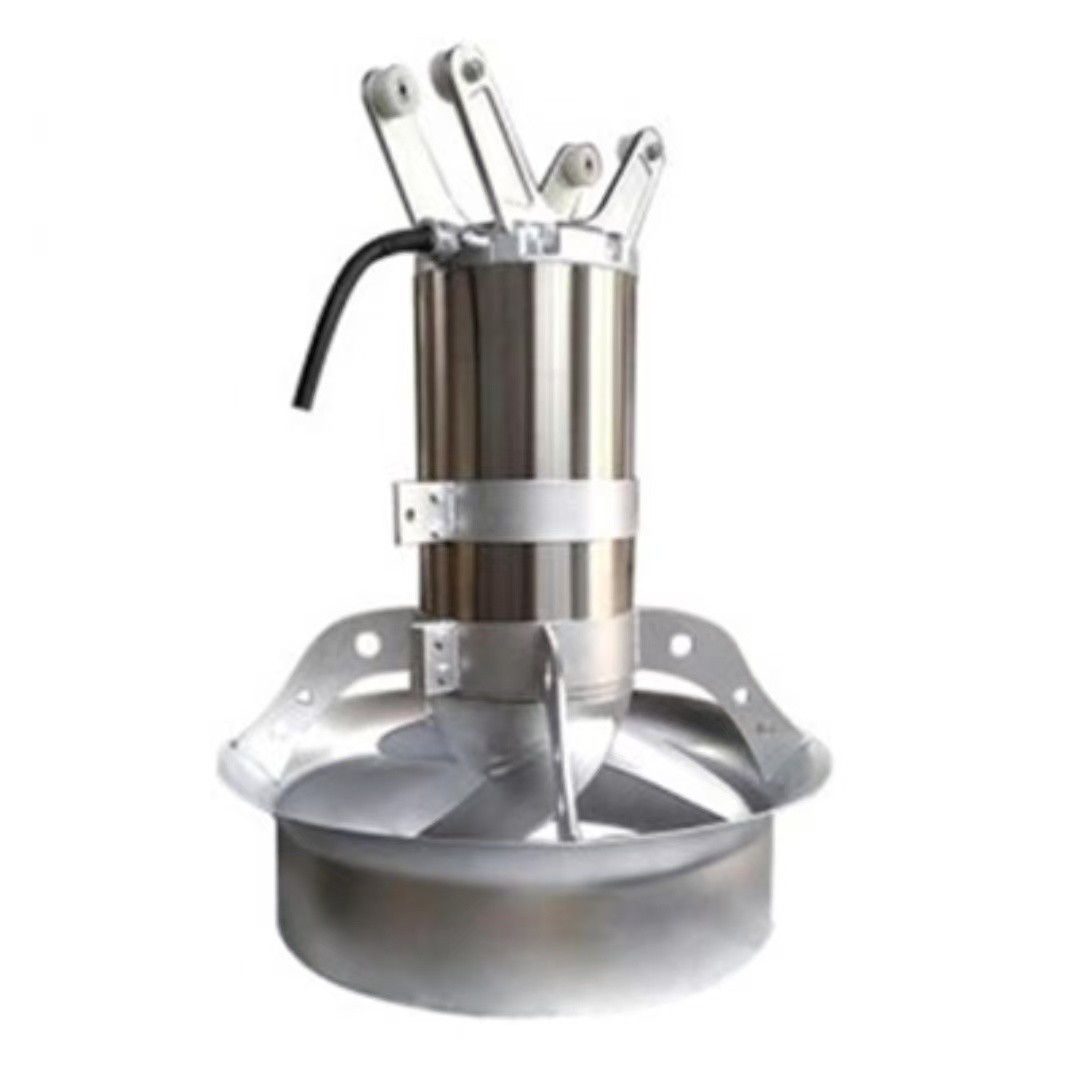

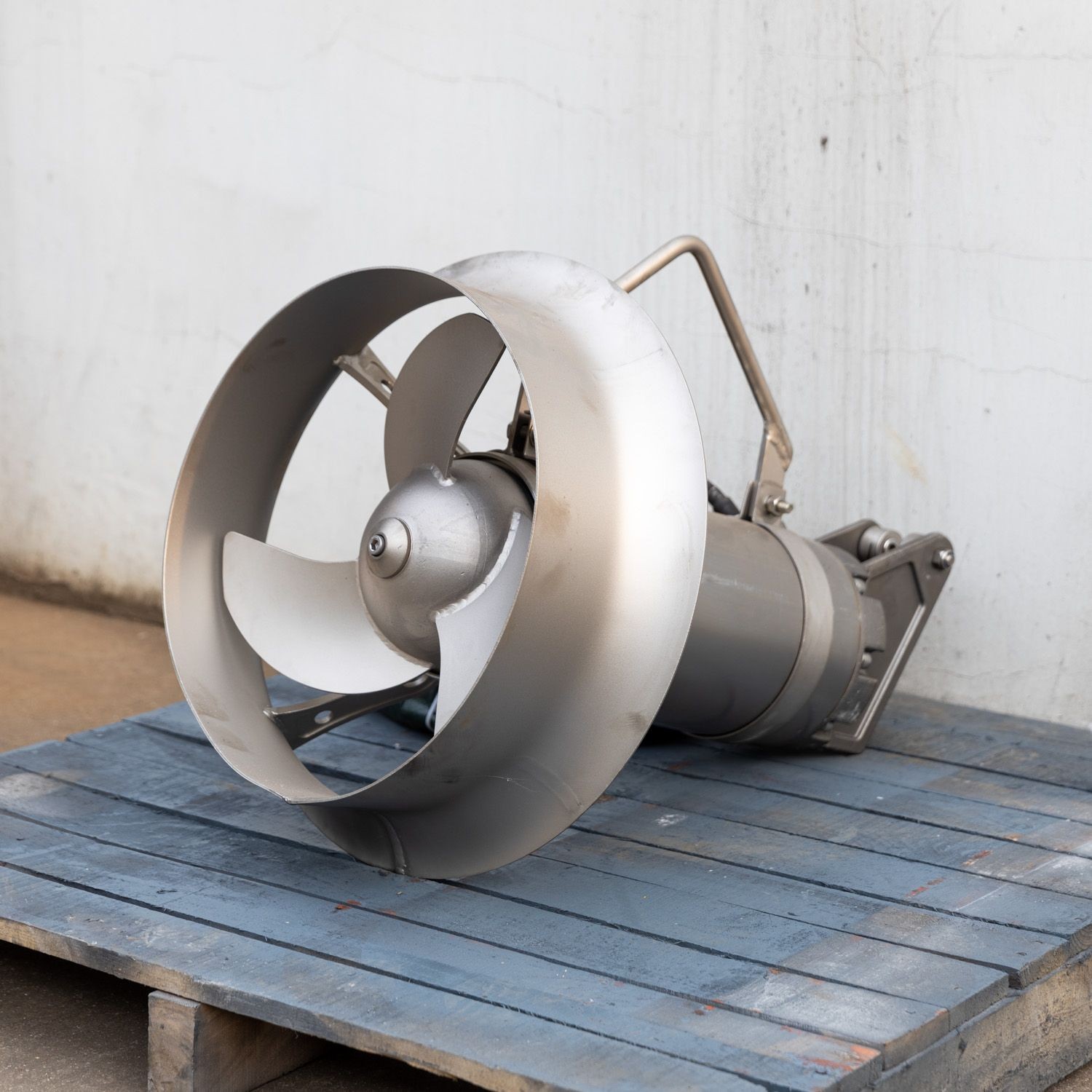

Dagyee SUS316L anti-corrosion submersible mixer is specially optimized and upgraded for high-corrosion industrial sewage working conditions, solving the problems of easy rust, corrosion damage and short service life of ordinary mixers in chemical environments. The whole machine is made of high-quality SUS316L stainless steel, with excellent resistance to acid, alkali, salt and various chemical medium erosion. It adopts upgraded composite anti-corrosion coating and reinforced dual mechanical seal structure, which effectively avoids water ingress, component aging and rust damage caused by long-term immersion in corrosive water bodies. The polished streamlined impeller ensures stable and uniform stirring even in complex sewage with impurities and chemical residues, maintaining efficient hydraulic circulation performance for a long time.
Submersible Mixers principle
Component
- Motor
- Upper bearing
- Seal monitoring&indication
- Solids deflection ring
- Mechanical seal
- Axial flow propeller
- Bracket
- Control System
- Corrosion resistant shell
The operating principle centers on converting electrical energy into controlled hydrodynamic flow. The motor drives an impeller (typically a three-blade propeller or specialized mixing disc) that rotates at optimized speeds. This rotation creates a powerful axial or radial flow pattern, generating a directional current within the vessel. This current ensures complete circulation, preventing sedimentation, maintaining solids in suspension, equalizing temperature and concentration gradients, and enhancing chemical or biological reactions by ensuring uniform contact between components.
| Componente | Material |
|---|---|
| Shell | Stainless steel/GG25 cast iron |
| Impeller | Stainless steel/Fiberglass Polyurethane |
| Shaft | ASTM431 or 420 stainless steel |
| Mechanical seal | Corrosion resistant cemented tungsten carbide/or silicon carbide |
| Guide rod | ASTM304 Stainless steel |
| Lifting bracket | ASTM304 Stainless steel |
| Lifting cable | ASTM304 Stainless steel |
| Fasteners | ASTM321 Stainless steel |
Submersible Mixers Parameter
| Model | Power (kW) | Current (A) | Rotary speed (rpm) | Impeller diameter (mm) | Force (N) | Weight (kg) |
|---|---|---|---|---|---|---|
| SMB0.85/8-260/3-740/C/S | 0.85 | 3.4 | 740 | 260 | 163 | 55/58 |
| SMB1.5/6-260/3-980/C/S | 1.5 | 4.4 | 980 | 260 | 290 | 55/58 |
| SMB2.2/8-320/3-740/C/S | 2.2 | 5.9 | 740 | 320 | 582 | 74/77 |
| SMB4/6-320/3-980/C/S | 4 | 10.8 | 980 | 320 | 609 | 74/77 |
| SMB1.5/8-400/3-740/S | 1.5 | 5.6 | 740 | 400 | 382 | 76/80 |
| SMB2.5/8-400/3-740/S | 2.5 | 7.3 | 740 | 400 | 575 | 76/80 |
| SMB3/8-400/3-740/S | 3 | 8.6 | 740 | 400 | 642 | 78/82 |
| SMB4/6-400/3-980/S | 4 | 10.3 | 980 | 400 | 1010 | 80/84 |
| SMB4/12-620/3-480/S | 4 | 14 | 480 | 620 | 1230 | 240/245 |
| SMB5/12-620/3-480/S | 5 | 18.2 | 480 | 620 | 1420 | 240/245 |
| SMB7.5/12-620/3-480/S | 7.5 | 28 | 480 | 620 | 1963 | 255/270 |
| SMB10/12-620/3-480/S | 10 | 32 | 480 | 620 | 2361 | 255/270 |
Energy-saving Submersible Mixers Selection
This anti-corrosion energy-saving mixer is specially selected for chemical, pharmaceutical, printing and dyeing, electroplating and other industrial wastewater treatment projects. It is suitable for water bodies with unstable pH value, chemical residues and corrosive impurities, and supports 24-hour continuous operation in harsh industrial environments. While maintaining super anti-corrosion performance, the equipment is equipped with high-efficiency energy-saving motor, which effectively reduces long-term operating power consumption. It is the preferred equipment for industrial projects that require both corrosion resistance and energy consumption control.
Submersible Mixers Installation Method

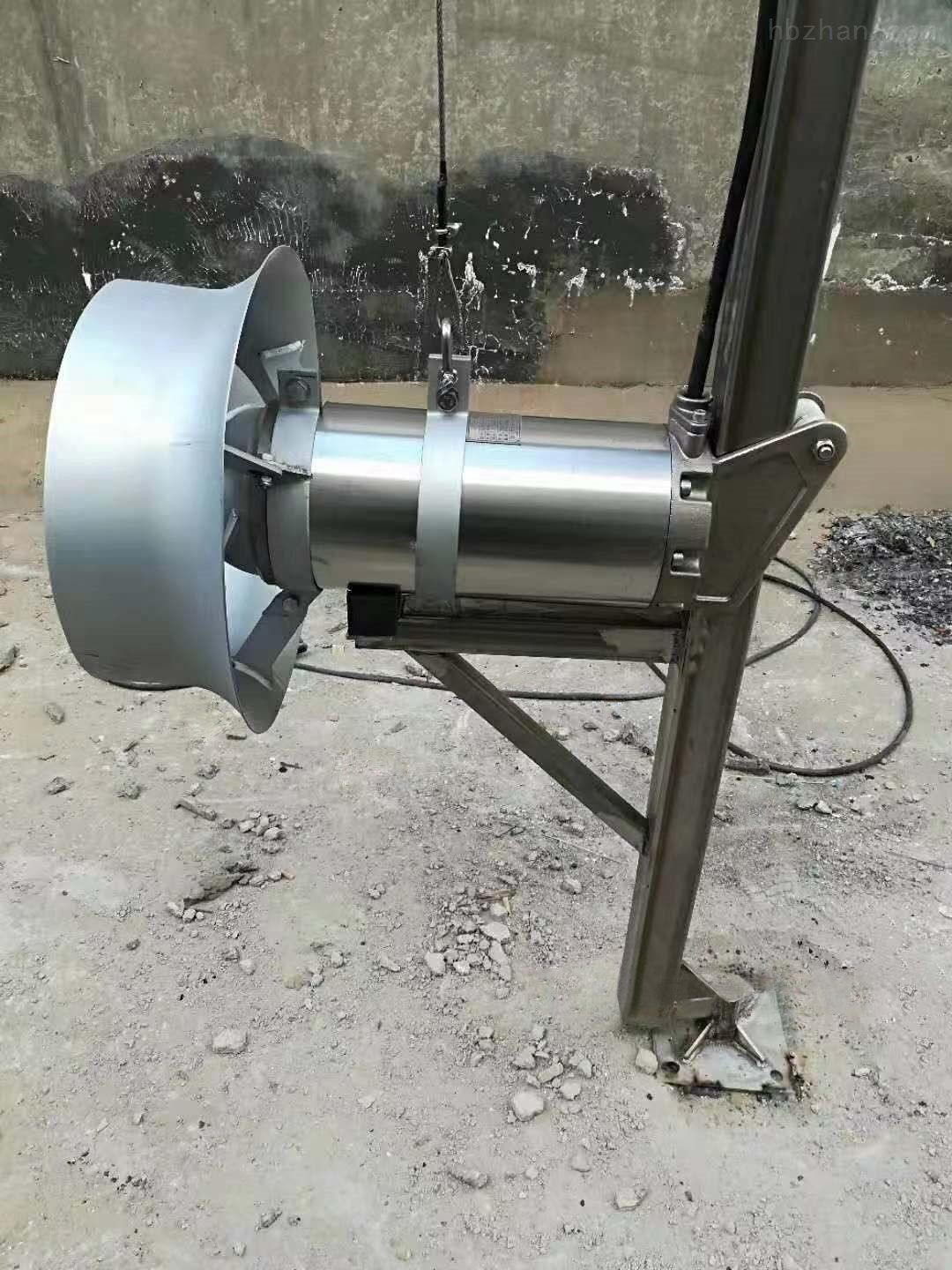

Dagyee SUS316L anti-corrosion mixer adopts full stainless steel anti-rust guide rail lifting installation system. All guide rails, brackets, fixing frames and fasteners are made of anti-corrosion materials to avoid oxidation and loosening in corrosive water. The standard lifting structure supports free underwater maintenance without draining water or stopping the system, improving project operation efficiency. Customized inclined installation and fixed suspension installation schemes are available for special-shaped tank structures and special working condition requirements.
Submersible Mixers Factor
- Selection Factor: Confirm water body pH value and chemical corrosion degree, select SUS316L anti-corrosion model and matched power according to medium viscosity.
- Operation Factor: Avoid long-term idle immersion in highly corrosive liquid to prevent local component aging.
- Safety Factor: Ensure firm installation of anti-corrosion accessories to prevent equipment offset caused by water flow impact.
Submersible Mixers Features
- Strong Anti-corrosion Performance: SUS316L overall structure resists acid and alkali erosion, greatly extending equipment service life.
- High Energy Saving Efficiency: High-efficiency motor reduces long-term operating costs of industrial sewage projects.
- Anti-winding & Anti-adhesion: Polished impeller adapts to complex impurity-containing sewage without blockage.
- Multi-protection Design: Equipped with leakage and overload protection for high safety operation.
Submersible Mixers Application
- Chemical plant and pharmaceutical factory corrosive wastewater biochemical pool stirring and circulation.
- Printing and dyeing, electroplating and other industrial wastewater treatment systems.
- All kinds of water tanks with acid-base corrosion and special water quality treatment requirements.
Supplier Information
As a professional environmental protection equipment exporter, Dagyee has rich experience in customized production of anti-corrosion submersible mixers. Each product undergoes strict material inspection and anti-corrosion process testing to meet harsh industrial working standards. We provide targeted anti-corrosion scheme design and non-standard customization services according to user water quality parameters. All products have complete export certifications, supporting global project delivery and long-term after-sales technical guarantee.
Contact us today for a free application review and mixer selection recommendation!
