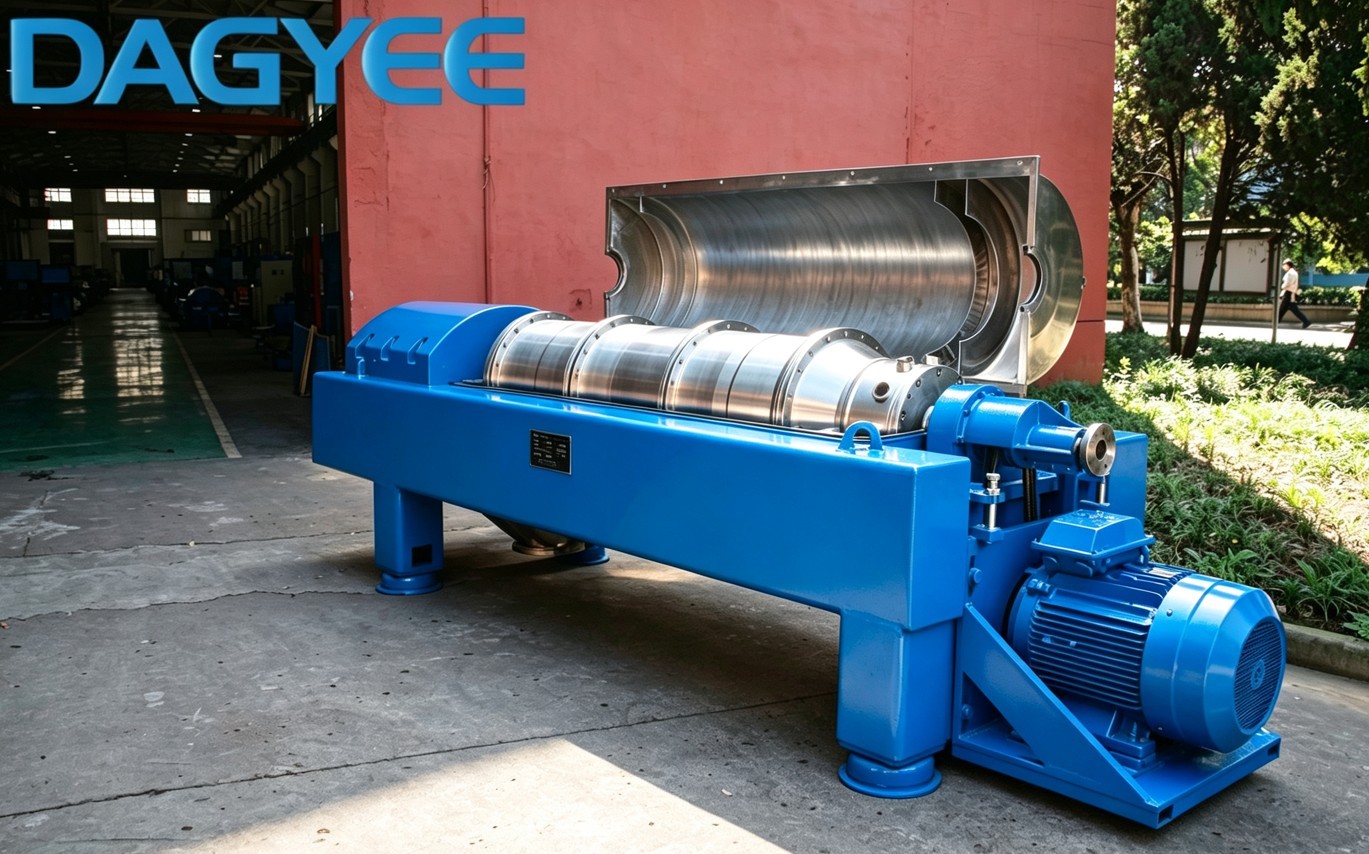

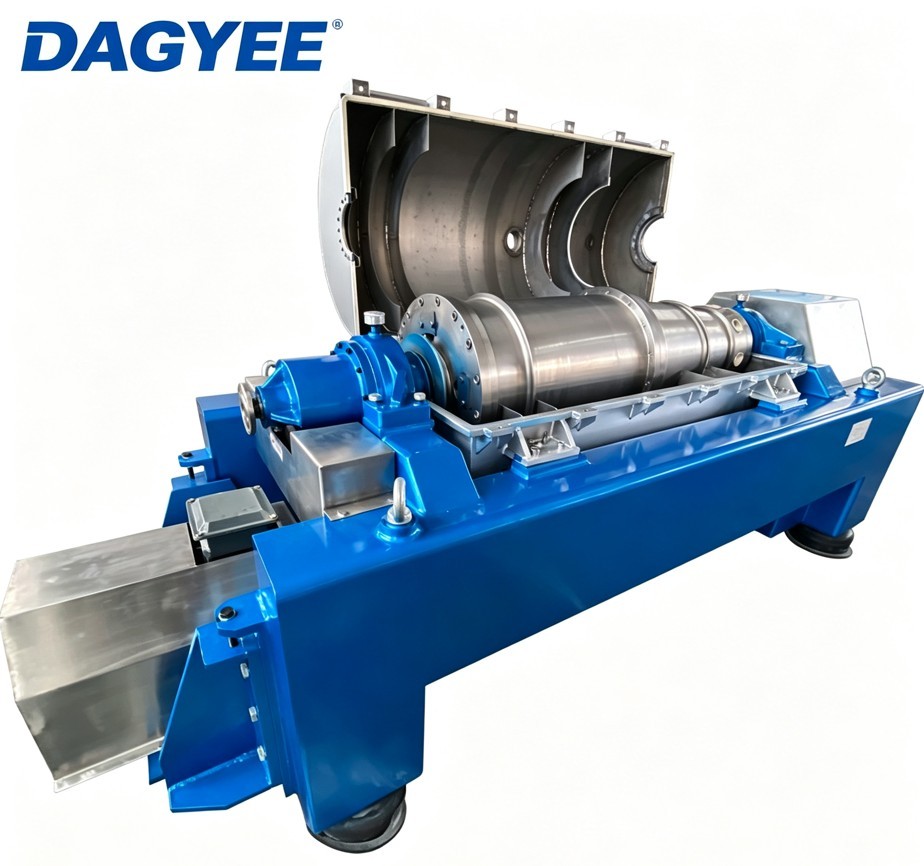

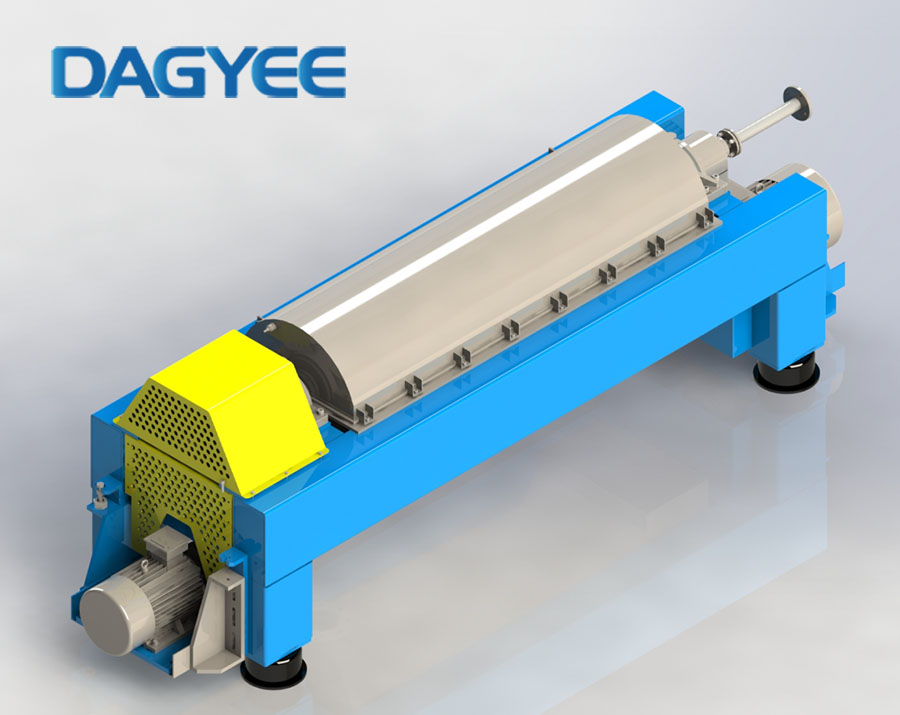

DAGYEE High-Speed Decanter Centrifuge – Fine Particle Separation for Pharmaceutical & Biotechnology Applications
The DAGYEE Energy Saving Decanter Centrifuge represents a breakthrough in industrial solid-liquid separation technology. In an era where energy costs are rising and environmental regulations are tightening, we have engineered a centrifuge that delivers exceptional separation performance while consuming significantly less power.
By integrating advanced Variable Frequency Drive (VFD) technology, intelligent process control algorithms, and optimized mechanical design, our energy saving decanter centrifuge
achieves up to 30% reduction in energy consumption compared to conventional centrifuge designs—without compromising on throughput or separation quality.
Whether you are upgrading existing equipment or designing a new processing line, the DAGYEE
energy saving decanter centrifuge offers the perfect balance of performance, sustainability, and return on investment.
Decanter centrifuge description
A high-speed decanter centrifuge for pharmaceutical and biotechnology applications is a specialized machine designed for fine particle separation and clarification in GMP-compliant environments. It is used for fermentation broth clarification, antibiotic recovery, cell separation, protein recovery, and vaccine production. The equipment operates at high speeds to capture fine particles and achieve high separation efficiency.
The DAGYEE pharmaceutical decanter features sanitary SS316L construction, electropolished surfaces, and CIP/SIP compatibility, meeting the strict hygiene and quality requirements of the pharmaceutical industry. The machine operates continuously and automatically, with recipe management and full documentation capabilities. It is designed for easy cleaning and validation, with all product-contact surfaces polished to Ra ≤ 0.4 µm to prevent product adhesion and facilitate cleaning.
From antibiotic fermentation to vaccine production, DAGYEE pharmaceutical decanters deliver reliable, high-speed separation that meets the quality and regulatory requirements of the pharmaceutical and biotechnology industries.
Experience maximum solid-liquid separation efficiency
- High-performance separation, resulting in high-value products and low waste management costs
- Lower energy consumption and carbon footprint
- Minimal maintenance costs thanks to continuous operation, high-grade machine materials, smart design and well-thought preventive services
- Low capital cost/capacity ratio
- Wide-ranging feed variations and controllable performance
How does a decanter centrifuge work?
The Process Flow:
Step 1: Feed Entry
The fermentation broth or biological suspension enters the centrifuge through a sanitary feed pipe, passing through the hollow shaft of the screw conveyor into the distribution chamber within the bowl.
Step 2: High-Speed Centrifugal Separation
The rotating bowl generates high centrifugal forces (up to 3500 G) that separate fine particles from the liquid phase. The denser solid particles are thrown outward against the bowl wall, while the clarified liquid moves toward the center.
Step 3: Gentle Solids Conveying
The screw conveyor rotates at a slightly different speed, gently conveying the settled solids along the bowl wall and pushing them up the conical beach section. The low differential speed minimizes shear on biological materials.
Step 4: Liquid Discharge
The clarified liquid overflows adjustable dam plates at the large-diameter end of the bowl. The liquid level can be adjusted to optimize separation performance.
Step 5: Solids Discharge
The separated solids discharge through the solids outlet at the conical end. The discharge is continuous and automatic.
Step 6: CIP/SIP Cleaning
The decanter is designed for CIP cleaning and SIP sterilization. Cleaning agents and steam are circulated through the machine without disassembly, ensuring sanitary operation and minimizing downtime between batches.
Technical Specifications
Model Number:DAGYEE-LW
Bowl Diameter: 250 – 720 mm (selectable)
L/D Ratio: 3.0 – 5.0
Bowl Speed: 2000 – 4600 RPM
Separation Factor: Up to 3500 G
Capacity: 0.5 – 100 m³/h
Feed Solids Concentration: 0.5 – 40%
Solid Phase Dryness: 15 – 30% DS
Liquid Phase Clarity: ≤ 0.1% solids
Construction Materials: SS316L (food-grade)
Surface Finish: Ra ≤ 0.8 µm (product-contact)
Seals: FDA-compliant materials
Drive System: Dual motor with VFD
CIP Compatibility: Yes
Power Supply: 380V ± 10%, 50/60Hz, 3 Phase
Control System: PLC with HMI, recipe management
Certification: CE, ISO 9001, Food-grade materials
Bowl Diameter: 250 – 720 mm (selectable)
L/D Ratio: 3.0 – 5.0
Bowl Speed: 2000 – 4600 RPM
Separation Factor: Up to 3500 G
Capacity: 0.5 – 100 m³/h
Feed Solids Concentration: 0.5 – 40%
Solid Phase Dryness: 15 – 30% DS
Liquid Phase Clarity: ≤ 0.1% solids
Construction Materials: SS316L (food-grade)
Surface Finish: Ra ≤ 0.8 µm (product-contact)
Seals: FDA-compliant materials
Drive System: Dual motor with VFD
CIP Compatibility: Yes
Power Supply: 380V ± 10%, 50/60Hz, 3 Phase
Control System: PLC with HMI, recipe management
Certification: CE, ISO 9001, Food-grade materials
Decanter centrifuge specifications
| Model | Drum Diameter (mm) | Length (mm) | Maximum Speed (RPM) | Highest Separation Factor (g) | Mixture Capacity (m³/h) |
|---|---|---|---|---|---|
| LW250-900 | 250 | 900 | 5000 | 3500 | 0.5-3 |
| LW350-1500 | 350 | 1500 | 3800 | 2850 | 1-5 |
| LW400-1200 | 400 | 1200 | 3400 | 2581 | 1-8 |
| LW400-1600 | 400 | 1600 | 3400 | 2581 | 2-10 |
| LW400-1800 | 400 | 1800 | 3400 | 2581 | 2-12 |
| LW450-1800 | 450 | 1800 | 3200 | 2572 | 5-20 |
| LW450-2000 | 450 | 2000 | 3200 | 2572 | 5-25 |
| LW530-2280 | 530 | 2280 | 2800 | 2350 | 10-50 |
| LW600-2400 | 600 | 2400 | 2600 | 2265 | 15-65 |
| LW650-2600 | 650 | 2600 | 2400 | 2100 | 20-80 |
| LW720-2500 | 720 | 2500 | 2200 | 1950 | 25-90 |
| LW800-2560 | 800 | 2560 | 2000 | 1800 | 30-100 |
| LW800-3200 | 800 | 3200 | 2000 | 1800 | 30-110 |
| LW900-3200 | 800 | 3200 | 1800 | 1650 | 30-150 |
Decanter centrifuge key features
Sanitary Construction
All product-contact parts are made from SS316L stainless steel with electropolished surfaces. The design includes sanitary connections and crevice-free construction.
Surface Finish
Product-contact surfaces are polished to Ra ≤ 0.4 µm, preventing product adhesion and facilitating effective cleaning.
CIP/SIP Compatibility
The decanter is designed for clean-in-place and steam-in-place operation, allowing thorough cleaning and sterilization without disassembly. This minimizes downtime and ensures sanitary operation between batches.
FDA-Compliant Materials
All materials in contact with the product are FDA-compliant and supplied with material certificates.
Gentle Processing
The decanter operates with controlled differential speed and low shear, preserving the integrity of sensitive biological materials.
Temperature Control
Optional heating or cooling jackets allow temperature control during processing.
Recipe Management
PLC controls with recipe management allow easy changeover between different products and processes.
Full Documentation
Complete documentation including material certificates, surface finish reports, and validation protocols is available.
Applications
Fermentation Broth Clarification
Clarification of fermentation broths for antibiotic, enzyme, and organic acid production. Removes bacterial cells, mycelia, and other suspended solids, producing clear filtrate for downstream processing.
Antibiotic Recovery
Recovery of antibiotics from fermentation broths. The decanter separates the antibiotic-containing liquid from the biomass, improving product yield and purity.
Cell Separation
Separation of mammalian, yeast, and bacterial cells from culture media. The gentle operation minimizes cell damage, preserving cell viability where required.
Protein Recovery
Recovery of recombinant proteins and other biological products from cell culture media. The decanter concentrates proteins while removing cellular debris and other impurities.
Vaccine Production
Clarification of vaccine production broths. The decanter removes cellular material and other contaminants, producing a clear liquid for further purification.
Enzyme Production
Separation of enzyme solutions from fermentation biomass. The decanter recovers the enzyme-containing liquid while dewatering the biomass for disposal.
Plasma and Blood Fractionation
Separation of blood components and plasma proteins.
Why choose the DAGYEE decanter centrifuge?
| Feature | Customer Value |
|---|---|
| Continuous Operation | 24/7 dewatering without downtime for discharge |
| High Throughput | Single unit handles up to 100 m³/h |
| Energy Efficient | Dual motor VFD with energy recovery reduces power consumption |
| Automatic Operation | PLC controls minimize operator attention |
| High Cake Dryness | Stable 18-28% DS reduces disposal costs |
| Low Polymer Consumption | Optimized design reduces chemical usage |
| Wear Protection | Extended service life in abrasive applications |
| Enclosed Operation | Odor control, safe, clean environment |
| Flexible Configuration | 2-phase or 3-phase separation options |
Proven in Diverse Applications
Our energy saving technology has been validated across multiple industries:
"Switching to DAGYEE energy saving decanter centrifuges reduced our electricity consumption by 27% while actually improving our cake dryness by 2%. The payback period was just 14 months."
— Plant Manager, Municipal Wastewater Treatment Facility, Germany
*"We operate 24/7, so energy costs are a major concern. The DAGYEE VFD-controlled centrifuges have cut our power bills significantly, and the remote monitoring feature gives us peace of mind."*
— Operations Director, Chemical Processing Plant, USA
Contact Us
The DAGYEE High-Speed Decanter Centrifuge for Pharmaceutical & Biotechnology delivers reliable, high-speed separation for fermentation broth clarification, cell separation, protein recovery, and vaccine production. With sanitary design, CIP/SIP compatibility, and GMP-compliant construction, it helps pharmaceutical processors meet quality and regulatory requirements while maximizing product recovery.
Contact our team for a free consultation and customized centrifuge selection for your pharmaceutical application.
