Description

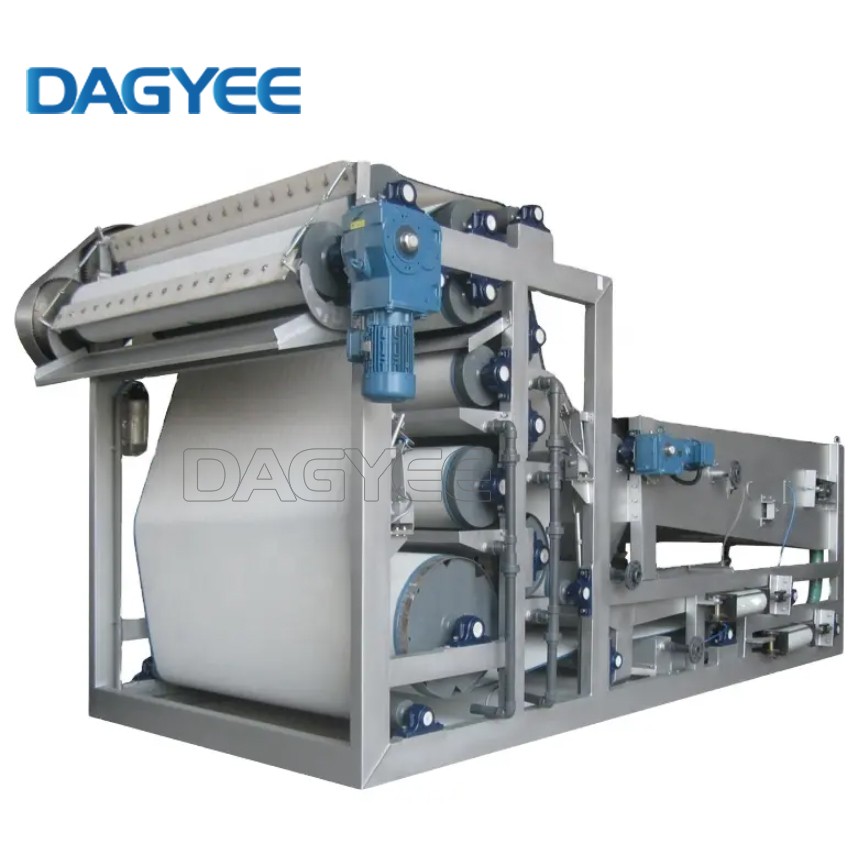

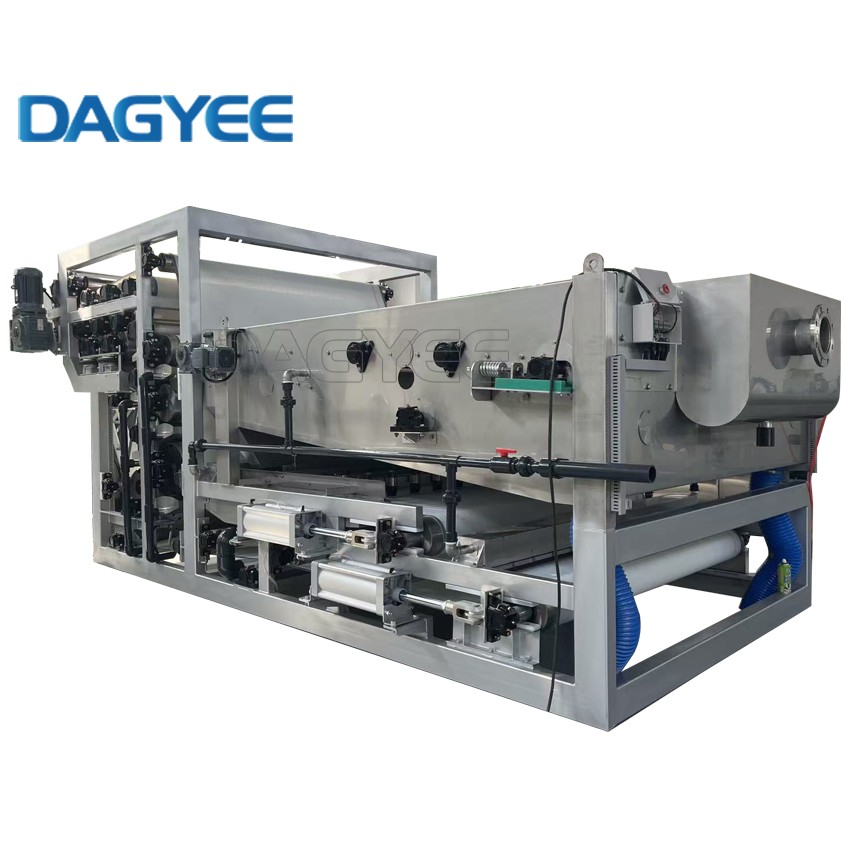

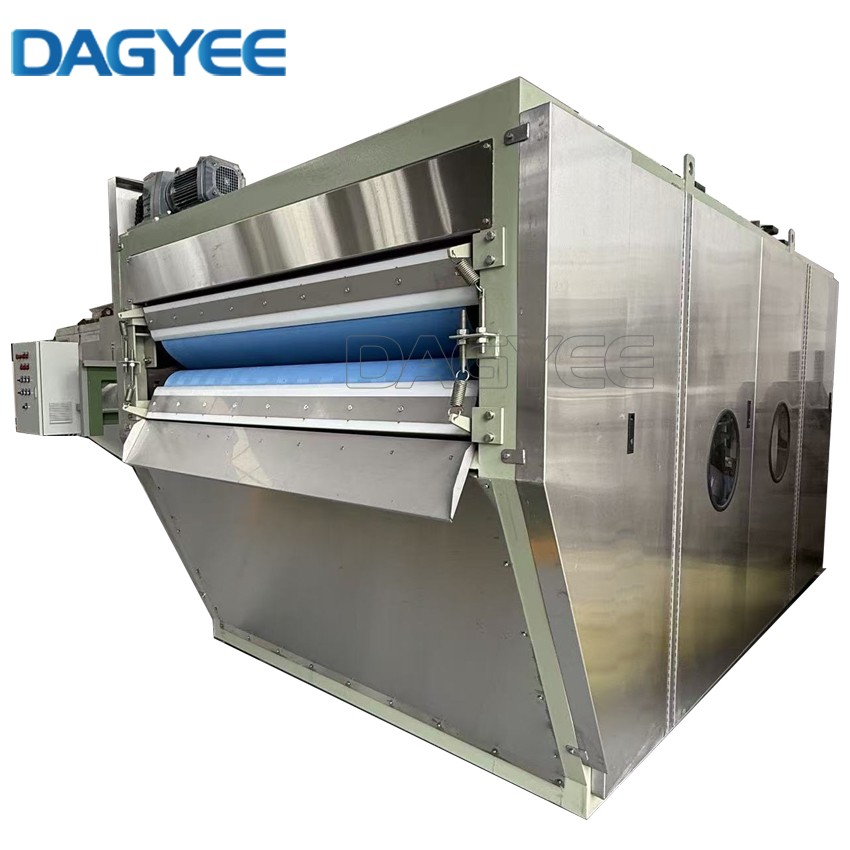

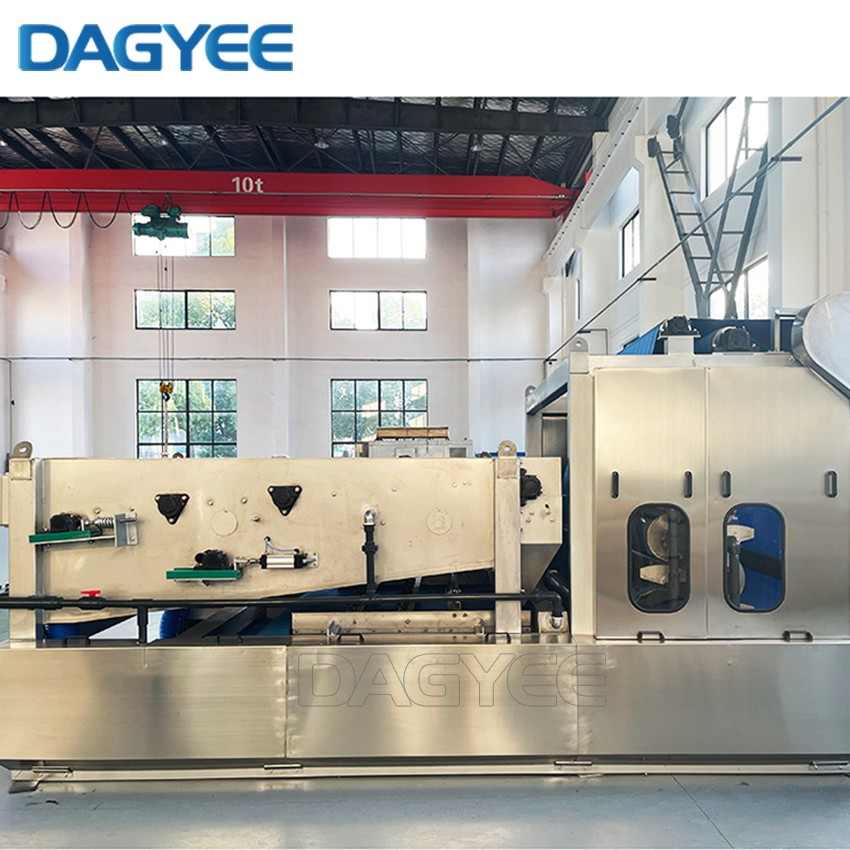

Belt filter press Information
The Belt Filter Press stands as an industry benchmark for efficient solid-liquid separation. Through a continuous, multi-stage dewatering process, it economically and rapidly separates various slurries into dry solids and clear filtrate. Whether handling municipal sludge or complex industrial waste, this equipment is the ideal solution for enhancing processing efficiency, reducing disposal costs, and achieving environmental compliance.
How belt filter presses work
-
Chemical Conditioning: The slurry is precisely mixed with flocculants to form firm flocs ideal for dewatering.
-
Gravity Drainage: The flocculated slurry is spread on a coarse mesh belt, allowing a significant amount of free water to rapidly separate by gravity.
-
Wedge Pre-Pressing: The slurry enters the wedge zone, where gentle linear pressure is applied to release more water and form a stable sludge mat.
-
High-Pressure Shear Dewatering: The sludge mat is subjected to progressively increasing shear and compression forces between "S"-shaped press rollers, removing capillary water to form a firm filter cake.
Belt filter presses Technical
|
Sludge kinds |
Input concentration % |
Capacitym3/h.m |
DS capacitykg/h.m |
Moisture of cake% |
PAM consumption%(DP/DS ) |
|
Unconcentrated aerobic sludge |
0.5~1.5 |
15~30 |
150~300 |
~80(+2) |
2~5 |
|
Concentrated aerobic sludge |
2~4 |
6~12 |
200~300 |
~80(+2) |
2~5 |
|
Digested sludge |
3~6 |
7~15 |
300~400 |
<80 |
2~5 |
|
Unconcentrated primary sludge |
0.8~2.0 |
18~35 |
300~400 |
<80 |
2~5 |
|
Concentrated primary sludge |
3~5 |
6~12 |
300~400 |
≤80 |
2~5 |
|
Paper making activated sludge |
0.5~2.5 |
15~35 |
200~400 |
<78 |
3~7 |
|
Printing and dyeingmixed sludge |
1~3 |
10~25 |
180~350 |
75-85 |
3~10 |
Belt filter presses Advantage
Maximized Volume Reduction: High solid capture rate and cake dryness significantly reduce sludge volume and subsequent disposal costs.
Enhanced Operational Efficiency: Continuous, automated operation minimizes manual intervention and ensures a smooth production flow.
Superior Return on Investment (ROI): Lower initial investment and operating costs deliver quick payback and long-term savings.
Exceptional Reliability: Robust design and premium material selection ensure minimal downtime and maintenance requirements.
Wide Adaptability: Capable of handling a wide range of material characteristics by adjusting belt types and chemicals.
Belt filter presses Features
Continuous & Efficient Processing: 24/7 uninterrupted operation with high throughput, significantly outperforming batch dewatering systems.
Optimized Dewatering Path: A synergistic design combining gravity, wedge pre-pressing, and multi-stage high-pressure squeezing ensures the lowest possible final moisture content.
Intelligent Control System: Integrated PLC and HMI for automated control of the entire process, including tracking, tensioning, and washing.
Superior Belt Management: Equipped with fully automatic tracking and tensioning systems to maximize belt life and operational stability.
Low Operational Costs: Efficient design significantly reduces energy, water, and chemical consumption.
Robust & Durable Construction: Critical components are made of corrosion-resistant materials, ensuring long service life and reliability in demanding environments.
Belt filter presses applicant industries
Municipal Wastewater Treatment: For dewatering primary sludge, waste activated sludge (WAS), and digested sludge.
Industrial Process Applications: Widely used in Pulp & Paper, Food & Beverage, Chemical, and Pharmaceutical industries for process slurry dewatering.
Mineral Processing & Metallurgy: Used for dewatering tailings, concentrates, and metal hydroxide sludges.
Energy & Environment: Applied in power plant FGD sludge, river dredging, and landfill leachate treatment
Belt Filter Press: The Proven Solution for Efficient Solid-Liquid Separation.
Choosing it means selecting a time-tested partner in performance, reliability, and economy to optimize your process and tackle the toughest dewatering challenges.
