Wedge Wire Static Screen – Self-Cleaning, No Moving Parts

Product Overview

The DAGYEE Wedge Wire Static Screen represents the simplest, most reliable approach to solid-liquid separation available today. With no motors, no bearings, no controls, and no electricity, it operates continuously on gravity and hydraulic flow alone. The secret to its effectiveness lies in the wedge wire screen panel — a precision-engineered surface that separates solids from liquids while simultaneously cleaning itself.

This product description focuses on the unique advantages of wedge wire technology and why the static screen is the preferred choice for applications where reliability, low operating cost, and minimal maintenance are paramount.

Working Principle

The static screen operates on a simple gravity-based principle with no moving components. Here's how it works:

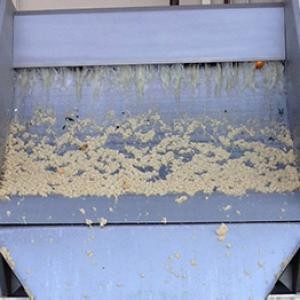

Uniform Water Distribution – Wastewater enters the screen box and flows over a weir, evenly distributing across the full width of the inclined wedge wire screen.

Solid-Liquid Separation – As water passes through the screen, liquid flows through the narrow gaps between the wedge wires. Suspended solids larger than the slot opening are captured on the screen surface.

Automatic Solids Discharge – Captured solids slide down the inclined screen surface under the force of gravity and the hydraulic push of incoming flow. They discharge continuously from the lower end of the screen without needing a scraper or mechanical conveyor.

Clean Filtrate Collection – The filtered liquid (filtrate) collects in a hopper or trough beneath the screen and flows to the next stage of treatment.

Slot openings are typically available from 0.25mm to 3.0mm, depending on the application and required removal efficiency.

What Makes Wedge Wire Different?

Unlike punched plate or woven wire mesh, wedge wire (also called profile wire) has a V-shaped cross-section. This profile offers three distinct advantages for solid-liquid separation:

Advantage 1: Non-Blinding Design

The V-shape creates an ever-widening gap below the surface. Particles that enter the slot are not trapped — they are either passed through or pushed out by the shearing action of the flowing liquid. This self-cleaning characteristic dramatically reduces blinding (clogging) compared to other screen types.

Advantage 2: High Open Area

Wedge wire screens maintain a high percentage of open area even with very fine slot openings. A 0.5mm slot screen can still achieve 15-20% open area, allowing high flow rates without excessive head loss.

Advantage 3: Smooth Surface

The continuous wire construction creates a smooth, continuous surface with no obstructions. Solids slide easily down the screen without snagging or accumulating.

Table 1: 5-Year Total Cost Breakdown

See that? The purchase price is only one-third. The other two-thirds come after you buy the machine.
So the real way to save money isn't just beating down the upfront price. It's reducing the other two-thirds too.
Let me give you an example:
Machine A costs $3,000 upfront, but needs $700 in maintenance every year. Over 5 years, total cost is $6,500.
Machine B costs $4,000 upfront, but only needs $150 in maintenance every year. Over 5 years, total cost is $4,750.

The more expensive one actually saves you money. That's why you need to look at the big picture.

Key Features

Advantages

1. No Energy Costs
Because the static screen has no moving parts and operates by gravity, it consumes zero electricity. For facilities running 24/7, this represents significant annual savings compared to mechanical screens.

2. Virtually Maintenance-Free
With no motors, bearings, or chains to maintain, the static screen requires only periodic visual inspection and occasional cleaning. No lubrication, no belt replacement, no gearbox oil changes.

3. Reliable 24/7 Operation
There are no mechanical components to break down. As long as water flows, the static screen keeps working. This makes it ideal for unattended or remote installations.

4. Self-Cleaning Screen Design
The wedge wire profile creates a continuous shearing action that helps dislodge trapped particles. This self-cleaning effect reduces blinding and maintains consistent hydraulic capacity.

5. Low Installation Cost
With no electrical connections, no control panels, and no moving parts, installation is simple and inexpensive. The unit can be placed over an open channel or flume with minimal civil work.

6. Environmentally Friendly
Zero energy consumption and no chemical additives make the static screen a green technology for solids removal.

7. Handles High Solids Loading
Static screens are particularly effective for applications with high concentrations of fibrous solids — such as paper mill effluent, slaughterhouse wastewater, or textile processing.

Technical Specifications

Applications

The static screen is suitable for a wide range of industries and applications:

How to Size a Static Screen

To select the right static screen for your application, you will need:

1.Flow Rate – Peak and average flow (m³/h or GPM)
2.Solids Loading – Concentration and type of solids (fibrous, granular, etc.)
3.Slot Opening – Based on particle size you need to remove
4.Available Head – Height difference between inlet water level and discharge point
5.Channel Width – If installing in an existing channel

Contact DAGYEE with your site parameters, and we will recommend the optimal screen size and configuration.

Why Choose DAGYEE Static Screens?
Proven Quality
All DAGYEE static screens are manufactured from premium stainless steel with precision-engineered wedge wire. Every screen is inspected before leaving our factory.

Customization
We offer custom widths, slot openings, frame designs, and inlet configurations to match your specific channel or application.

Fast Delivery
With standard sizes in stock and efficient production for custom orders, DAGYEE ensures short lead times.

Technical Support
From sizing assistance to installation guidance, our engineering team supports you at every step.

Competitive Pricing

Factory-direct pricing means you get high-quality equipment at reasonable cost — no unnecessary markups.

Maintenance Guidelines

While the static screen requires far less maintenance than mechanical screens, we recommend:

Ordering Information

To request a quote or receive technical drawings, please provide:

• Flow rate (average and peak)
• Required slot opening (mm)
• Channel width or desired screen width
• Available gravity head
• Wastewater type and solids characteristics
• Material preference (SS304 or SS316)
