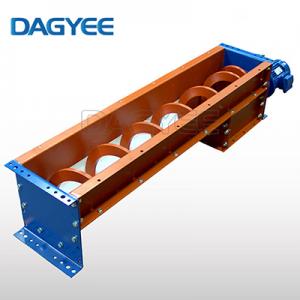

Dagyee Shaftless screw conveyor according to the building material, chemical industry, environmental protection, electric power, medicine, metallurgy, food and other industries in the DLS type screw conveyor conveying grinding cut big, viscosity is bigger, is easy to agglomerate, wrapping easily material formed when material blockage, suspension bearing damage to the actual situation of screw machine doesn't work and independent research and development of a new type of screw conveyor. This product is suitable for continuous and uniform conveying of loose, sticky and easily wound materials, the temperature of conveying materials is up to 100℃, the maximum inclination Angle is less than 30°.
Shaftless Screw Conveyor Structure
Shaftless screw conveyor is mainly composed of shaftless screw, U-shaped spiral groove, cover plate, lining plate, inlet and outlet, discharge outlet and driving device.
Shaftless Screw Conveyor Type
Single shaftless screw conveyor screw shaft, without mixing and stirring functions.
Twin Shaftless Screw Conveyor It adopts double screw blades with mixing and stirring functions. The two screw blades rotate in opposite directions to avoid material blocking. The conveying capacity is 1.5-2 times that of a single shaft.
Shaftless is suitable for conveying sludge, household garbage, grid slag and other viscous, entangled materials and massive materials. It is precisely because the design of the shaftless screw conveyor without a central axis has great advantages for these materials. The shaft screw conveyor is suitable for conveying materials: powder, small particle materials, etc. If you convey viscous materials such as sludge, it will stick to the inner tube shaft and blades, and the conveying block materials are easy to jam.
Conveying form Shaftless screw conveyor is suitable for: horizontal conveying, and the large inclination angle should not exceed 20°, according to the actual usage. The shaft screw conveyor is suitable for: horizontal conveying, inclined conveying, and vertical conveying.
Conveying capacity Due to the use of shaftless, the single-machine conveying length of the shaftless screw conveyor can reach 60 meters, and the conveying capacity is 1.5 times that of the traditional shafted screw conveyor with the same diameter
Shaftless Screw Conveyors Application
Ceramic industry: clay, silica, sand, polishing materials, etc.
Food industry: soybean, peanut, starch, milk powder, salt, sugar, etc.
Plastics industry: plastic powder, plastic particles, etc.
Wood industry:wood chips, wood sawing surface and byproducts, etc.
Environmental: the filter material, fly ash, fixed residue, waste, etc.
