Automotive-Grade UF Paint Filtration System – High-Performance Membrane for Electrocoat & Paint Spray Applications

Description

Automotive-Grade UF Paint Filtration System – High-Performance Membrane for Electrocoat & Paint Spray Application

Product Overview

Automotive paint shops face a constant challenge: managing the wastewater and paint solids generated by electrocoat (ED) lines and paint spray booths. Conventional treatment methods—chemical addition, settling, and sludge disposal—are expensive, inefficient, and increasingly difficult to justify.

Ultrafiltration changes the picture entirely. Instead of treating paint-laden wastewater as waste, UF recovers paint solids, recycles clean water, and reduces disposal volumes by as much as 80%. For automotive plants, this means lower operating costs, reduced environmental footprint, and a more sustainable paint shop operation.

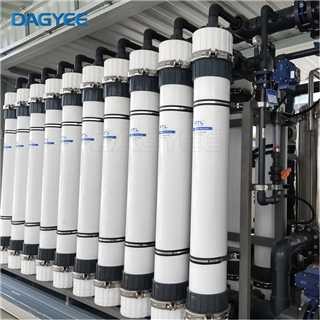

The DAGYEE Automotive-Grade UF Paint Filtration System is designed specifically for electrocoat and paint spray applications. Using robust tubular PVDF membranes, it separates paint solids from rinse water, recovers valuable paint, and produces clean permeate that can be returned to the rinse tank. The result is a closed-loop system that minimizes waste and maximizes efficiency.

Why Ultrafiltration for Small to Medium Projects?

There's a reason ultrafiltration has become so popular in recent years, even for smaller-scale applications. The technology simply makes sense.

No Chemicals Needed
During normal operation, a UF system doesn't require any chemical dosing. No coagulants, no flocculants, no pH adjustment. This is a significant advantage for smaller installations where chemical handling, storage, and safety can be a hassle. You just pump water through the membranes, and clean water comes out.

Consistent Quality, Regardless of Feed Water
Conventional filters (sand filters, media filters, cartridge filters) produce water that varies with the quality of the incoming water. During dry seasons, they work fine. During rain events, when turbidity spikes, the output quality drops. A UF system doesn't care about seasonal fluctuations. The membrane pores are physical barriers. If the contaminant is larger than 0.01 microns, it stays behind. Period. The permeate quality is the same in April as it is in November.

Small Footprint
For smaller projects, space is often limited. You might not have an entire building for a water treatment plant. UF systems are compact. A system producing 5 m³/h fits on a skid about the size of a small car. It can go into a corner of an existing building, a shipping container, or a small dedicated room.

Low Maintenance
Modern UF systems are automated. They backwash themselves. Some models can even do simple chemical cleanings automatically. This is a big deal for smaller operations that don't have a dedicated water treatment specialist on staff. With a UF system, routine operation is straightforward. Check the pressures in the morning. Top up the chemicals if needed. The system handles the rest.

Long-Term Reliability
UF membranes have a service life of 3 to 5 years with proper operation. That's much longer than sand filters that require regular media replacement, or cartridge filters that need changing every few months. The total cost of ownership usually comes out ahead with UF.

How This System Works

Electrocoat (ED) Lines
In cathodic electrodeposition, parts are dipped in a paint bath and an electrical current is applied to deposit paint on the surface. After coating, parts pass through multiple rinse stages to remove excess paint. These rinse streams contain paint solids that must be removed before the water can be reused.

UF recovers paint solids from the rinse water, returning concentrated paint to the paint tank and producing clean permeate for the rinse stages. This closed-loop system eliminates wastewater discharge from the ED line.

Paint Spray Booths
Paint spray booths use water to capture overspray. This water becomes contaminated with paint solids and must be treated. UF separates the paint solids, reducing sludge volume by 80-90% and producing clean water that can be returned to the booth.

Key Performance Benefits

• Recovers 95-98% of paint solids for reuse

• Reduces paint consumption by up to 25%

• Eliminates or minimizes wastewater discharge

• Extends paint bath life

• Reduces sludge disposal costs by 70-80%

• Improves paint quality by removing contaminants

System Components

The UF Ultrafiltration System consists of the following core components:

What This System Removes

The Compact UF System is a physical barrier. It removes anything larger than its pore size. Here's what that means in practical terms:

What the System Does NOT Remove:

• Dissolved salts (TDS)

• Dissolved ions (sodium, calcium, chloride, etc.)

• Low molecular weight organics

• Color that is truly dissolved (not particle-bound)

For applications requiring dissolved solids removal, UF is typically followed by reverse osmosis or ion exchange. In fact, one of the most common uses of UF is as pretreatment for an RO system—it removes the particulates that would otherwise foul the RO membranes.

Technical Specifications

Where This System Is Used

This compact UF system shows up in a wide range of applications. Here's where we most often see it installed:

Installation & Setup

One of the advantages of the Compact UF System is its simplicity. Here's what you need to know:

What You Get

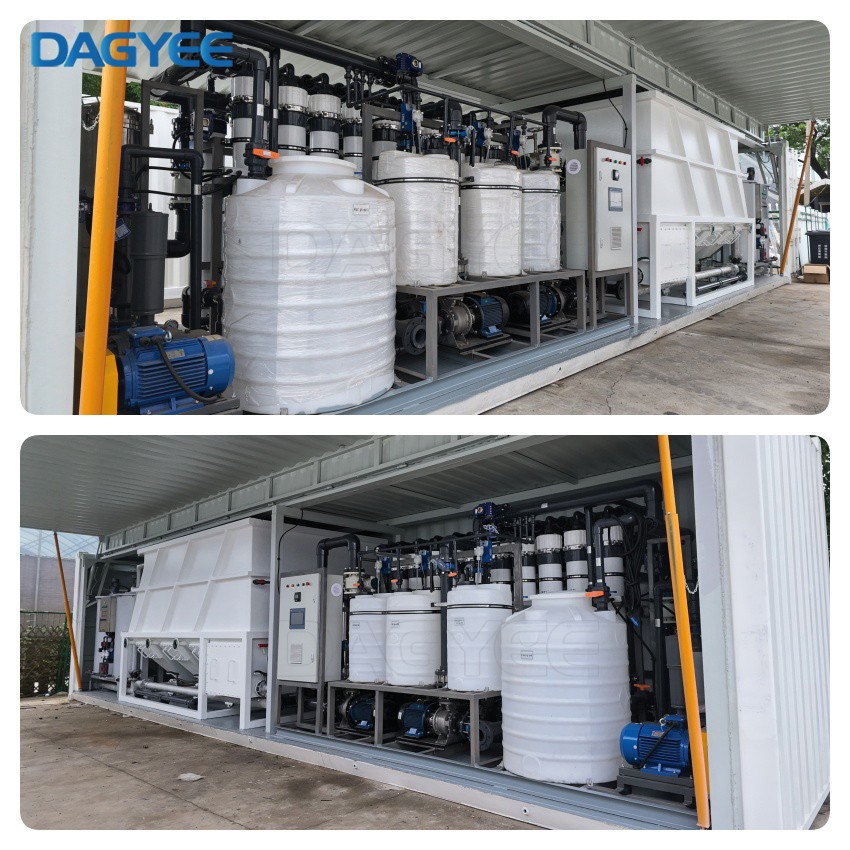

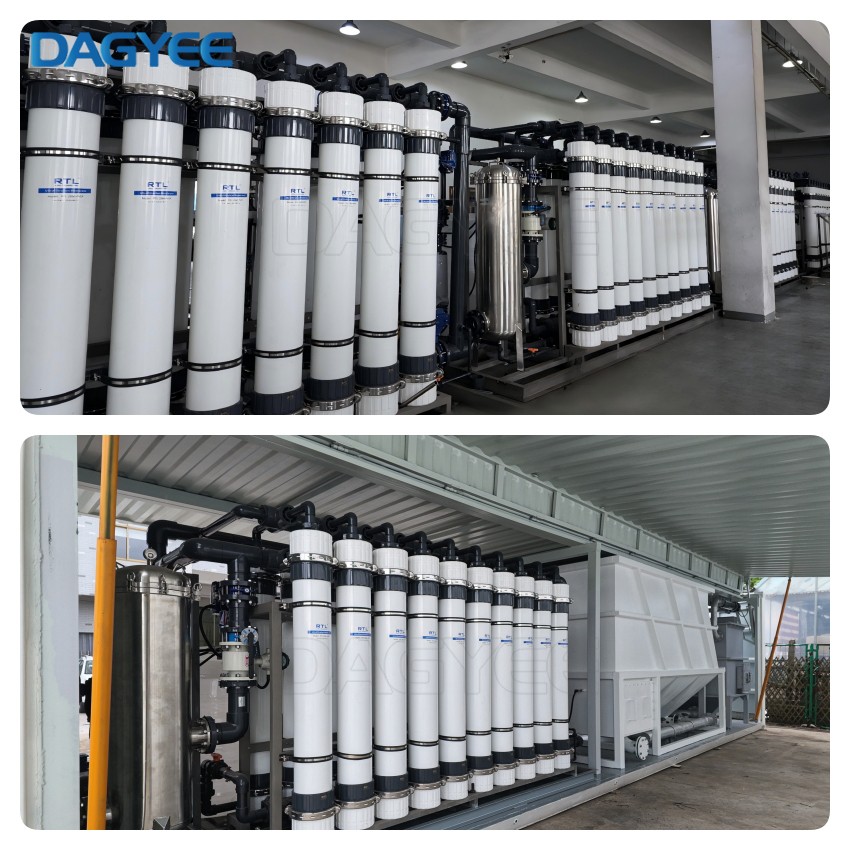

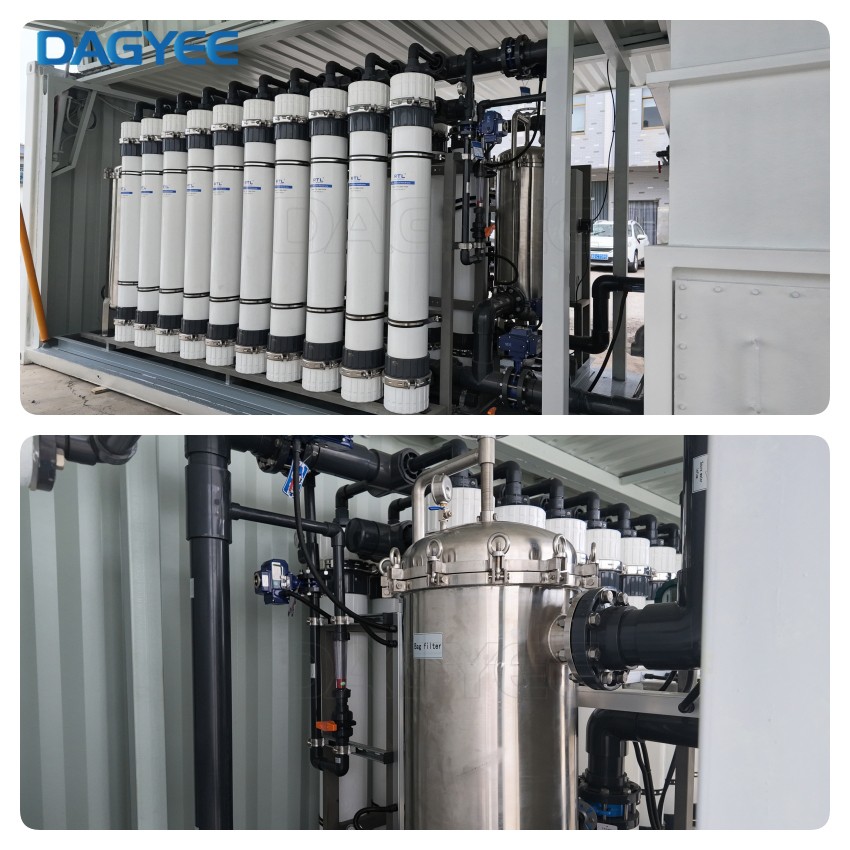

The system arrives fully assembled on a steel skid. All piping, the UF membrane modules, the feed pump, the control panel, and the instrumentation are already connected. The pre-filter is installed. The backwash system is plumbed. It's essentially plug-and-play.

Connection Requirements

• Water Supply: Pipe connection to your feed water source (well, tank, municipal supply, or surface water)

• Permeate Discharge: Pipe connection to your product water tank or distribution system

• Reject / Drain Discharge: Pipe connection to drain or recycle line (small flow, typically 5-10% of feed)

• Power: Single-phase electrical connection at the specified voltage

• Space: Level floor area sufficient for the skid, plus 600 mm access around all sides for maintenance

Commissioning
A trained technician can commission the system in one day. The process includes flushing the membrane modules, checking all instrumentation, programming the control parameters, and verifying performance. Operator training takes about 2-3 hours.

Operator Requirements
No specialized technical background is needed. The system is designed so that a facilities manager, maintenance person, or even a trained operator can handle the daily tasks. The checklist is simple: check pressures, monitor flow rates, top up chemicals if applicable, and call for service if something looks unusual.

Why Choose DAGYEE Automotive UF?
