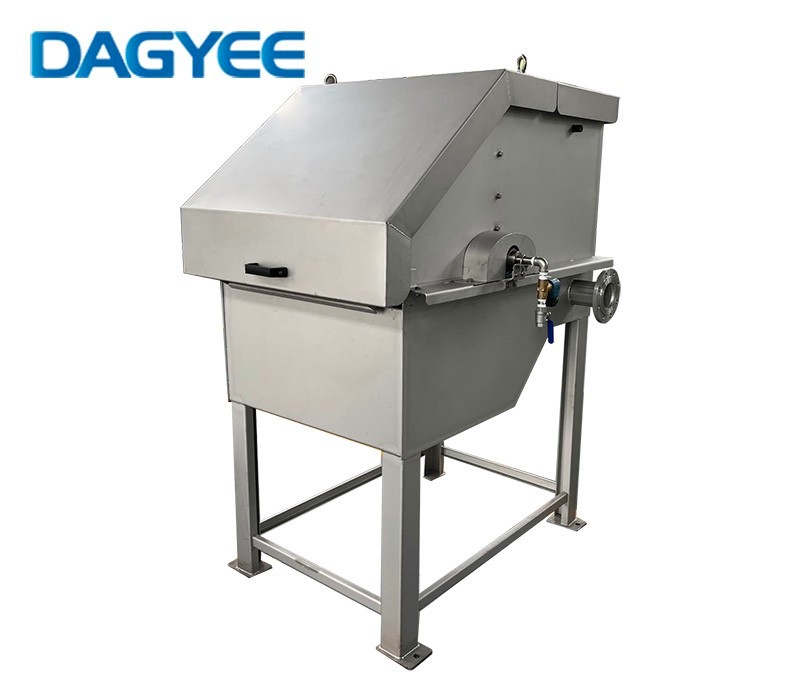

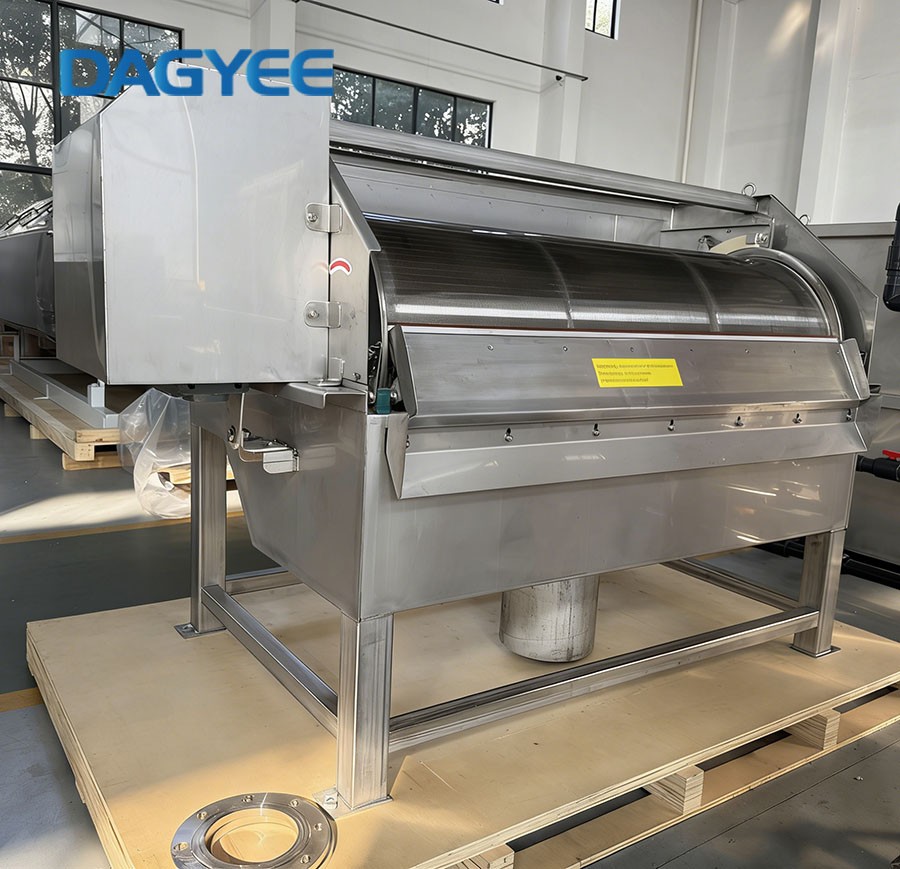

DAGYEE Compact Packaged Rotary Drum Screen System: Revolutionizing Screening System Deployment
Externally rotary fed drum screen description
The DAGYEE Compact Packaged Rotary Drum Screen System transforms the traditional paradigm of wastewater screening installation from a complex, time-intensive field construction project into a streamlined, plug-and-play operation. This completely integrated solution arrives at your site as a single, factory-assembled unit containing all mechanical, electrical, and control components pre-mounted on a structural steel skid. Designed specifically for applications where installation time, space constraints, or field labor costs are critical concerns, this system dramatically reduces project timelines while ensuring optimal component alignment and system integrity through controlled factory assembly.
Externally rotary fed drum screen principle
Every aspect of this packaged system is meticulously engineered for integration and accessibility. The structural skid serves as both transport platform and permanent foundation, with all major components—rotary drum assembly, drive system, control panel, spray pump, and piping—strategically positioned for optimal weight distribution, service access, and hydraulic efficiency. Internal piping is prefabricated with precision alignment, while electrical wiring is routed in protected conduits with clearly labeled terminations. The system incorporates integrated lifting points and transport considerations, allowing for easy placement using standard rigging equipment. Upon arrival, installation requires only four fundamental connections: inlet piping, outlet piping, spray water supply (if not internally recirculated), and main power, followed by basic commissioning procedures that leverage the comprehensive factory testing already completed.
Externally rotary fed drum screen model
| Industry Type | Slot (mm) | RDS03/300 | RDS06/400 | RDS06/700 | RDS06/1000 | RDS06/1300 | RDS06/1600 | RDS08/2000 | RDS08/2500 |
|---|---|---|---|---|---|---|---|---|---|
| Paper Industry | 0.5 | 6 | 20 | 40 | 60 | 80 | 100 | 130 | 190 |
| Slaughter House | 0.5 | 4 | 15 | 30 | 45 | 60 | 75 | 95 | 130 |
| Seafood Industry | 0.75 | 5 | 17 | 35 | 50 | 70 | 90 | 110 | 140 |
| Meat Industry | 0.75 | 6 | 20.5 | 40 | 60 | 80 | 100 | 130 | 190 |
| Meat Industry | 1.0 | 7.5 | 25 | 50 | 75 | 100 | 125 | 150 | 220 |
| Vegetable Industry | 1.0 | 12 | 40 | 75 | 110 | 150 | 180 | 220 | 330 |
Externally rotary fed drum screen advantage
-
Dramatically Reduced Installation Timeline: Cuts typical field installation time from weeks to days—often achieving 80% reduction—by eliminating field assembly, alignment, and fabrication work.
-
Significant Cost Savings on Field Labor: Reduces required field labor hours by 70-85%, minimizing expensive trade coordination and overtime requirements while accelerating project completion.
-
Elimination of Field Assembly Errors: Controlled factory environment ensures perfect alignment, proper component orientation, and correct assembly procedures that are difficult to guarantee in field conditions.
-
Enhanced System Reliability and Performance: Factory testing under simulated operational conditions identifies and resolves issues before shipment, ensuring optimal performance from initial startup.
-
Simplified Project Management: Single-source responsibility for the complete system reduces coordination complexity between multiple vendors and trades during installation.
-
Minimized Site Disruption: Compact footprint and quick installation reduce the duration and extent of construction activities in operational facilities or constrained sites.
-
Predictable Project Scheduling: Factory-controlled assembly provides reliable delivery timelines independent of weather conditions or field labor availability fluctuations.
-
Future Relocation Flexibility: Designed as a complete unit that can be disconnected, transported, and reinstalled at a new location with minimal rework or recommissioning requirements.
Externally rotary fed drum screen feature
-
Complete Single-Skid Design: All major components mounted on a reinforced steel skid with engineered lifting points, corrosion-resistant coatings, and integrated drain provisions for easy dewatering during maintenance.
-
Factory Pre-Assembly and Alignment: Complete mechanical assembly including drum mounting, drive system installation, and component alignment performed under controlled factory conditions using precision measurement equipment.
-
Pre-Fabricated Piping System: All internal piping cut, fitted, welded, and pressure tested at the factory, with flanged connections for quick field attachment to plant piping.
-
Pre-Wired Control System: Complete control panel with PLC, HMI interface, motor starters, and protection devices installed and tested, with clearly labeled external connection points for power and instrumentation.
-
Integrated Auxiliary Equipment: Includes internally mounted spray water pump (when specified), solenoid valves, pressure regulators, and filtration systems as required for complete operational readiness.
-
Comprehensive Factory Testing: Each unit undergoes full operational testing including hydrostatic pressure testing, rotation testing under load, spray system verification, and control sequence validation before shipment.
-
Optimized Maintenance Accessibility: Strategic component placement with designated service aisles, removable access panels, and integrated maintenance platforms where required by system size.
-
Modular Expansion Capability: Designed to allow future addition of complementary equipment such as screenings washers, compactors, or conveyors without major structural modifications.
-
Detailed Documentation Package: Includes as-built drawings, installation manual with step-by-step pictorial guides, testing reports, and complete spare parts lists with exploded assembly diagrams.
Why Choose DAGYEE?
Our packaged system expertise originates from understanding the real-world challenges of field installation. We employ advanced 3D modeling software to optimize component layout for both performance and serviceability before any metal is cut. Our fabrication facility includes dedicated assembly bays with overhead cranes, precision alignment tools, and testing stations specifically designed for complete system assembly. Each project undergoes rigorous design reviews focusing on installation sequencing, maintenance access, and future expandability. Our technical documentation is developed specifically for field technicians, with clear visual guides and troubleshooting procedures. This comprehensive approach ensures that what works perfectly in our factory performs equally flawlessly at your site.
Externally rotary fed drum screen application
-
Retrofit and Upgrade Projects: Ideal for existing treatment plants requiring screening upgrades without extended shutdowns or major civil modifications.
-
Space-Constrained Urban Sites: Perfect for satellite treatment facilities, pump station upgrades, or urban redevelopment projects where available footprint is severely limited.
-
Decentralized and Distributed Treatment: Excellent solution for housing developments, industrial parks, or institutional campuses implementing localized wastewater treatment.
-
Emergency or Temporary Treatment Needs: Quickly deployable for emergency response situations, construction site water management, or temporary treatment during plant renovations.
-
Remote or Offshore Installations: Minimizes field labor requirements for sites with limited skilled labor availability or challenging logistics, such as mining camps, offshore platforms, or island communities.
-
Pilot and Demonstration Projects: Provides complete, operational systems for technology demonstration, treatability studies, or temporary capacity additions while permanent facilities are constructed.
Supplier Information
Transform installation complexity into operational simplicity. The DAGYEE Compact Packaged Rotary Drum Screen System delivers faster project completion, lower implementation costs, and guaranteed performance from day one.
Upgrade Your Pretreatment with DAGYEE Externally Fed Drum Screens – Ensuring Efficient and Reliable Solids-Liquid Separation.
