Description
Why Plastic Static Mixer

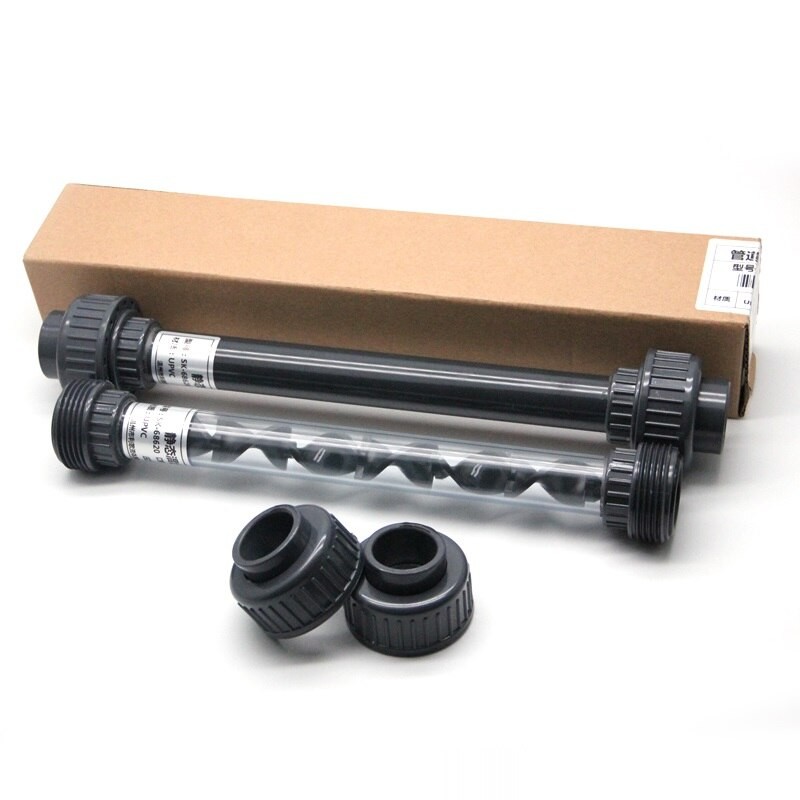

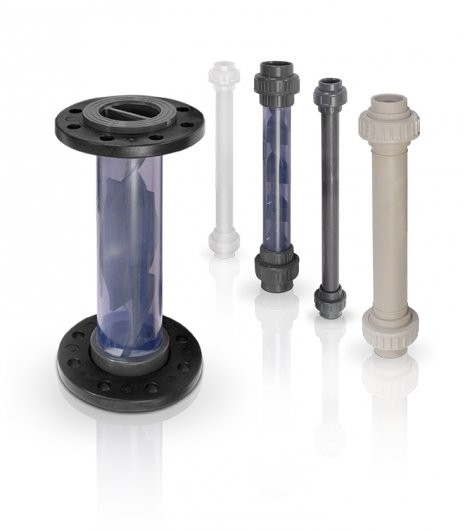

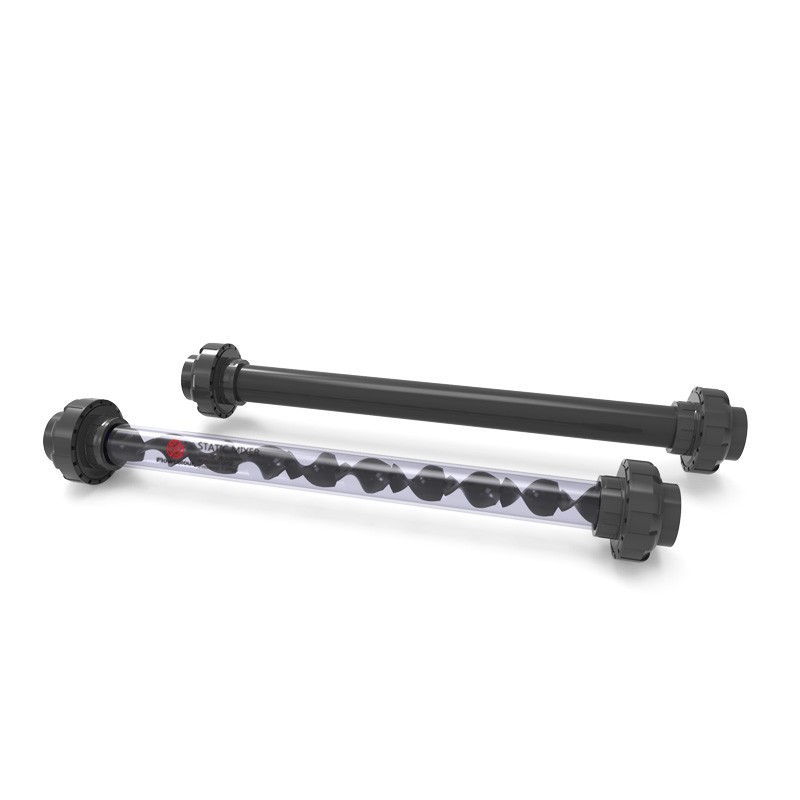

For corrosive liquids like acids alkalis and aggressive chemicals stainless steel mixers are expensive and still susceptible to corrosion over time. DAGYEE Plastic Static Mixer made from PVC or PP offers excellent chemical resistance at a fraction of the cost. Lightweight easy to install and maintenance free.
Model
Applicability
Re SD
Often suitable for mixing, reaction and extraction of low and medium viscosity fluids. Solid-liquid mixing and gas-liquid mixing are also applicable. Medium viscosity ≤ 10⁵ cP, can be accompanied by less impurities.
Re SK
Often suitable for various viscosity liquids or liquid-solid and liquid-gas mixing, reaction, extraction, absorption, injection molding, heat transfer and more. Viscous media with small flow rate and impurities are especially suitable. Medium viscosity ≤ 10⁶ cP.
Re SL
Often suitable for heat exchangers with viscosity ≤ 10⁶ cP or for polymer media mixing, heat transfer, mixing and thermal reaction simultaneously.
Re SY
Often suitable for mixing, reaction, heat transfer and other processes of medium and low viscosity. Medium viscosity ≤ 10⁶ cP.
How does a Static Mixer work?

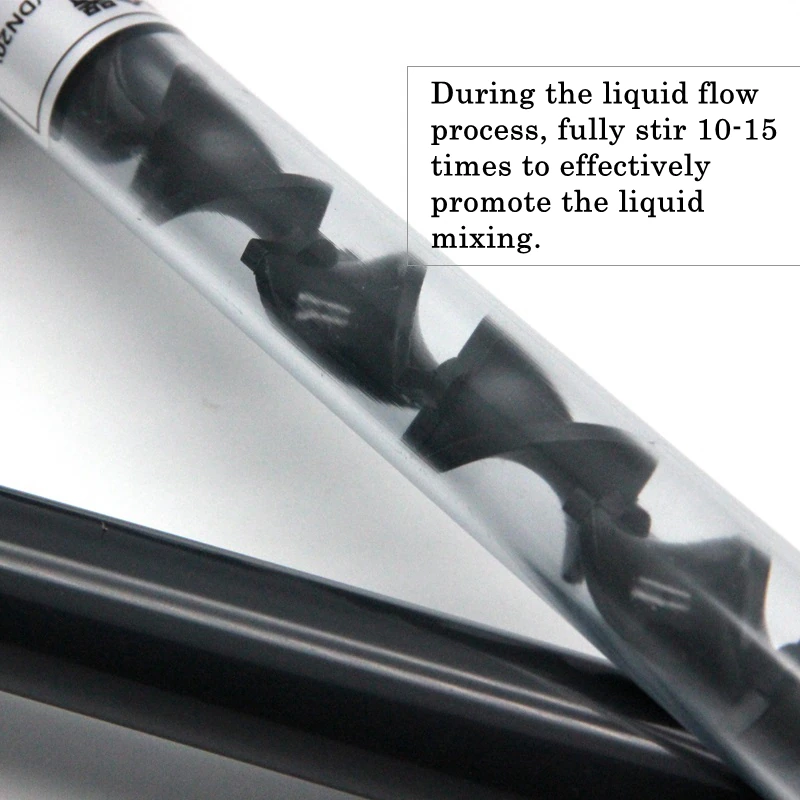

A static mixer works by using fixed internal elements to continuously blend two or more fluid streams as they flow through the mixer. Unlike dynamic mixers which use moving parts or motors a static mixer has no moving components. The fluid passes through specially designed helical or corrugated elements which divide recombine and rotate the flow creating radial mixing and uniform dispersion. The result is consistent homogeneous output regardless of flow rate variations. The DAGYEE SK Series uses a single helical twist element that operates efficiently at low pressure drop and low shear making it ideal for high viscosity and shear sensitive fluids.
Flow Regimes:
-
Laminar Flow Mixing (Low Reynolds Number): Achieved through flow division and radial redistribution.
-
Turbulent Flow Mixing (High Reynolds Number): Enhanced by eddy formation and chaotic advection.
-
The degree of mixing depends on the number of elements and the mixer’s geometric design.

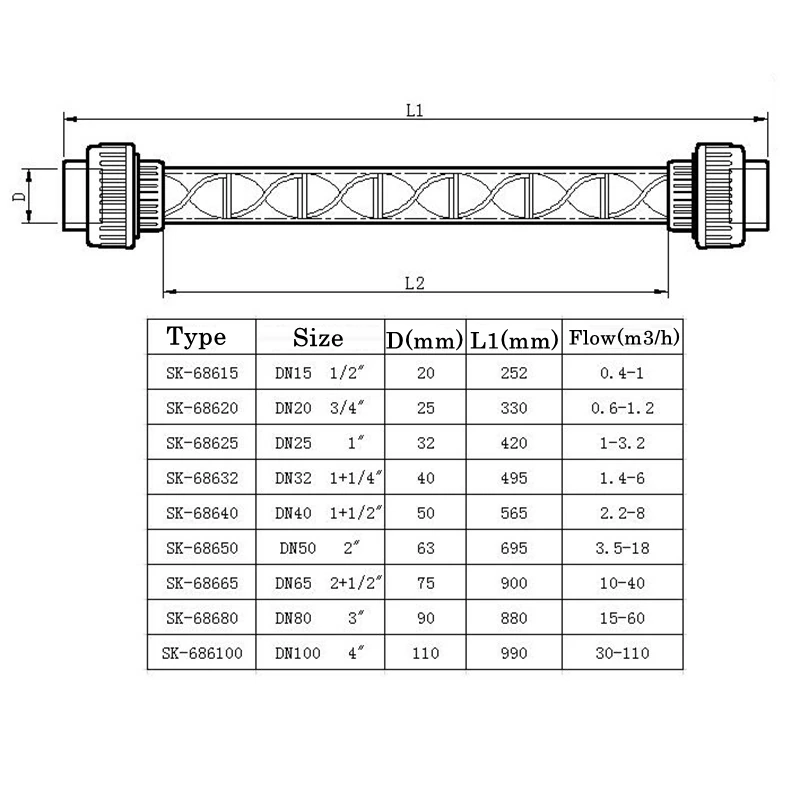

Static Mixer specifications
High Pressure vs Standard Static Mixer
| Feature | Standard Mixer | High Pressure Mixer |
|---|---|---|
| Max Pressure | 1.0 MPa | 10 MPa (up to 25 MPa optional) |
| Wall Thickness | Standard | Reinforced |
| Connection | Tri Clamp / Threaded | Flanged (heavy duty) |
| Testing | Standard | Hydrostatic 1.5x rated |
| Application | General industrial | Oil gas high pressure systems |
| Cost | Lower | Higher (due to materials and testing) |
Static Inline Mixer Option
DAGYEE offers complete flexibility for your static inline mixer needs
Material Options
- SUS304 – Best value for general industrial non corrosive fluids
- SUS316L – High corrosion resistance for acids alkalis salt water and sanitary applications
- Hastelloy – Extreme corrosion resistance for high chloride environments and seawater
- PVC / PP – Cost effective for mild acids alkalis and low pressure systems
Connection Options
- Tri Clamp – Quick connect disconnect no dead legs easy cleaning for sanitary applications
- Flanged – High pressure reliability up to 1.0 MPa for large diameter piping
- Threaded BSP – Low cost easy installation for small diameter tight spaces
- JIC Fitting – High pressure hydraulic connections
- Plain Ends – Welded directly into piping for zero leak points
Construction Options
- Fixed welded – Highest reliability no leak points lower cost suitable when frequent cleaning not required
- Removable – Easy to remove and clean for regular cleaning sticky media and sanitary applications
Polishing Options
- Standard finish for general industrial use
- Ra≤0.8μm electropolished for food dairy pharmaceutical applications
- CIP compatible surface finish for easy cleaning
Jacket Option
- Heating or cooling jacket for temperature control applications
- SK type for high viscosity SX type for medium viscosity fluids
Plastic vs Metal – When to Choose
| Consideration | Plastic Mixer | Stainless Steel Mixer |
|---|---|---|
| Acid Resistance | Excellent | Limited |
| Alkali Resistance | Excellent | Good |
| Cost | Low | High |
| Weight | Light | Heavy |
| Temperature Limit | Low (50-80°C) | High (300°C) |
| Pressure Limit | Low (0.6-1.0 MPa) | High (1.0-10 MPa) |
| Best For | Corrosive chemicals low temp | High temp high pressure |
Why choose the DAGYEE Static Mixer?
1. Excellent Chemical Resistance
PVC and PP resist most acids alkalis and salt solutions that would quickly corrode metal mixers.
2. Low Cost
Significantly cheaper than stainless steel or Hastelloy mixers making them ideal for corrosive applications.
3. Lightweight
Easy to handle install and replace. No heavy lifting equipment needed.
4. No Corrosion
Plastic will not rust or corrode even in continuous contact with aggressive chemicals.

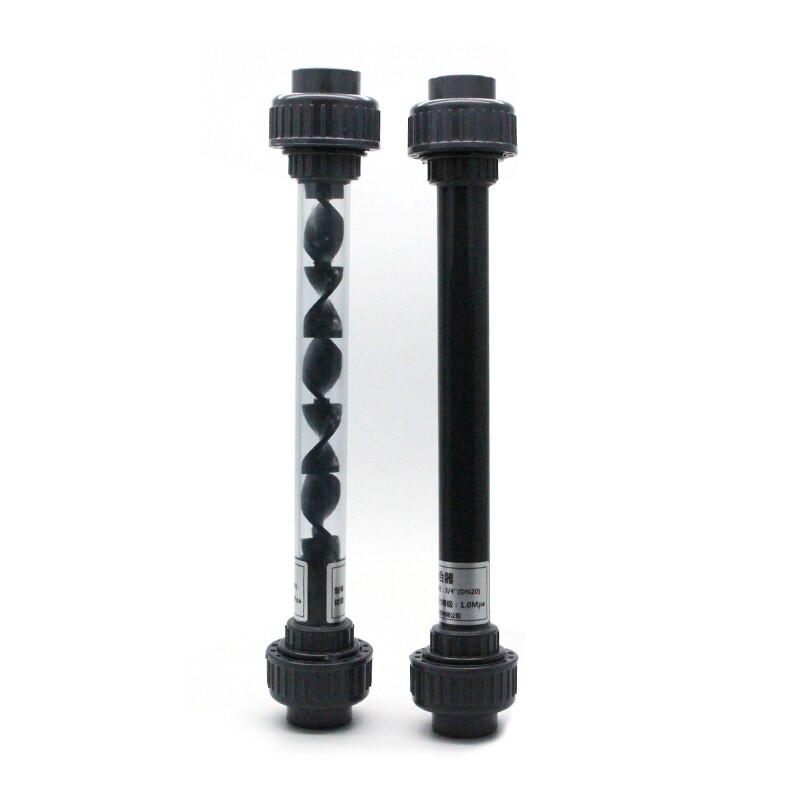

5. Transparent Option Available
Clear PVC allows visual inspection of flow and mixing.
6. Maintenance Free
No moving parts. No seals to replace. No lubrication required.
DAGYEE static mixers are engineered for precision, reliability, and efficiency across a wide range of industrial applications. Here’s why we stand out:
| Feature | Traditional Mixer | DAGYEE Static Mixer |
|---|---|---|
| Energy Consumption | High (motor-driven required) | Zero (utilizes fluid kinetic energy) |
| Maintenance Cost | High (bearings and seals prone to wear) | Ultra-low (no moving parts) |
| Floor Space Requirement | Large (needs mixing tank) | Small (installed inline within pipelines) |
| Mixing Time | Minute-level | Second-level |
| Scale-up Effect | Significant | Almost negligible |
Model Selection for High Pressure
| Feature | Standard Mixer | High Pressure Mixer |
|---|---|---|
| Max Pressure | 1.0 MPa | 10 MPa (up to 25 MPa optional) |
| Wall Thickness | Standard | Reinforced |
| Connection | Tri Clamp / Threaded | Flanged (heavy duty) |
| Testing | Standard | Hydrostatic 1.5x rated |
| Application | General industrial | Oil gas high pressure systems |
| Cost | Lower | Higher (due to materials and testing) |
Static Mixer applications
| Industry | Application | Recommended Type |
|---|---|---|
| Oil and Gas | Heavy fuel oil, lubrication, grease, wax blending | SK Series |
| Food and Beverage | Dairy products, yogurt, syrup, sauce, ketchup | SK Series with polishing |
| Pharmaceutical | Syrup, active ingredient mixing, sanitary blending | SK Series with electropolish |
| Water Treatment | Chemical dosing, PAC, PAM, chlorine mixing | SV Series |
| Chemical Processing | Emulsification, dispersion, liquid-liquid mixing | SV Series |
| Gas Mixing | Air, NOx, natural gas, oxygen blending | SV Series |
| Pulp and Paper | Coating additive blending, stock mixing | SX Series |
| Cosmetics | Cream, lotion, gel homogenization | SK Series low shear |
- Specific applications include
- High viscosity fluids up to 10⁶ cP (grease wax heavy oil)
- Dirty fluids containing particles or impurities (slurry wastewater)
- Shear sensitive materials (yogurt cream live cultures)
- Clean fluid emulsification and dispersion (oil in water water in oil)
- Gas gas mixing or gas liquid dispersion
- Temperature control applications with heating or cooling jacket
- Hygienic applications requiring CIP cleaning
Chemical Compatibility Guide
| Chemical | PVC | PP |
|---|---|---|
| Hydrochloric Acid (HCl) | Excellent | Excellent |
| Sulfuric Acid (H2SO4) | Good (up to 50%) | Excellent |
| Nitric Acid (HNO3) | Fair | Good |
| Phosphoric Acid | Excellent | Excellent |
| Sodium Hydroxide (NaOH) | Excellent | Excellent |
| Chlorine Water | Good | Excellent |
| Seawater | Excellent | Excellent |
| Organic Solvents | Poor | Good |
| Oils | Good | Good |
Supplier Information
Company Name DAGYEE
Location China
Established Over 10 years of experience in static mixer manufacturing
Main Products SK Series static mixer SV Series static mixer SX Series static mixer Sanitary static mixer Jacketed static mixer
Materials SUS304 SUS316L Hastelloy PVC PP
Certification CE available
Lead Time 10 to 15 days depending on quantity and customization
Shipping Worldwide shipping by sea air or express
Payment Terms T/T Western Union
After Sales Service Technical support installation guidance replacement parts supply
Advantage Factory direct pricing full customization fast response quality guarantee
We are a professional supplier specializing in high-efficiency Static Mixer, offering customized engineering solutions, bench-scale testing services, and robust equipment designed for demanding industrial and municipal applications.
Contact us today for a free application review and mixer selection recommendation!
