Description
Submersible Mixers Description

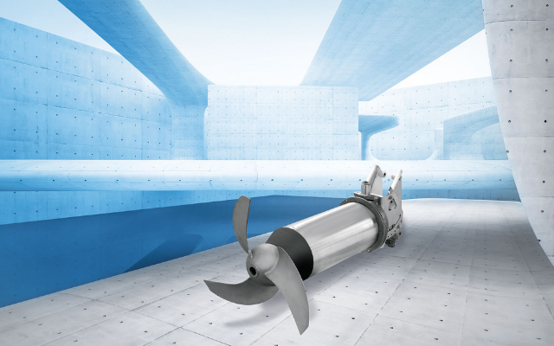

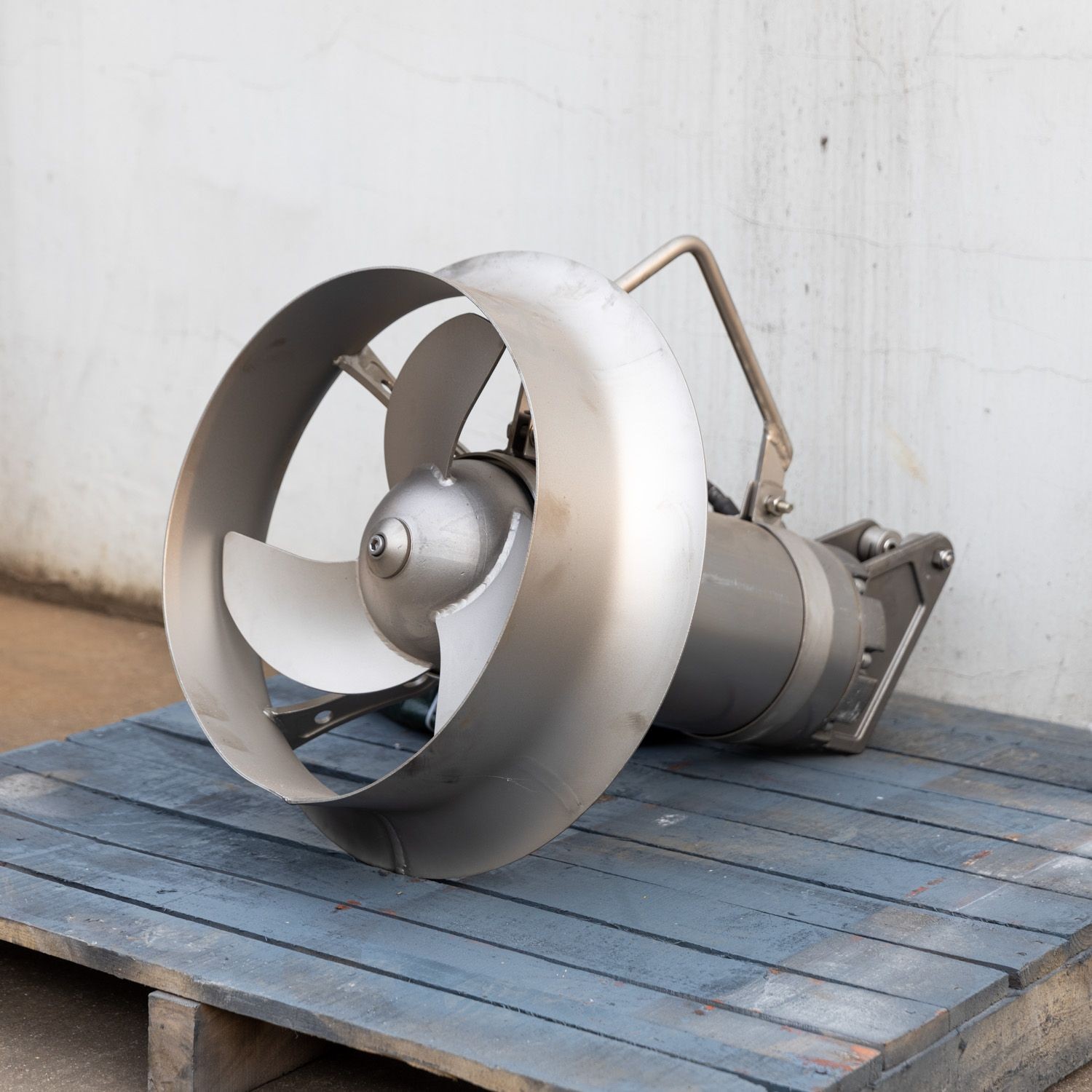

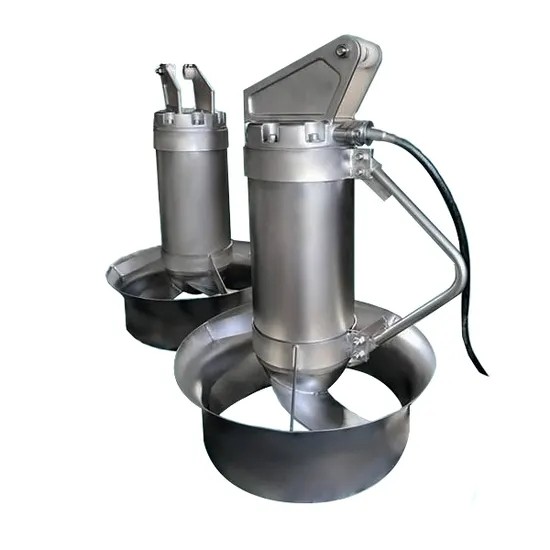

The Dagyee high thrust low speed submersible mixer is a professionally optimized water treatment mixing equipment, tailor-made for large-volume water tanks, high sludge concentration and large-flow water circulation working conditions. Different from conventional high-speed mixers, this product adopts a large-diameter hydrofoil impeller and low-speed high-torque motor design, which converts mechanical power into powerful water flow thrust efficiently rather than high-speed rotation. The whole machine adopts an integrated waterproof and sealed structure, with F-class insulated motor and upgraded dual mechanical seal system, supporting long-term 24-hour continuous submersible operation in deep water and high-viscosity sludge environments. The polished wide-blade impeller features ultra-low resistance and anti-flocculation structure, which will not damage activated sludge flora in biochemical tanks, while effectively solving the problems of local dead zones and sludge sedimentation in large-scale sewage treatment systems.
Submersible Mixers principle
Component
- Motor
- Upper bearing
- Seal monitoring&indication
- Solids deflection ring
- Mechanical seal
- Axial flow propeller
- Bracket
- Control System
- Corrosion resistant shell
The operating principle centers on converting electrical energy into controlled hydrodynamic flow. The motor drives an impeller (typically a three-blade propeller or specialized mixing disc) that rotates at optimized speeds. This rotation creates a powerful axial or radial flow pattern, generating a directional current within the vessel. This current ensures complete circulation, preventing sedimentation, maintaining solids in suspension, equalizing temperature and concentration gradients, and enhancing chemical or biological reactions by ensuring uniform contact between components.
| Componente | Material |
|---|---|
| Shell | Stainless steel/GG25 cast iron |
| Impeller | Stainless steel/Fiberglass Polyurethane |
| Shaft | ASTM431 or 420 stainless steel |
| Mechanical seal | Corrosion resistant cemented tungsten carbide/or silicon carbide |
| Guide rod | ASTM304 Stainless steel |
| Lifting bracket | ASTM304 Stainless steel |
| Lifting cable | ASTM304 Stainless steel |
| Fasteners | ASTM321 Stainless steel |
Submersible Mixers Parameter
| Model | Power (kW) | Current (A) | Rotary speed (rpm) | Impeller diameter (mm) | Force (N) | Weight (kg) |
|---|---|---|---|---|---|---|
| SMB0.85/8-260/3-740/C/S | 0.85 | 3.4 | 740 | 260 | 163 | 55/58 |
| SMB1.5/6-260/3-980/C/S | 1.5 | 4.4 | 980 | 260 | 290 | 55/58 |
| SMB2.2/8-320/3-740/C/S | 2.2 | 5.9 | 740 | 320 | 582 | 74/77 |
| SMB4/6-320/3-980/C/S | 4 | 10.8 | 980 | 320 | 609 | 74/77 |
| SMB1.5/8-400/3-740/S | 1.5 | 5.6 | 740 | 400 | 382 | 76/80 |
| SMB2.5/8-400/3-740/S | 2.5 | 7.3 | 740 | 400 | 575 | 76/80 |
| SMB3/8-400/3-740/S | 3 | 8.6 | 740 | 400 | 642 | 78/82 |
| SMB4/6-400/3-980/S | 4 | 10.3 | 980 | 400 | 1010 | 80/84 |
| SMB4/12-620/3-480/S | 4 | 14 | 480 | 620 | 1230 | 240/245 |
| SMB5/12-620/3-480/S | 5 | 18.2 | 480 | 620 | 1420 | 240/245 |
| SMB7.5/12-620/3-480/S | 7.5 | 28 | 480 | 620 | 1963 | 255/270 |
| SMB10/12-620/3-480/S | 10 | 32 | 480 | 620 | 2361 | 255/270 |
Energy-saving Submersible Mixers Selection
This high thrust low speed submersible mixer is the optimal selection for large-scale municipal sewage plants, high-concentration sludge tanks and centralized water treatment projects. It is specially designed for deep water bodies and large-capacity tank equipment that require long-distance water circulation and overall homogenization. Compared with matching multiple small-power high-speed mixers, this single high-thrust model can cover a larger mixing area, greatly reducing overall equipment matching quantity and comprehensive power consumption. It is suitable for water bodies with high sludge viscosity, high suspended solid content and low flow rate requirements, perfectly adapting to aerobic, anoxic and denitrification process links that require stable water flow and protection of sludge activity, achieving better energy-saving and operational stability effects than traditional mixing equipment.
Submersible Mixers Installation Method

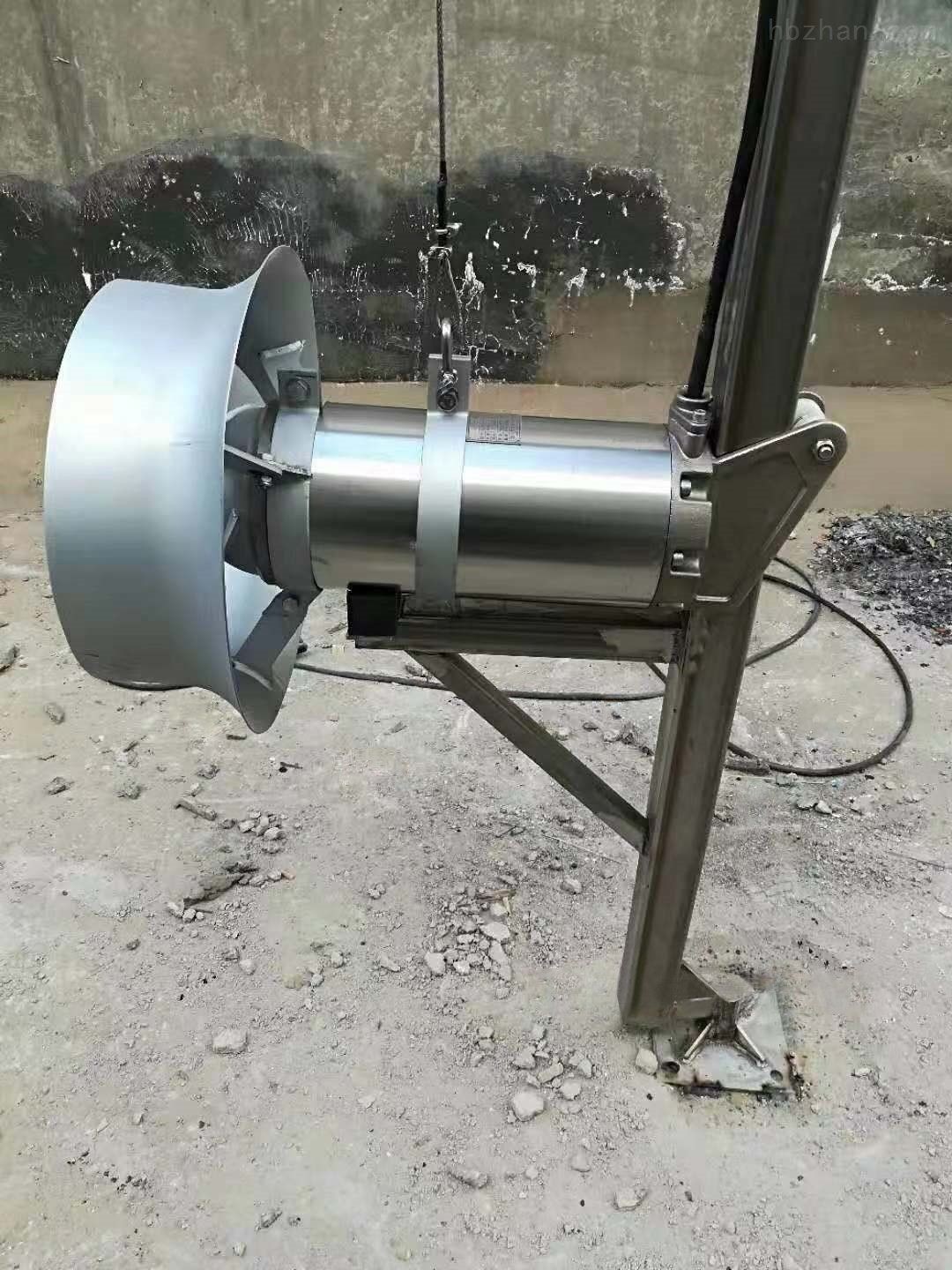

Dagyee high thrust low speed submersible mixer adopts heavy-duty reinforced guide rail lifting installation as the standard configuration, which is upgraded for high water flow impact and large thrust operation scenarios. The entire installation system is composed of thickened stainless steel guide rails, high-strength anti-shake brackets, reinforced fixed bases and anti-loose locking parts, which can effectively resist strong water flow impact and avoid equipment shaking and displacement during long-term operation. The modular lifting structure supports free underwater lifting and lowering, enabling daily inspection, fault maintenance and equipment replacement without draining tank water or shutting down the treatment system, which greatly improves project operation efficiency and reduces later maintenance costs. Meanwhile, adjustable angle installation is available according to tank structure and process requirements to realize directional water circulation and eliminate mixing dead angles.
Submersible Mixers Factor
- Selection Factor: Priority to confirm the effective volume, water depth and structural layout of the water tank, match impeller diameter and motor power according to sludge concentration and water body viscosity, and ensure the thrust can cover the entire tank circulation range.
- Operation Factor: Keep the standard submersible depth during operation, avoid long-term shallow water operation which causes insufficient thrust, and prevent equipment floating and idle rotation caused by water level fluctuation.
- Safety Factor: Firmly fix the guide rail and base to resist strong water flow impact; avoid overload operation in ultra-high concentration sludge to prevent motor stalling and component damage.
- Maintenance Factor: Regularly check impeller wear, sealing tightness and motor operating temperature, clean attached sludge and sundries regularly to maintain stable hydraulic performance.
Submersible Mixers Features
- Super Wide Circulation Coverage: Large-diameter low-speed impeller outputs strong axial thrust, forming large-scale three-dimensional water circulation, completely eliminating sedimentation dead zones in large and deep water tanks.
- Sludge Activity Protection: Low-speed stable operation avoids high-speed impact and shear damage to activated sludge flora, ensuring the stability of biochemical treatment effect and improving sewage purification efficiency.
- High Energy-Saving Performance: High-torque low-power design reduces invalid power consumption, saving 25%-30% energy compared with traditional high-speed mixers for the same working condition, with lower long-term operating costs.
- Stable & Durable: Heavy-duty body structure, low vibration and ultra-low noise operation, strong overload resistance, suitable for long-term uninterrupted operation of large sewage treatment projects, with low failure rate and long service life.
- Anti-Blocking Design: Streamlined wide-blade impeller is not easy to wind fibers and adhere to sludge, realizing self-cleaning effect and reducing manual maintenance frequency.
Submersible Mixers Application
- Municipal Sewage Treatment: Widely used in large-scale sewage plant anaerobic tanks, anoxic tanks, aeration tanks and denitrification tanks for water homogenization and anti-sedimentation circulation.
- High-Concentration Sludge Treatment: Suitable for sludge storage tanks, sludge concentration tanks and regulating tanks with high sludge viscosity to prevent sludge deposition and stratification.
- Large Water Body Circulation: Applied to large industrial circulating water tanks, reservoir water bodies and centralized environmental protection water treatment projects to realize overall water quality balance.
- Biochemical Process Support: Cooperate with aeration systems to optimize water flow distribution, improve oxygen utilization rate and enhance the overall treatment capacity of sewage systems.
Supplier Information
Dagyee, as a professional manufacturer of high-efficiency water treatment mixing equipment, has independent R&D and production capabilities for high thrust low speed submersible mixers. All products adopt optimized hydraulic design and strict industrial-grade production standards, and have passed CE, ISO international certifications, meeting global project export requirements. We provide one-stop professional services including accurate working condition selection, hydraulic scheme design, personalized installation customization and overseas technical guidance. With factory direct sales, reliable product quality and perfect after-sales guarantee, our high-thrust mixers have been widely applied in large municipal and industrial sewage treatment projects worldwide, gaining consistent recognition and trust from global engineering contractors and end users.
Contact us today for a free application review and mixer selection recommendation!
