Decanter Centrifuge Selection Guide: 7 Things You Must Know for Sludge Dewatering

Municipal Sludge Dewatering: How Decanter Centrifuges Achieve 24/7 Continuous Operation

One of the biggest headaches in municipal wastewater treatment plants is sludge dewatering.
Sludge keeps coming in every single day. If the dewatering equipment fails, the whole system grinds to a halt. Other equipment can be down for a while, but sludge dewatering can't — the tanks fill up, downstream processes stop, and the entire plant shuts down.

That's why, for municipal WWTPs, the number one consideration when choosing sludge dewatering equipment is: Can it run continuously without interruption?

1. Why Is Municipal Sludge So Difficult to Dewater?
Municipal sludge has two inherent characteristics that make it challenging to process:
First, low concentration. After aeration treatment, municipal sludge typically has a solids content of only 0.4%–0.85%. At such low concentrations, conventional dewatering equipment struggles to produce a decent cake. Any experienced engineer knows that when feed solids drop below 1%, centrifuge dewatering efficiency falls off sharply.
Second, fine particles. Municipal sludge is mainly composed of microbial flocs — fine particles with high water retention and low specific gravity. Fine particles are harder to settle; without sufficient force, water and solids don't separate easily. That's why static screens and gravity thickeners have limited effectiveness on municipal sludge.
Third, fluctuating water quality. Influent quality at municipal plants varies with weather, pipe network conditions, and industrial wastewater infiltration. Sludge characteristics change accordingly, placing higher demands on the adaptability of dewatering equipment.
These challenges mean that traditional plate-and-frame presses process municipal sludge with low efficiency, rapid cloth blinding, and frequent shutdowns for cleaning. Many plant operators have had this experience: the plate-and-frame press runs for just a few hours before the cloth blinds — discharge, wash, re-press — half the day is gone.

2. Why Can Decanter Centrifuges Run 24/7?
The key to continuous operation lies in the operating principle of the decanter centrifuge — it uses centrifugal force, doesn't rely on filter cloth, and doesn't require periodic shutdowns.

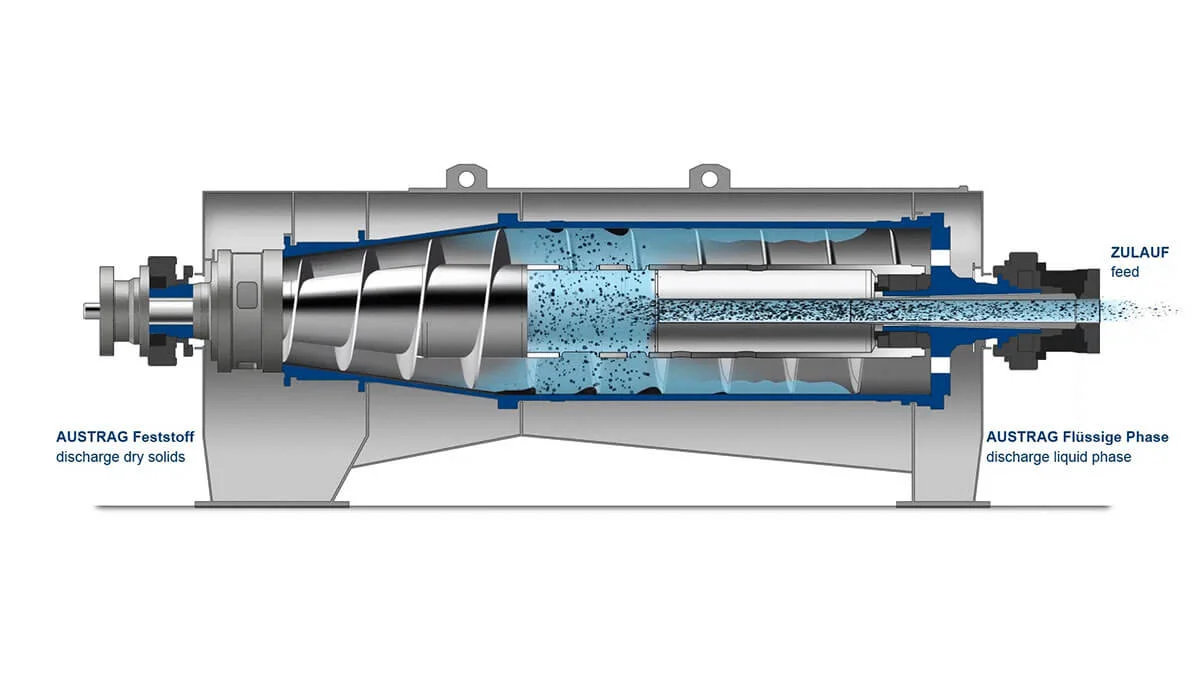

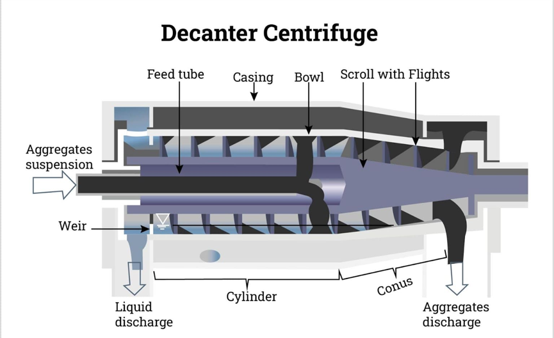

The principle is straightforward: Sludge enters the rotating bowl through the feed tube. Under centrifugal force, heavier solids are thrown to the bowl wall, while liquid forms an inner layer. The screw conveyor rotates at a slightly slower speed than the bowl (this speed difference is called "differential speed"), pushing solids along the bowl wall toward the discharge ports — continuously.
The entire process is continuous: feed, separation, solids discharge, and liquid discharge all happen simultaneously, without interruption. Sludge goes in at the feed end; cake comes out the solids discharge; clear liquid flows out the liquid discharge — there's no "stop" option in between.

The most important point: Decanter centrifuges don't rely on filter cloth. There's no "cloth is blocked, must stop and wash" step. They use centrifugal sedimentation — as long as the bowl is spinning and the screw is conveying, separation continues.

Here's a useful analogy: a plate-and-frame press is like batch pressing — press one batch, discharge one batch, stop, clean, repeat. A decanter centrifuge is like an assembly line — sludge goes in, cake comes out, no stopping.

3. DAGYEE LW Series Decanter Centrifuge — Technical Specifications

The following table lists the complete technical specifications for our LW Series decanter centrifuges for selection reference:

4. Key Operating Parameters for Municipal Sludge Dewatering

Choosing the right equipment is step one. Setting it up correctly is step two. Several parameters directly determine whether you can achieve stable cake discharge:

4.1 Differential Speed
Differential speed is the speed difference between the bowl and the screw conveyor. It determines the solids discharge rate.
If differential speed is too high, sludge retention time is short, and cake moisture content is high. If it's too low, solids discharge slows down, potentially causing plugging or even equipment damage. In practice, differential speed must be adjusted dynamically based on feed concentration and flow rate.

Test data shows that for low-concentration municipal sludge, differential speed of 3–6 r/min works well. As differential speed decreases, cake solids content increases — but beyond a certain point, further reduction yields diminishing returns. During commissioning, start low and increase gradually to find the optimum for your specific conditions.

4.2 Feed Concentration Determines Cake Quality
This is the "Achilles' heel" of municipal sludge dewatering — the lower the feed concentration, the worse the dewatering performance.
When feed solids drop to 0.426%, cake solids drop to only 20.5%. If feed concentration falls below 0.4%, cake may not even reach 20% solids. Feed concentration directly determines cake quality — they're positively correlated.

Solution: Install a thickener upstream of the centrifuge to increase feed solids. If you can raise feed solids to 3%–5%, cake solids can easily exceed 25%. This is one of the most effective ways to improve dewatering performance.

4.3 Flocculant Selection and Dosage
Municipal sludge carries a negative charge, making cationic PAM the right choice. Molecular weights of 8–12 million typically work well. Different sludge types require different polymer doses — primary sludge dewaters easily; waste-activated sludge needs higher doses.
More flocculant isn't always better. Test data shows that beyond a certain point, solids capture actually decreases with additional polymer. Since flocculant typically accounts for 30%–50% of operating costs, finding the "sweet spot" can save significant money.

We recommend a "jar test + field optimization" approach. Start with lab jar tests to determine the rough optimal dose, then fine-tune on site based on actual cake quality and centrate clarity.

4.4 Bowl Speed

Higher bowl speed means higher G-force and better dewatering — but also higher energy consumption and more wear. For municipal sludge, you usually don't need maximum speed. Running at a lower speed that still meets cake quality targets saves electricity and extends equipment life.

5. Automation Is the Key to Continuous Operation
Decanter centrifuges can run unattended thanks to their control systems.
Modern decanter centrifuges feature dual-motor, dual-VFD drives for stepless adjustment of speed and differential speed. Premium systems also include energy recovery devices that save 20%–25% of electrical energy.
The entire dewatering process — sludge feed, flocculant dosing, cake discharge — is automated via a PLC + touchscreen control system. Operators simply set parameters and conduct periodic rounds; the equipment runs itself. If an abnormality occurs (such as sudden feed concentration change or torque overload), the system automatically alerts or adjusts operating parameters to prevent damage.
In practice, one operator can manage 3–5 centrifuges simultaneously — a significant labor cost advantage.

6. What Makes a Good Decanter Centrifuge for Municipal Sludge?
When selecting a decanter centrifuge for municipal sludge, focus on these key features:
1. High L/D Ratio (≥ 4.0)

The longer the bowl relative to its diameter, the longer the sludge residence time — and the drier the cake. From the spec table, LW400-1800 (L/D 4.5) outperforms LW400-1200 (L/D 3.0) in both capacity and dewatering efficiency. For municipal sludge, L/D ≥ 4.0 is recommended — it's a critical indicator of cake quality.

2. Dual-Motor, Dual-VFD Drive

Adjustable differential speed allows adaptation to daily fluctuations in sludge characteristics. Municipal sludge isn't constant — rainy days, maintenance periods, and summer heat all change sludge properties. Dual-VFD drive gives operators the flexibility to adapt.

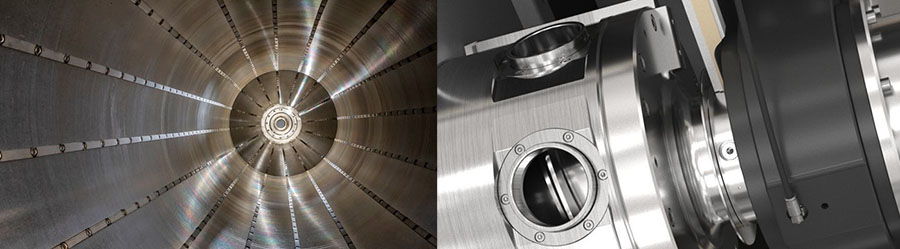

3. Wear Protection

Municipal sludge isn't as abrasive as mining slurry, but long-term wear on the bowl and screw can't be ignored. Replaceable tungsten carbide wear tiles on the screw flights and carbide inserts at the solids discharge port at least double the service life. Higher upfront cost, but far better value over the long run.

4. Fully Enclosed Operation
Municipal WWTPs face strict environmental and odor requirements. Resident complaints are a major headache for plant managers. Decanter centrifuges are fully enclosed — sludge, water, and odors stay inside, meeting environmental standards and keeping neighbors happy.

7. Real User Data
Here are actual operating data from a municipal WWTP using a DAGYEE LW450-1800 decanter centrifuge:
Project Overview: The plant has a treatment capacity of 50,000 m³/day, serving approximately 400,000 people. The original Belt filter press performed poorly with high maintenance requirements. It was replaced with a DAGYEE LW450-1800 decanter centrifuge in 2026.

Parameter	Data
Sludge type	Primary sludge + WAS (mixed)
Feed solids	2.5% – 4.0%
Capacity	8 – 15 m³/h
Differential speed	3 – 5 r/min
Bowl speed	2800 – 3000 rpm
G-force	≈ 2000 – 2300 g
Flocculant type	Cationic PAM, 10 million MW
Polymer dosage	4.0 – 5.5 kg/t DS
Cake solids	22% – 28%
Centrate SS	≤ 500 mg/L
Solids capture	≥ 97%
Daily runtime	20 – 24 hours
Stable operation	18 months

Plant feedback:

• "Since switching to the centrifuge, we haven't had a single plant shutdown caused by dewatering equipment failure."
• "Daily maintenance is just routine inspection and oil top-ups. One operator used to struggle with a single belt press; now the same person manages three centrifuges with time to spare."
• "Cake solids are stable around 25%. Haulage and disposal costs are down by nearly one-third."

Final Thoughts
The core challenge in municipal sludge dewatering — 24/7 reliability — is exactly what decanter centrifuges are built for.
No filter cloth, no frequent shutdowns, continuous centrifugal separation, and full automation for unattended operation. From our user feedback, whether it's a small 50,000 m³/day plant or a large 500,000 m³/day facility, DAGYEE LW Series decanter centrifuges deliver results.
Choose the right equipment, dial in the parameters, and keep up with routine maintenance — one decanter centrifuge is all you need for municipal sludge dewatering.
